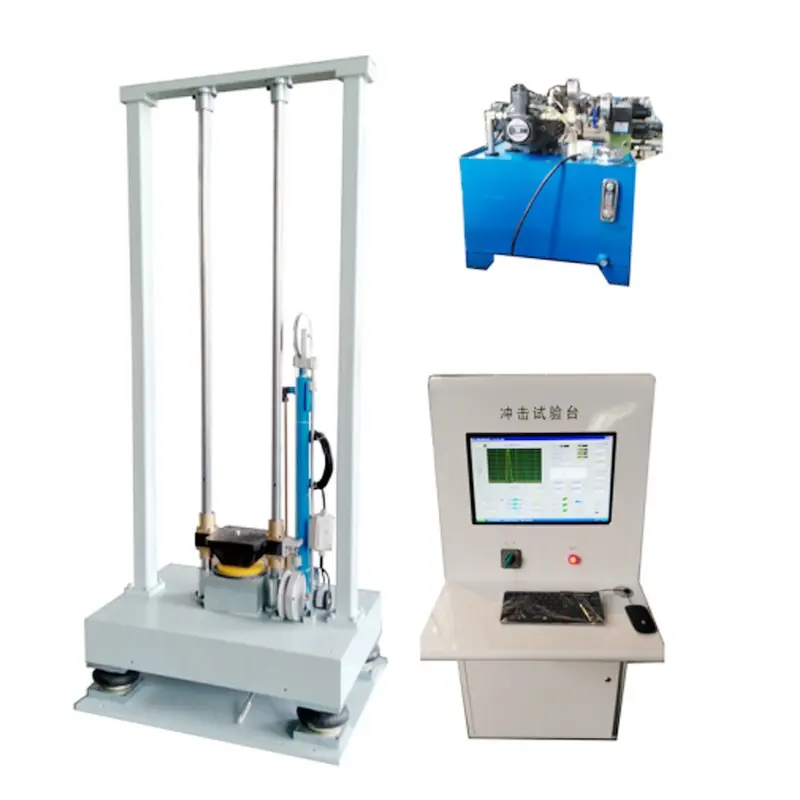

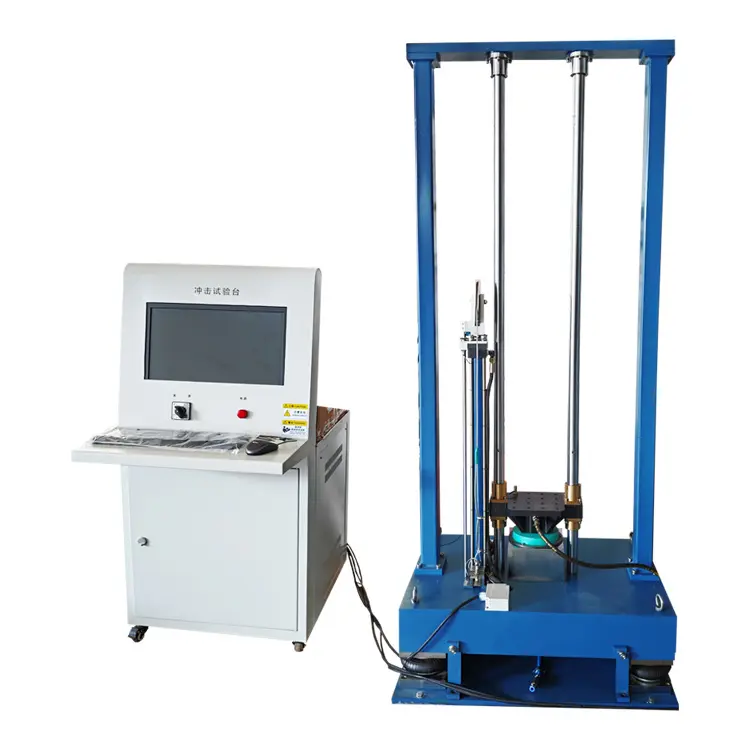

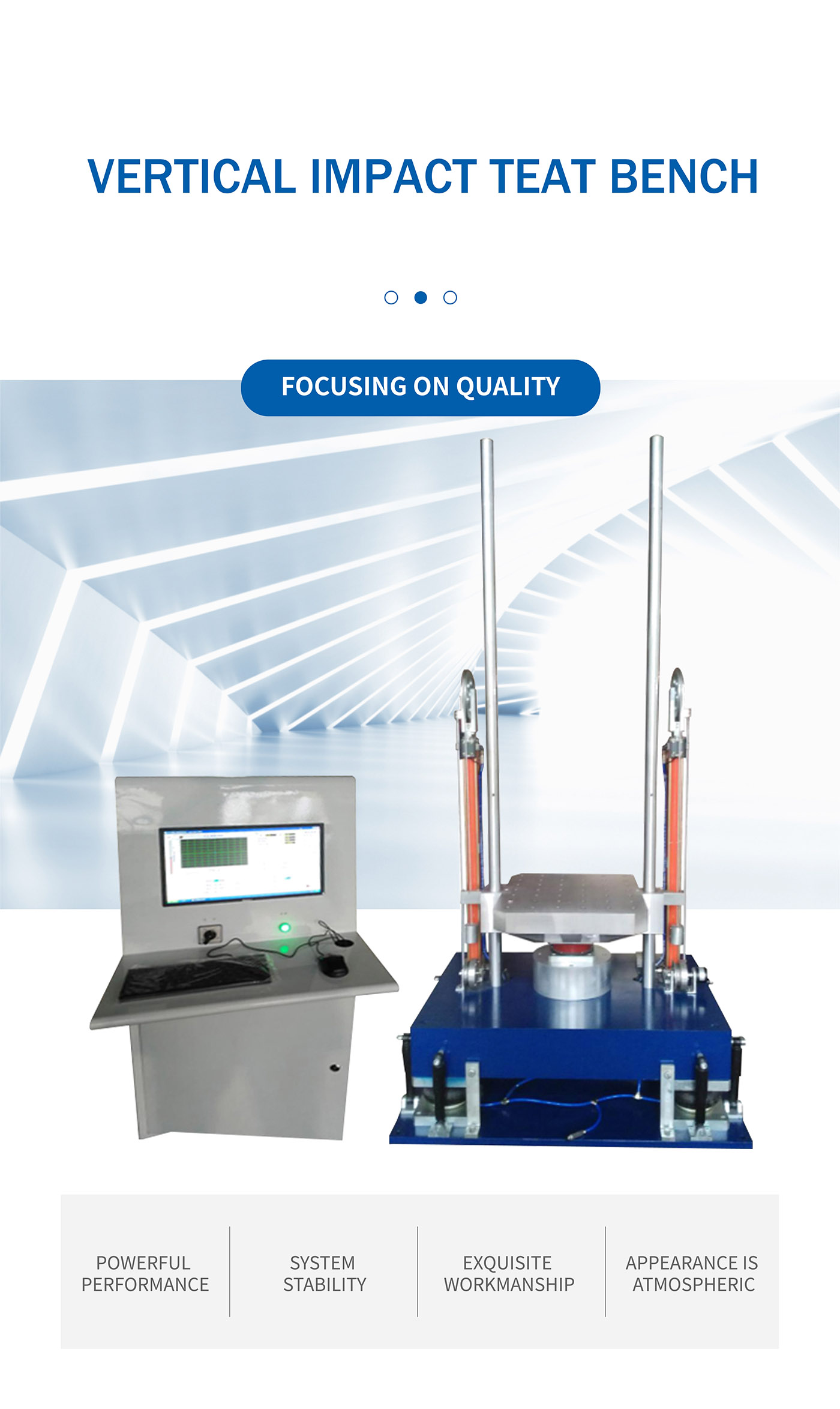

The ‌Vertical Impact Test Bench‌ is a device used to test the impact force that a product can withstand in the vertical direction. It is mainly used to evaluate the product's ability to resist impact during transportation and use, and to ensure the integrity of its structure and function.

Send Inquiry

Product Description

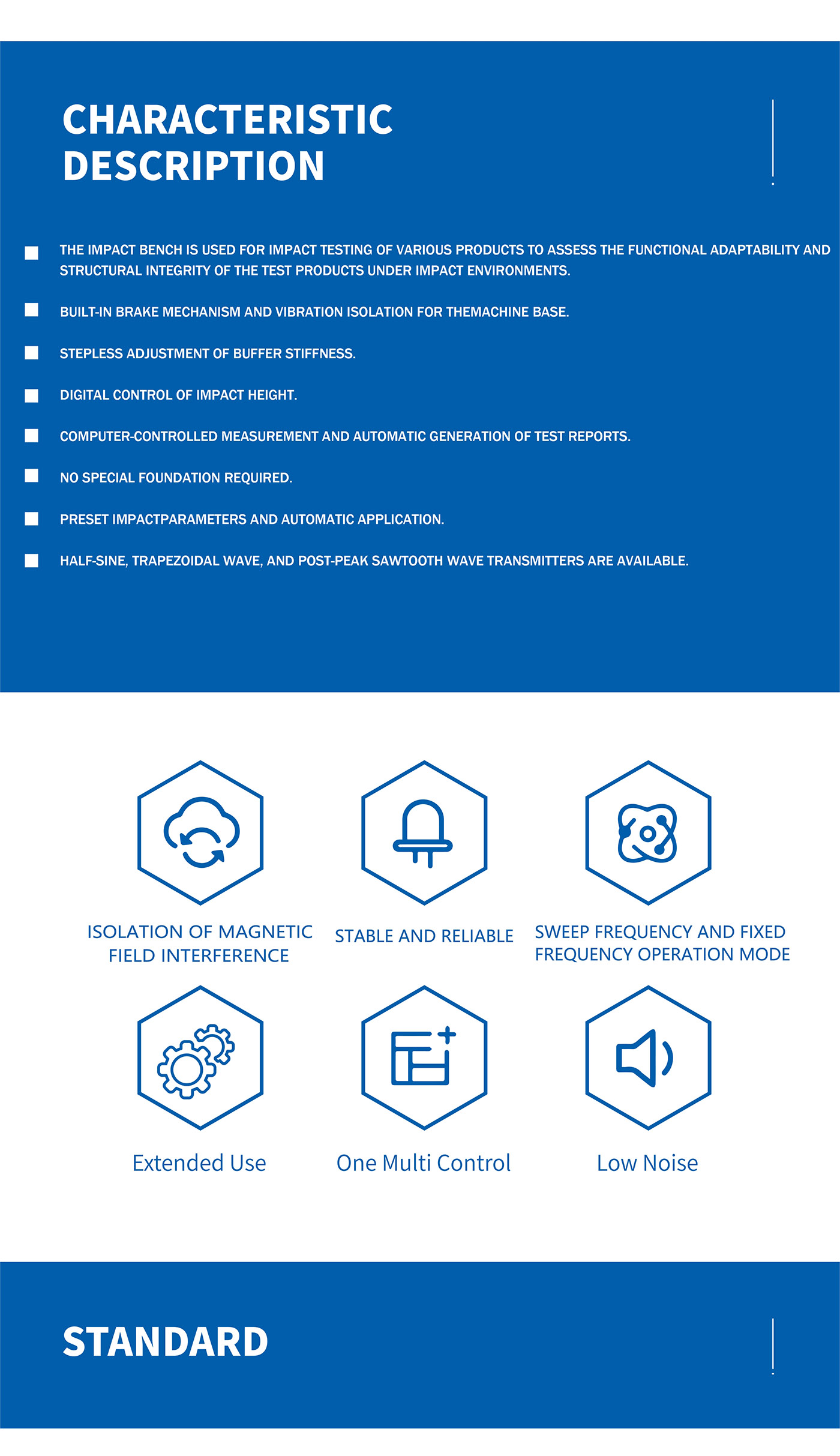

Key Features

Built-in braking mechanism avoids secondary impact and ensures the accuracy of the test.
Multiple waveform options, such as half-sine wave, post-peak sawtooth wave, trapezoidal wave, etc., to meet different test needs.
Computer-controlled measurement, automatic generation of test reports, easy operation.
No special foundation required, easy installation, saving space.
High precision and high repeatability, ensuring the reliability of test results.

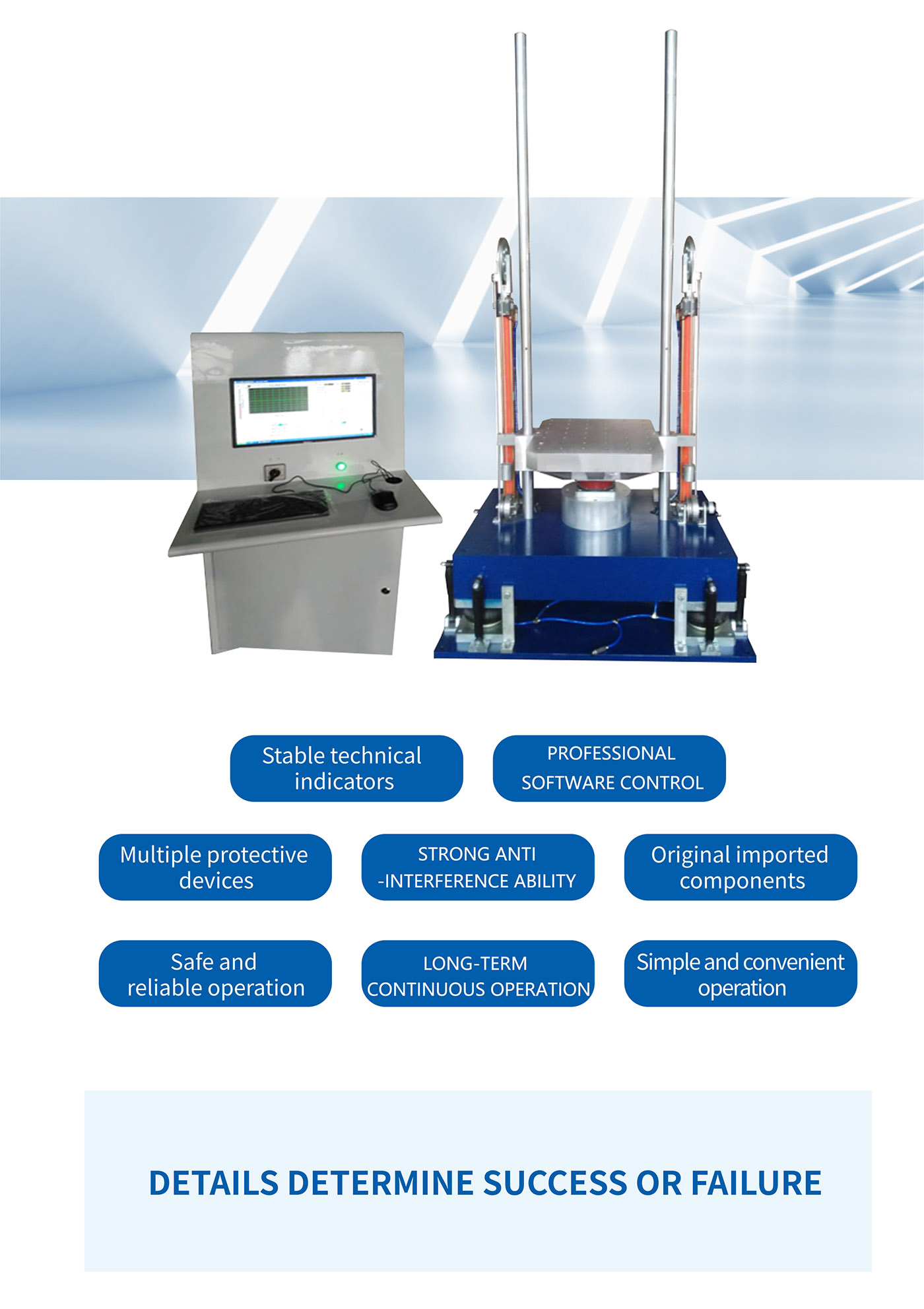

Machine Structure

This machine is designed with a shock-absorbing device, which consists of a base and an air bag to reduce the impact force of the test bench on the foundation during impact. The test piece is installed on the workbench, which is guided by two sliding guide rails installed on the base and can move up and down. The two cylinders are connected to the workbench through a pull rod installed on the piston rod.

When the cylinder is inflated, the piston rod extends and the pull rod drives the workbench to lift. During the impact, the cylinder is inflated and the workbench is lifted. When it is raised to the set height, the cylinder is quickly deflated, the workbench falls freely, and the bottom surface of the workbench hits the waveform generator, completing an impact process. By adjusting the drop height and changing the stiffness of the waveform generator, various impact test waveforms meeting the design index requirements can be obtained.

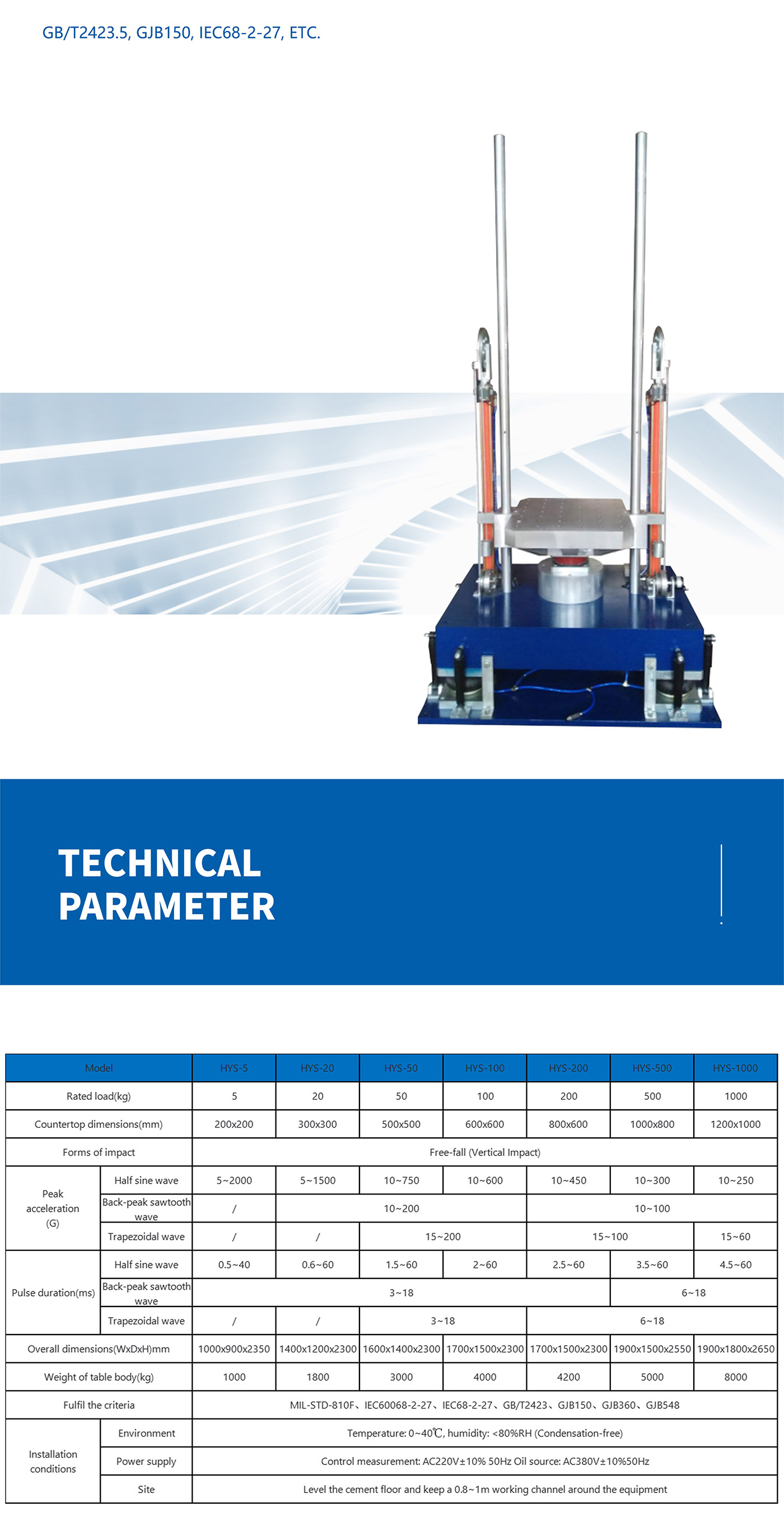

Technical Parameters

Model		HYS-5	HYS-20	HYS-50	HYS-100	HYS-200	HYS-500	HYS-1000
Rated load(kg)		5	20	50	100	200	500	1000
Countertop dimensions(mm)		200x200	300x300	500x500	600x600	800x600	1000x800	1200x1000
Forms of impact		Free-fall (Vertical Impact)
Peak acceleration (G)	Half sine	5~2000	5~1500	10~750	10~600	10~450	10~300	10~250
	Sawtooth	/	10~200			10~100
	Trapezoidal	/	/	15~200		15~100		15~60
Pulse duration(ms)	Half sine	0.5~40	0.6~60	1.5~60	2~60	2.5~60	3.5~60	4.5~60
	Sawtooth	3~18					6~18
	Trapezoidal	/	/	3~18		6~18
Dimensions(mm)		1000x900x2350	1400x1200x2300	1600x1400x2300	1700x1500x2300	1700x1500x2300	1900x1500x2550	1900x1800x2650
Weight (kg)		1000	1800	3000	4000	4200	5000	8000
Standards		MIL-STD-810F, IEC60068-2-27, IEC68-2-27, GB/T2423, GJB150, GJB360, GJB548

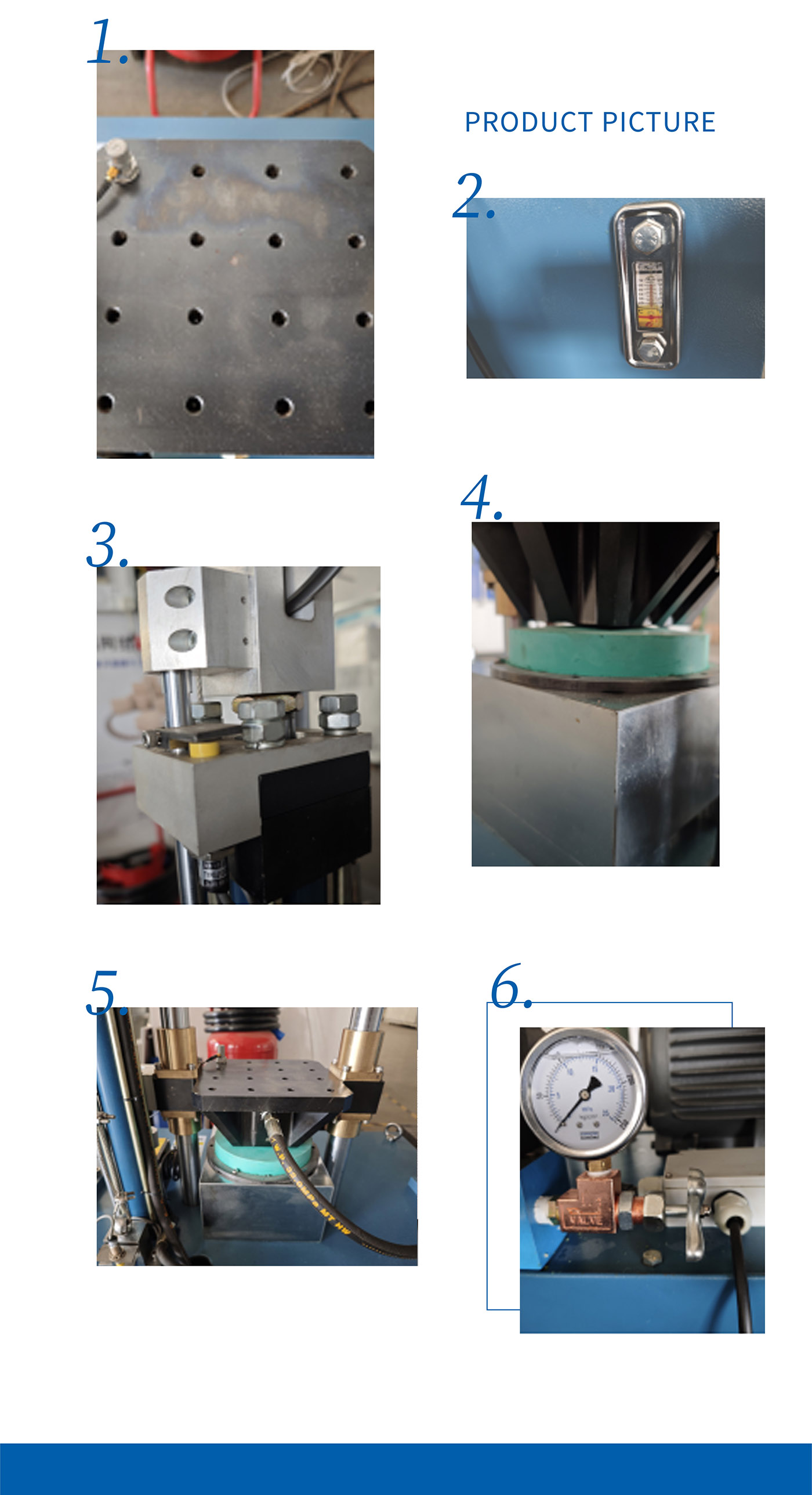

Product Display

Operation Video

Frequently Asked Questions

Q1: What types of impact waveforms can this test bench generate?

A1: The machine supports multiple waveforms including half-sine wave, post-peak sawtooth wave, and trapezoidal wave to meet various testing standards.

Q2: Does the equipment require a special foundation for installation?

A2: No special foundation is required. It features a built-in shock-absorbing device with air bags that reduce the impact force on the floor, making installation easy and space-saving.

Q3: How is the impact velocity and overload value adjusted?

A3: The impact velocity is controlled by adjusting the drop height of the workbench, while the overload value and pulse width are adjusted by changing the stiffness of the waveform generator.

Q4: Is the test report generation automated?

A4: Yes, the system features computer-controlled measurement which allows for the automatic generation of comprehensive test reports.

Q5: Which international standards does this vertical impact test bench comply with?

A5: It fulfills multiple criteria including MIL-STD-810F, IEC60068-2-27, GB/T2423, GJB150, GJB360, and GJB548.

Q6: What are the environmental requirements for installation?

A6: The equipment should be installed in an environment with a temperature of 0~40℃ and humidity below 80%RH (non-condensing) on a level cement floor.
