The turntable steady-state acceleration tester is used to determine whether the structural adaptability and performance of electronic components, small equipment and other electrical and electronic products are good under the force generated by the steady-state acceleration environment, as well as to evaluate the structural integrity of some components and to examine the electrical parameters of the test products in a constant acceleration environment.

Send Inquiry

Product Description

Product Features
1
High-precision control Rotating disc centrifugal constant acceleration testing machines are usually equipped with advanced control systems that can achieve fully automatic computer remote real-time control.
2
Versatility The equipment can perform multi-order acceleration continuous tests and is suitable for test scenarios with different requirements.
3
Protection measures It has reliable protection measures such as open circuit, over-limit, and overspeed protection to ensure the safety of the test process.
4
Result output After the test, the system will automatically generate a test report and print it out, which is convenient and fast.
5
Dynamic electrical parameter test During the test, the tested product can be powered and an electrical signal can be applied to capture the dynamic electrical parameters of the test product.
Technical Parameters
Model HYZP-3 HYZP-5 HYZP-10 HYZP-20 HYZP-005 HYZP-004 HYZP-003
Max. load(kg) 3 5 10 20 0.05 0.04 0.03
Total load(kg) 15 20 20 40 0.5 0.4 0.3
Acceleration(m/s²) 30~2000 30~2000 50~1000 50~1000 5000~200000 5000~400000 5000~800000
Permitted height of the specimen(mm) 200 200 300 300 300 300 300
Direction of test specimen x, y, z three directions respectively x, y, z three coordinates six directions

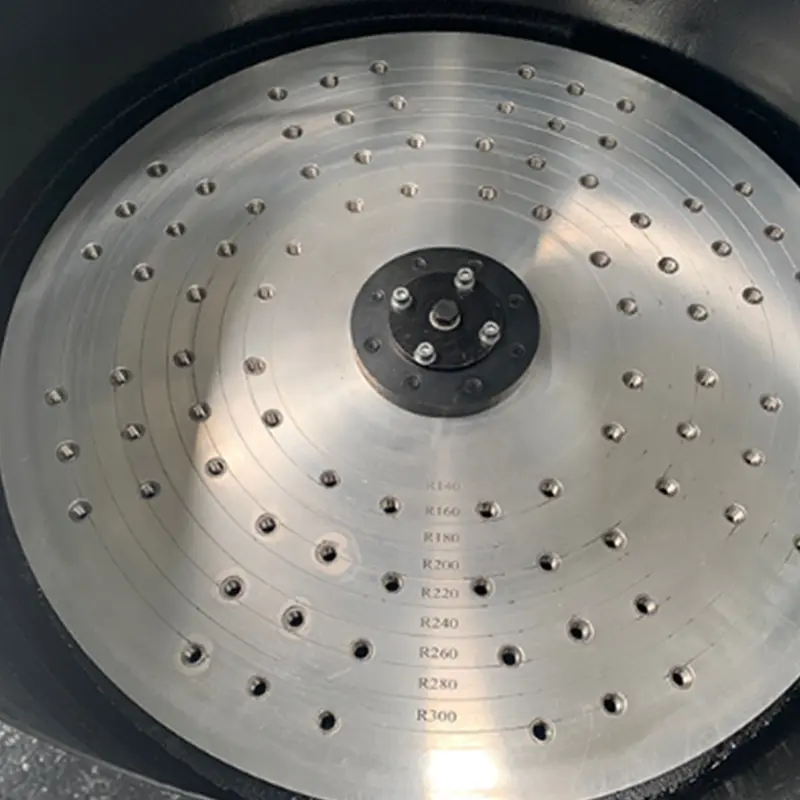

Calculation of mounting radius (mm) 200 200 750 750 100 80~100
Start-up time(mins) ≤3 ≤4 ≤3 ≤3 ≤4 ≤5 ≤5
Continuous working time(mins) 60 60 60 60 30 5 5
Power supply & consumption AC 380V 1.5KVA AC 380V 5KVA AC 380V 4KVA AC 380V 6.5KVA
Overall dimensions (mm) 924X910X1242 1953x470x993 800x800x800
Power supply device 15 rings 500V 5A 12 rings 500V 5A
Weight(kg) 1500 1700 2300 2300 2500 1500 1000
Control system Industrial computer control
Fulfil the criteria MIL-STD-810F, MIL-STD-202F, MIL-STD-883C, IEC60068-2-7, GB/T2423, GJB150, GJB360
Product Gallery

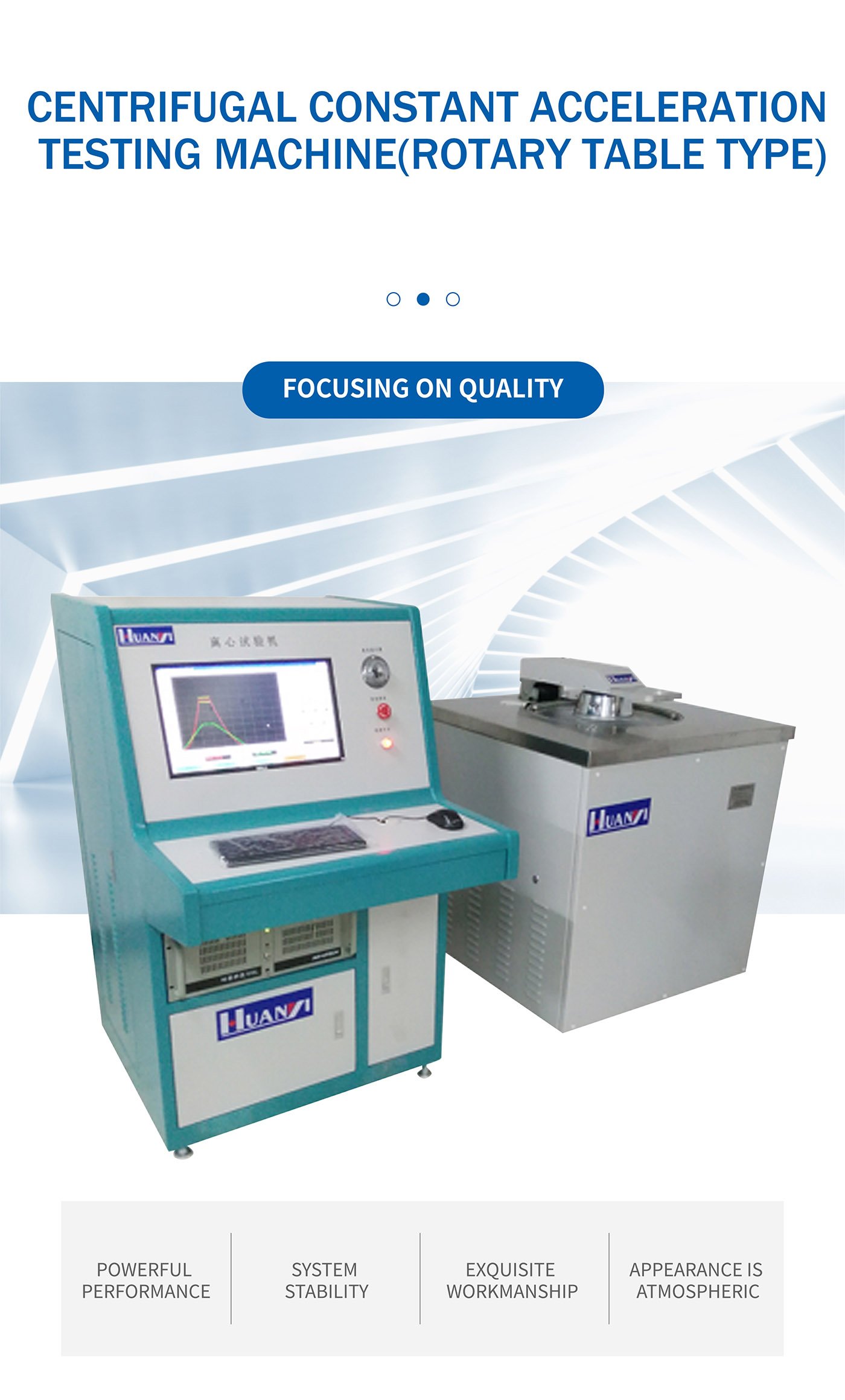

Centrifugal Constant Acceleration Testing Machine 1

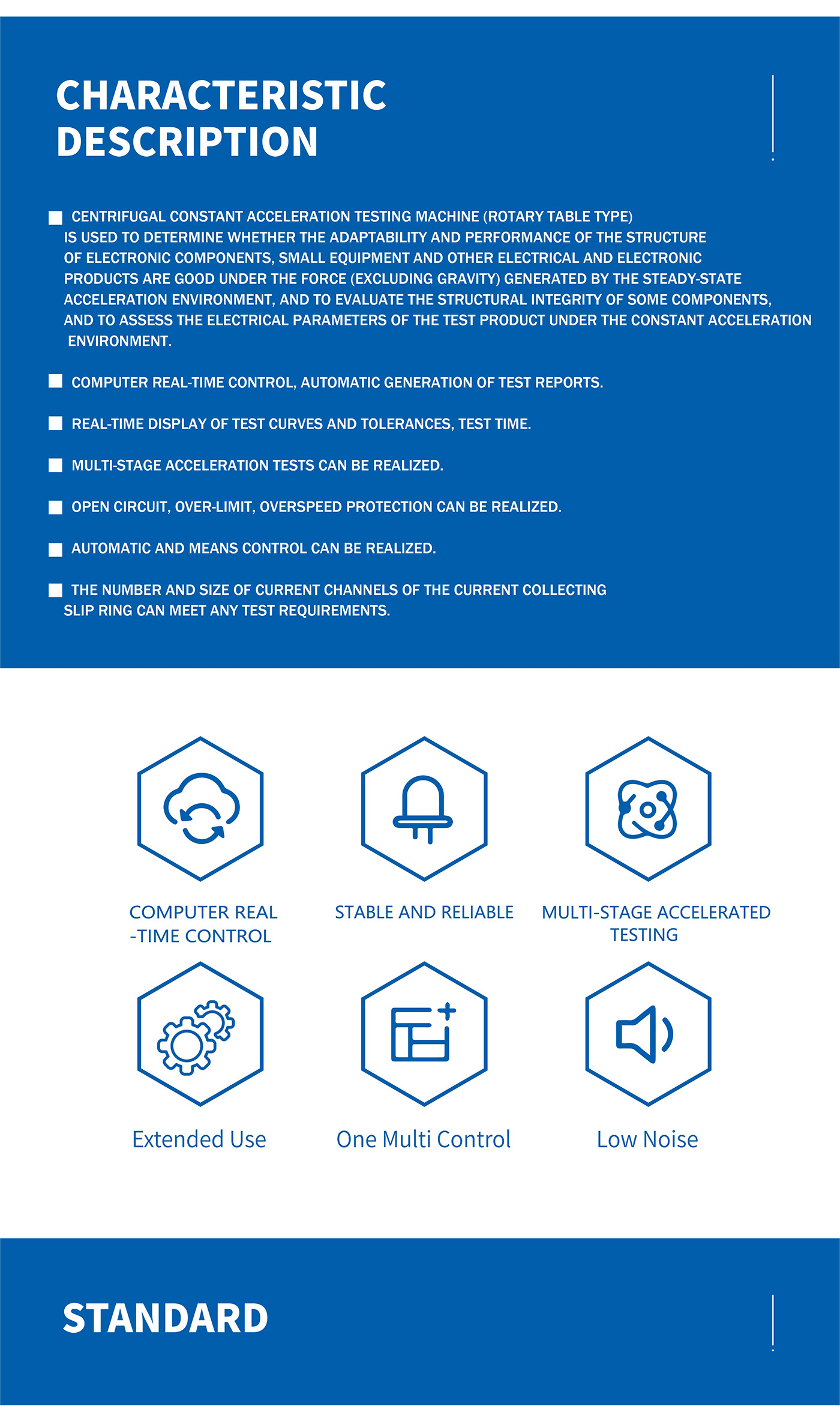

Centrifugal Constant Acceleration Testing Machine 2

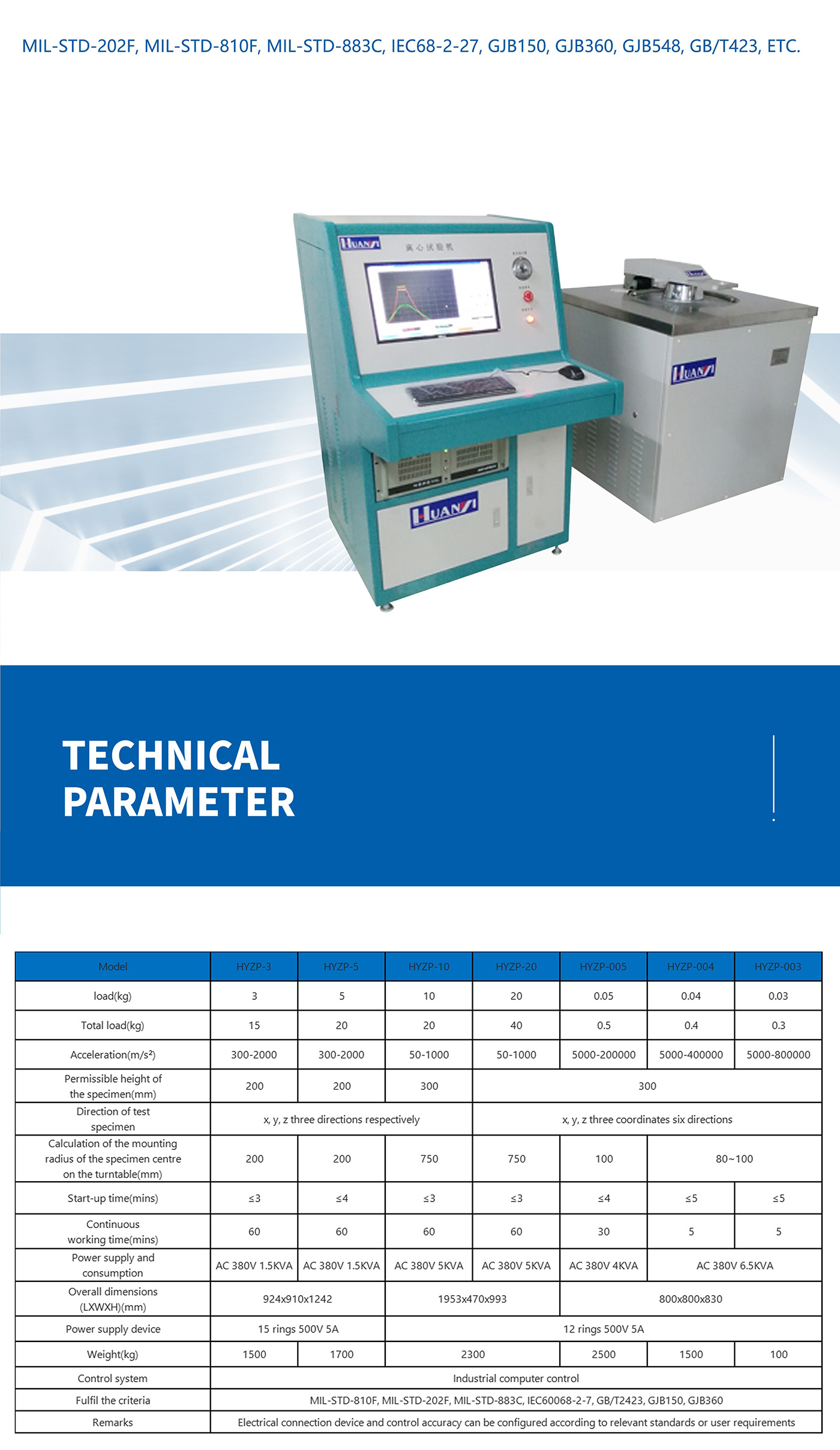

Centrifugal Constant Acceleration Testing Machine 3

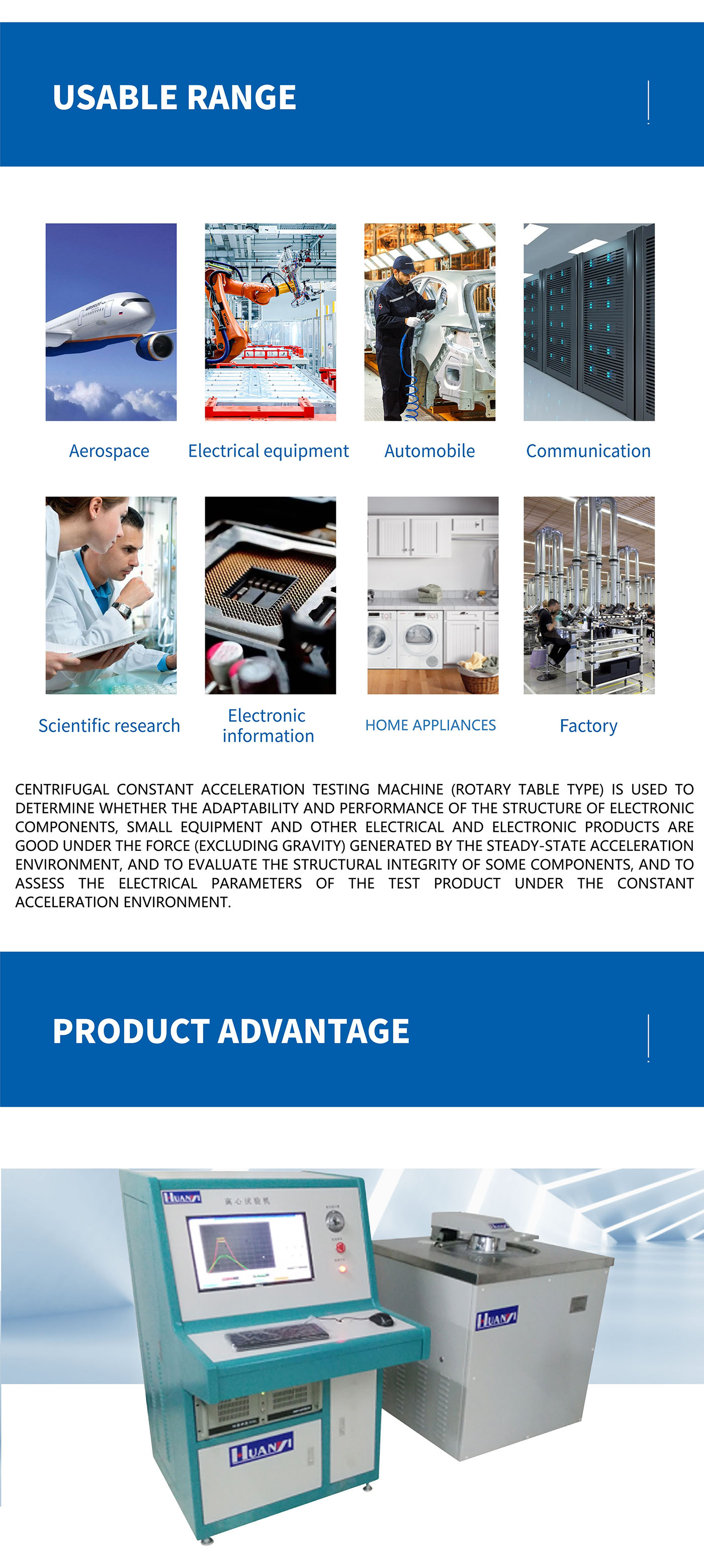

Centrifugal Constant Acceleration Testing Machine 4

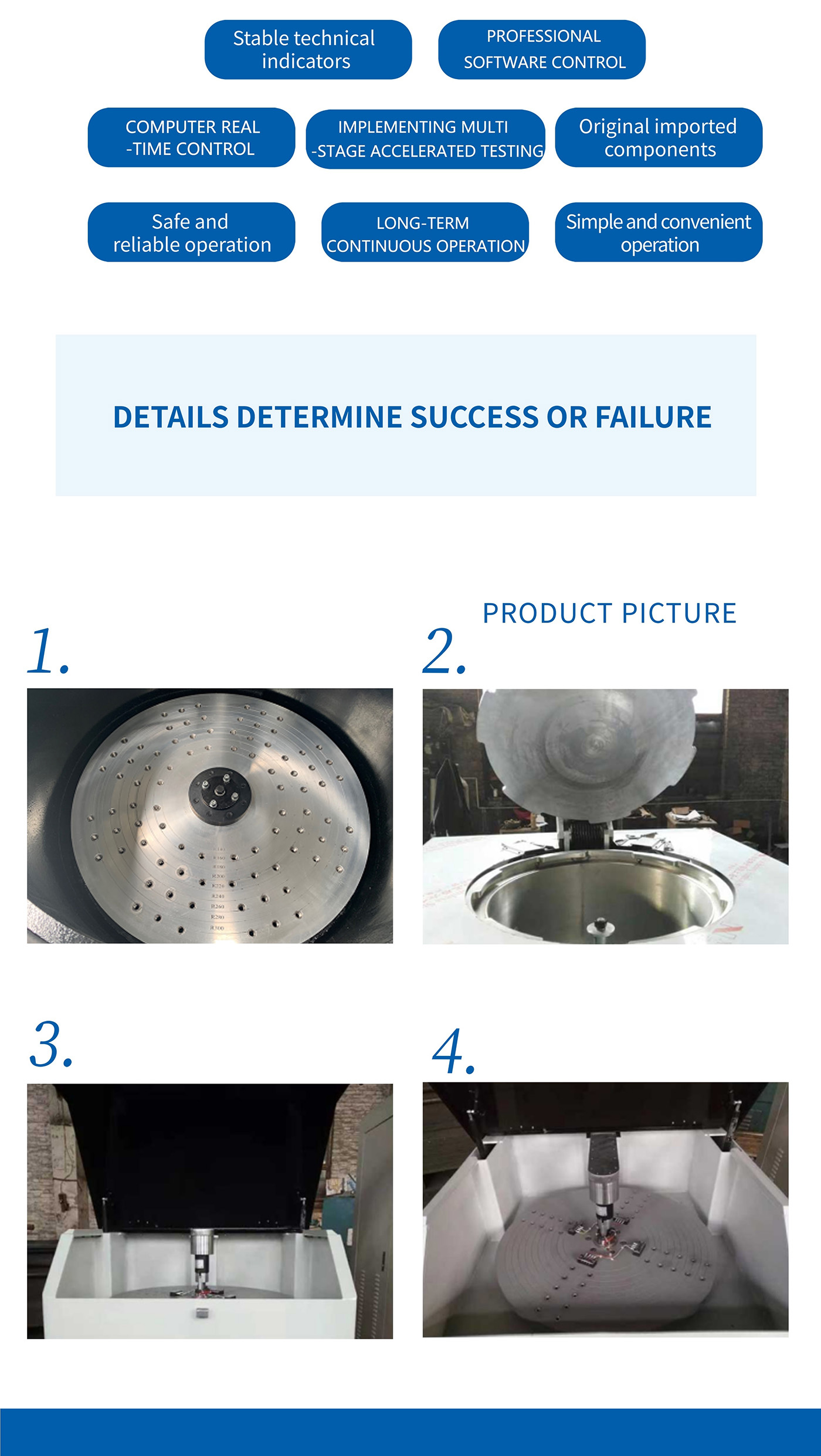

Centrifugal Constant Acceleration Testing Machine 5
Frequently Asked Questions
How is the centrifugal testing machine controlled?
The equipment is equipped with an advanced industrial computer control system that allows for fully automatic remote real-time control.
What safety measures are integrated into the system?
It includes reliable protection features such as open circuit, over-limit, and overspeed protection to ensure maximum safety during high-acceleration tests.
Can I test electrical components under power?
Yes, the system allows the tested product to be powered during the test, applying electrical signals to capture dynamic electrical parameters.
Which international standards does this equipment comply with?
The machine fulfills several standards, including MIL-STD-810F, MIL-STD-202F, IEC60068-2-7, and various GJB military criteria.
Does the system provide automated test results?
Yes, the system automatically generates and can print a comprehensive test report immediately after the process is completed.
What is the maximum acceleration range available?
Depending on the model, the acceleration can range from 30 m/s² up to 800,000 m/s² for high-intensity testing requirements.
