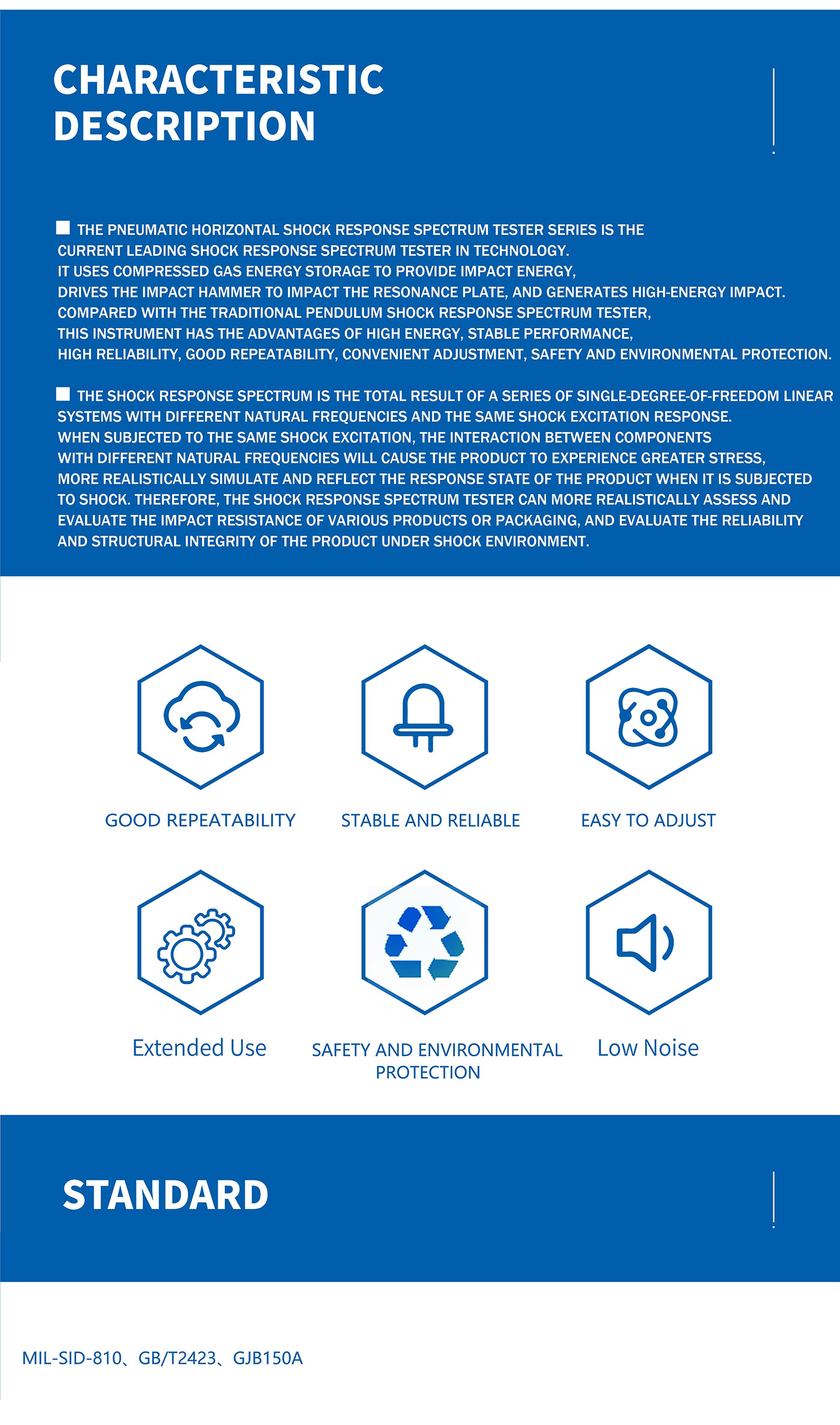

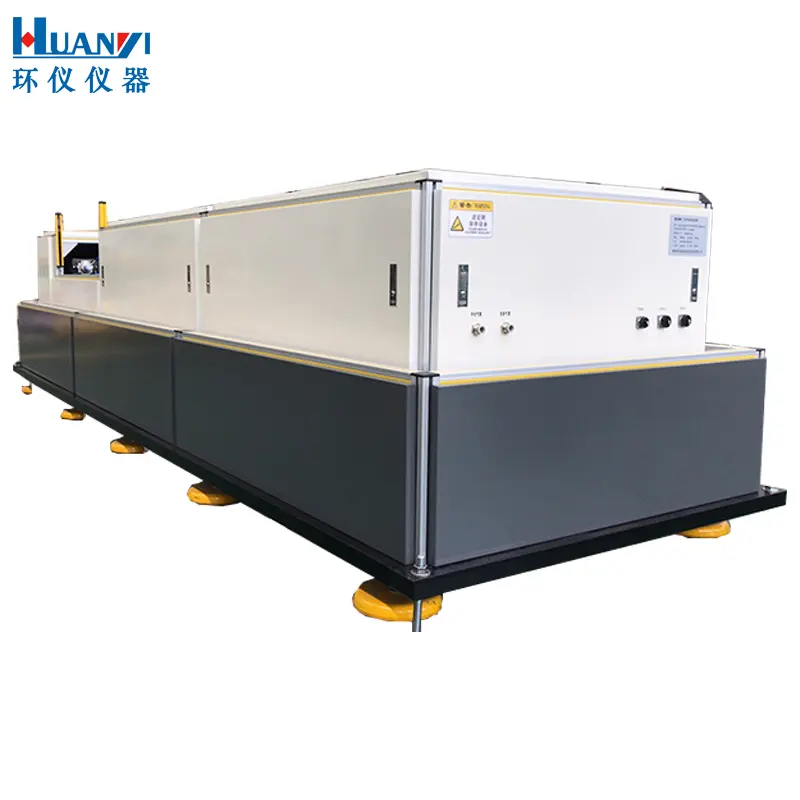

Impact response spectrum is a series of different intrinsic frequency, by the same impact excitation response of the single degree of freedom linear system of the total results. When subjected to the same impact excitation, the interaction between the components of different intrinsic frequency will make the product undergo greater stress, more really simulate and reflect the response state of the product undergoes impact, so the impact response spectrum testing machine can be more realistic assessment of various types of products or packaging impact resistance, assessment of the reliability of the product in the impact environment and the integrity of the structure.

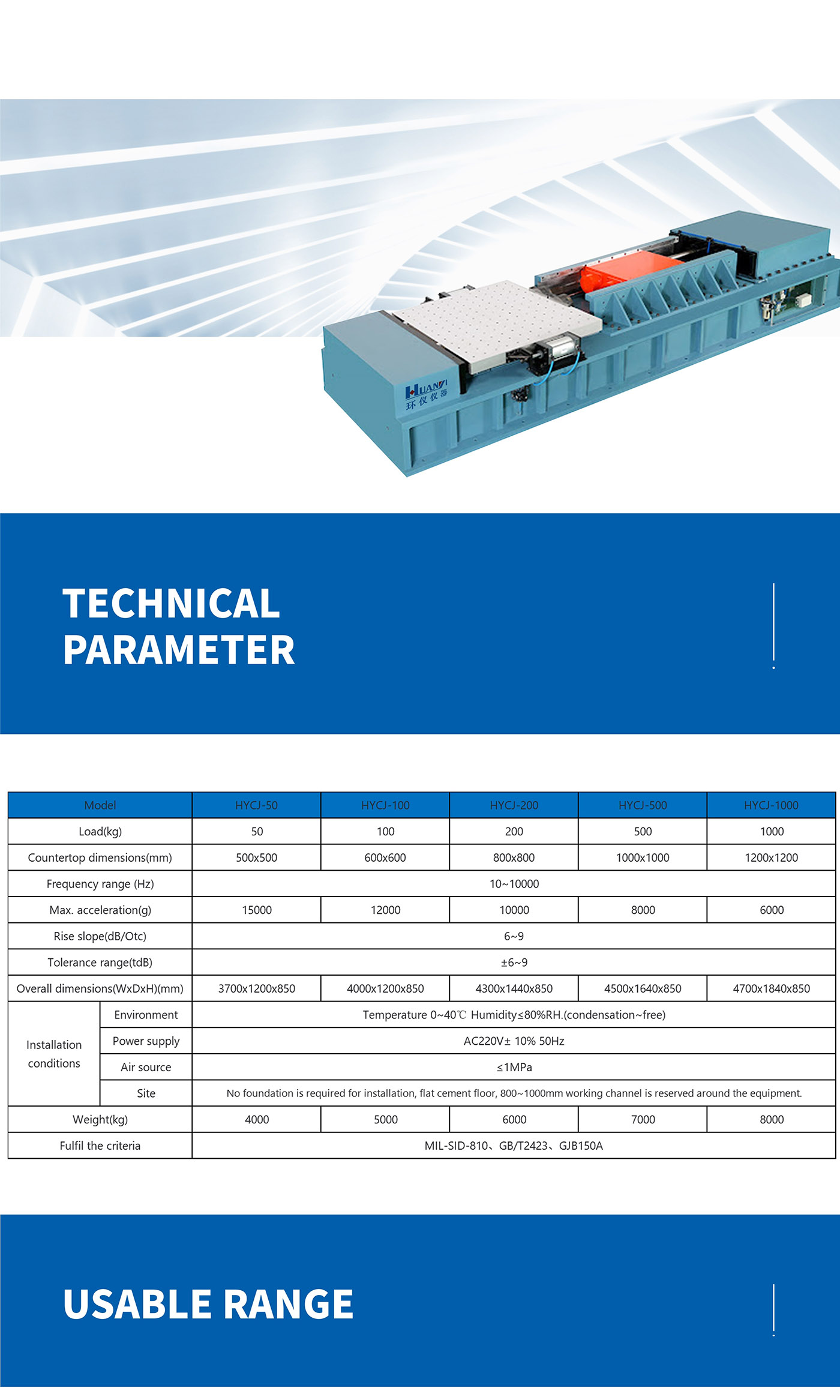

| Model | HYCJ-50 | HYCJ-100 | HYCJ-200 | HYCJ-500 | HYCJ-1000 |
| Load (kg) | 50 | 100 | 200 | 500 | 1000 |
| Countertop dimensions (mm) | 500x500 | 600x600 | 800x800 | 1000x1000 | 1200x1200 |
| Frequency range (Hz) | 10 ~ 10000 | ||||
| Max. acceleration (g) | 15000 | 12000 | 10000 | 8000 | 6000 |
| Rise slope (dB/Otc) | 6 ~ 9 | ||||
| Tolerance range (tdB) | ±6 ~ 9 | ||||
| Overall dimensions (WxDxH) | 3700x1200x850 | 4000x1200x850 | 4300x1440x850 | 4500x1640x850 | 4700x1840x850 |
| Environment | Temperature 0~40℃; Humidity ≤80%RH. (Condensation-free) | ||||
| Power supply | AC220V±10V 50Hz | ||||
| Air source | ≤1MPa | ||||
| Installation Site | No foundation required, flat cement floor with 0.8-1m passage around. | ||||
| Weight (kg) | 4000 | 5000 | 6000 | 7000 | 8000 |
| Fulfil the criteria | MIL-SID-810, GB/T2423, GJB150A | ||||
