The tensile (pressure) force testing machine is the latest economical testing machine developed and developed by the company. It is suitable for stretching, peeling, tearing, shearing, plugging, etc. In adhesive products, paper products, printing and packaging, electronics and other industries. The test machine is cost-effective, easy to operate, and easy to maintain. It is an ideal equipment for quality inspection and testing in various factories.

Send Inquiry

Product Description

Product Introduction

This equipment is primarily designed to analyze the mechanical properties of a wide range of materials. By utilizing various test fixtures, it can evaluate mechanical performance and physical parameters under conditions including tension, compression, bending, shearing, tearing, peeling, and puncture.

✔ Tensile & Compression testing
✔ Three-point & Four-point bending
✔ Puncture & Peeling analysis
✔ Foam cycle compression
✔ Carton holding pressure
✔ Dynamic & Static cycle tests
Key Features

Through continuous engineering innovation, the newly developed economical testing machine series can now be directly interfaced with a computer. All test data can be seamlessly imported for advanced analysis, representing a significant reform in computerized pressure and pull test technology.

Technical Parameters
Model HY-1301A HY-1301B HY-1201A HY-1201B
Load cell capacity 5N to 5kN optional 100N to 5kN optional 10N to 20KN optional 50kN / 100kN
Accuracy grade Level 0.5
Force Measuring Range 0.4% ～ 100% FS
Displacement Rate 0.005 ～ 500mm/min
Deformation Accuracy ≤ ±0.5% of indicated value
Power supply AC 220V±10%, 50Hz
Dimensions (mm) 450×500×1260 450×500×1260 784×550×1700 890×600×1850
Weight (kg) Approx. 75 Approx. 75 Approx. 165 Approx. 350
Product Display

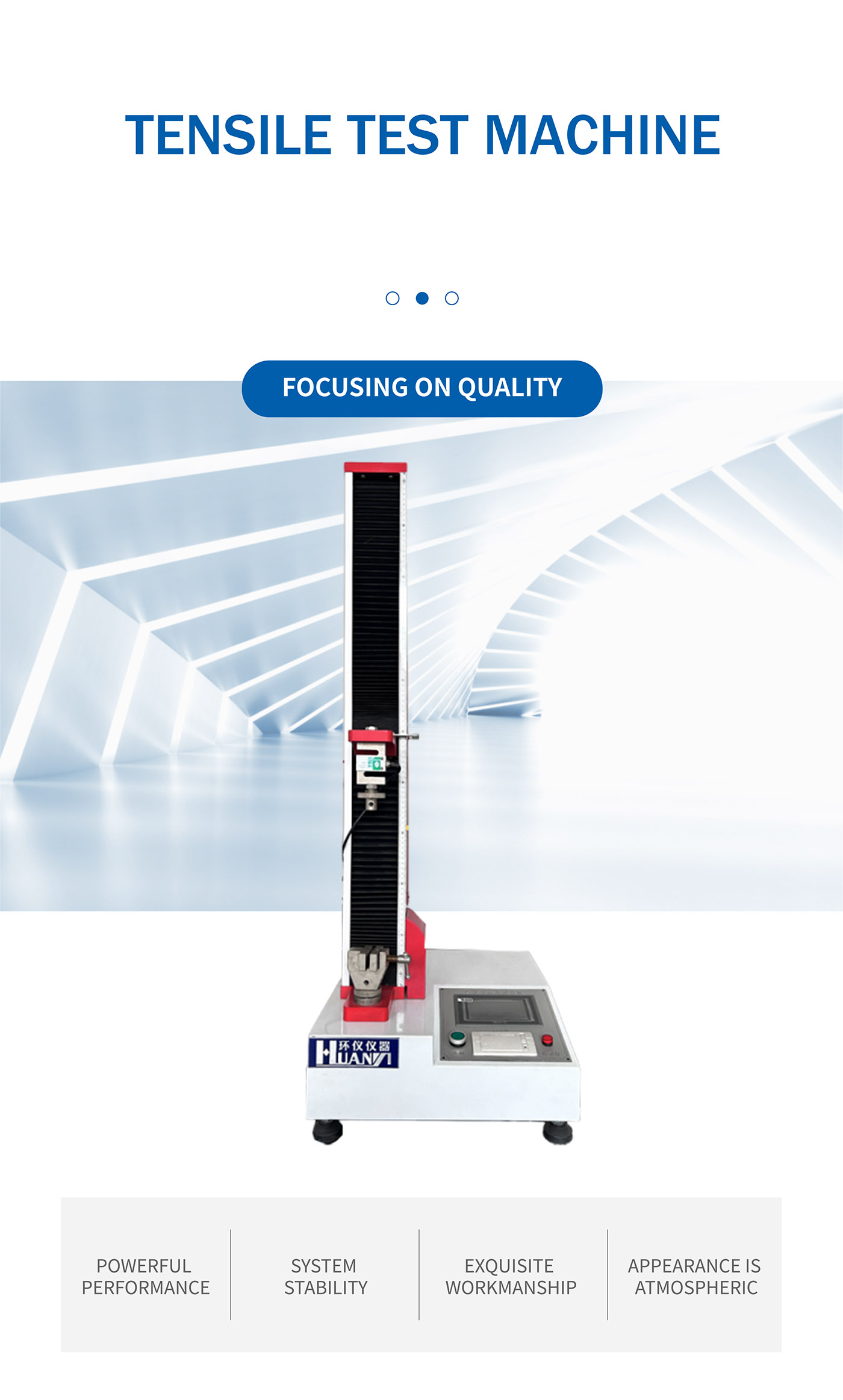

Tensile Strength Tester 1
Tensile Strength Tester 2

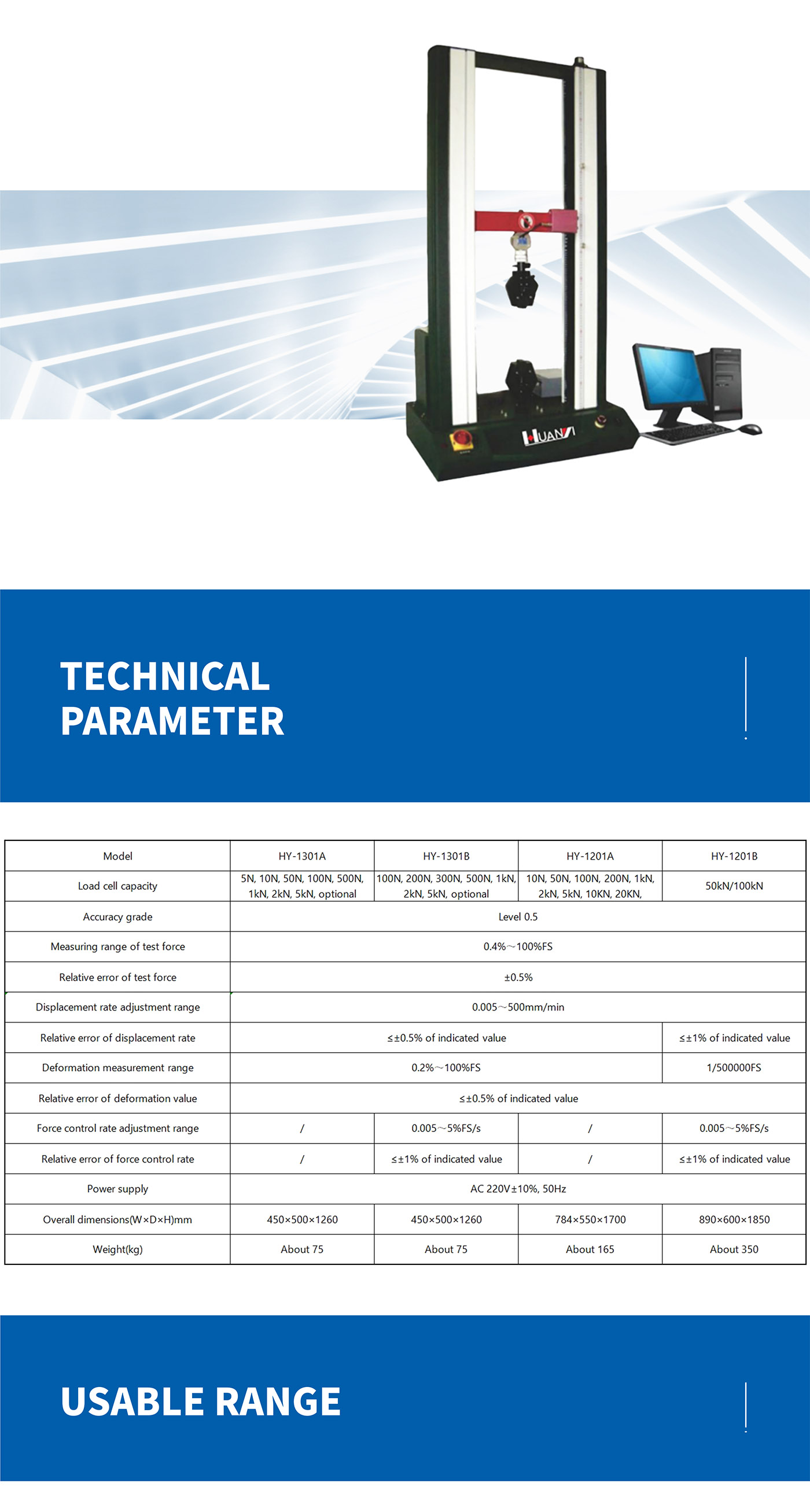

Tensile Strength Tester 3
Tensile Strength Tester 4
Tensile Strength Tester 5
Frequently Asked Questions
What types of tests can this machine perform?
The machine supports a wide range of tests including tension, compression, bending (three-point and four-point), shearing, tearing, peeling, and puncture tests.
Can the test data be exported to a computer?
Yes, this newly developed series features direct computer connectivity, allowing all test data to be imported directly for analysis and reporting.
What is the accuracy level of the load measurements?
The machine is built to Accuracy Level 0.5, ensuring high precision with a relative error of test force within ±0.5%.
Is the machine compatible with different materials?
Absolutely. It is designed for testing finished shoes, cartons, foams, springs, and various other industrial materials using specific fixtures.
What are the power requirements for installation?
The standard power supply requirement is AC 220V ±10% at a frequency of 50Hz.
What is the speed range for the test displacement?
The displacement rate can be adjusted between 0.005 and 500mm/min depending on your specific testing requirements.
