The tilt and swing test machine test bench mainly simulates the swing and tilt tests of various mechanical, electrical and electronic products installed on ships, seaplanes, traveling fire races and other equipment to determine the ability and structure of the product to withstand the specified severe levels of swing and tilt.

Send Inquiry

Product Description

🔹 Product Features
✔ Based on Windows stable control system, enabling automatic remote interface control.
✔ Real-time data curve display window with integrated test parameters, system status, and progress tracking.
✔ Supports sinusoidal signal generation, self-closed loop adjustment, and various function controls.
✔ Integrated alarm prompt system for enhanced safety and operational monitoring.
📊 Technical Parameters
Model HYRP-100 HYRP-300 HYRP-500 HYRP-1000 HYRP-1500 HYRP-2000 HYRP-3000 HYRP-5000 HYRP-8000 HYRP-10000
Max. load (kg) 100 300 500 1000 1500 2000 3000 5000 8000 10000
Height of specimen centre of gravity (mm) 300 500 700 900
Yaw Angle 0~±10°
Cycle 3s~7s
Roll Angle 0~±45°
Cycle 3s~30s
Pitch Angle 0~±30°
Cycle 4s~30s
Tilt angle 0~±45°
Pitch angle 0~±30°
Control method Computer controlled measurement
Countertop dimensions (mm) 800x800 1000x1000 1500x1200 1600x1300 1700x1500 1800x1600 3200x2100 3500x2800 4000x3000
Power supply AC380V±10V 50Hz
Capacity 20kVA 22kVA 37kVA 45kVA 55kVA 70kVA 90kVA 110kVA 150kVA
Environment Temperature 0~40℃; Humidity ≤80%. (Condensation-free)
Fulfil the criteria GJB150.23, GB2423, GB/T 2424.20
📷 Product Gallery

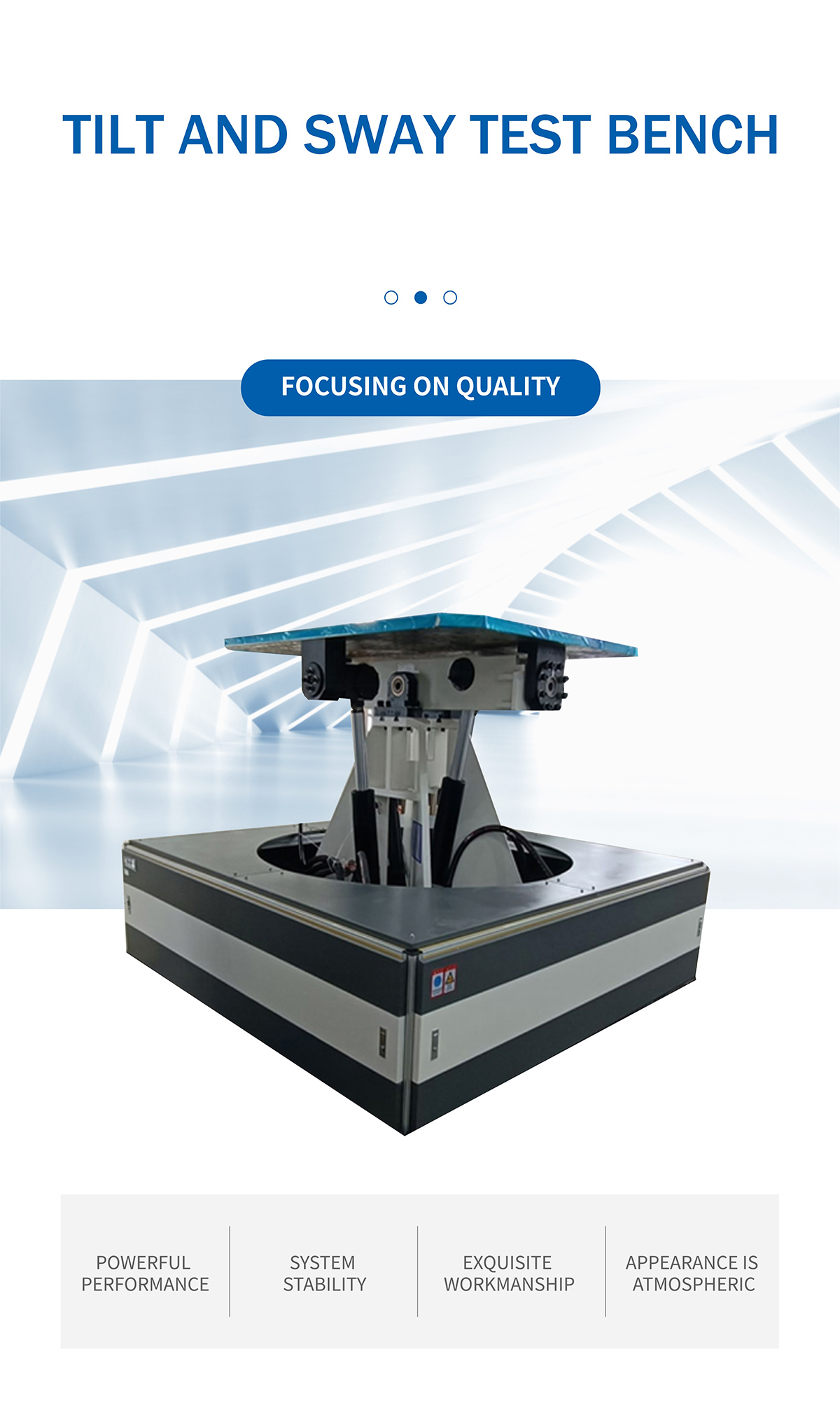

Tilt and Swing Test Bench View 1

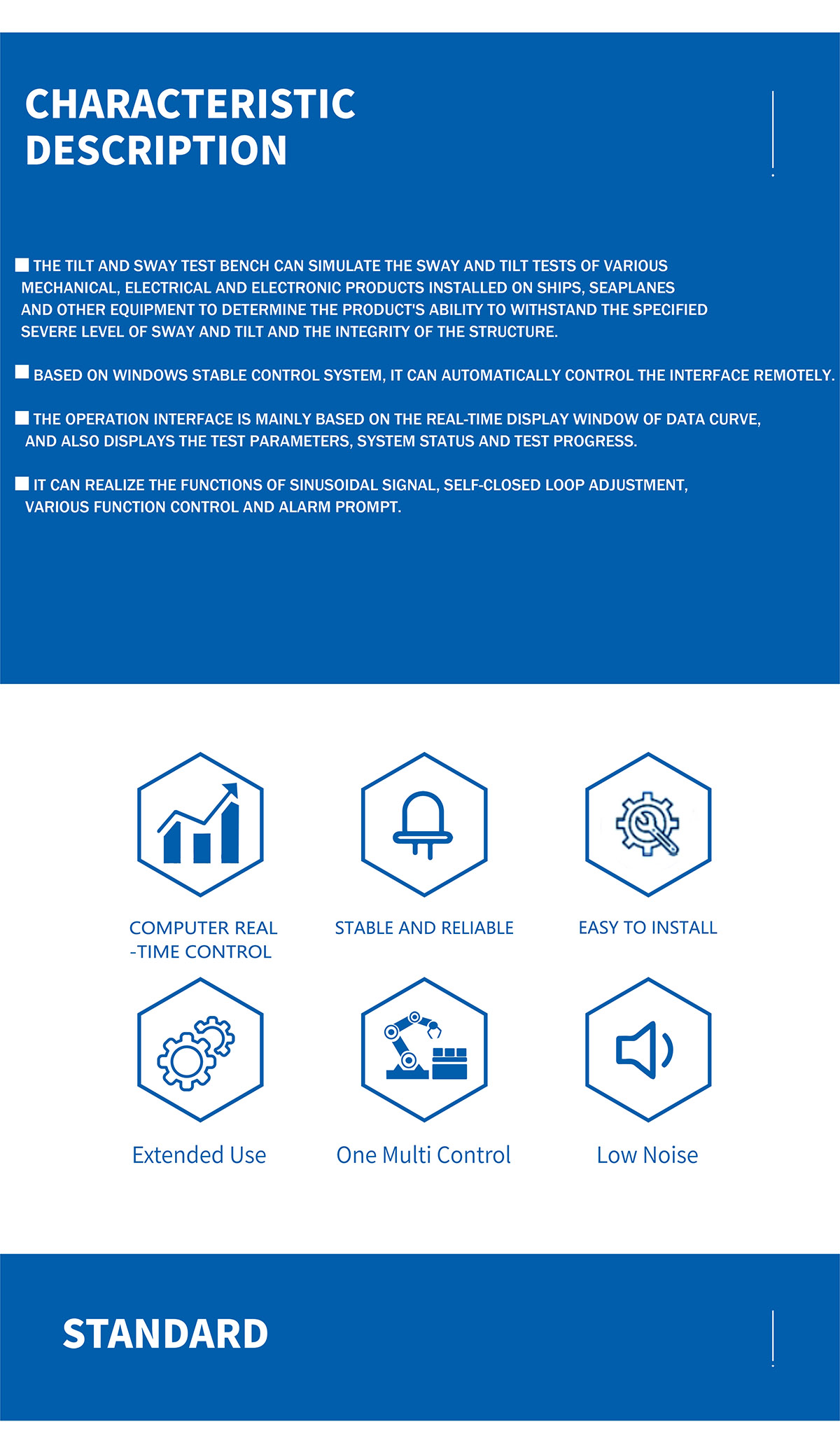

Tilt and Swing Test Bench View 2

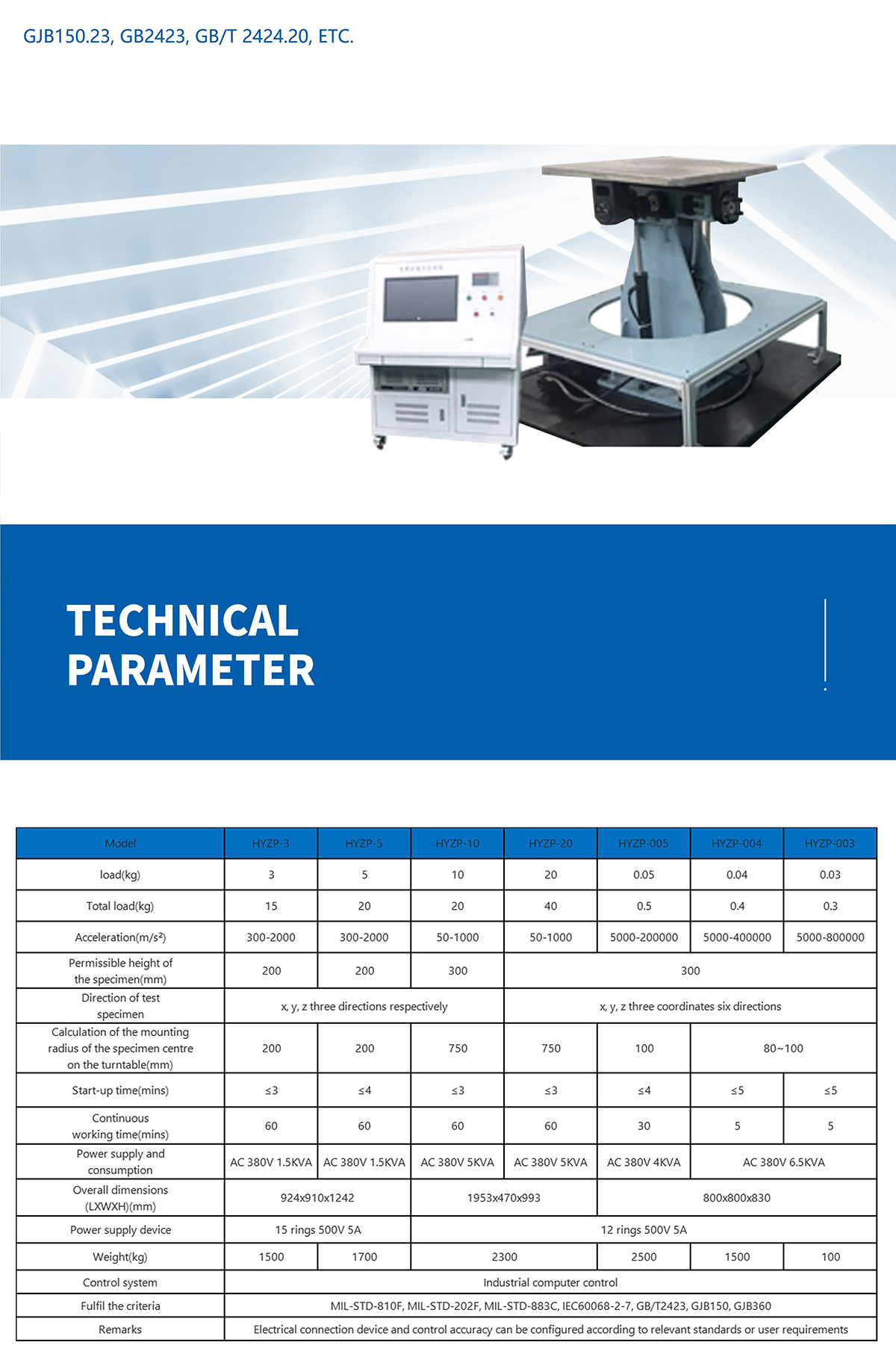

Tilt and Swing Test Bench View 3

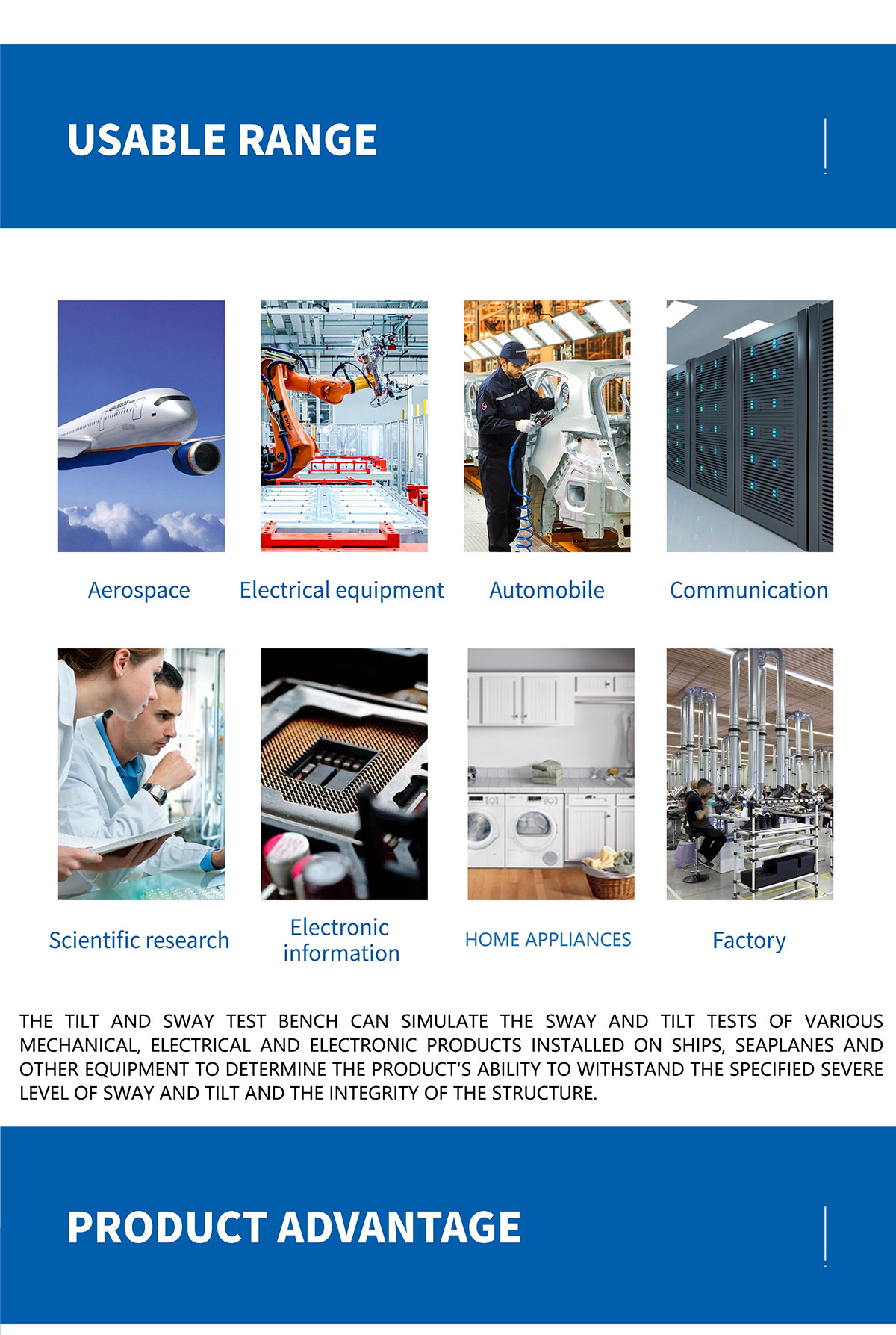

Tilt and Swing Test Bench View 4

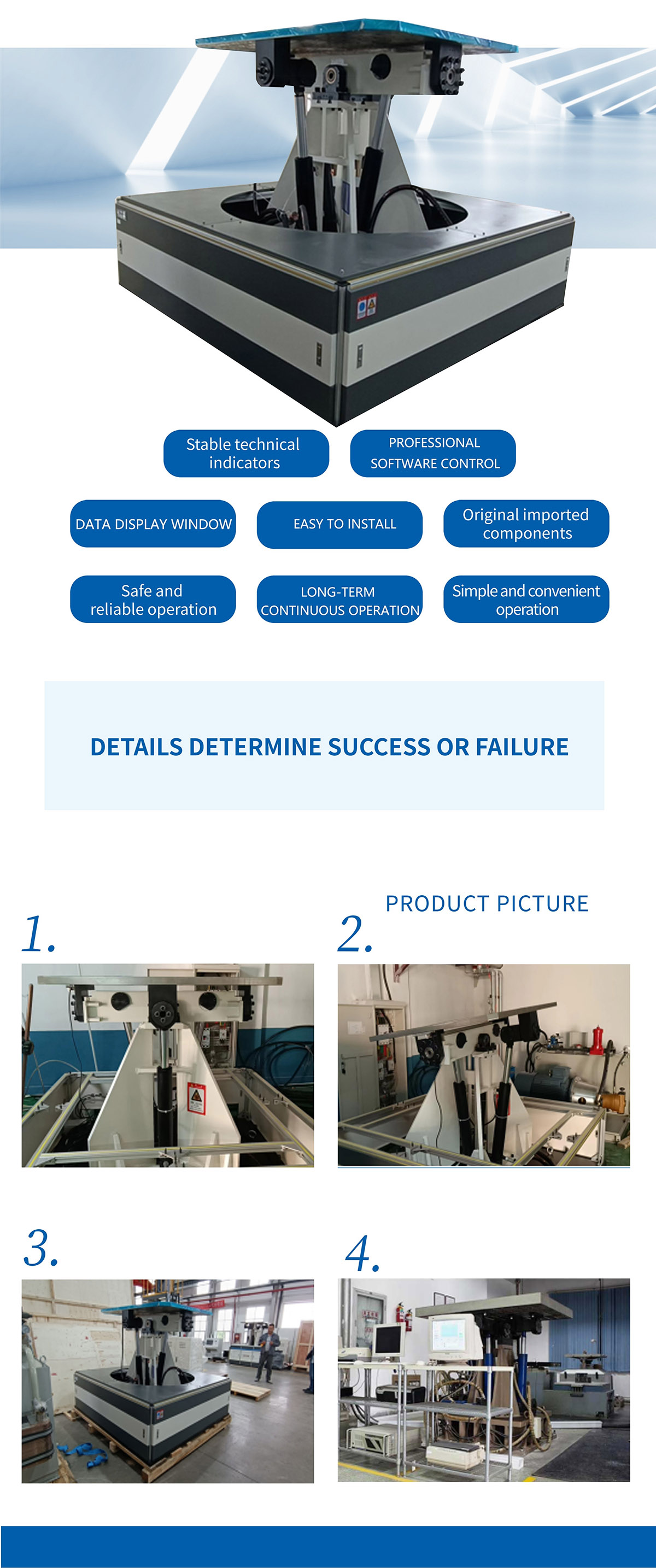

Tilt and Swing Test Bench View 5
❓ Frequently Asked Questions
What are the primary applications of the Tilt and Swing Test Bench?
The bench is used to simulate environmental conditions like rolling, pitching, and yawing to test the reliability and structural integrity of equipment under motion.
What control system does the equipment use?
The system is based on a stable Windows control platform, allowing for computer-controlled measurement, real-time data monitoring, and remote interface capabilities.
Does the machine comply with international testing standards?
Yes, it fulfills several key criteria including GJB150.23, GB2423, and GB/T 2424.20.
What is the maximum load capacity available?
The HYRP series offers various models with maximum load capacities ranging from 100kg up to 10,000kg to suit different testing requirements.
What are the environmental requirements for installation?
The equipment should be operated in an environment with temperatures between 0~40℃ and humidity ≤80% without condensation.
Can the swing and tilt angles be customized?
The angles are adjustable within the specified technical parameters, such as Roll angles up to ±45° and Pitch angles up to ±30°, depending on the test cycle.
