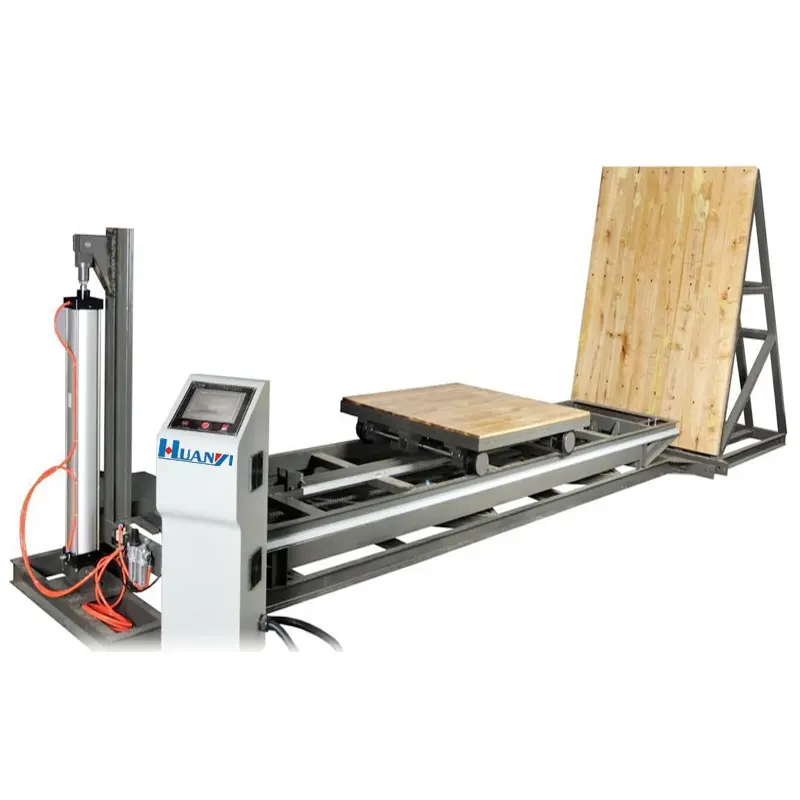

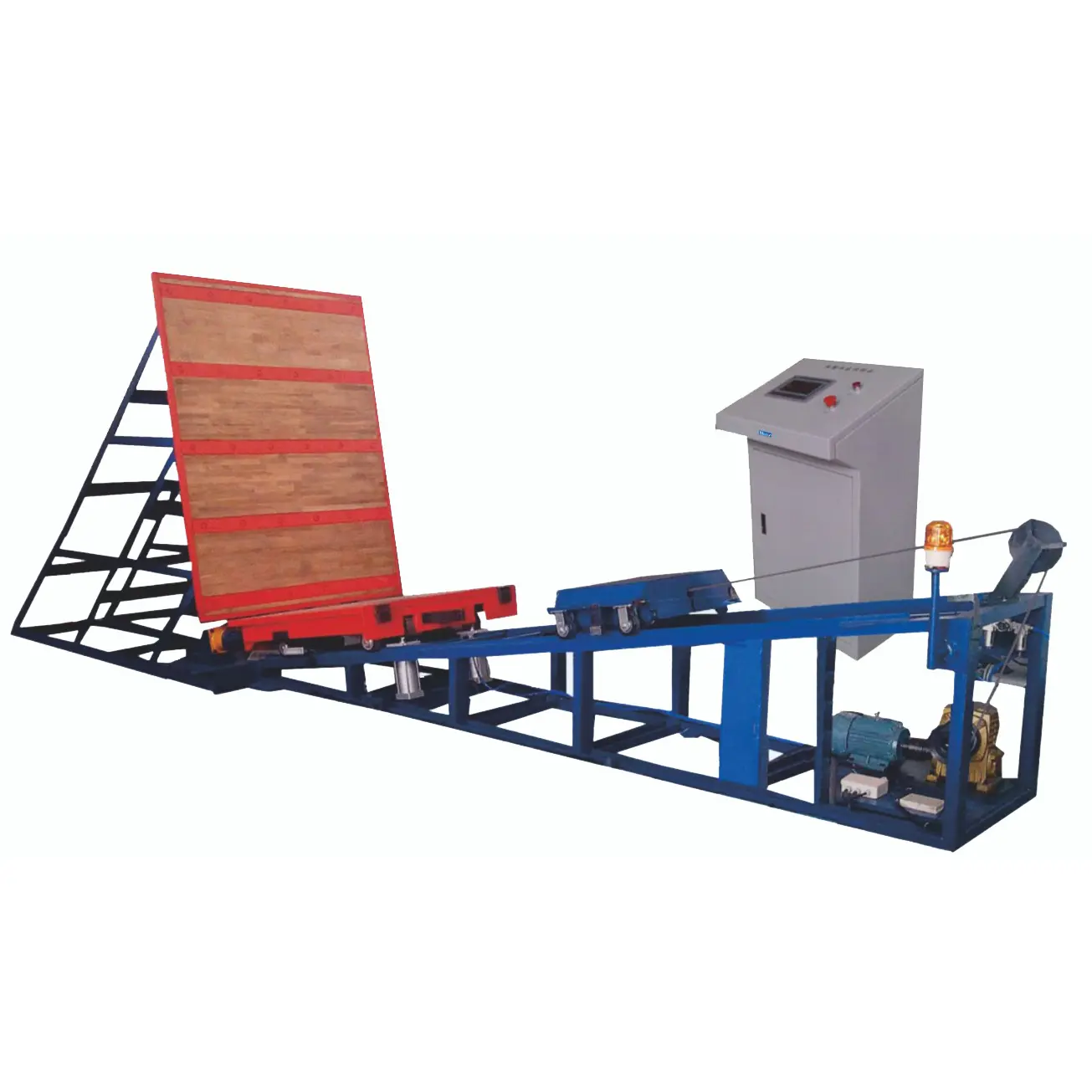

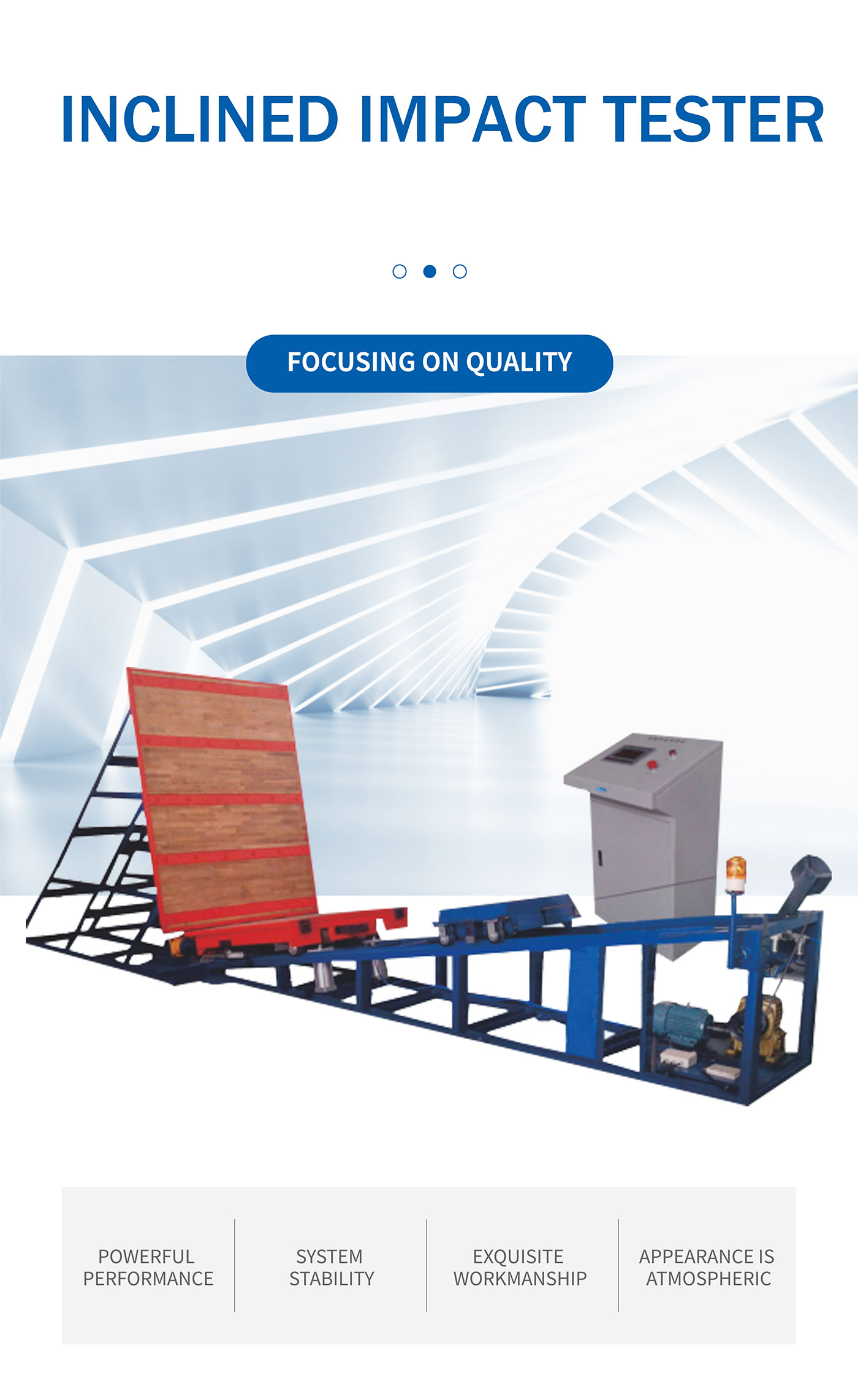

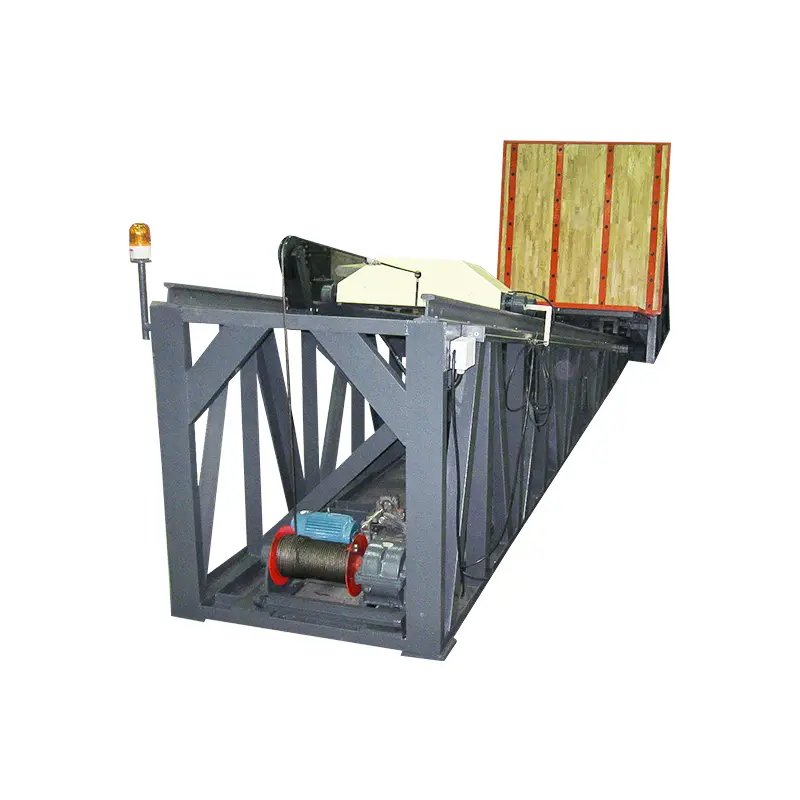

Custom Inclined Impact Tester Suppliers, Factories

The inclined impact test bench simulates the ability of product packaging to resist impact damage in actual environments, such as handling, stacking of shelves, sliding of motors, loading and unloading of locomotives, transportation of products, etc.

Send Inquiry

Product Description

Working Conditions

Working Principle of Incline Impact Tester: Test principle of incline impact tester. By using the principle of transforming the potential energy of the object into kinetic energy, when the package slides to the end according to the predetermined position, the impact velocity is perpendicular to the impact plate.

Features

The table can be adjusted to a horizontal level, which is convenient for customers to install test pieces.
It adopts PLC+ human-machine interface control, which is simple to operate and integrates control and measurement.
It can display data such as the number of small impacts and the final impact velocity.

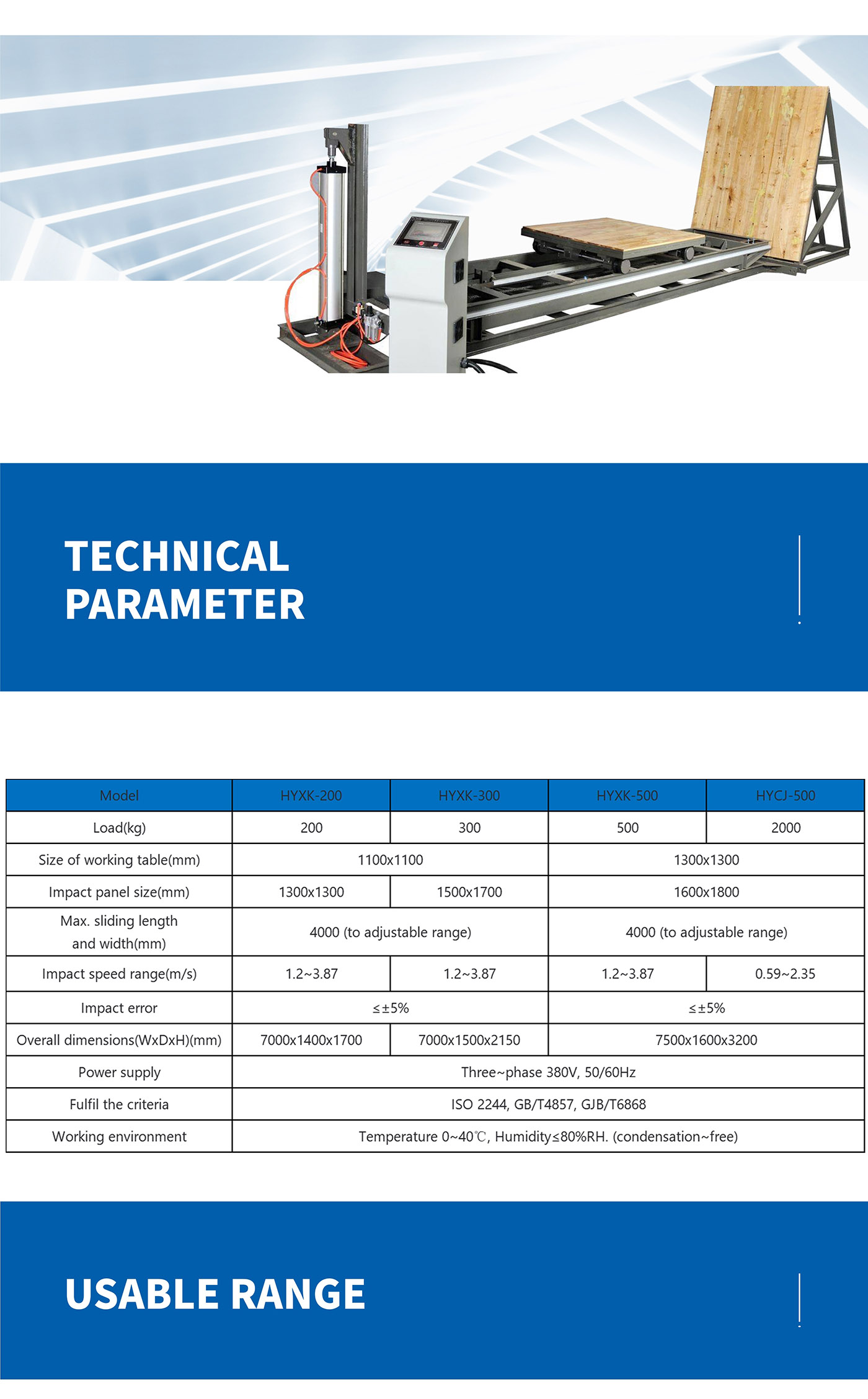

Technical Parameters

Model	HYXK-200	HYXK-300	HYXK-500	HYXK-2000
Load(kg)	200	300	500	2000
Size of working table(mm)	1100x1100		1300x1300
Impact panel size(mm)	1300x1300	1500x1700	1600x1800
Max. sliding length and width(mm)	4000 (to agreed value)		4000 (to agreed value)
Impact speed range(m/s)	1.2~3.87	1.2~3.87	1.2~3.87	0.59~2.35
Impact error	≤±5%		≤±5%
Overall dimensions (WxDxH)mm	7000x1400x1700	7000x1500x2150	7500x1600x2300
Power supply	Three-phase 380V, 50/60Hz
Fulfil the criteria	ISO 2244, GB/T4857, GJB/T6868
Environment	Temperature: 0~40℃; Humidity ≤80%RH. (Condensation-free)

Product Images

Frequently Asked Questions

Q1: What is the working principle of the Incline Impact Tester?

A1: It operates by transforming the potential energy of an object into kinetic energy. When the package slides down to the predetermined position, the impact velocity remains perpendicular to the impact plate.

Q2: How is the testing process controlled and operated?

A2: The tester utilizes a PLC + human-machine interface control system. This system is designed to be simple to operate while successfully integrating both control and measurement functionalities.

Q3: What type of data does the tester display?

A3: The interface is capable of displaying critical test parameters, including the number of small impacts and the final impact velocity.

Q4: Is the working table adjustable for different test pieces?

A4: Yes, the working table can be adjusted to a horizontal level, which makes the installation of test pieces highly convenient for users.

Q5: Which test criteria and standards does the equipment meet?

A5: The Incline Impact Tester fulfills the criteria of several recognized testing standards, including ISO 2244, GB/T4857, and GJB/T6868.

Q6: What are the environmental operating conditions for the tester?

A6: The equipment should be operated in an environment with a temperature range of 0~40℃ and a relative humidity of ≤80%RH (Condensation-free).
