The rotating arm disc type steady acceleration tester is used to determine whether the structural adaptability and performance of electronic components, small equipment and other electrical and electronic products are good under the force generated by the steady-state acceleration environment, and to evaluate the structural integrity of some components.

Send Inquiry

Product Description

🔹 Characteristic Description
Strong load-bearing capacity The rotating arm centrifugal constant acceleration tester has a high load-bearing capacity, ensuring stability during high-intensity testing.
Multi-stage acceleration test The equipment can realize multi-stage acceleration tests, simulating different acceleration changes, suitable for components under various conditions.
Automatic control Equipped with a computer real-time control system that can automatically generate comprehensive test reports.
Protection function Features open circuit, over-limit, and overspeed protection functions to ensure the safety of the entire test process.
Application scenario Primarily used for testing components on aircraft and missiles that must withstand steady-state acceleration stress.
📊 Technical Parameters
Model HYZD-20 HYZD-50 HYZD-100 HYZD-200 HYZD-500 HYZD-1000
Max. load per side(kg) 20 50 100 200 500 1000
Acceleration(m/s²) 30-1000 30-1000 30-1000 30-2000 30-500 30-500 30-500
Max. dimensions of test sample (mm) 200x200x200 300x300x200 450x450x400 700x700x700 1000x1000x1000
Calculation radius (mm) 600 750 7500 2500 3000 3500
Start-up time(mins) ≤5 ≤8 ≤10
Continuous working time(mins) 60 30
Power supply & consumption AC380V 10KVA AC380V 40KVA AC380V 40KVA AC380V 55KVA AC380V 120KVA AC380V 250KVA
Power connection device 30 rings 500V 5A
Overall dimensions (mm) 1800X1500X1200 Ф2500X1400 Ф4000x1400 Ф6000X1600 Ф7000X1600 Ф8000X1800
Control cabinet dimensions (mm) 850X1000X1300 (Inverter cabinet 100kg or less: 600X600X1800, more than 100kg: 1200X600X2100)
Weight(kg) 800 2800 3000 3500 6000 8000 10000
Control system Industrial computer control
Satisfy requirements MIL-STD-202F, MIL-STD-810F, MIL-STD-883C, IEC68-2-27, GJB150, GJB360, GJB548, GB/T423
Remarks The power connection device can be configured according to user requirements; arm size can be customized; foundation maps provided separately.
📸 Product Gallery
Centrifugal Constant Acceleration Testing Machine 1
Centrifugal Constant Acceleration Testing Machine 2

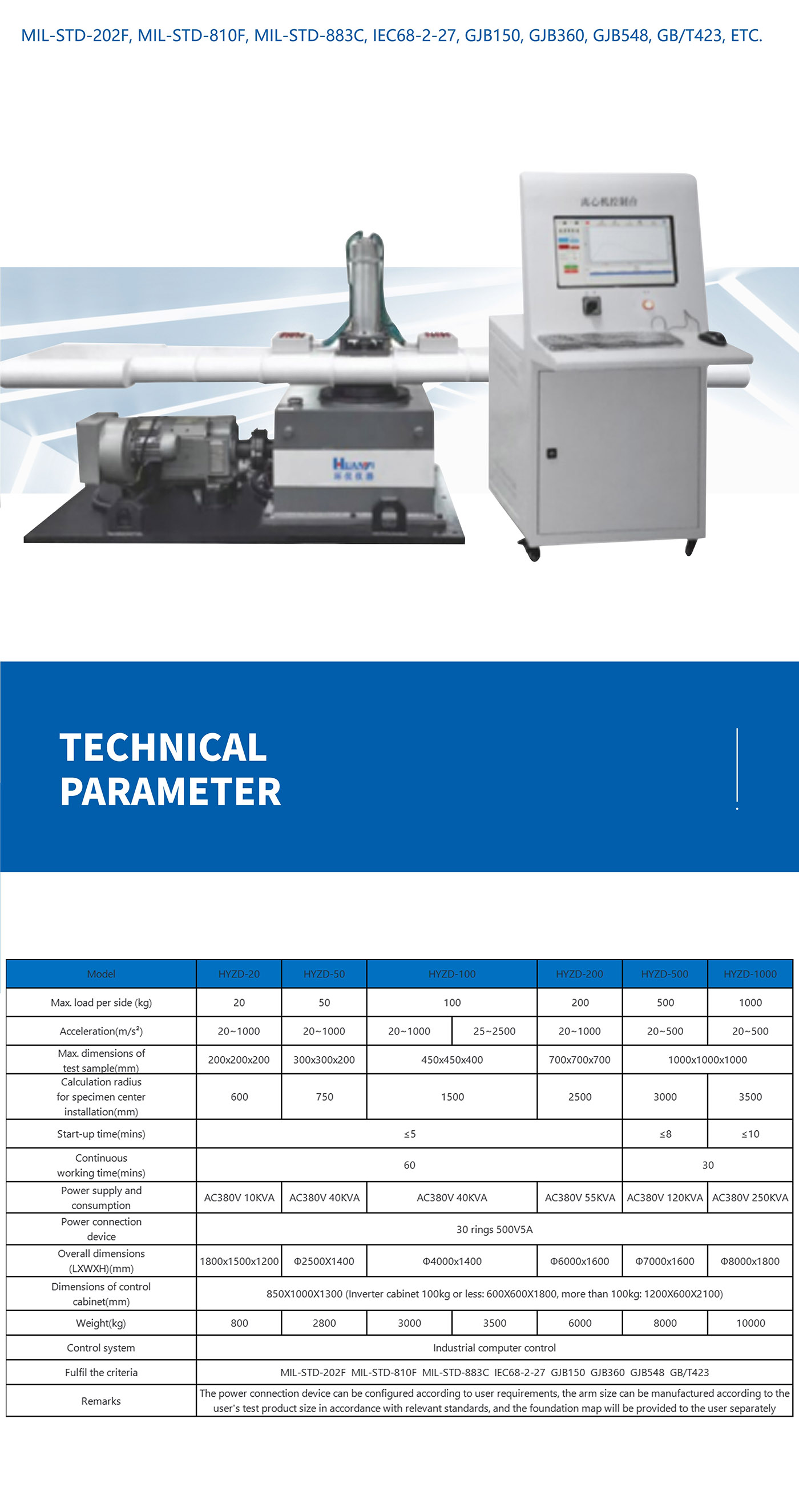

Centrifugal Constant Acceleration Testing Machine 3
Centrifugal Constant Acceleration Testing Machine 4
Centrifugal Constant Acceleration Testing Machine 5
Frequently Asked Questions
What are the primary applications of this centrifugal tester?
It is mainly used to test components installed on aircraft and missiles to ensure they can withstand steady-state acceleration stress in their use environment.
Does the equipment support automatic testing?
Yes, it is equipped with an industrial computer real-time control system that manages the test process and automatically generates test reports.
What safety features are included in the machine?
The tester includes multiple protection functions such as open circuit protection, over-limit protection, and overspeed protection to ensure operator and specimen safety.
Which international standards does this equipment comply with?
The system satisfies multiple standards including MIL-STD-810F, MIL-STD-202F, IEC68-2-27, and GJB150, among others.
Can the acceleration range be customized?
Different models offer different acceleration ranges, such as 30-1000 m/s² or 30-2000 m/s², depending on the specific model selected.
What is the maximum load capacity available?
The load capacity varies by model, ranging from 20kg up to 1000kg per side for high-capacity requirements.
