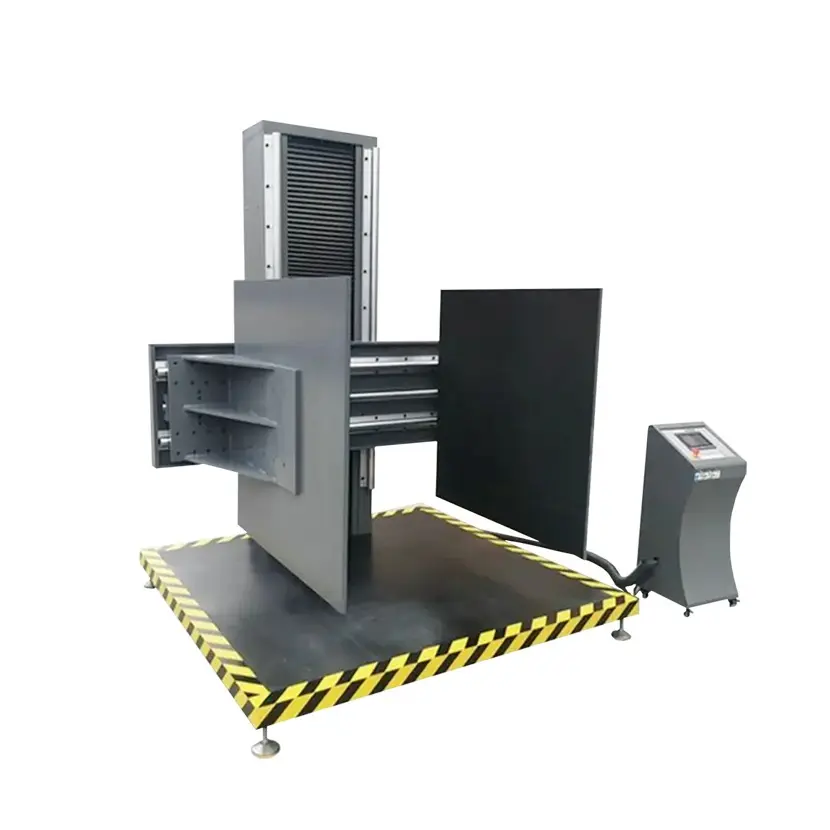

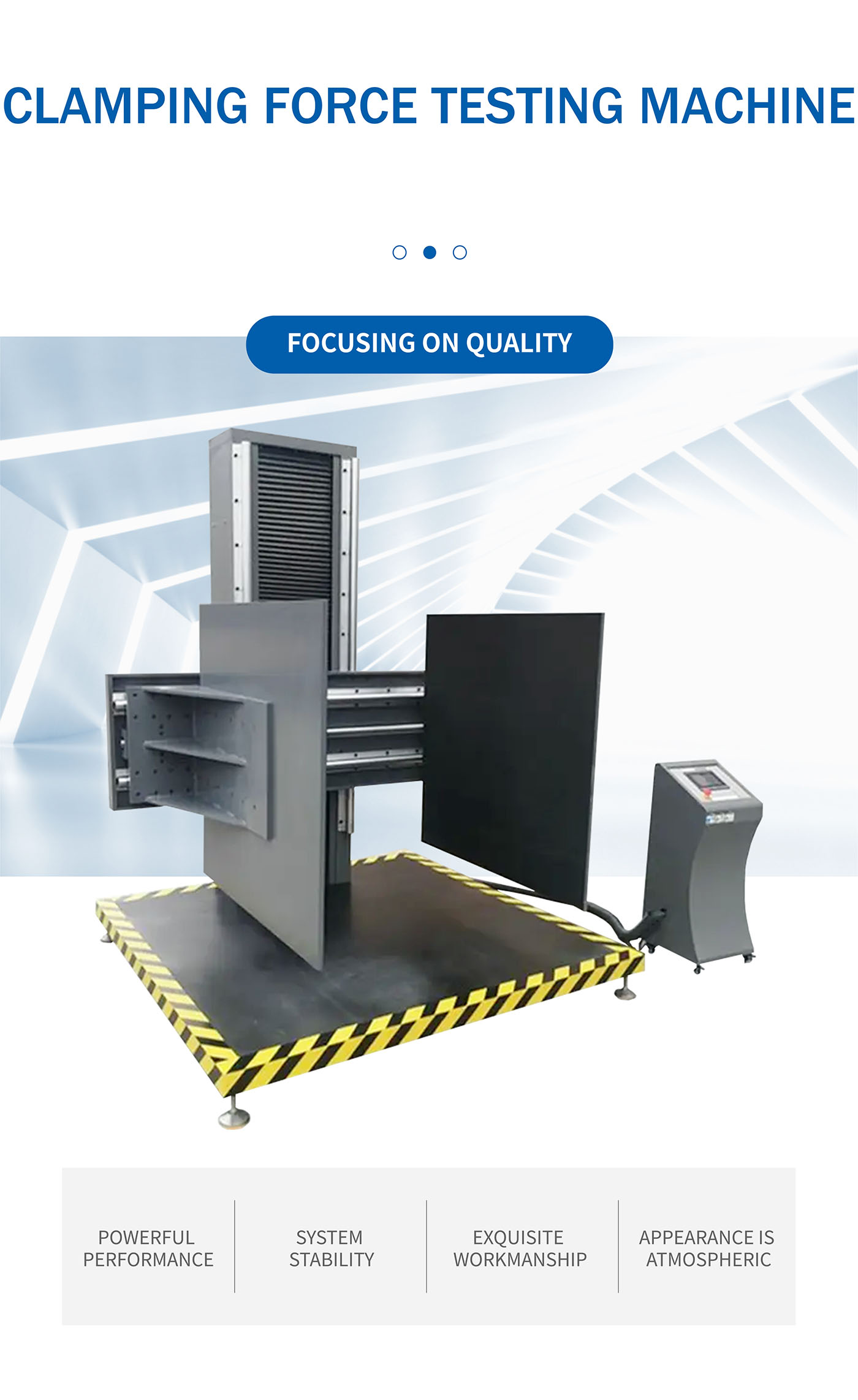

(1) Made of group welding parts with high rigidity and strength. Mounting surface is processed after aging treatment.
(2) Warning boundaries are set all around and at the center. The middle line acts as the reference line for the test piece (people must not stand on the base plate during testing).

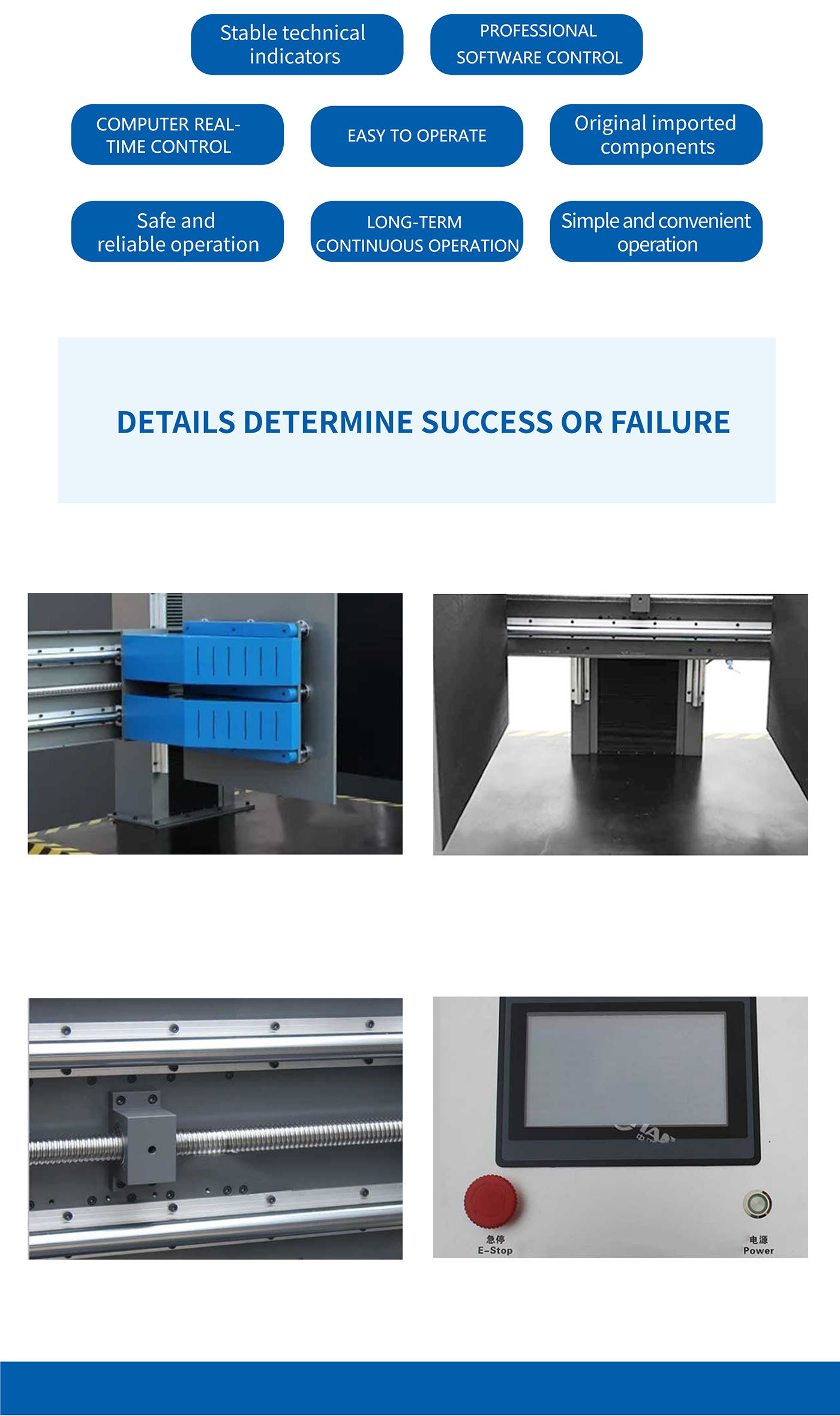

Driven by servo motors on both left and right clamping arms, the screw moves inward synchronously at an adjustable speed. This clamps the test piece to reach the set force, monitored and stopped by pressure sensors.
Once the preset clamping force is reached and stabilized, the servo control station commands the servo system via chain drive to raise, stop, or lower the crossbar. Personnel should stay clear of both sides of the crossbar.
(1) Operates on PLC control to secure precise action synchronization at each position.
(2) Features a control cabinet to manage clamping force, speed, lifting/stopping, and manual or automatic modes.
(3) Includes an emergency stop button directly on the control panel.

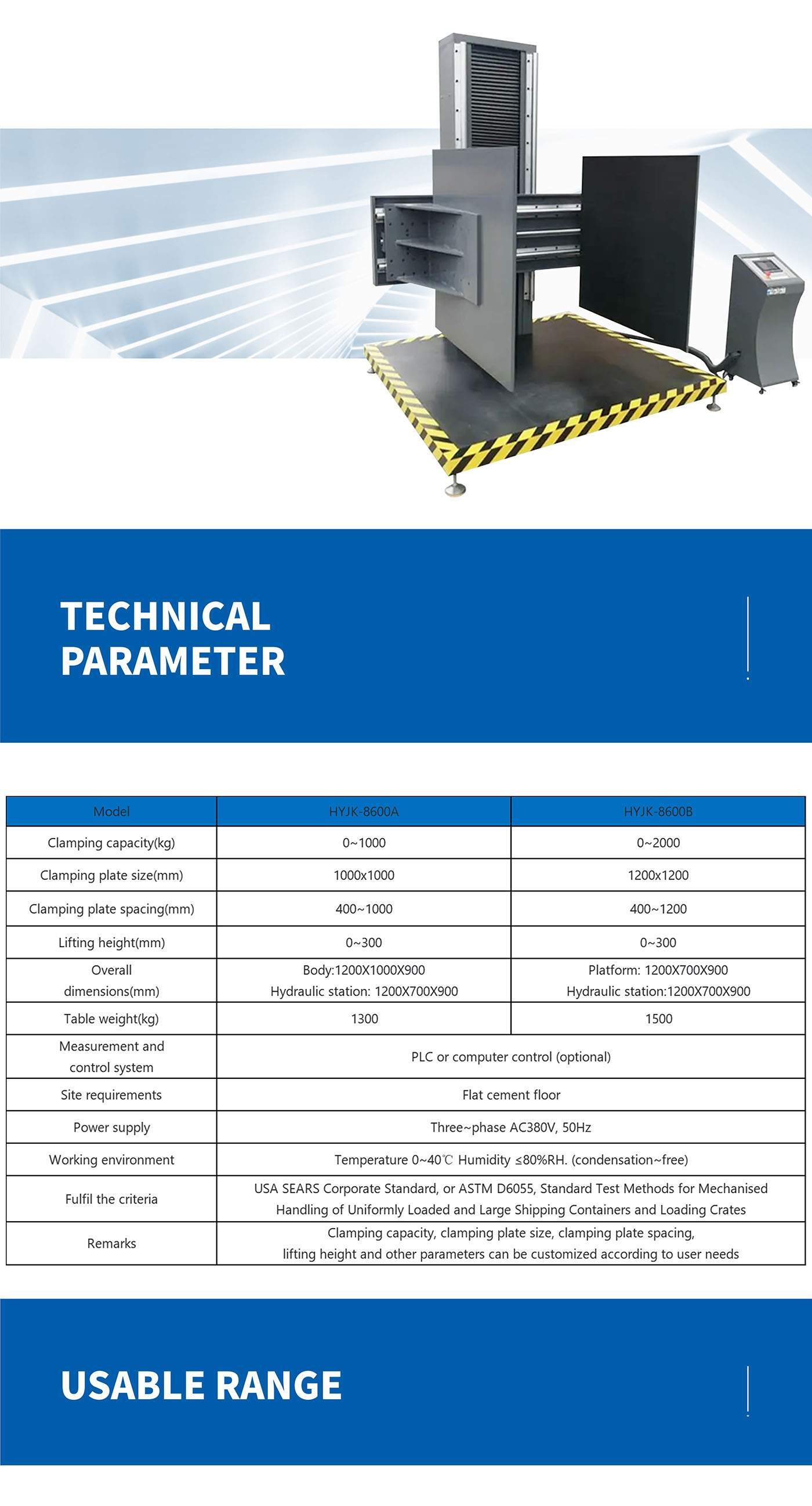

| Model | HYJK-8600A | HYJK-8600B |
| Clamping capacity(kg) | 0~1000 | 0~2000 |
| Clamping plate size(mm) | 1000x1000 | 1200x1200 |
| Clamping plate spacing(mm) | 400~1000 | 400~1200 |
| Lifting height(mm) | 0~300 | 0~300 |
| Overall dimensions(mm) | Body: 1200X1000X900 Hydraulic station: 1200X700X900 |
Body: 1200X1000X900 Hydraulic station: 1200X700X900 |
| Table weight(kg) | 1300 | 1500 |
| Measurement and control system | PLC or computer control (optional) | |
| Site requirements | Flat cement floor | |
| Power supply | Three-phase AC380V, 50Hz | |
| Environment | Temperature : 0~40℃; Humidity≤80%RH. (Condensation-free) | |

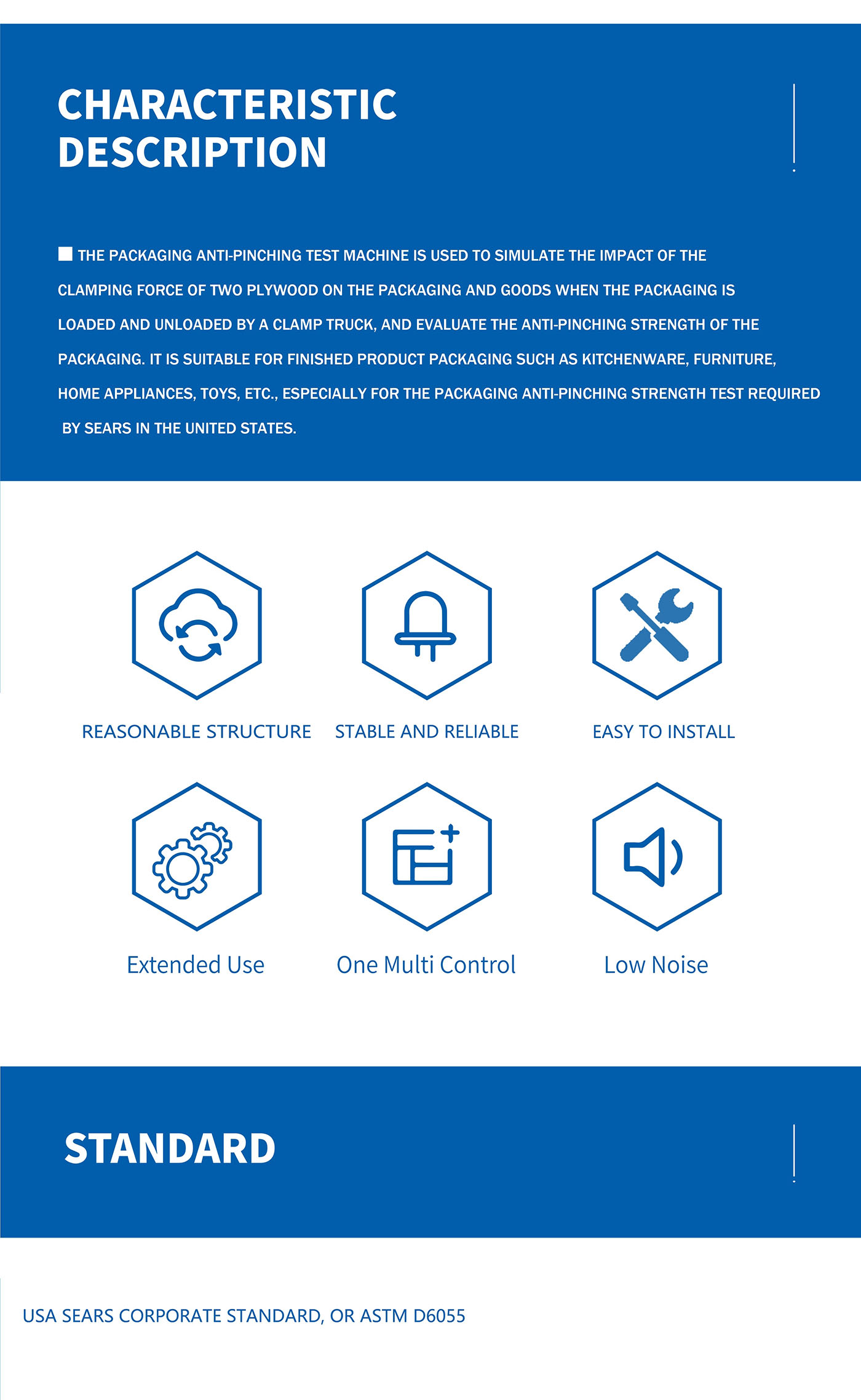

| Fulfill the criteria | USA SEARS Corporate Standard, or ASTM D6055, Standard Test Methods for Mechanised Handling of Uniformly Loaded and Large Shipping Containers and Loading Crates | |
| Remarks | Clamping capacity, camping plate size, clamping plate spacing, lifting height and other parameters can be customized according to user needs | |
The testing machines fully comply with the USA SEARS Corporate Standard and ASTM D6055, which specifies standard test methods for the mechanized handling of uniformly loaded and large shipping containers and loading crates.
Model HYJK-8600A supports a clamping capacity of 0 to 1000 kg with a plate size of 1000x1000 mm. Model HYJK-8600B offers a higher capacity of 0 to 2000 kg and a larger plate size of 1200x1200 mm.
Yes, parameters such as clamping capacity, plate size, clamping plate spacing, and lifting height can be fully customized to meet specific user testing requirements.
The machine requires a three-phase AC380V, 50Hz power supply and must be installed on a flat, solid cement floor for optimal stability and safety.
The system features integrated warning boundaries and reference lines on the base plate. It also includes an easily accessible emergency stop button on the control panel to halt operations immediately if necessary.
Yes, the machine uses a PLC control system which supports both manual and automatic test modes. Users can pre-program parameters for clamping force, speed, and positioning to run tests coherently and safely.
