OEM Glass screen four-point bending test machine Manufacturer, Suppliers

The glass cover bending tester is suitable for three-point and four-point bending tests of glass products such as mobile phones, watches, flat steel plate glass, cover glass, sapphire glass, glass lenses, tempered glass, mobile phones, flat cover plates, etc.

Send Inquiry

Product Description

Description

The glass cover bending tester refers to JC/T2130, GBT232, GB/T1449, GB/T9341, ASTM D6109, EN1288-5 and other standard requirements.

Features

It has three closed-loop test functions of stress, strain and displacement
Each length, force unit and display digit are dynamically interchangeable
The test results can be output in the form of data in EXCEL format
It uses high-precision, gap-free ball screw
Fully computerized data acquisition and motion control

Technical parameters

Capacity selection	1000kg
Test accuracy	≤±1%
Test speed range	0-500mm/min (can be set, the factory maximum setting is 300mm/min)
Compression stroke	about 200mm (excluding the restrictions of the fixture and protective cover)
Effective test space	600mm front and back, 800mm left and right
Control system	computer-based Chinese and English tension and pressure measurement and control system
Drive system	servo motor + ball screw + reduction system
Four-point bending fixture	the maximum span of the lower fixture is 300mm, and the maximum span of the upper fixture is 150mm
Pressure rod diameter	6mm
Protective cover	aluminum profile bracket + reinforced transparent acrylic cover
Stop mode	upper and lower limit safety settings, emergency stop button, program force and displacement settings, specimen destruction stop
Working power	AC220V, 50Hz

Product Gallery & Video

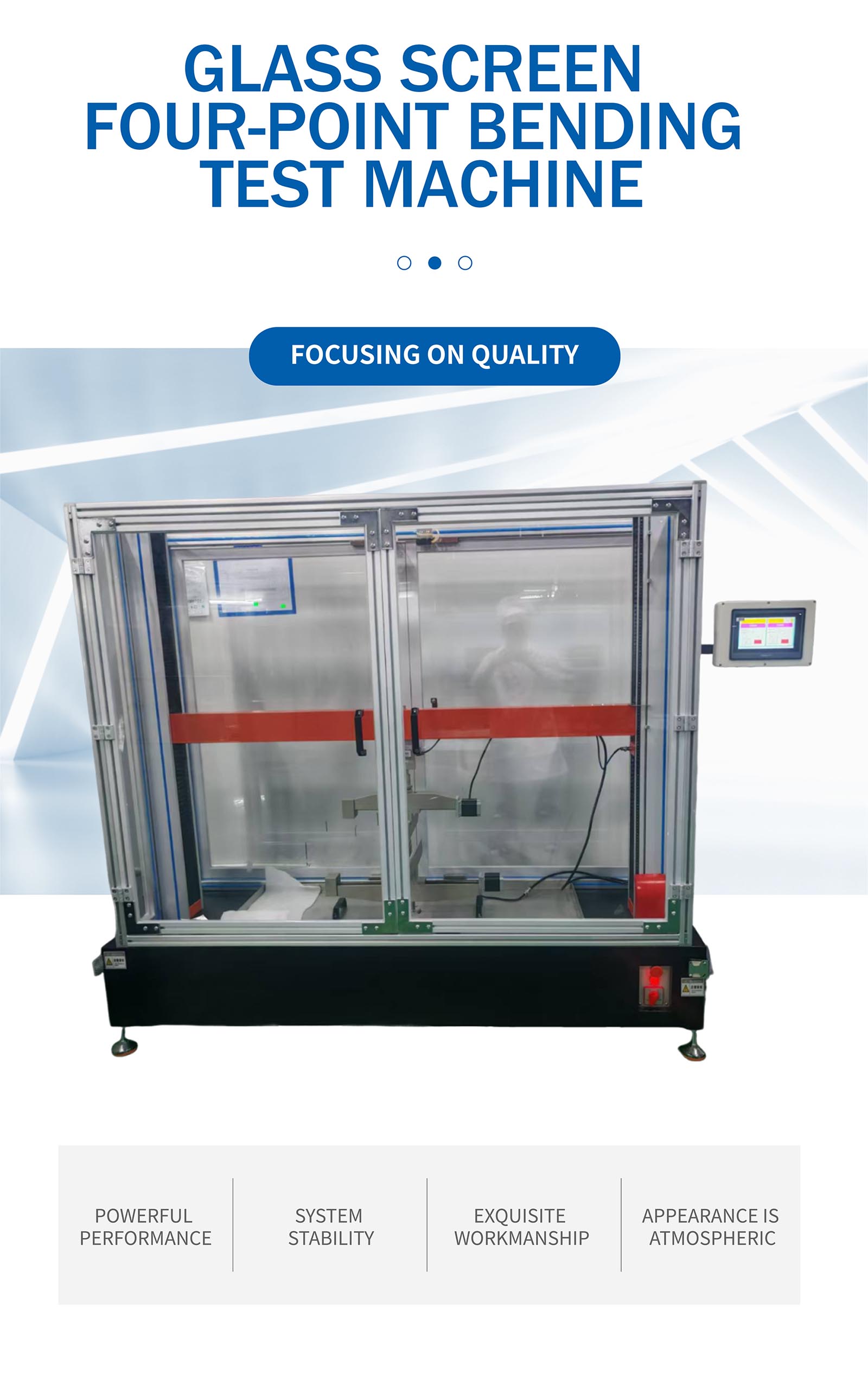

Glass screen four-point bending test machine 1

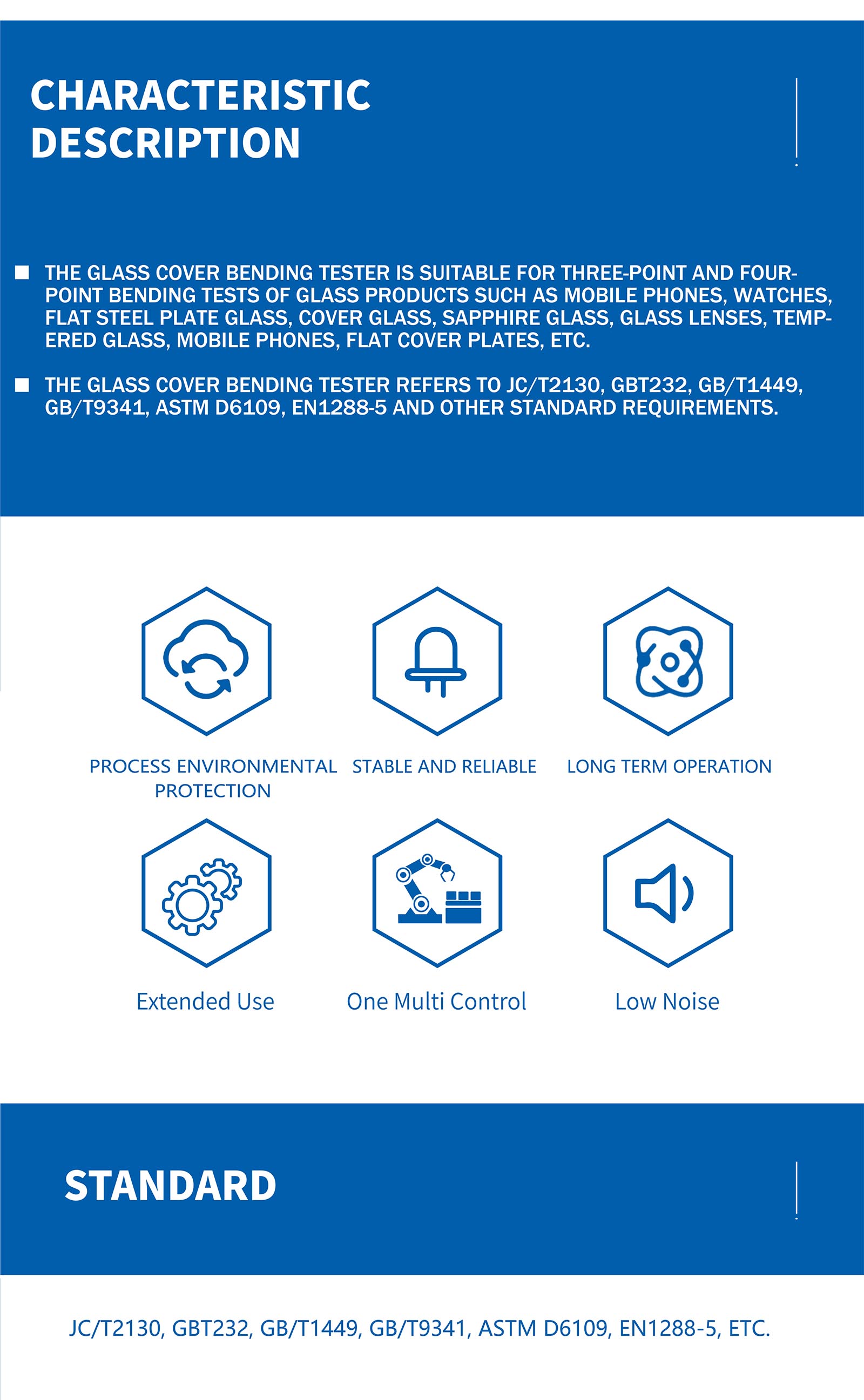

Glass screen four-point bending test machine 2

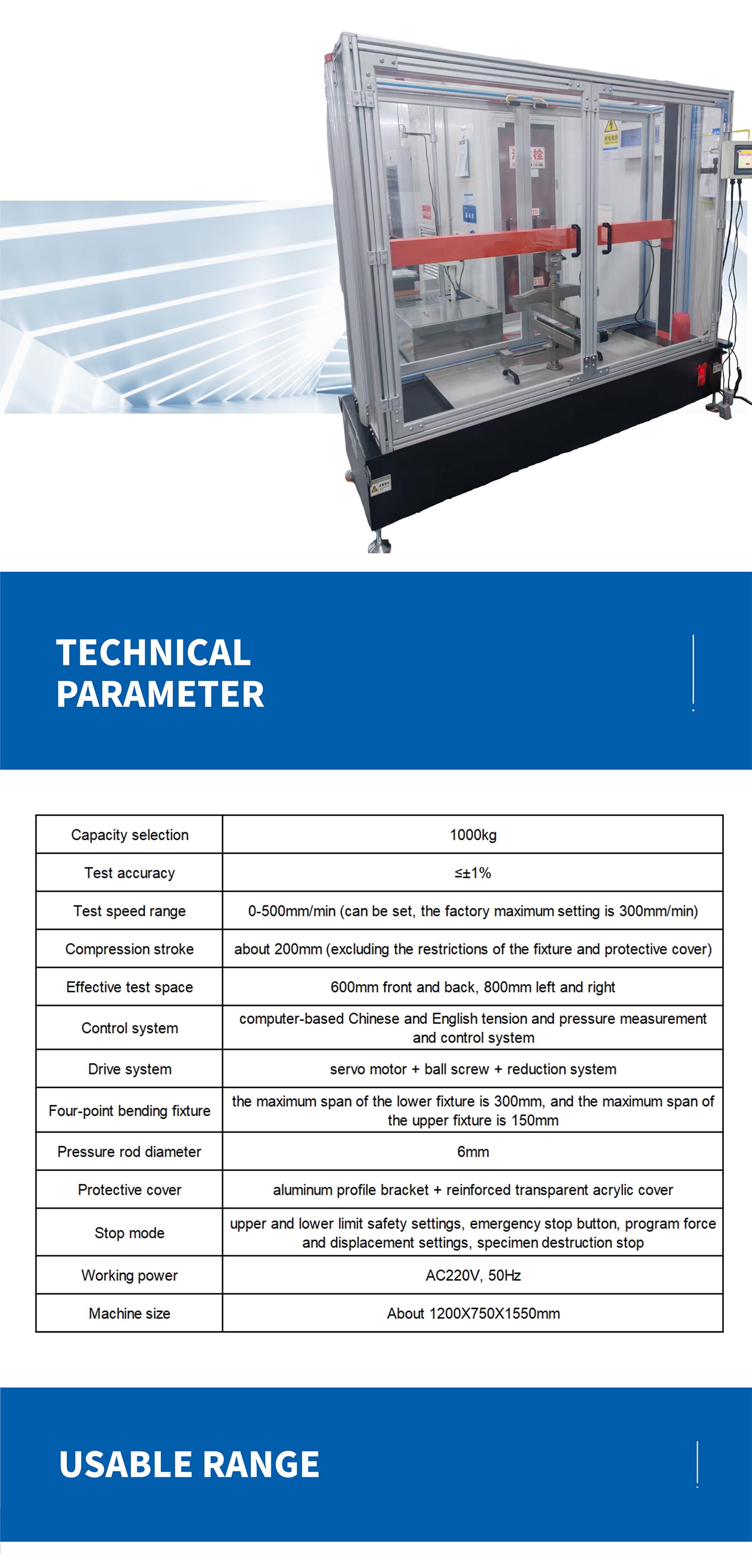

Glass screen four-point bending test machine 3

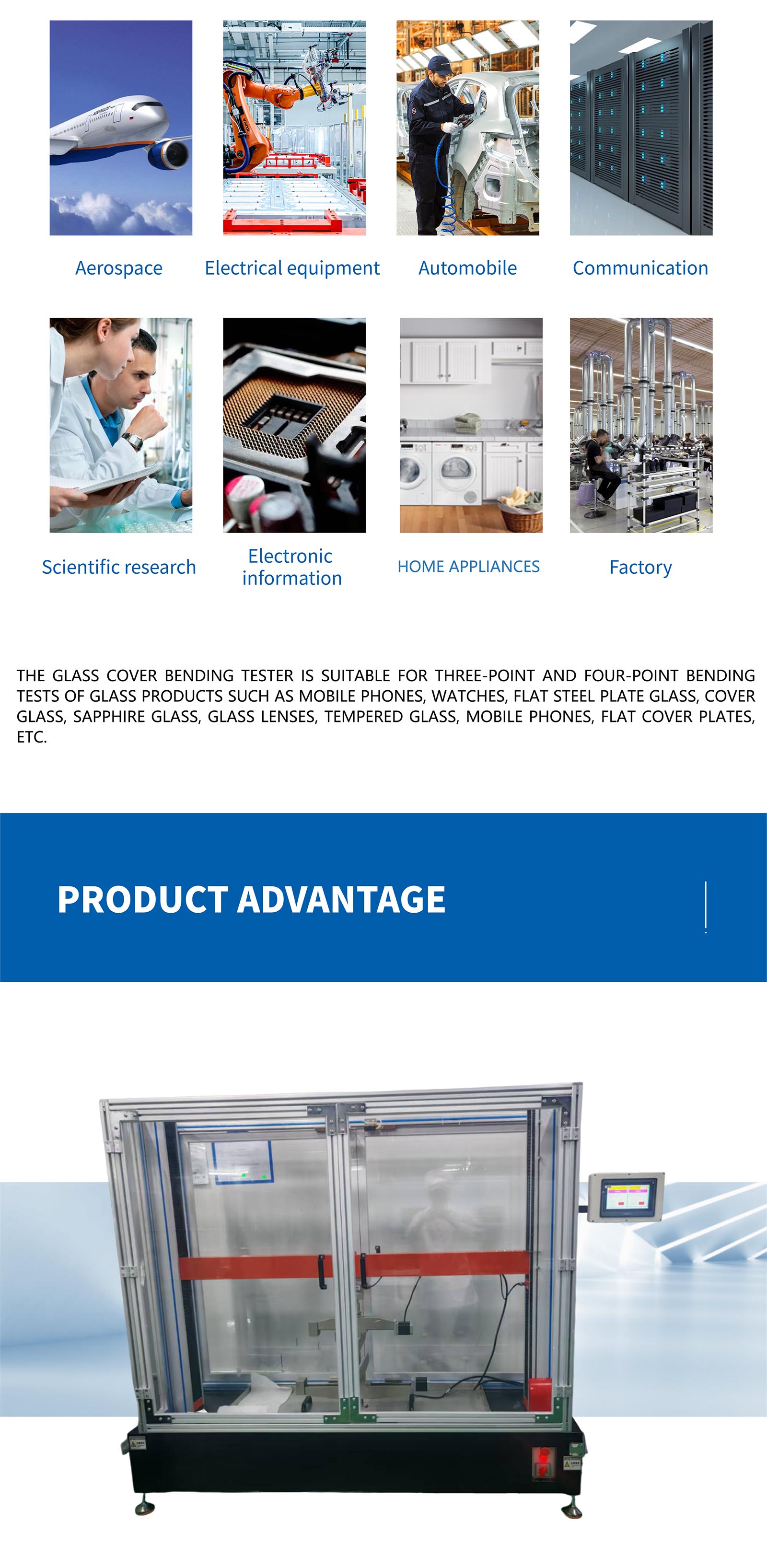

Glass screen four-point bending test machine 4

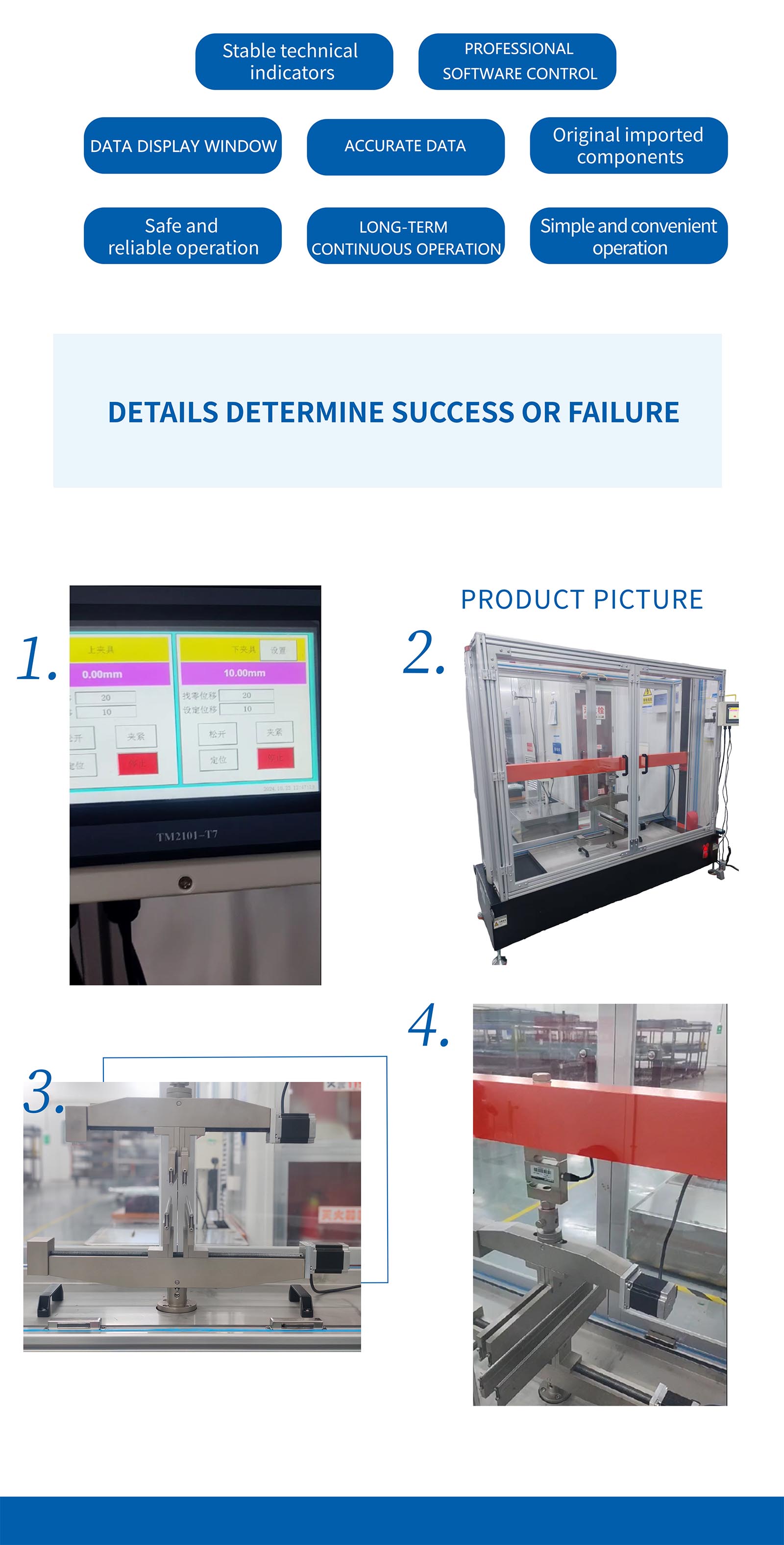

Glass screen four-point bending test machine 5

Frequently Asked Questions

Q1: What types of glass can be tested with this machine? A1: It is ideal for testing mobile phone covers, watch crystals, sapphire glass, tempered glass, and flat steel plate glass using 3-point or 4-point bending methods.

Q2: Does the equipment comply with international testing standards? A2: Yes, it meets several standards including JC/T2130, GBT232, GB/T1449, ASTM D6109, and EN1288-5.

Q3: How accurate are the bending test results? A3: The machine offers a high test accuracy of ≤±1% with a computer-based control system for precise measurement.

Q4: Can I export the test data for analysis? A4: Yes, the system allows test results to be output directly into EXCEL format for further data processing.

Q5: What safety features are integrated into the tester? A5: It includes an emergency stop button, upper and lower limit safety settings, and an automatic stop function upon specimen destruction.

Q6: Is the testing speed adjustable? A6: Yes, the speed range is 0-500mm/min, which can be customized according to your specific testing requirements.
