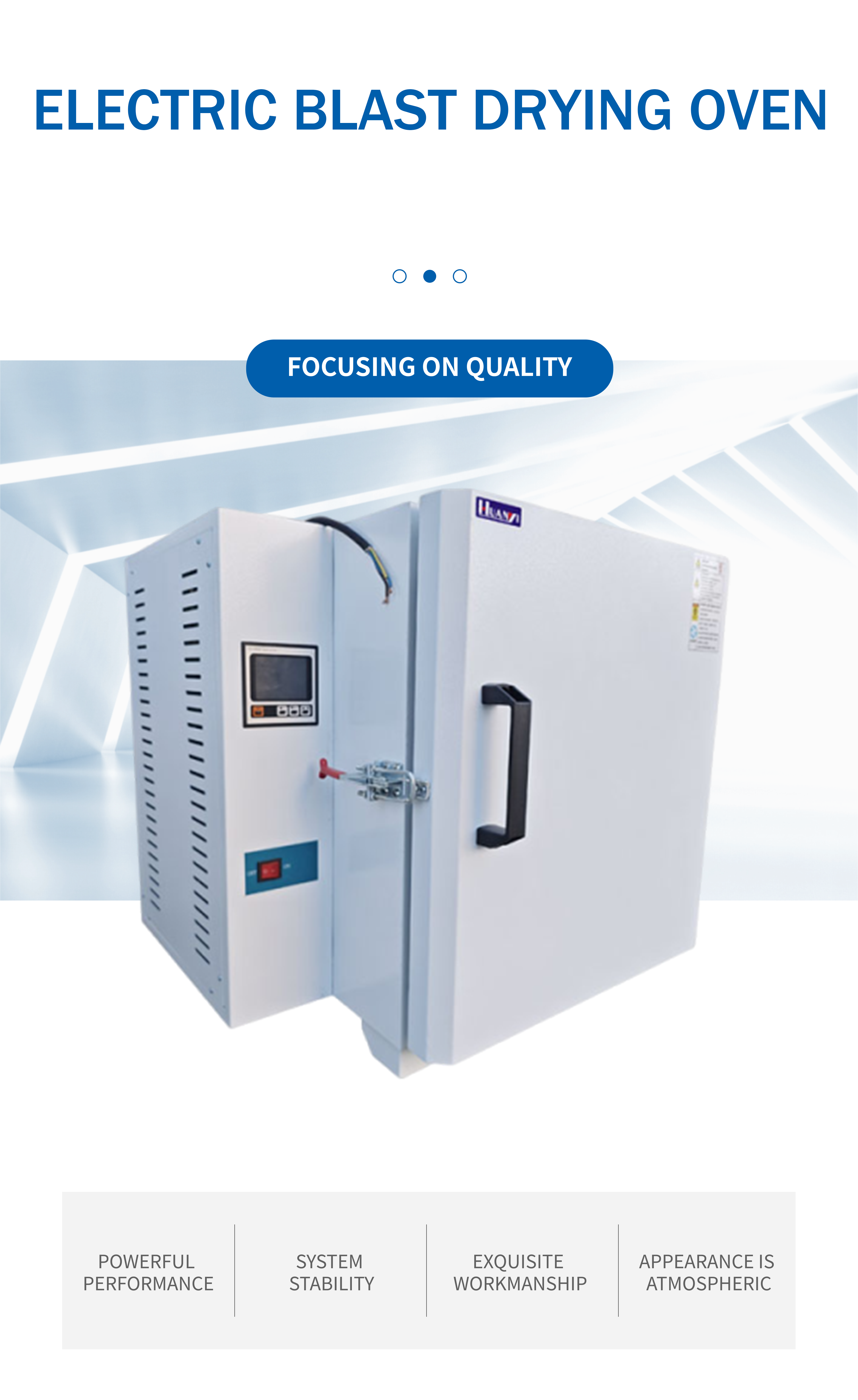

OEM Electric blast drying oven Manufacturer, Factories

1 / 2

OEM Electric blast drying oven Manufacturer, Factories

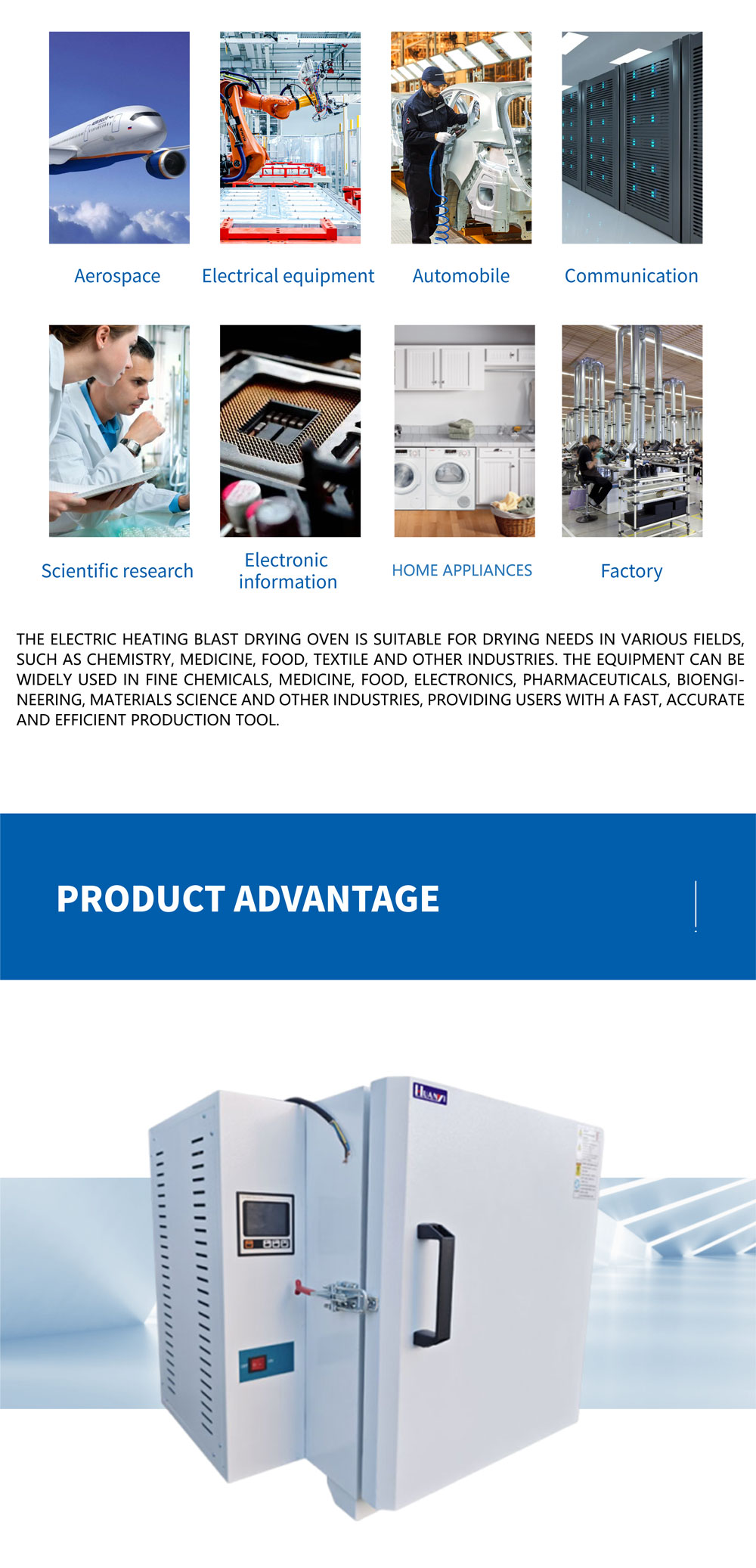

The electric heating blast drying oven is suitable for drying needs in various fields, such as chemistry, medicine, food, textile and other industries. The equipment can be widely used in fine chemicals, medicine, food, electronics, pharmaceuticals, bioengineering, materials science and other industries, providing users with a fast, accurate and efficient production tool.

Send Inquiry

Product Description

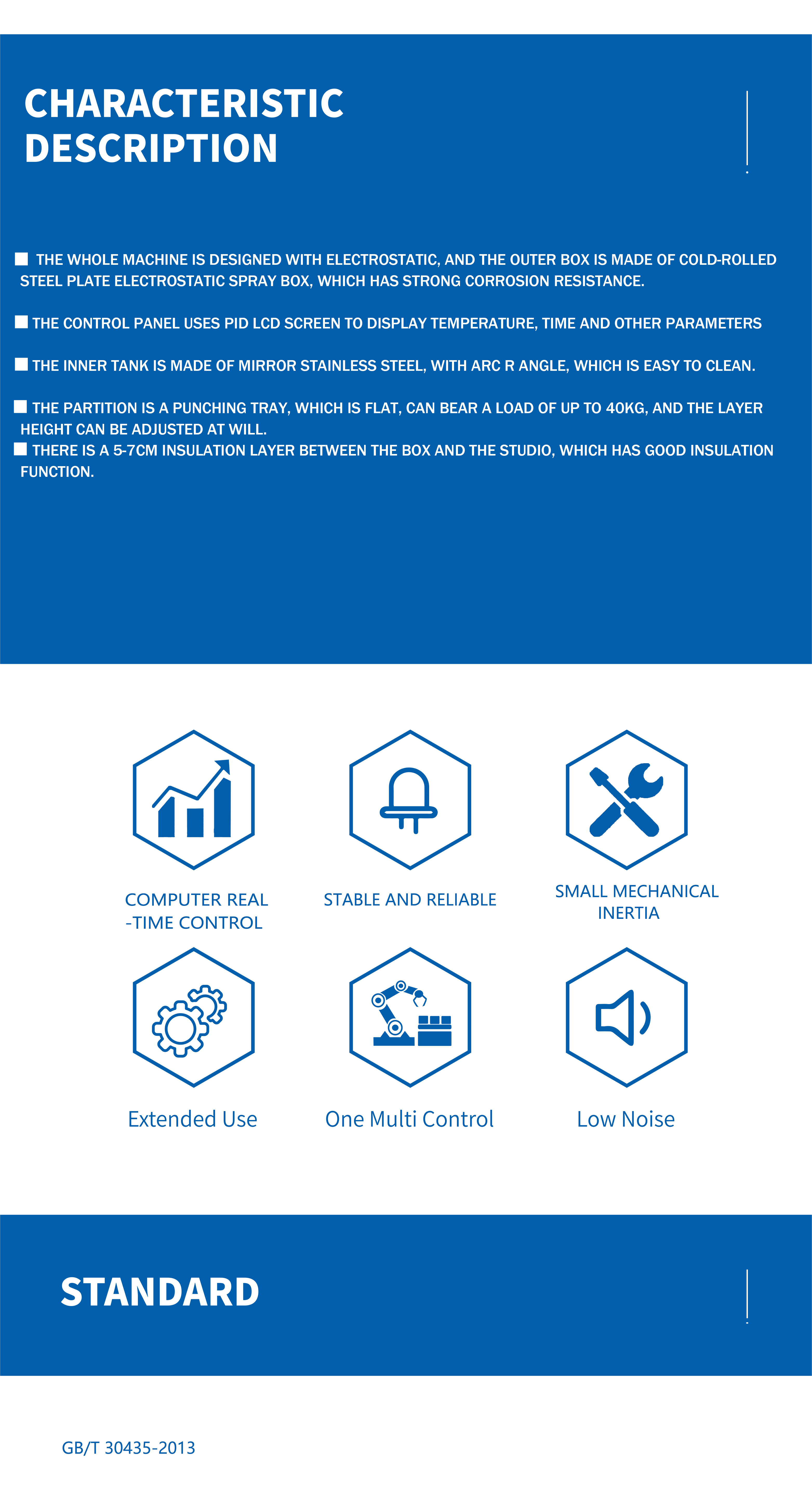

Key Features

Corrosion Resistant Design: The whole machine is designed with electrostatic protection. The outer box is made of cold-rolled steel plate with an electrostatic spray finish, ensuring strong durability and resistance.

Intelligent Control: The control panel features a PID LCD screen to clearly display temperature, time, and other critical operating parameters.

Easy to Clean: The inner tank is constructed from mirror stainless steel with arc R angles, making maintenance and cleaning simple and efficient.

Heavy-Duty Shelving: Equipped with a punching tray partition that is flat and capable of bearing loads up to 40KG. Layer height can be adjusted as needed.

Superior Insulation: Features a 5-7CM insulation layer between the box and the studio for excellent thermal retention and energy efficiency.

Industrial Applications

This equipment is widely utilized across various sectors including industrial and mining enterprises, laboratories, and scientific research institutions. It is ideal for drying, baking, melting wax, and professional sterilization processes.

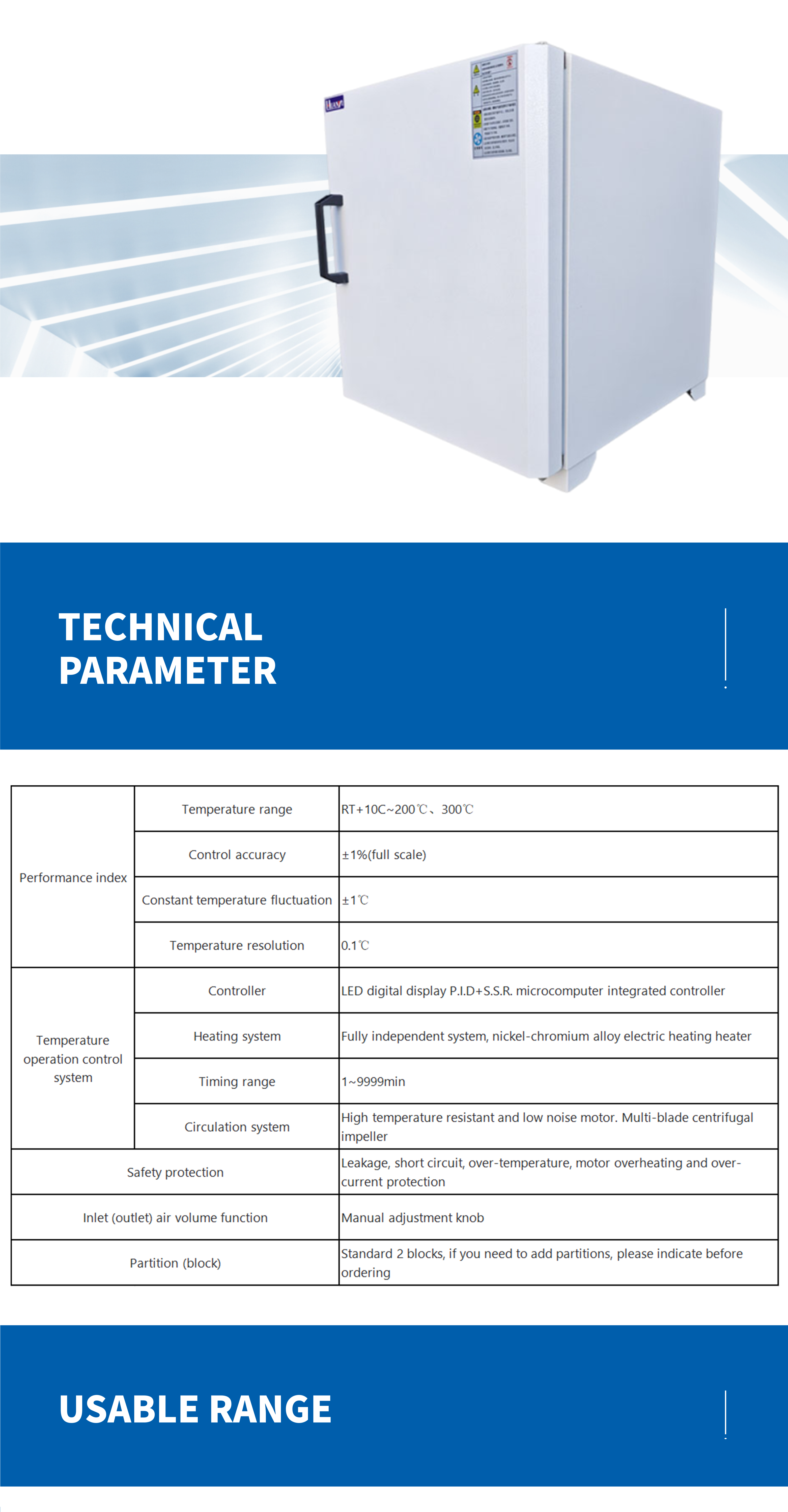

Technical Specifications

Performance Index	Temperature Range	RT+10°C ~ 200°C / 300°C
	Control Accuracy	±1% (full scale)
	Constant Temperature Fluctuation	±1°C
	Temperature Resolution	0.1°C
Control System	Controller	LED digital display P.I.D + S.S.R. microcomputer integrated controller
	Heating System	Fully independent nickel-chromium alloy electric heater
	Timing Range	1 ~ 9999 min
	Circulation System	High temperature resistant, low noise motor with multi-blade centrifugal impeller
Safety Protection		Leakage, short circuit, over-temperature, motor overheating, and over-current protection
Air Volume Function		Manual adjustment knob for inlet/outlet
Standard Partitions		Standard 2 blocks (customizable upon request)

Product Gallery & Video

Frequently Asked Questions

What is the maximum temperature this machine can reach?

The standard temperature range is from RT+10°C up to either 200°C or 300°C, depending on the specific model configuration chosen.

How accurate is the temperature control?

The machine uses a high-precision PID microcomputer controller, providing a control accuracy of ±1% of the full scale and fluctuations within ±1°C.

Is the interior of the machine easy to maintain?

Yes, the inner tank is made of mirror-finish stainless steel with rounded (arc R) corners, which prevents debris buildup and makes it very easy to wipe clean.

What safety features are included?

The unit is equipped with multiple safety protections, including leakage protection, short circuit protection, over-temperature alarms, and motor overheating/over-current protection.

Can I adjust the internal shelving?

Yes, the machine comes with standard punching trays that can support up to 40KG each, and the layer height can be adjusted freely to accommodate different sample sizes.

What is the timing range for operations?

The integrated timer can be set anywhere from 1 minute up to 9999 minutes, allowing for long-term unattended drying or sterilization cycles.
