The working principle of the shaking table is based on electromagnetic force: the energized conductor moves under the action of electromagnetic force within a magnetic field. When the moving coil in the magnetic circuit of the electromagnetic vibration table passes an alternating current signal, an exciting force is generated, resulting in controlled vibration motion.

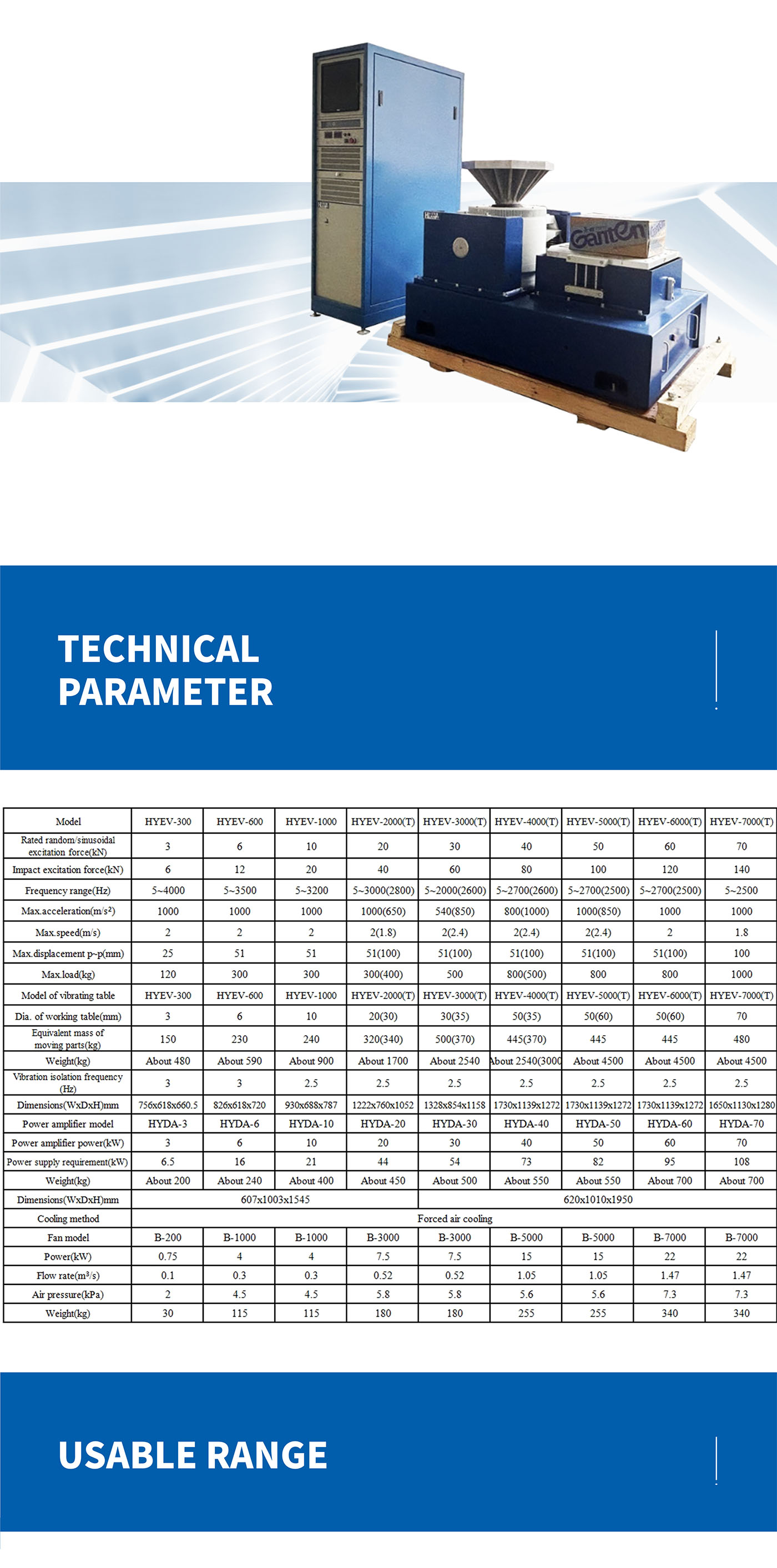

| Model | HYEV-300 | HYEV-600 | HYEV-1000 | HYEV-2000(T) | HYEV-3000(T) | HYEV-4000(T) | HYEV-5000(T) | HYEV-6000(T) | HYEV-7000(T) |
| Rated random/sinusoidal excitation force(kN) | 3 | 6 | 10 | 20 | 30 | 40 | 50 | 60 | 70 |
| Impact excitation force(kN) | 6 | 12 | 20 | 40 | 60 | 80 | 100 | 120 | 140 |
| Frequency range(Hz) | 5~4000 | 5~3500 | 5~3200 | 5~3000(2800) | 5~2000(2600) | 5~2700(2600) | 5~2700(2500) | 5~2700(2500) | 5~2500 |
| Max.acceleration(m/s²) | 1000 | 1000 | 1000 | 1000(650) | 540(850) | 800(1000) | 1000(850) | 1000 | 1000 |
| Max.speed(m/s) | 2 | 2 | 2 | 2(1.8) | 2(2.4) | 2(2.4) | 2(2.4) | 2 | 1.8 |
| Max.displacement p~p(mm) | 25 | 51 | 51 | 51(100) | 51(100) | 51(100) | 51(100) | 51(100) | 100 |
| Max.load(kg) | 120 | 300 | 300 | 300(400) | 500 | 800(500) | 800 | 800 | 1000 |
| Cooling method | Forced air cooling | ||||||||
