Standard Compliance
The equipment is certified by the following international and national standards:
✓
DIN-53516: German Elastomer Material Wear Test Specification
✓
ISO/DIS-4649: Draft of the International Organization for Standardization's Abrasion Test Method
✓
GB-9867: Technical Standard for China's Rubber Rotary Abrasion Tester
The test report shall record information such as initial quality, quality after abrasion, test temperature and sandpaper specifications, and the data repeatability deviation shall not exceed 5%.
Industrial Application
Mainly serves the following industries for rigorous material testing:
⚙
Rubber products: Wear life evaluation of tire tread rubber, seals, and shock absorbers.
⚙
Footwear manufacturing: Wear grade determination of sole materials.
⚙
Industrial materials: Wear resistance verification of conveyor belts, transmission belts, and elastomer coatings.
⚙
Scientific research testing: Comparative analysis of wear resistance coefficients of new formula materials.
Technical Parameters
| Model |
DIN abrasion tester |
| Rolling diameter |
150mm |
| Clamp lateral displacement |
4.2mm/rolling per turn |
| Load |
2.5N, 5N, 10N |
| Speed |
40rpm |
| Dimensions |
95×66×31cm |
| Weight |
Approx 50kg |
| Power supply |
220V 50HZ |

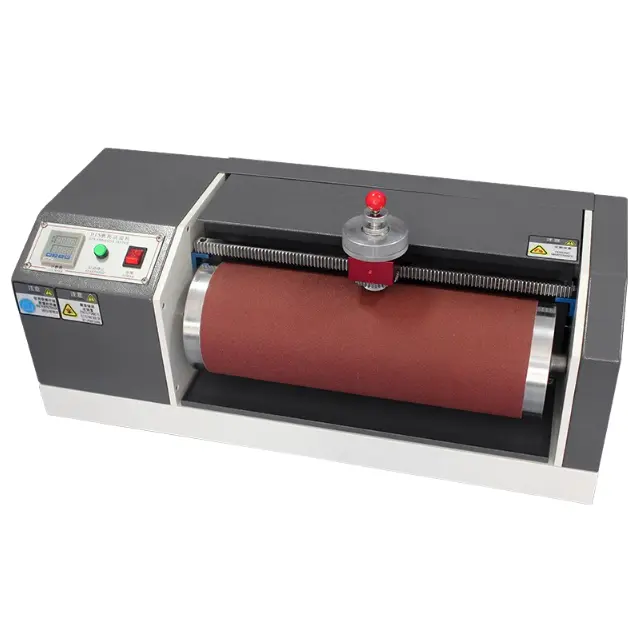

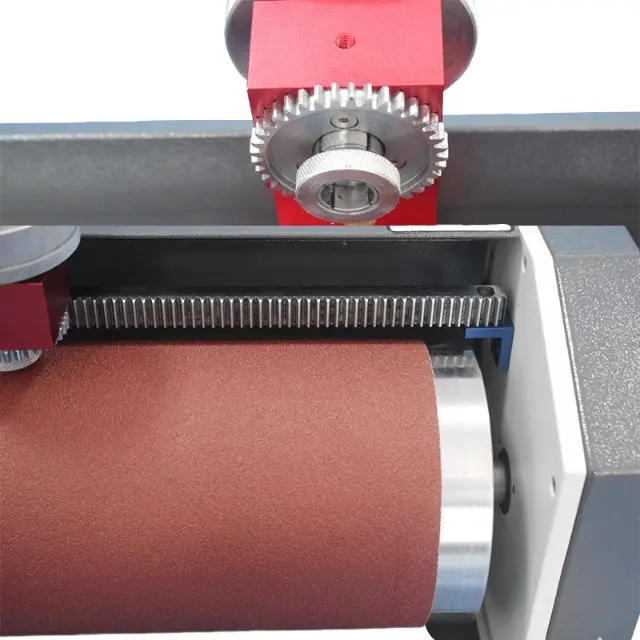

Product Presentation
Video Demonstration
Frequently Asked Questions (FAQ)
What is the primary function of the DIN Abrasion Tester?
The DIN Abrasion Tester is specifically designed to measure the abrasion resistance of natural and synthetic rubbers and elastomers under standardized conditions, widely used for soles, tires, and conveyor belts.
Which testing standards does this equipment comply with?
This equipment fully complies with DIN-53516, ISO/DIS-4649, and GB-9867 standards, ensuring international compatibility of test results.
How is the load adjusted for different materials?
The tester provides versatile load options of 2.5N, 5N, and 10N, allowing operators to select the appropriate pressure based on the material's hardness and specific test requirements.
What is the accuracy of the test data?
The equipment is designed for high precision, with a data repeatability deviation of no more than 5%, providing reliable data for scientific research and quality control.
What information is included in the test report?
A standard report includes initial sample quality, post-abrasion quality, test temperature, sandpaper specifications, and the calculated volume loss or abrasion index.
What are the power requirements for this machine?
The device operates on a standard 220V 50HZ power supply, making it suitable for most industrial laboratory environments.
