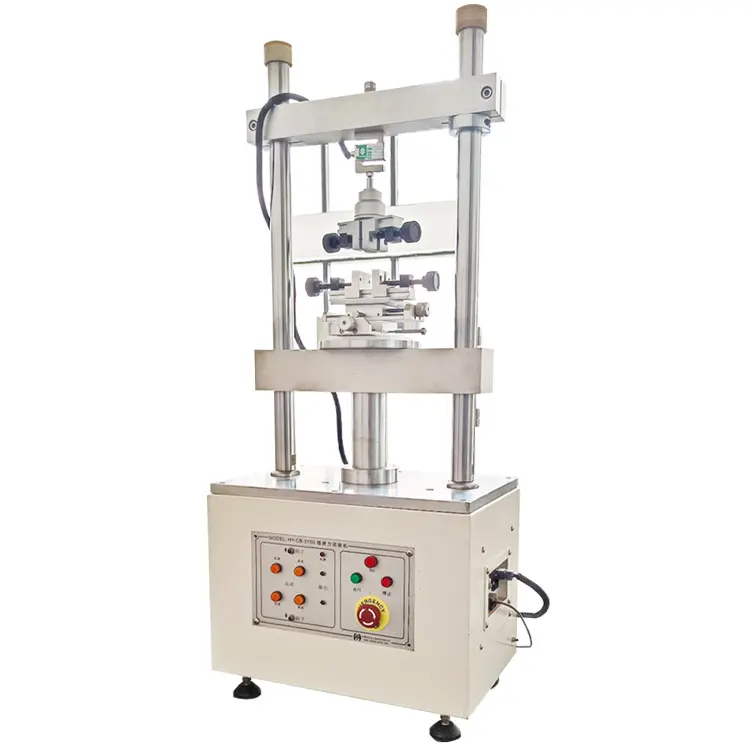

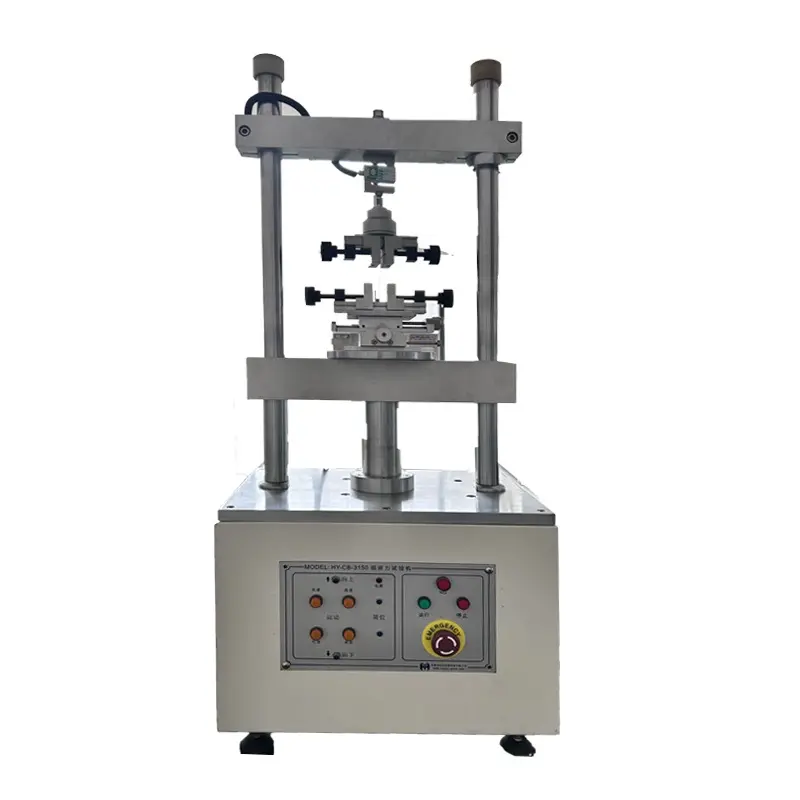

Custom Insertion force testing machine Manufacturer, Factories

The plugging and pulling force testing machine is suitable for plugging and pulling tests of various connectors. It can display the continuous change value and peak value of the plugging and pulling force, and has the function of setting the number of times, adjusting the speed and pulling stroke, and displaying the numerical value.

Send Inquiry

Product Description

Key Features

1
This machine is suitable for various connectors for insertion and extraction force testing. It is equipped with an automatic centering device and special fixtures for various connectors to obtain completely accurate insertion and extraction force results.
2
Utilizes Windows program settings for easy operation. It automatically stores test data including load-stroke curves, load attenuation life curves, test results, and all test conditions.
3
Equipped with high-precision load cell measurement and AC servo motor drive to ensure precise insertion and extraction force results, making it essential for R&D and quality inspection.

Compliance Standards

✓

Meets GB/T20234 series standards, specifically: GB/T20234.1-2015, GB/T20234.2-2015, and GB/T20234.3-2015.

Technical Parameters

Model	HY-CB series
Capacity selection	5kgf, 10kgf, 20kgf, 50kgf, 100kgf
Unit switching	kgf, N, Lb, gf
Load accuracy	±0.5%
Minimum display	0.01kgf or 0.01gf
Test stroke	0~150mm
Minimum displacement display	0.001mm
Effective width	200, 400 optional
Test speed	0~200mm/min or 400mm/min
Speed accuracy	±0.5%
Motor	AC servo motor
Main unit dimensions (WxDxH)	360x270x950mm
Machine weight	70kg
Power supply	AC220 10A or specified

Product Display

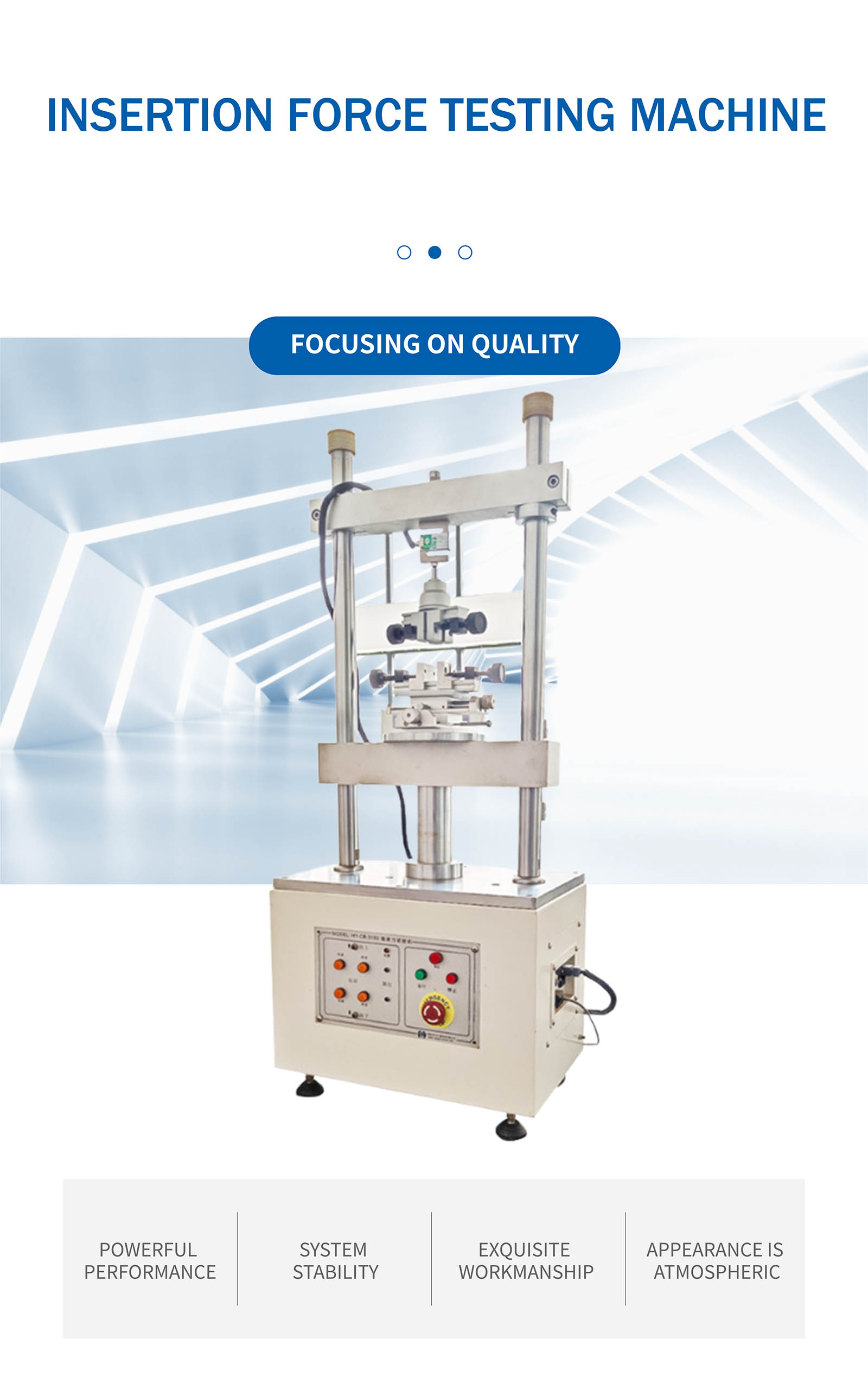

Insertion force testing machine detail 1

Insertion force testing machine detail 2

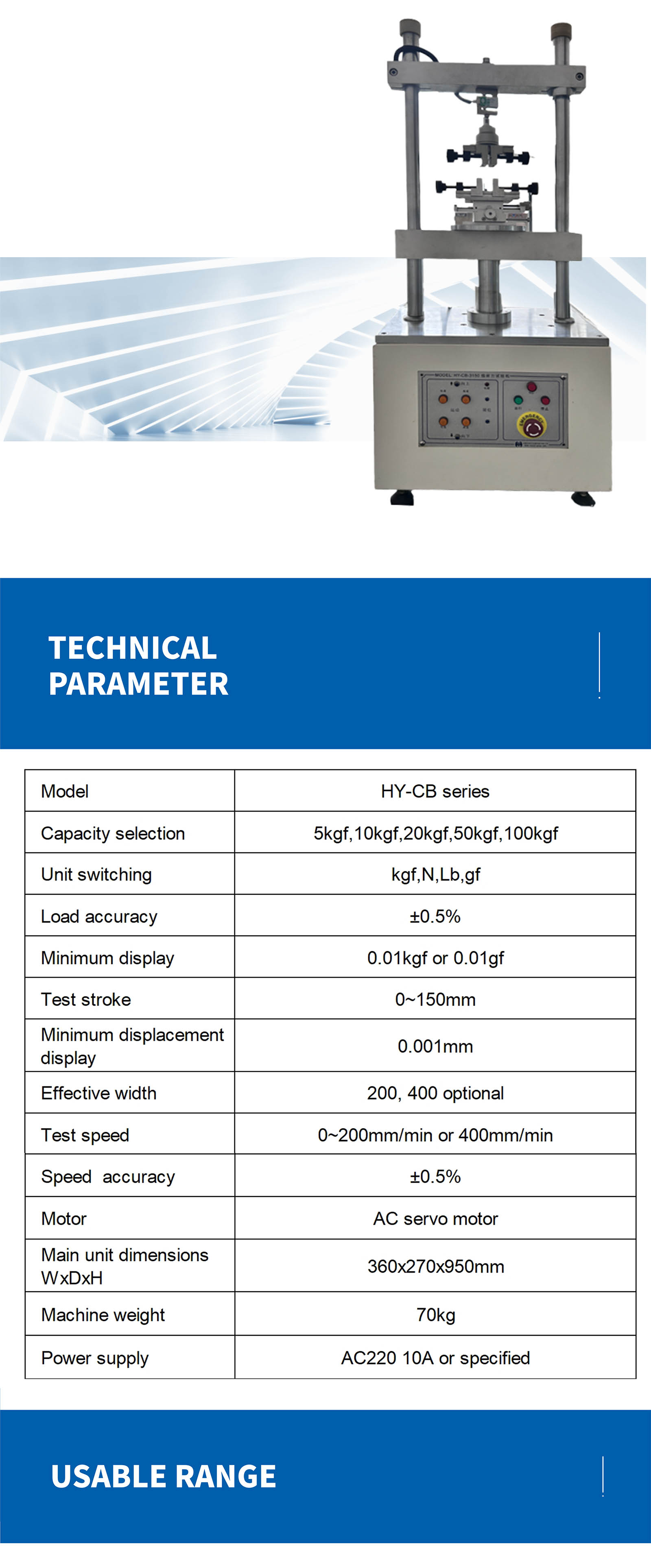

Insertion force testing machine detail 3

Insertion force testing machine detail 4

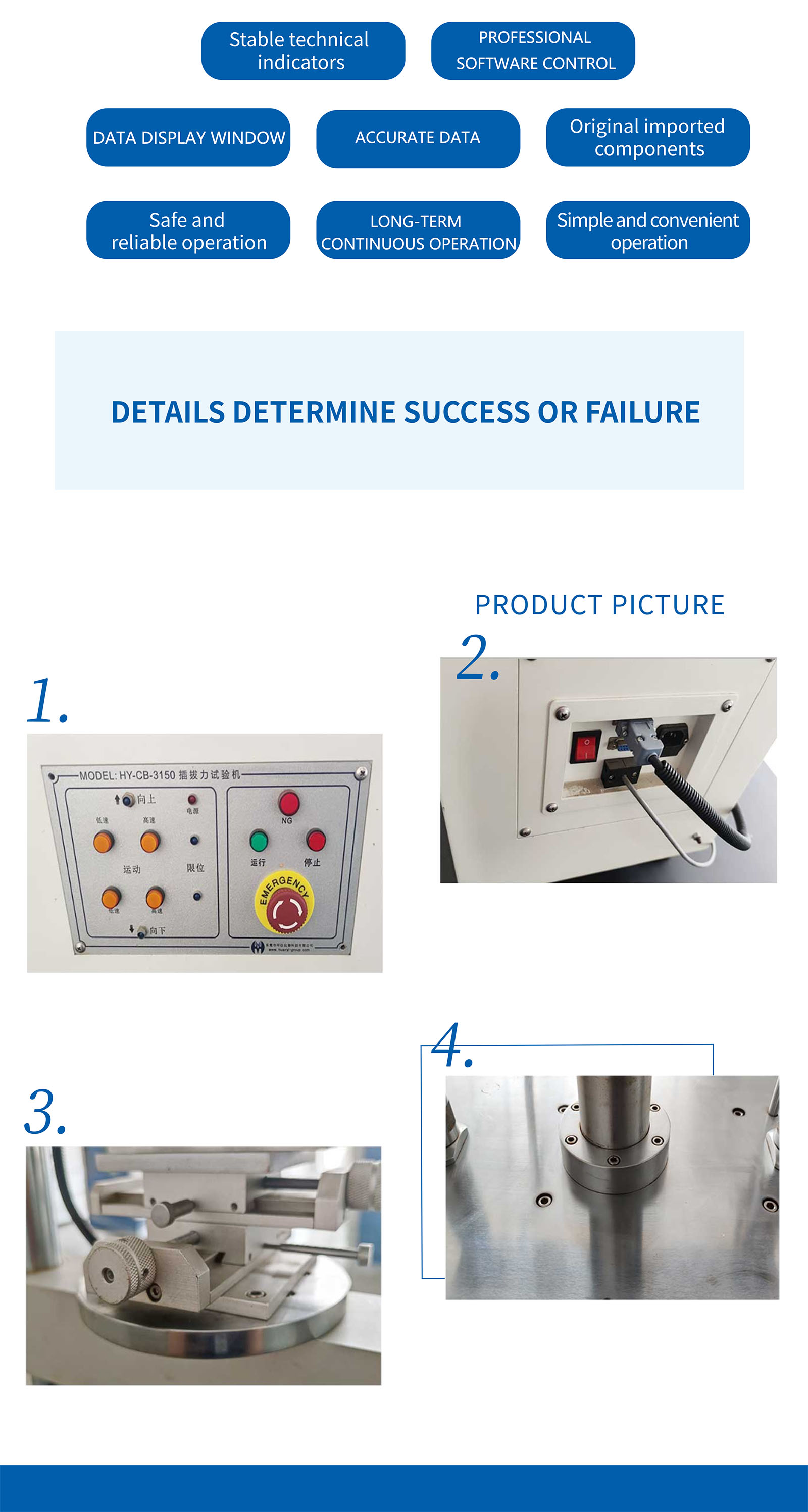

Insertion force testing machine detail 5

Operation Video

Frequently Asked Questions

Q1: What types of tests can this machine perform?

This machine is specifically designed for insertion and extraction force testing of various electronic connectors, ensuring accurate measurement of the force required to plug and unplug components.

Q2: How accurate are the test results?

The system features a load accuracy of ±0.5% and a speed accuracy of ±0.5%, utilizing a high-precision load cell and an AC servo motor for reliable data.

Q3: Can the machine store test data?

Yes, it uses a Windows-based program that automatically stores load-stroke curves, attenuation life curves, and all specified test conditions for future analysis.

Q4: Does the machine support different measurement units?

Yes, the software allows for easy unit switching between kgf, N, Lb, and gf to meet various international testing requirements.

Q5: What safety or alignment features are included?

The machine is equipped with an automatic centering device which helps in aligning the connectors perfectly to avoid measurement errors caused by manual placement.

Q6: Is the testing speed adjustable?

Yes, the test speed is adjustable between 0~200mm/min (or up to 400mm/min depending on the specific model configuration).
