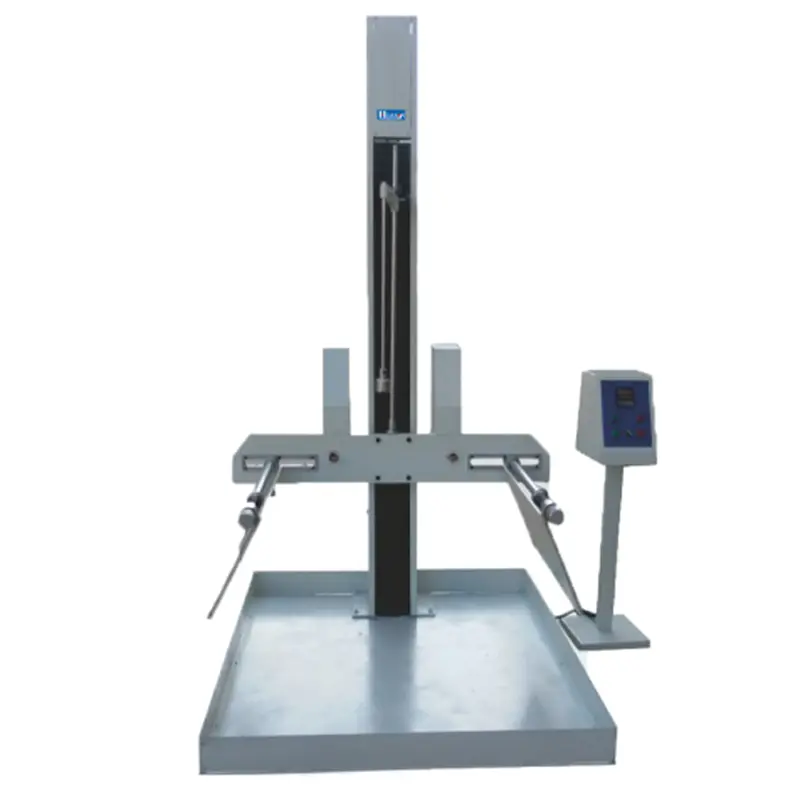

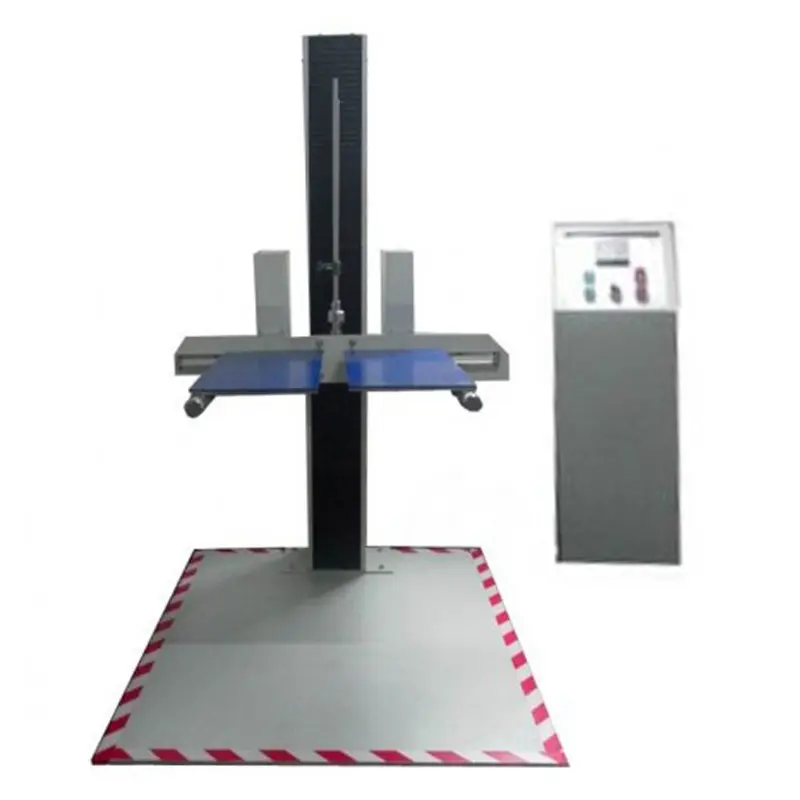

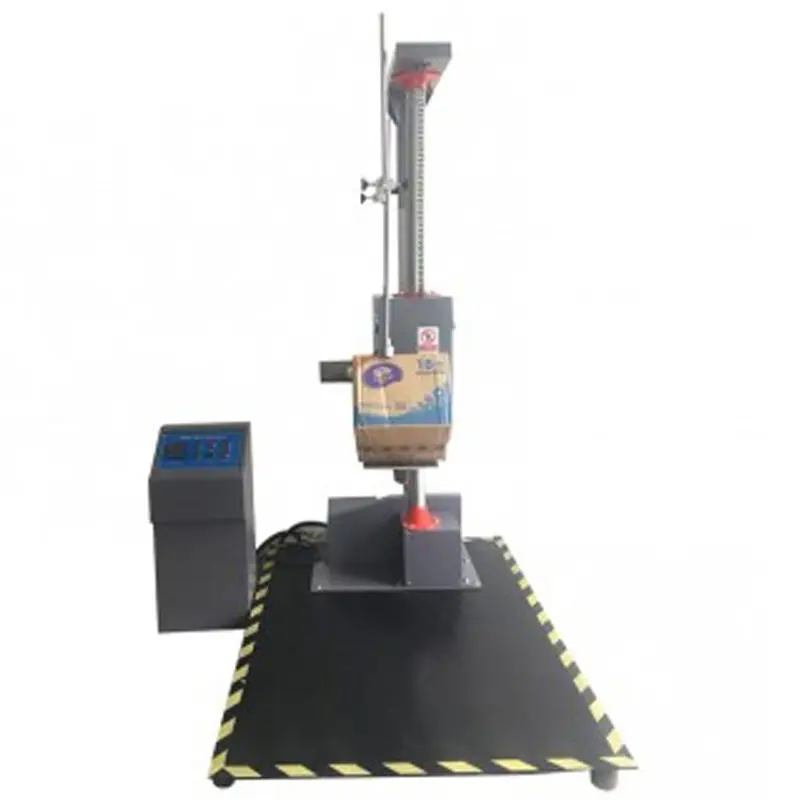

The single-wing/double-wing drop tester is used to evaluate the impact resistance of packaging materials and the drop resistance of the product body, so as to optimize the packaging design. The equipment adopts double-column guidance, adjustable drop height and number of times, stable and reliable operation, and can complete surface, edge and corner drop tests.

Send Inquiry

Product Description

🚀 Key Features

Drop test machine is suitable for verifying the shock resistance of packaging materials and the impact resistance of the product itself.
Mainly adopts double-column guidance, the number of height drops can be set, and the edges, faces and comers can be dropped.
The built-in photoelectric height control processor has fast and accurate positioning, and the LED height display.
Double-column guidance, hydraulic buffer absorbs the residual function of the swing arm.
Damping screw lifting mechanism prevents the machine from sliding down by itself.
Automatic air pressure interlocking prevents the swing arm from abnormally disengaging due to air pressure loss.
The hard anodized aluminum alloy table and the tough, lightweight swing arm, combined with the innovative high-speed bracket slide design, the bracket disengagement speed exceeds 3g/sec.

📊 Technical Parameters

Model HY-315A(B) HY-320A(B)
Drop height(mm) 300~1500 300~1500(2000)
Max. specimen weight(kg) 85 85
Max. specimen size(WxDxH)mm 1000x1000x800 1000x1000x800
Impact panel size(WxDxH)mm 1500x1000x20 1500x1000x20
Motor power(kVA) 0.65 0.65
Overall dimensions Pneumatic/electric Pneumatic/electric
Dimensions(mm) 1500x1000x2250 1500x1000x2250
Net weight(kg) 480 550
Fulfil the criteria ISO 2248-72(E), JIS Z0202-87, GB/T4857, 5-92
Power supply Three-phase AC 380V±10% 50Hz 2KVA

📸 Product Display

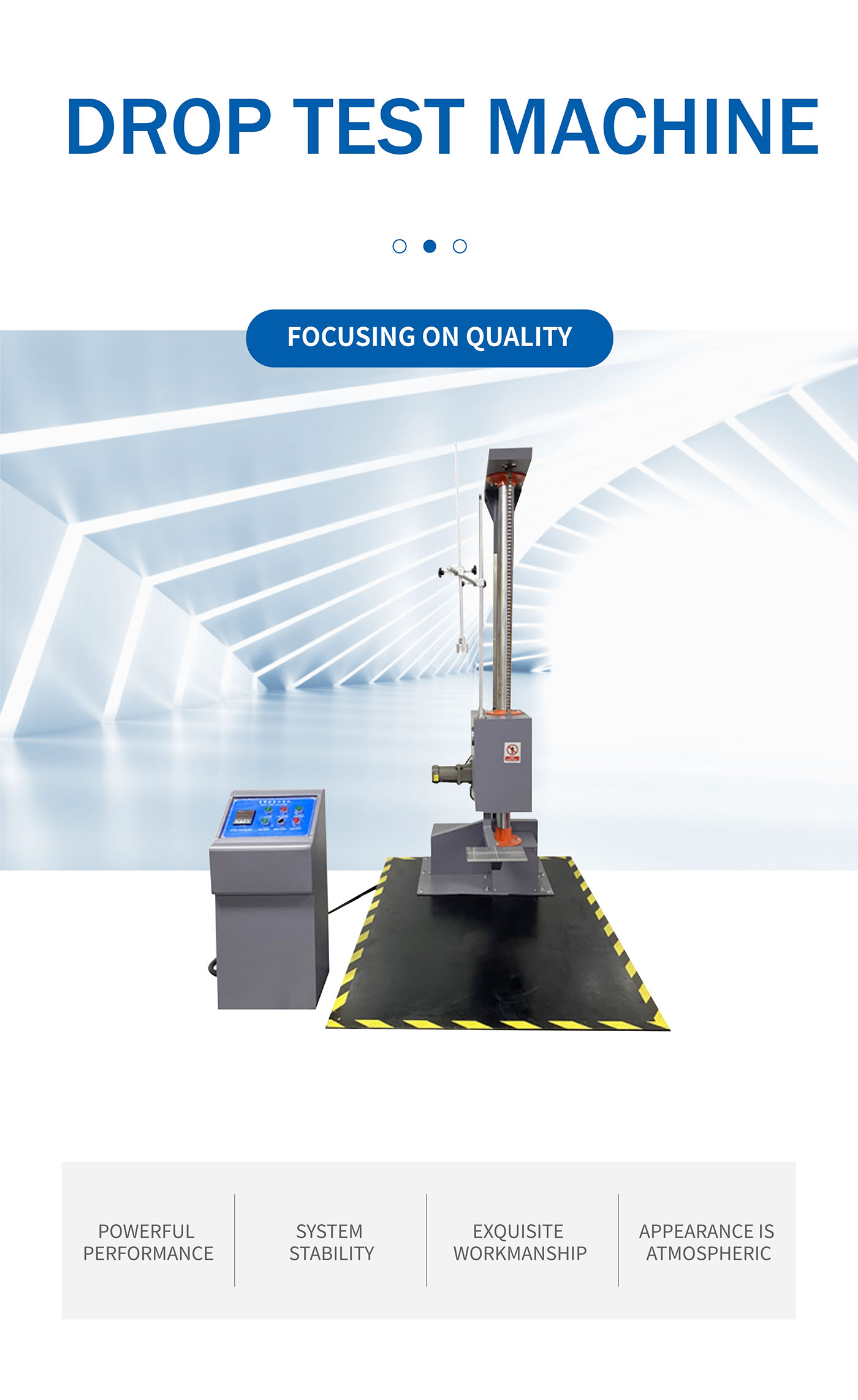

Drop Test Machine Display 1
Drop Test Machine Display 2

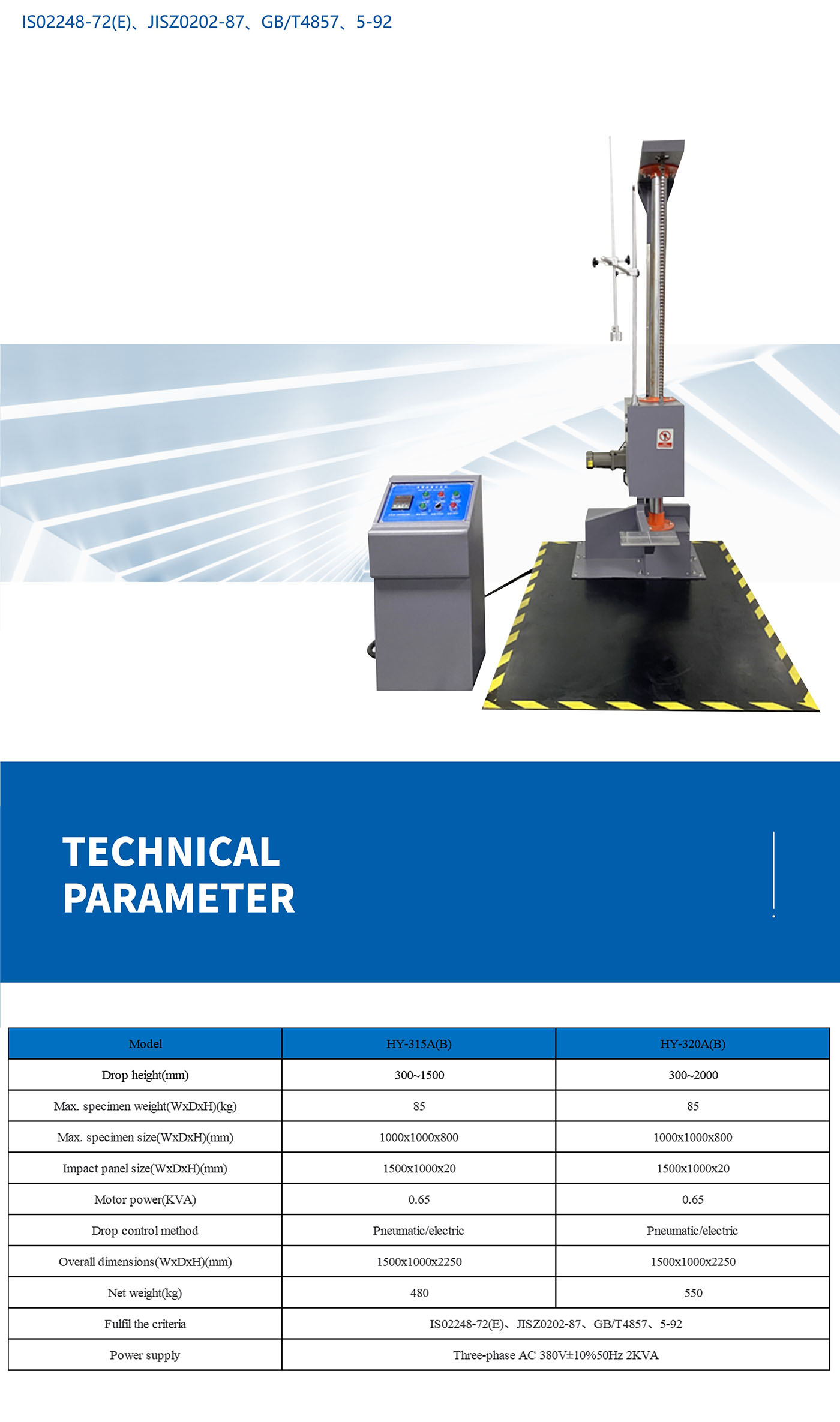

Drop Test Machine Display 3

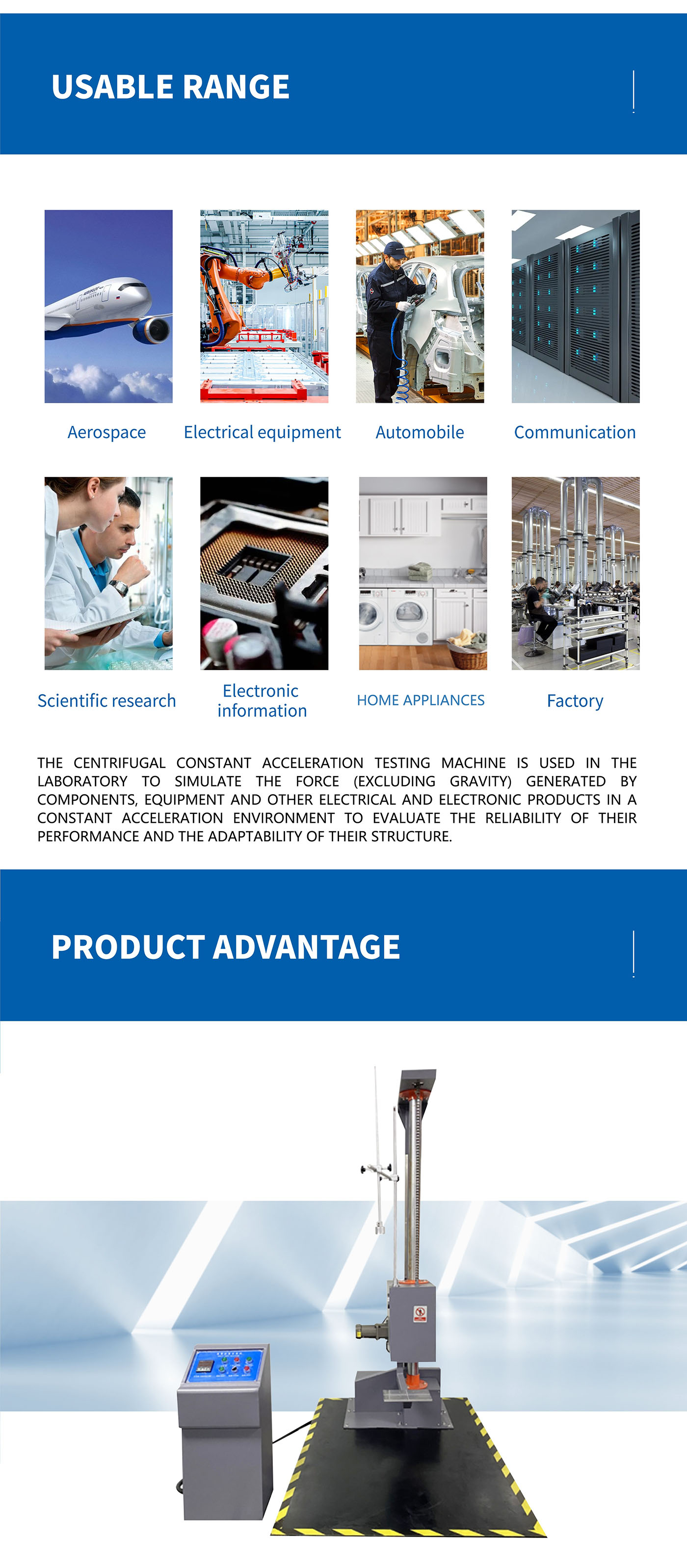

Drop Test Machine Display 4

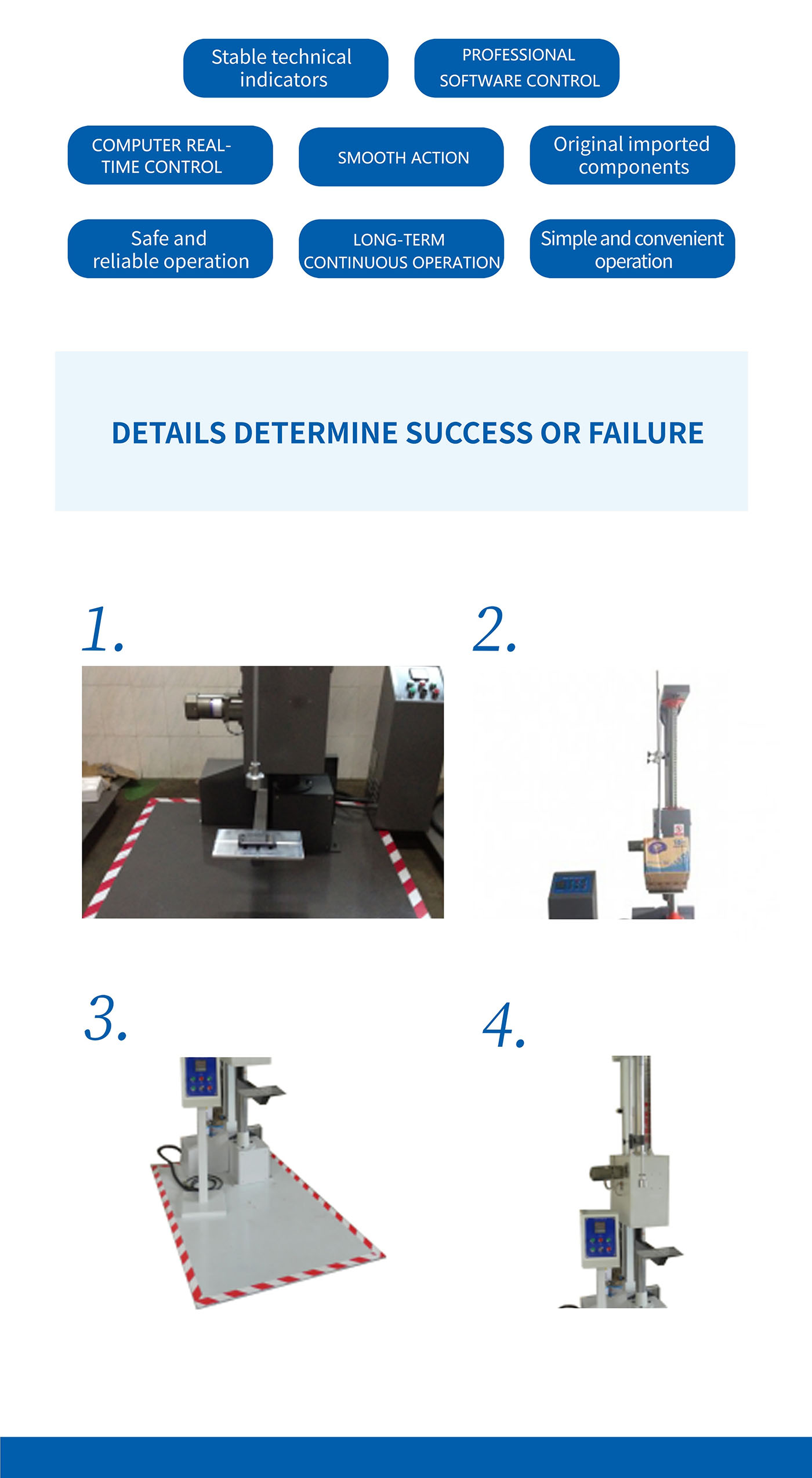

Drop Test Machine Display 5

🎥 Video Demonstration

💡 Frequently Asked Questions

What is the primary use of this Drop Test Machine?
It is designed to verify the shock resistance of various packaging materials and the durability of the products themselves when subjected to impacts.
Can the machine perform drops from different angles?
Yes, the machine is versatile and allows for drop testing on edges, faces, and corners of the specimen.
How accurate is the height control system?
The machine features a built-in photoelectric height control processor that ensures fast, accurate positioning with a clear LED height display.
What safety mechanisms are included to prevent accidents?
It includes a damping screw lifting mechanism to prevent sliding and an automatic air pressure interlocking system to prevent abnormal swing arm disengagement.
Which international standards does this equipment comply with?
The equipment fulfills multiple criteria, including ISO 2248-72(E), JIS Z0202-87, and GB/T4857.
What is the maximum weight capacity for specimens?
Both the HY-315A and HY-320A models can accommodate a maximum specimen weight of up to 85kg.
