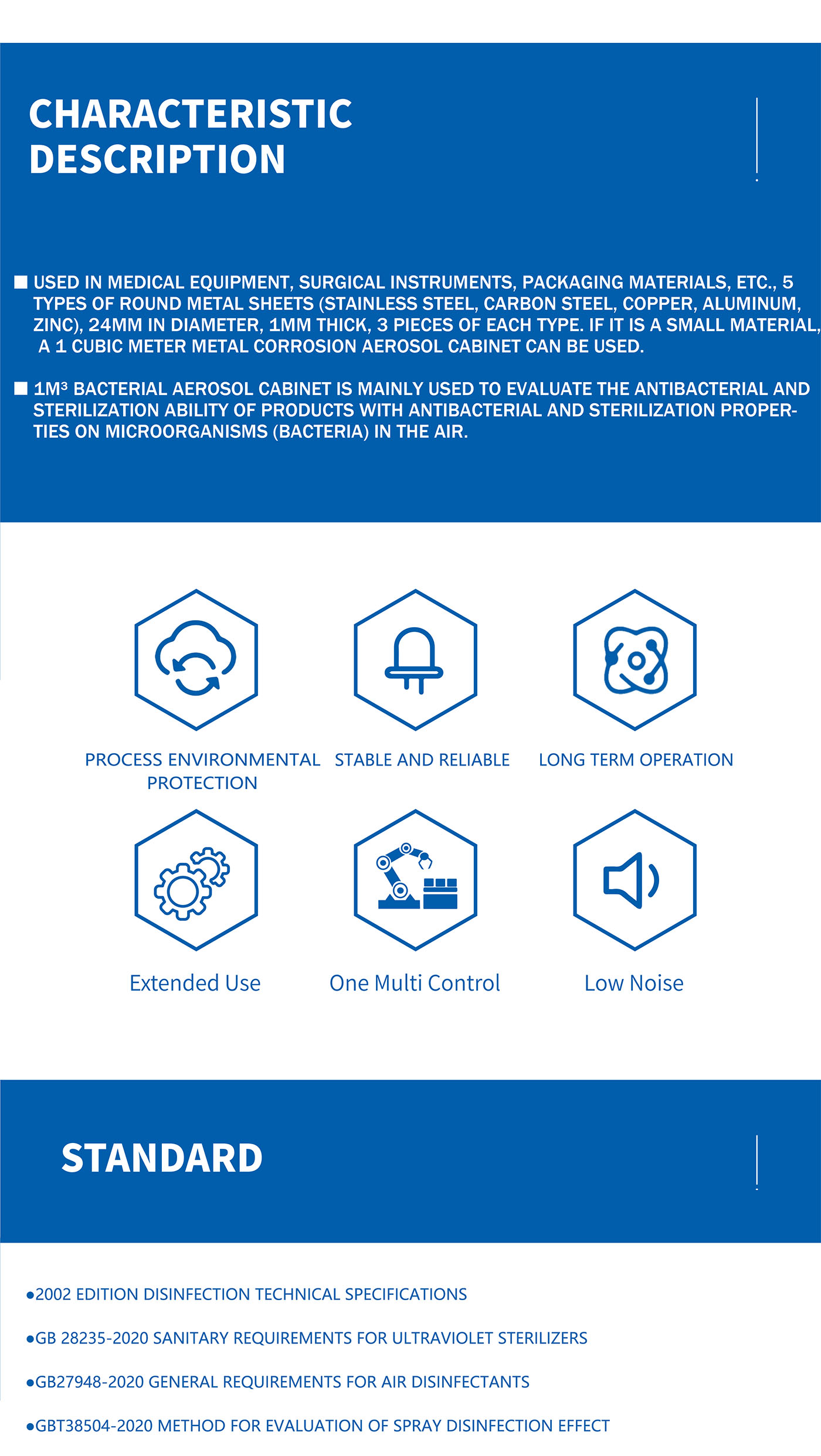

1. This equipment is widely used for testing medical equipment, surgical instruments, and packaging materials. It includes 5 types of round metal sheets (stainless steel, carbon steel, copper, aluminum, zinc), each 24mm in diameter and 1mm thick (3 pieces per type). For small materials, the 1 cubic meter metal corrosion aerosol cabinet is an ideal solution.
2. The 1m³ bacterial aerosol cabinet is primarily designed to evaluate the antibacterial and sterilization performance of products against airborne microorganisms (bacteria).

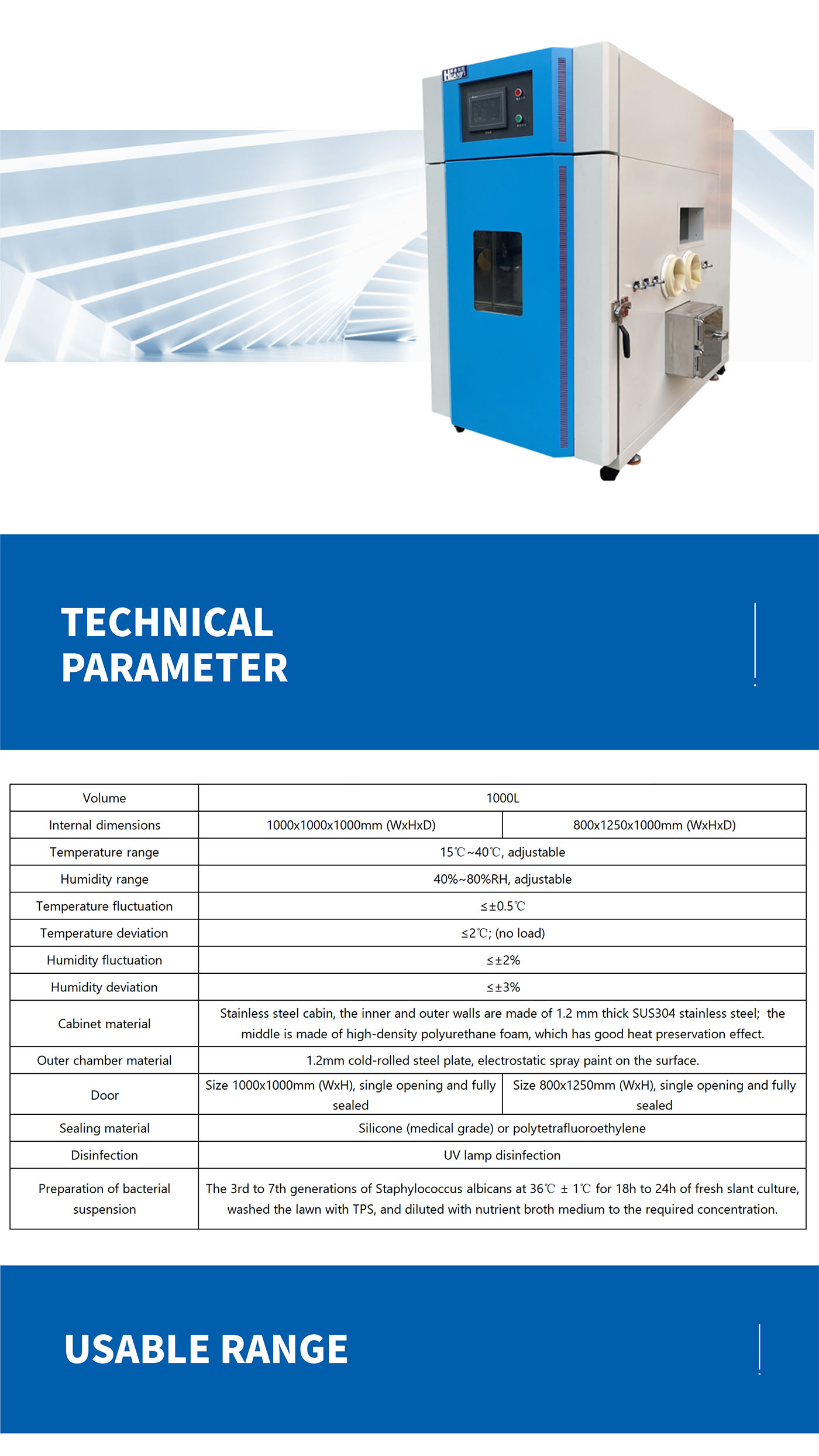

| Volume | 1000L | |
| Internal Dimensions | 1000x1000x1000mm (WxHxD) | 800x1250x1000mm (WxHxD) |
| Temperature Range | 15℃ ~ 40℃ (Adjustable) | |
| Humidity Range | 40% ~ 80%RH (Adjustable) | |
| Temperature Fluctuation | ≤±0.5℃ | |
| Temperature Deviation | ≤2℃ (No load) | |
| Humidity Fluctuation | ≤±2% | |
| Humidity Deviation | ≤±3% | |
| Cabinet Material | Stainless steel cabin; inner and outer walls made of 1.2 mm thick SUS304 stainless steel; high-density polyurethane foam insulation. | |
| Outer Chamber Material | 1.2mm cold-rolled steel plate with electrostatic spray paint. | |
| Door | 1000x1000mm (WxH), single opening, fully sealed | 800x1250mm (WxH), single opening, fully sealed |
| Sealing Material | Medical grade silicone or polytetrafluoroethylene | |
| Disinfection | UV lamp disinfection | |
| Bacterial Suspension Preparation | 3rd to 7th generations of Staphylococcus albicans (36℃ ± 1℃ for 18h-24h), washed with TPS and diluted with nutrient broth medium. | |
