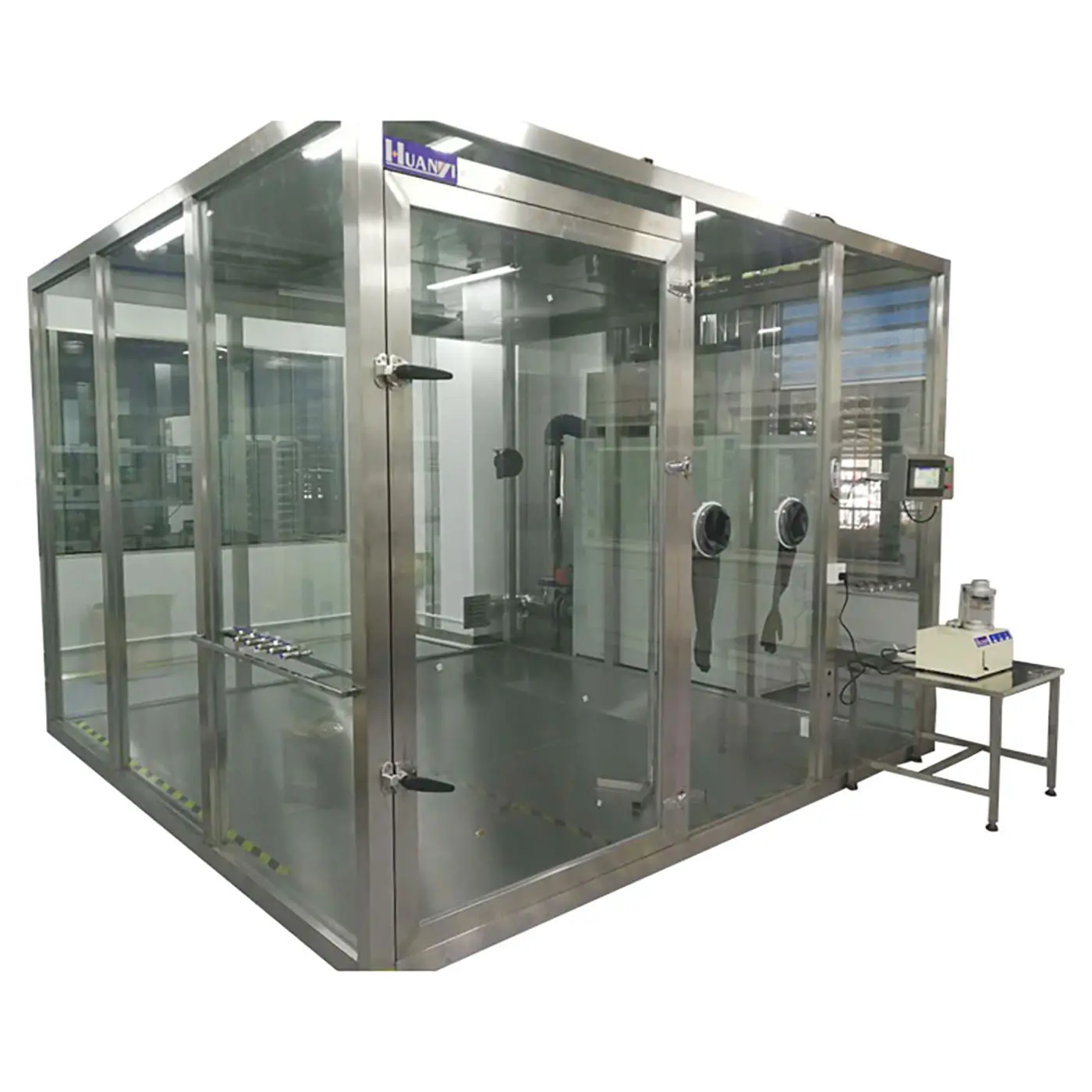

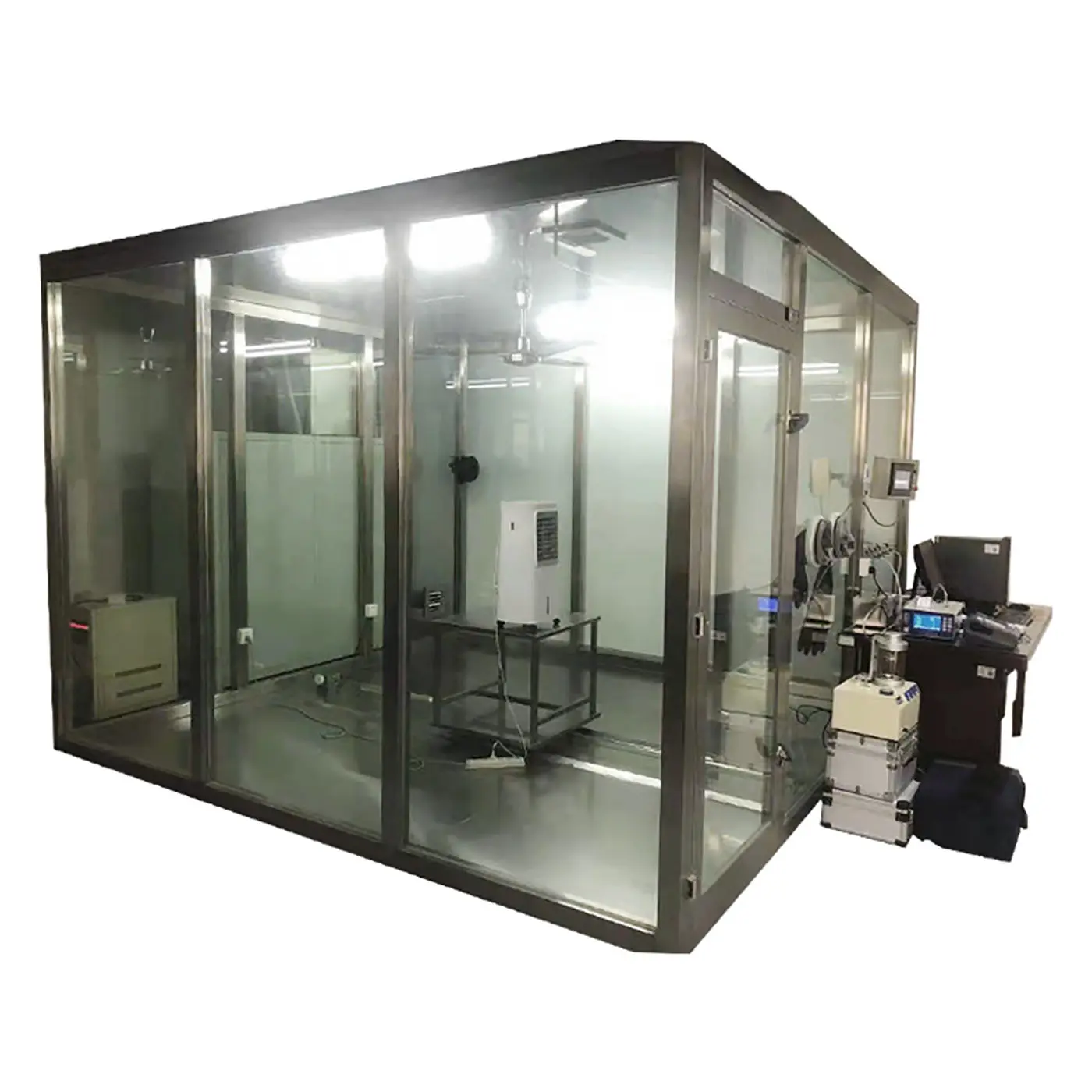

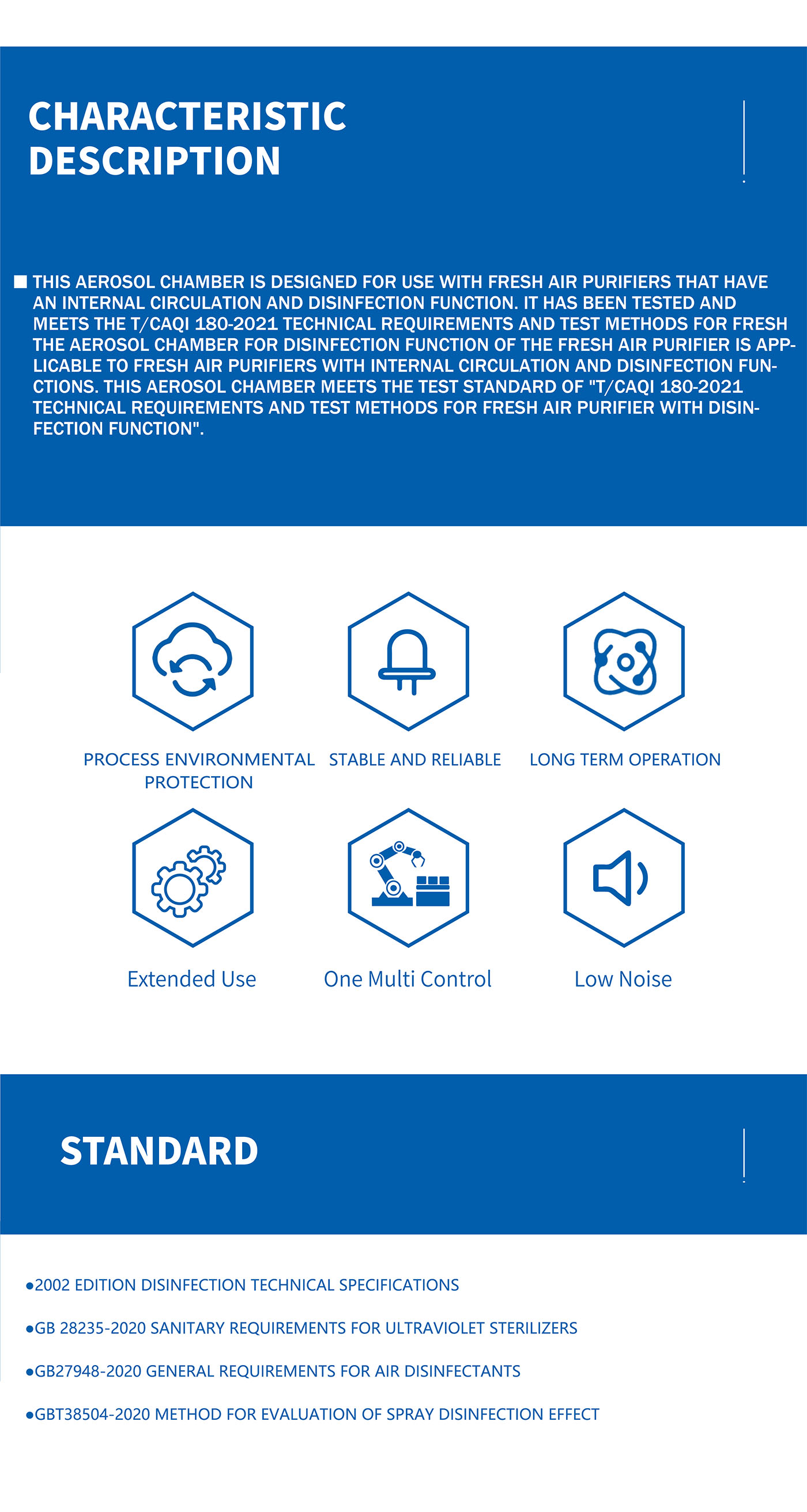

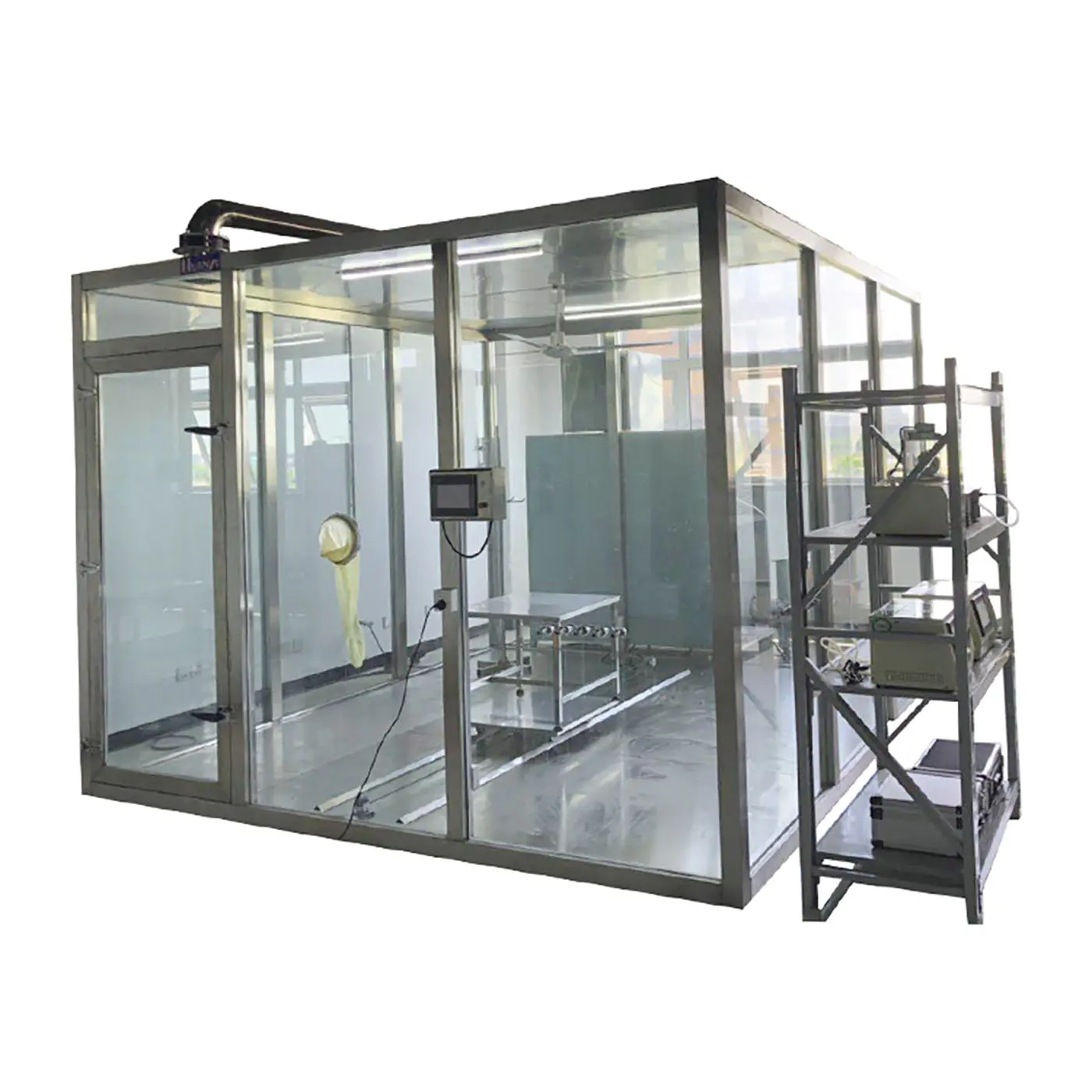

This aerosol chamber is designed for use with fresh air purifiers that have an internal circulation and disinfection function. It has been tested and meets the T/CAQI 180-2021 Technical Requirements and Test Methods for Fresh. The aerosol chamber for disinfection function of the fresh air purifier is applicable to fresh air purifiers with internal circulation and disinfection functions. This aerosol chamber meets the test standard of "T/CAQI 180-2021 Technical Requirements and Test Methods for Fresh Air Purifier with Disinfection Function".

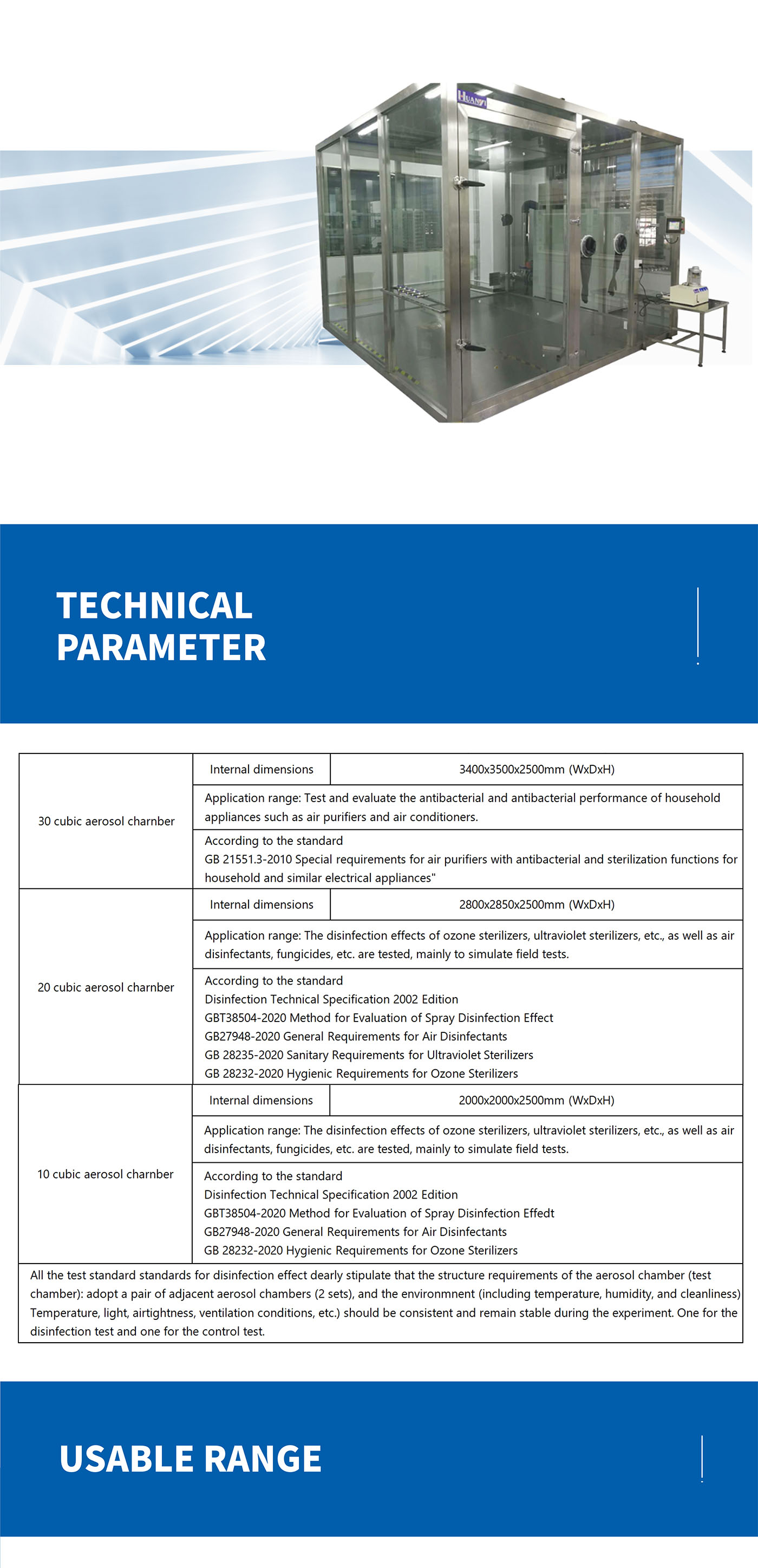

| Chamber Type | Dimensions & Application |
|---|---|
| 30 cubic aerosol chamber |
Internal dimensions: 3400x3500x2500mm (WxDxH) Application range: Test and evaluate the antibacterial and antibacterial performance of household appliances such as air purifiers and air conditioners. Standard: GB 21551.3-2010 Special requirements for air purifiers. |
| 20 cubic aerosol chamber |
Internal dimensions: 2800x2850x2500mm (WxDxH) Application range: The disinfection effects of ozone sterilizers, ultraviolet sterilizers, air disinfectants, fungicides, etc. Standard: Disinfection Technical Specification 2002 Edition, GBT38504-2020, GB27948-2020, GB 28235-2020, GB 28232-2020. |
| 10 cubic aerosol chamber |
Internal dimensions: 2000x2000x2500mm (WxDxH) Application range: Disinfection effects of ozone/ultraviolet sterilizers and air disinfectants; simulates field tests. Standard: Disinfection Technical Specification 2002 Edition, GBT38504-2020, GB27948-2020, GB 28232-2020. |
| Structure requirements: Adopts a pair of adjacent aerosol chambers (2 sets). Environment factors (temperature, humidity, cleanliness, light, airtightness, ventilation) must remain consistent and stable. One for disinfection test and one for control test. | |
