A variety of sensor calibration test chambers are suitable for sensor calibration tests of particulate matter, formaldehyde, VOC, methane, carbon dioxide, carbon monoxide, ammonia and oxygen.
The sensor calibration cabin is suitable for calibration tests of various gas sensors, such as carbon dioxide sensors, formaldehyde sensors, PM2.5 sensors, ammonia sensors, etc. The products meet the test requirements of "JB/T 14000-2020 Optical Dust Sensor".

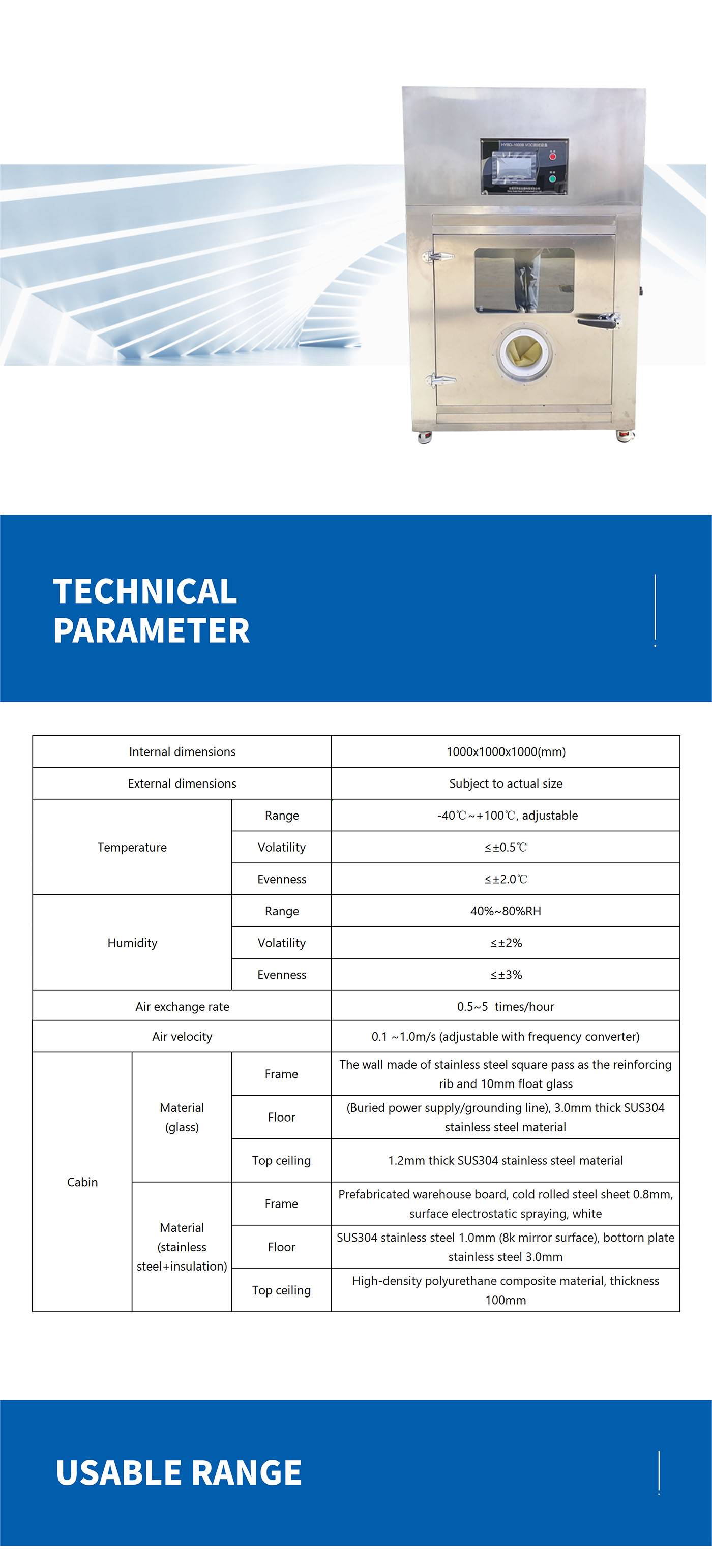

| Internal dimensions | 1000x1000x1000(mm) | ||
| External dimensions | Subject to actual size | ||
| Temperature | Range | -40℃~+100℃, adjustable | |
| Volatility | ≤±0.5℃ | ||
| Evenness | ≤±2.0℃ | ||
| Humidity | Range | 40%~80%RH | |
| Volatility | ≤±2% | ||
| Evenness | ≤±3% | ||
| Air exchange rate | 0.5~5 times/hour | ||
| Air velocity | 0.1 ~1.0m/s (adjustable with frequency converter) | ||
| Cabin Material (Glass) | Frame | Stainless steel square pass reinforcing rib and 10mm float glass | |
| Floor | 3.0mm thick SUS304 stainless steel (Buried power/grounding line) | ||
| Top ceiling | 1.2mm thick SUS304 stainless steel material | ||
| Material (Insulation) | Frame | Prefabricated warehouse board, cold rolled steel 0.8mm, electrostatic spraying | |
| Floor | SUS304 stainless steel 1.0mm (8k mirror), bottom plate 3.0mm | ||
| Top ceiling | High-density polyurethane composite material, thickness 100mm | ||
