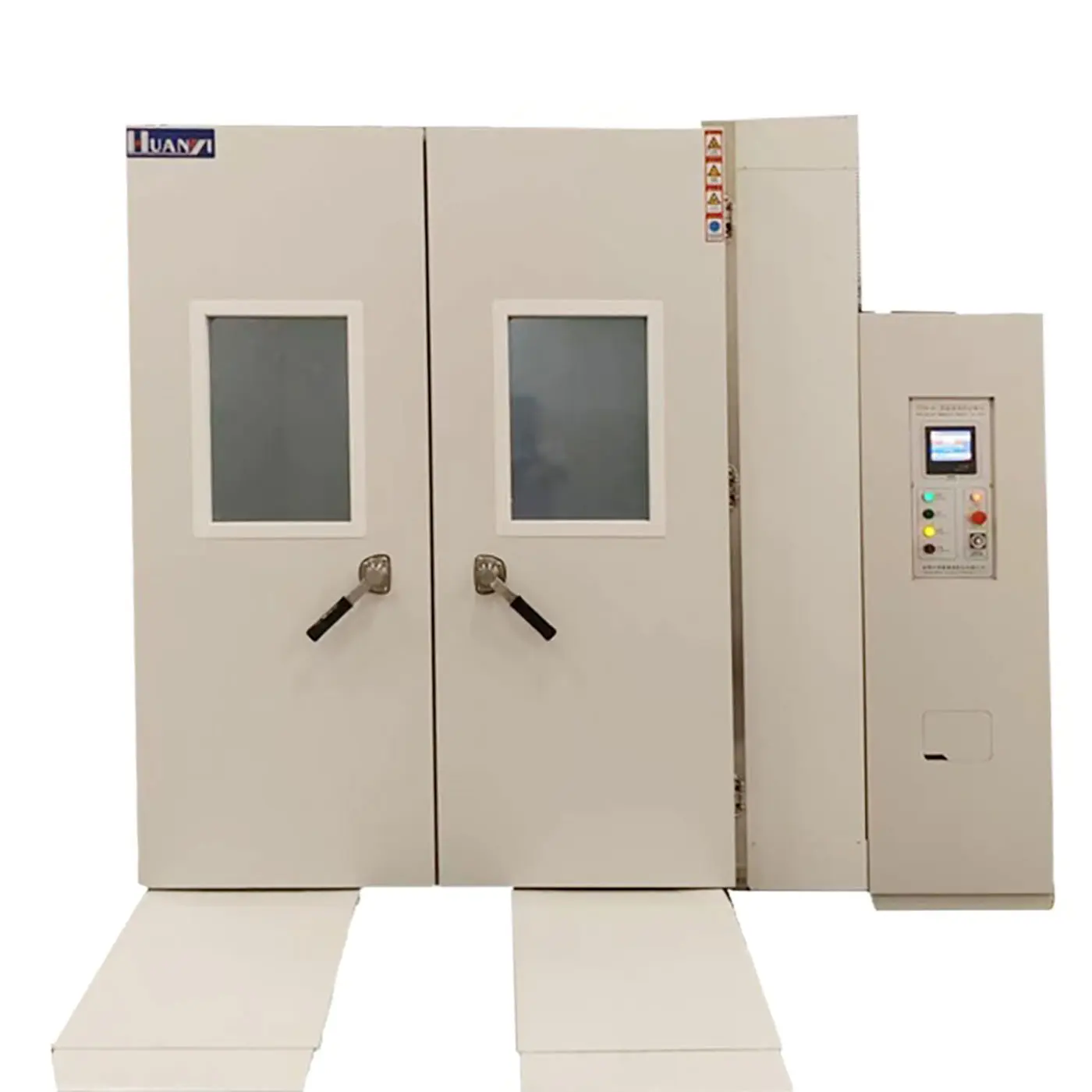

Custom VOC pretreatment environmental chamber Manufacturer, Supplier

The VOC pretreatment environmental chamber can provide standard temperature, humidity, and VOC clean environment. After testing the material's temperature, humidity, pressure, and VOC release balance, the pollutant release rate and release characteristics of the materials and products are tested.

Send Inquiry

Product Description

Description

Purpose: Pre-balance treatment of artificial boards, furniture and plastic surface materials, clean environment pre-treatment room with constant temperature and humidity.

★

Design Features

GB 18580-2017 "Limits of Formaldehyde Release from Artificial Panel Machine Products of Interior Decoration Materials"

GB 18584 "Limits for the migration of volatile organic substances and heavy metals in wooden furniture (Draft for approval)"

GB/T 17657-2013 "Test method for physical and chemical properties of wood-based panels and facing wood-based panels"

GB/T 31107-2014 "General Technical Requirements for Climate Chambers for Testing Volatile Organic Compounds in Furniture"

LY/T 1980-2011 "Volatile Organic Compounds and Formaldehyde Emission Test Box"

✓

Meet the standard

GB/T2423.1-2008 Low temperature test chamber test method

IEC60068-2-1.1990 Low temperature test chamber test method

IEC60068-2-2.1974 High temperature test chamber test method

GJB150.3 High temperature test

GJB150.4 Low temperature test

GJB150.9 Wet heat test

⚙

Technical Parameters

Model			Size can be customized according to requirements
Specific Model			HYPV-24	HYPV-30
Internal volume (m³)			24	30
Internal dimension (mm)	W		3000	3000
	D		4000	5200
	H		2000	2000
External dimension (mm)	W		4200	4200
	D		4200	5400
	H		2400	2400
Performance	Temperature	Range	18℃~30℃
	Temperature	Deviation	≤±1.5℃
	Humidity	Range	40%~80%RH
	Humidity	Deviation	≤±3%RH
	Air exchange rate		0~3 times/hour (adjustable)
	Background value		Formaldehyde: ≤0.08mg/m³; TVOC≤0.02mg/m³
Temperature control method			Cold and heat counterbalance method
Material	Inner chamber		SUS304 mirror stainless steel 1.2 mm
Material	Insulation		High density polyurethane, thickness 100mm
Power supply			AC380V three-phase four-wire

📷

Product Gallery

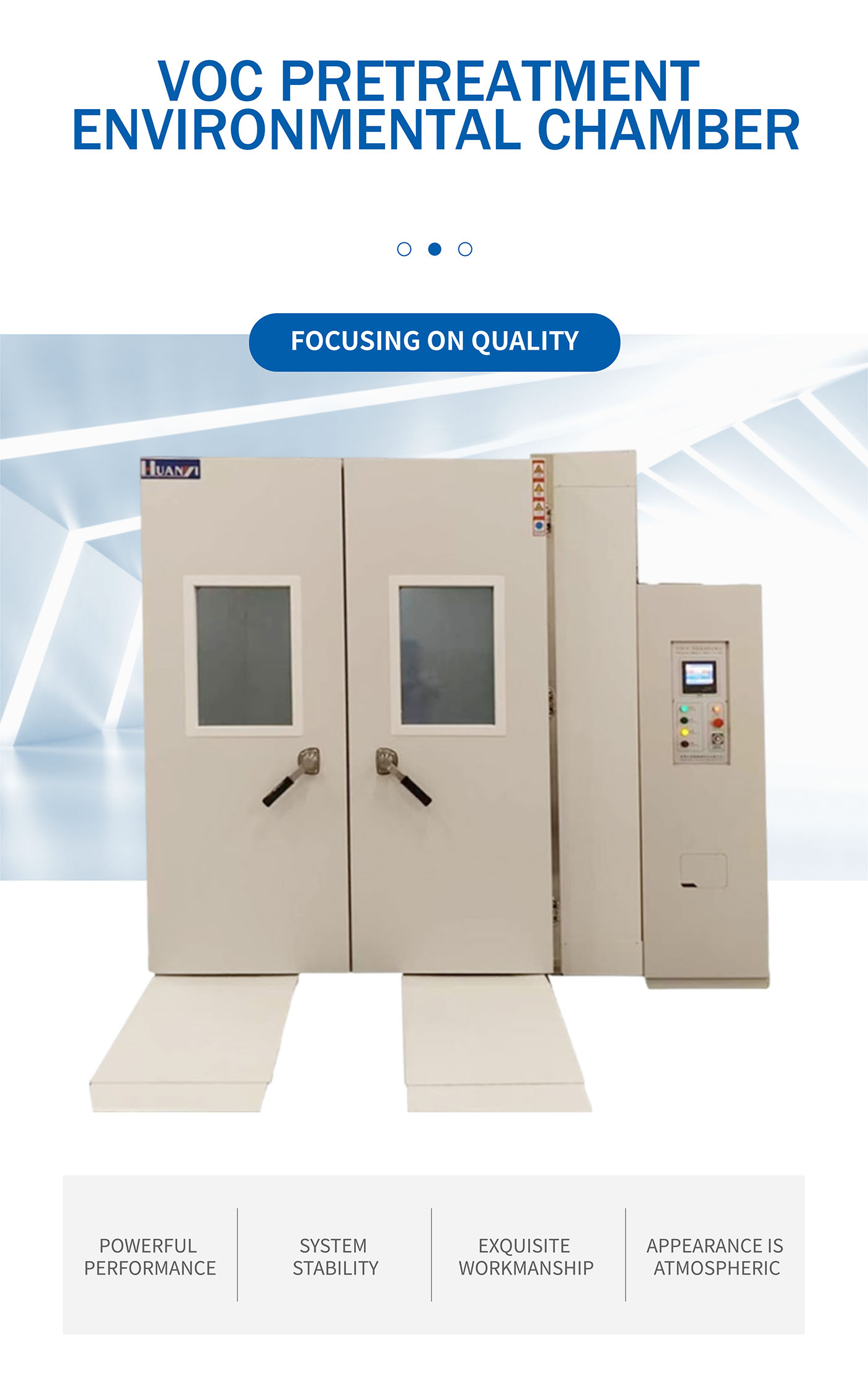

VOC pretreatment environmental chamber (1)

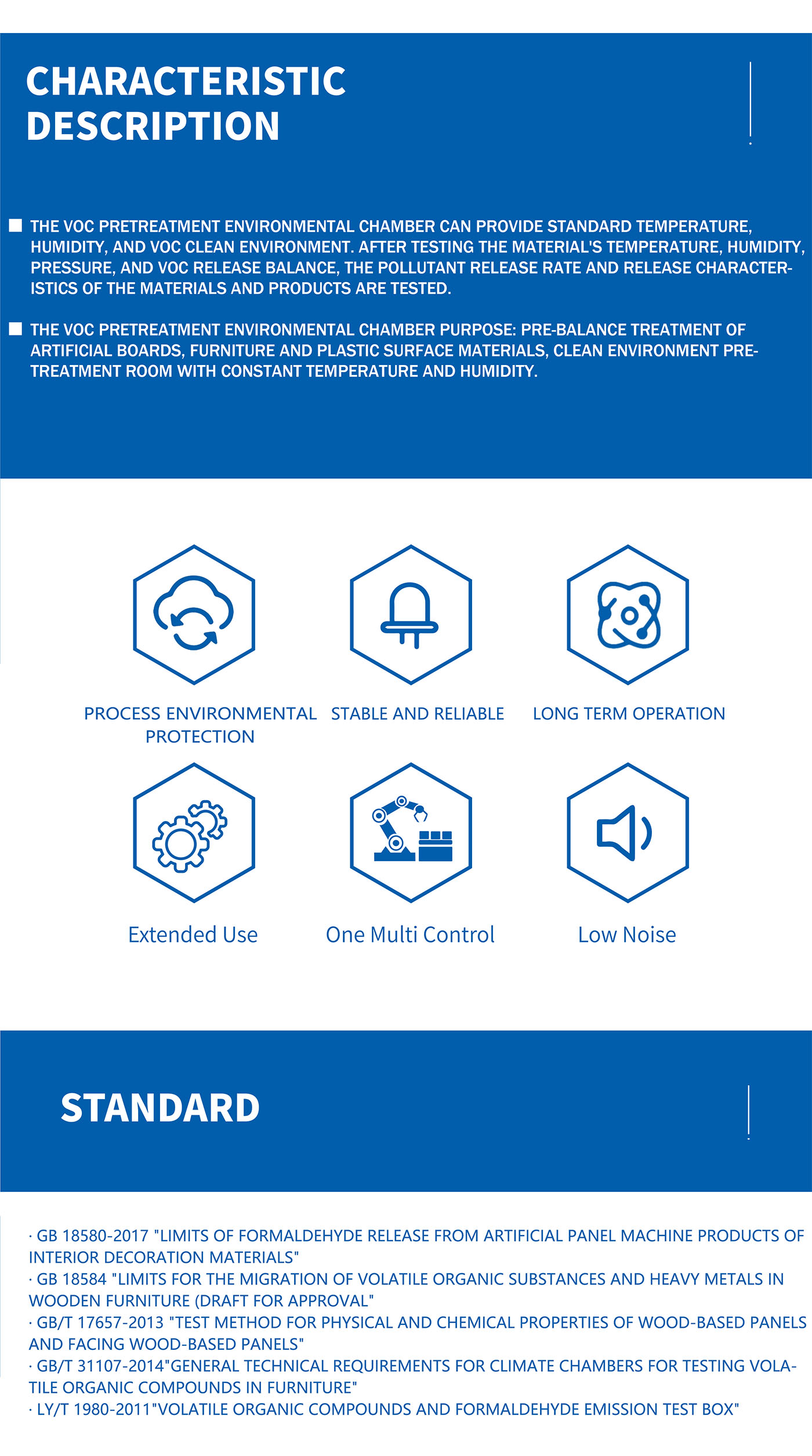

VOC pretreatment environmental chamber (3)

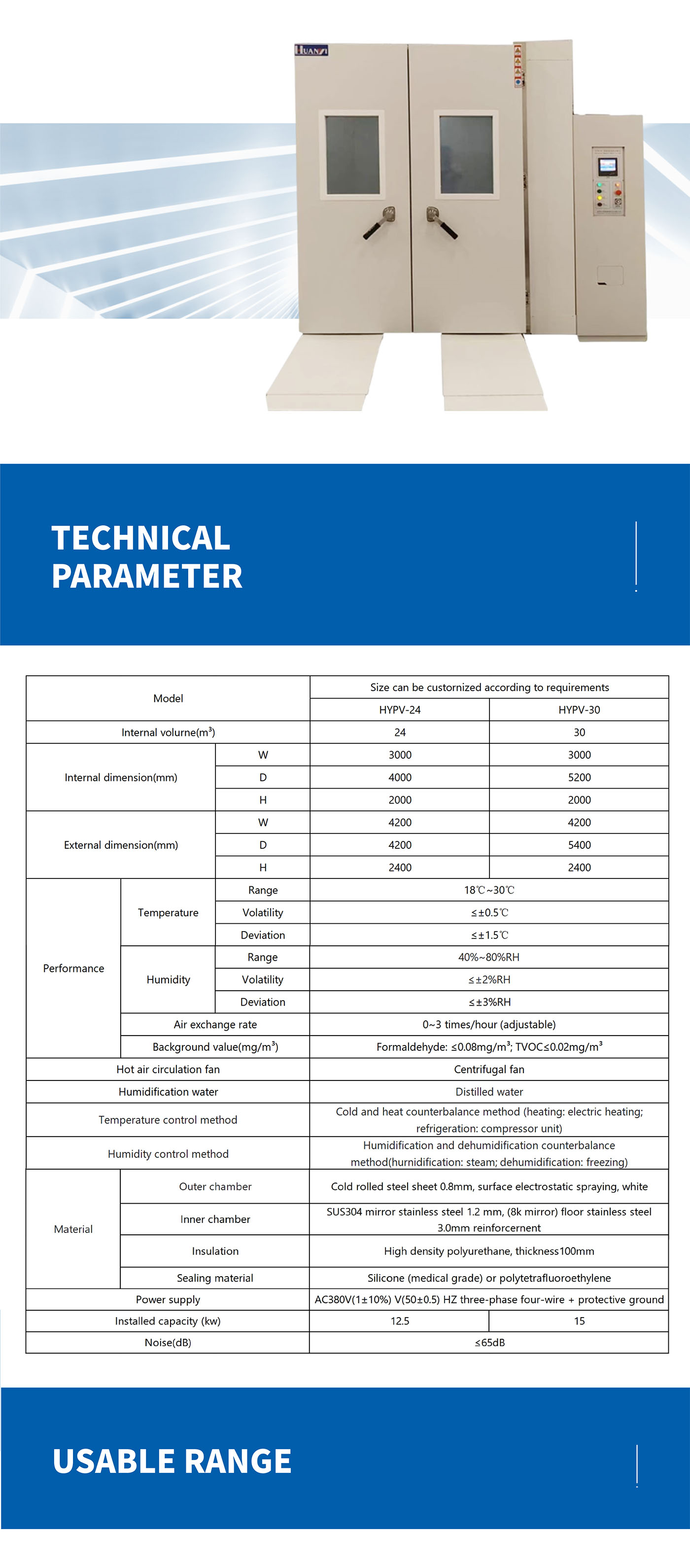

VOC pretreatment environmental chamber (4)

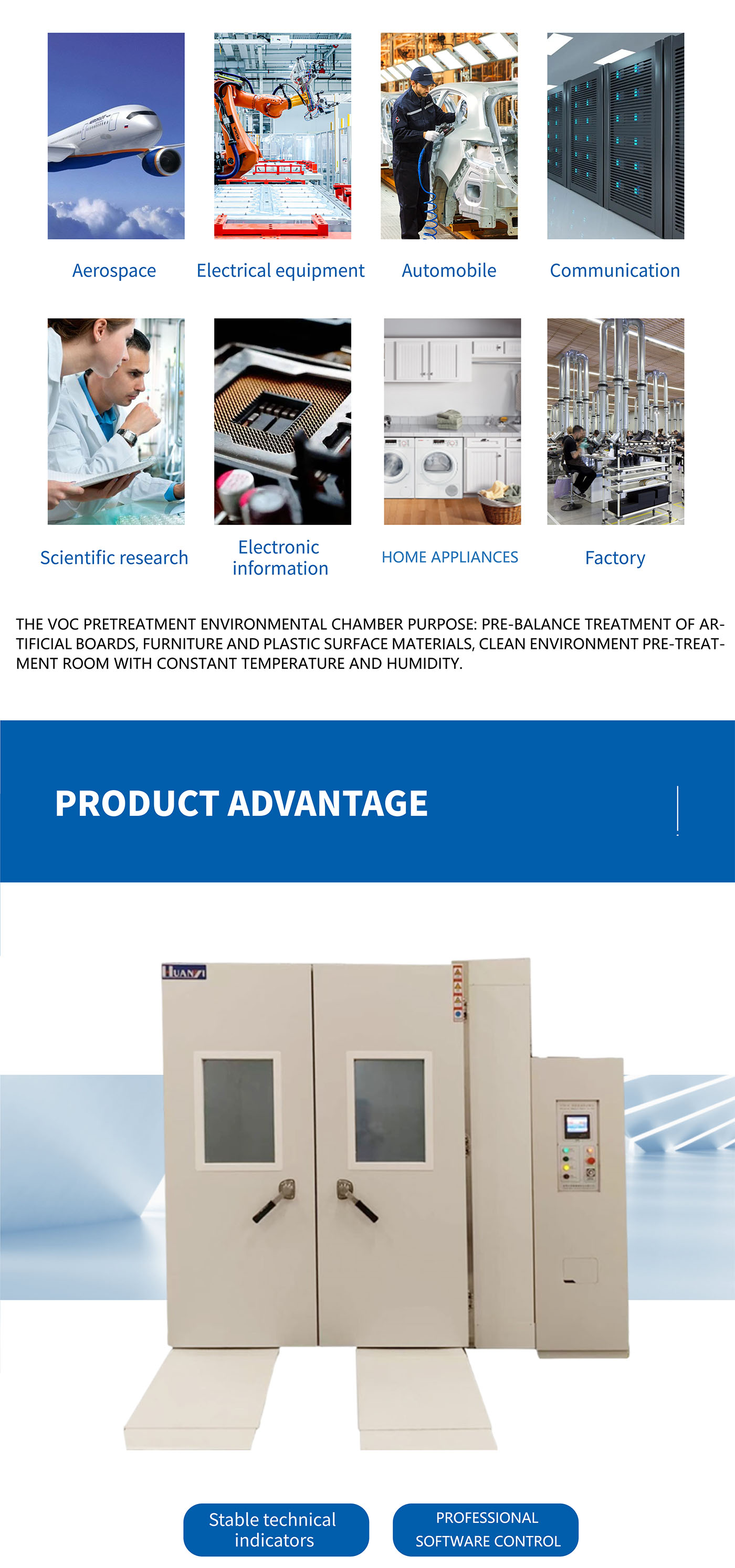

VOC pretreatment environmental chamber (5)

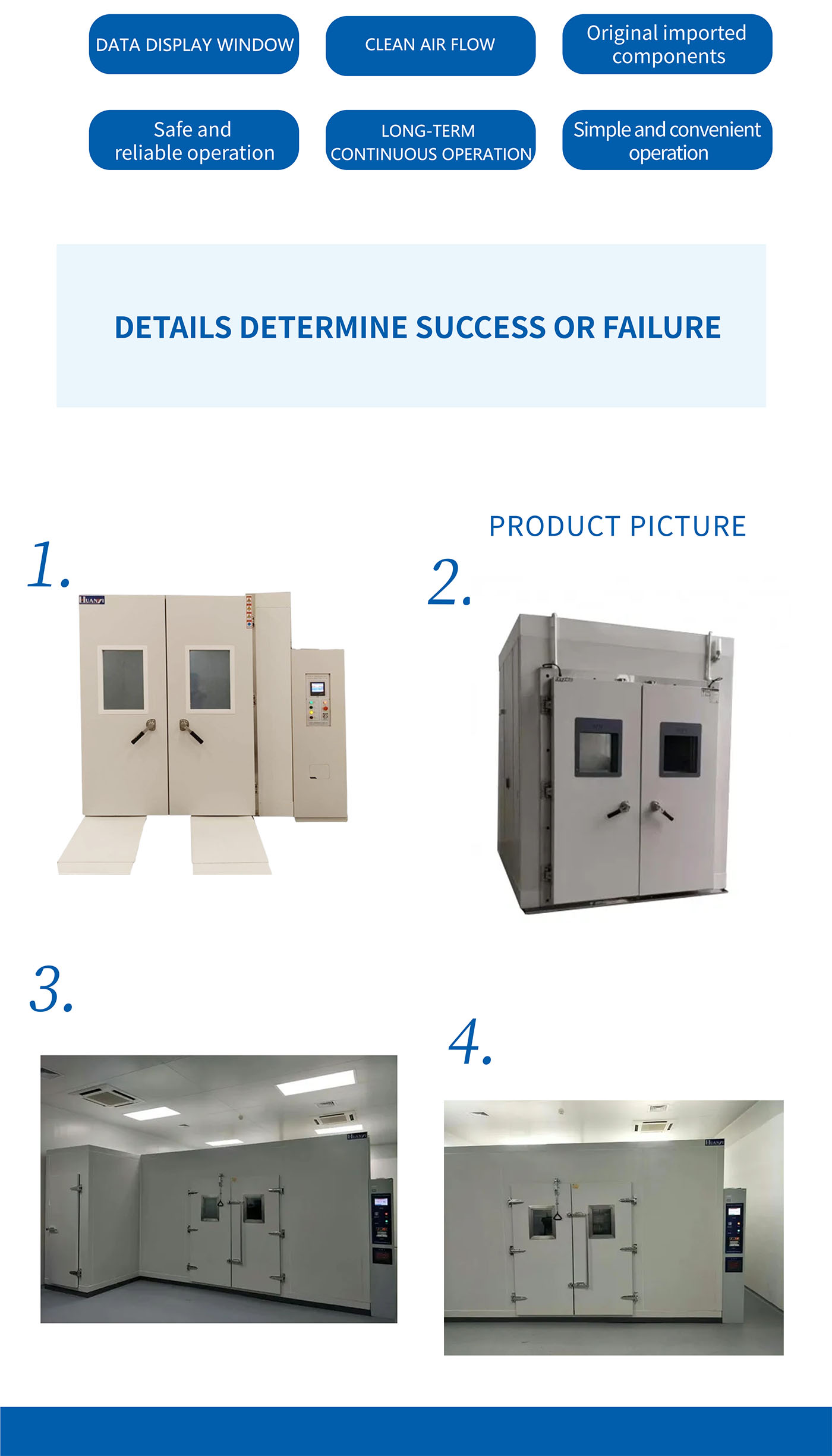

VOC pretreatment environmental chamber (6)

▶

Video Demonstration

FAQ

Q1: What is the main purpose of the VOC pretreatment environmental chamber? A1: It is used for the pre-balance treatment of materials like artificial boards, furniture, and plastics to test their pollutant release rates under standard temperature and humidity.

Q2: What temperature and humidity range does the chamber support? A2: The chamber operates within a temperature range of 18℃ to 30℃ and a humidity range of 40% to 80%RH.

Q3: Is the air exchange rate adjustable? A3: Yes, the air exchange rate is fully adjustable from 0 to 3 times per hour.

Q4: What are the background values for formaldehyde and TVOC? A4: The background value for Formaldehyde is ≤0.08mg/m³, and for TVOC, it is ≤0.02mg/m³.

Q5: What materials are used for the chamber's construction? A5: The inner chamber is made of SUS304 mirror stainless steel (1.2mm), and the outer chamber is cold-rolled steel with electrostatic spraying.

Q6: Does the equipment comply with international standards? A6: Yes, it meets several standards including GB/T 2423.1, IEC60068-2-1, and GJB150.3 among others.
