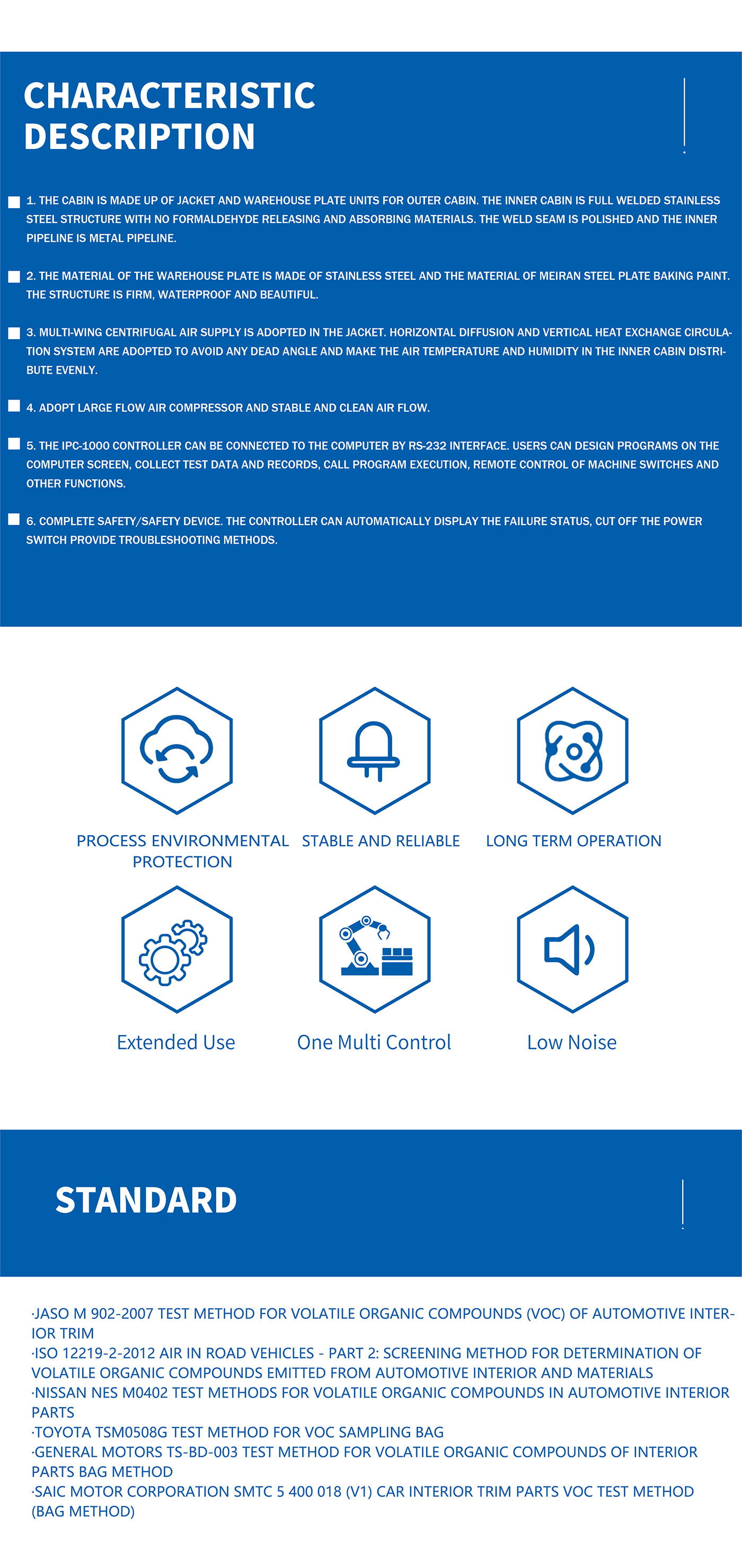

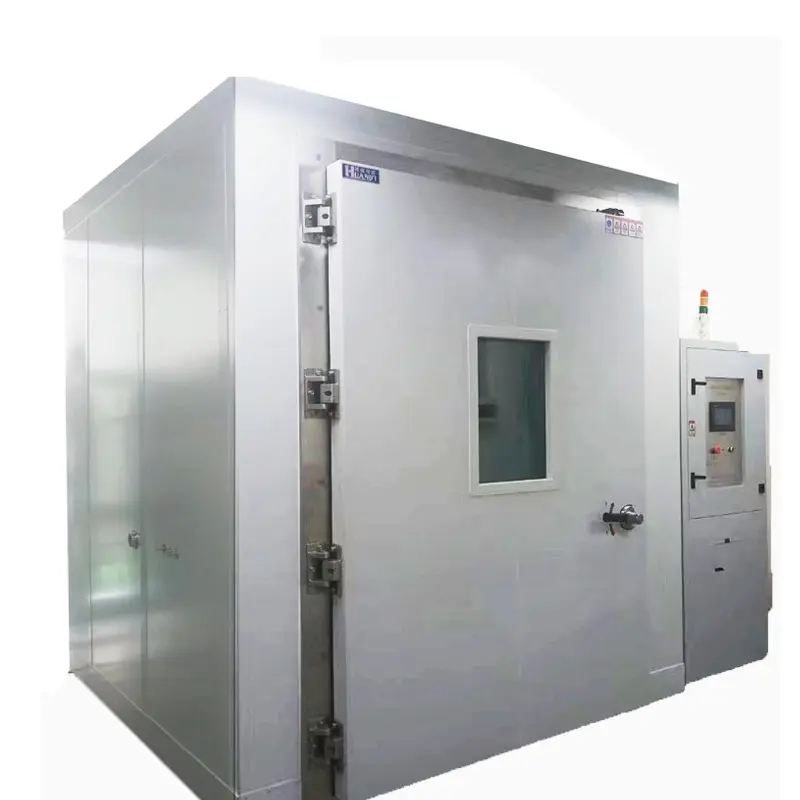

01The outer cabin uses jacket and warehouse plate units; inner cabin features a fully welded stainless steel structure free from formaldehyde-releasing materials.
02Warehouse plates are stainless steel with Meiran steel plates finished in baked paint for a waterproof, aesthetic design.
03Incorporates a multi-wing centrifugal air supply system with horizontal diffusion to eliminate dead zones and ensure uniform distribution.
04High-capacity air compressor delivers a steady, clean airflow for consistent testing conditions.
05IPC-1000 controller with RS-232 interface for remote programming, data collection, and operation via computer.
06Advanced safety features: automatic fault display, power cut-off, and troubleshooting suggestions.
07Eco-friendly refrigeration system with compressors imported from Europe/America using a dual-loop cryogenic system.
08Interior lining made entirely of high-grade SUS# stainless steel plates.
09Six-sided insulation provided by high-density polyurethane foam.
10Air circulation managed efficiently by a precision multi-wing fan system.
11Heating system equipped with a high-speed SUS stainless steel electric heater.
12Humidity regulated via precise dew-point temperature control method.
13Integrated cooling system with compressor, fin evaporator, and water-cooled condenser.
14Solid-state relay integration for precise frequency regulation of temperature and humidity.

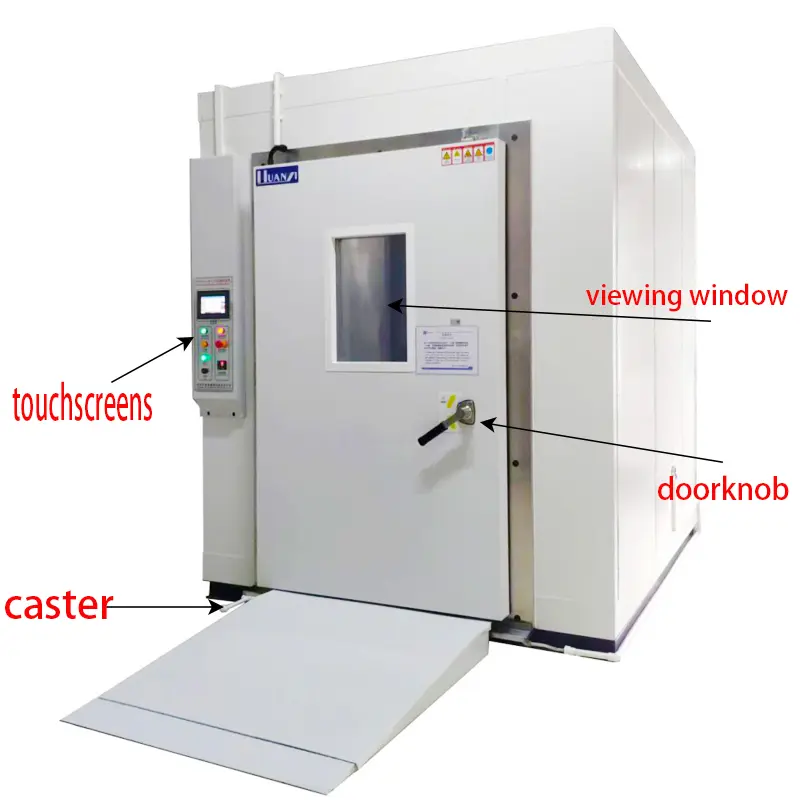

15Equipped with multi-layer reinforced glass windows, 50mm test ports, and interior status lighting.
GB 18580-2017 "Limits of formaldehyde emission from artificial boards"
GB/T11718-2009 "Medium density fiberboard"
GB5849-2016 "Blockboard"
GB/T9846.1~9846.8-2015 "Plywood"
GB/T15102-2006 "Impregnated film paper facing artificial board"
Frequently Asked Questions
Q1: What is the background concentration of formaldehyde in this chamber?
The chamber maintains a very low formaldehyde background concentration of ≤0.006mg/m³, ensuring highly accurate testing results.
Q2: Can the chamber be controlled remotely?
Yes, the IPC-1000 controller features an RS-232 connection, allowing for full program execution, data collection, and remote monitoring via a computer.
Q3: What materials are used for the interior of the chamber?
The inner cabin is constructed from fully welded SUS# stainless steel, which is specifically chosen because it does not absorb or release formaldehyde.
Q4: How does the system ensure uniform temperature and humidity?
The chamber utilizes a multi-wing centrifugal air supply system combined with horizontal diffusion and vertical heat exchange to eliminate dead zones.
Q5: Does the chamber support high-temperature cleaning?
Yes, while the standard test range is 15-40°C, the system is capable of high-temperature cleaning at temperatures above 80°C to ensure chamber purity.
Q6: What power supply is required for operation?
The equipment requires a three-phase five-wire AC 380V/50HZ power supply for standard operation.
