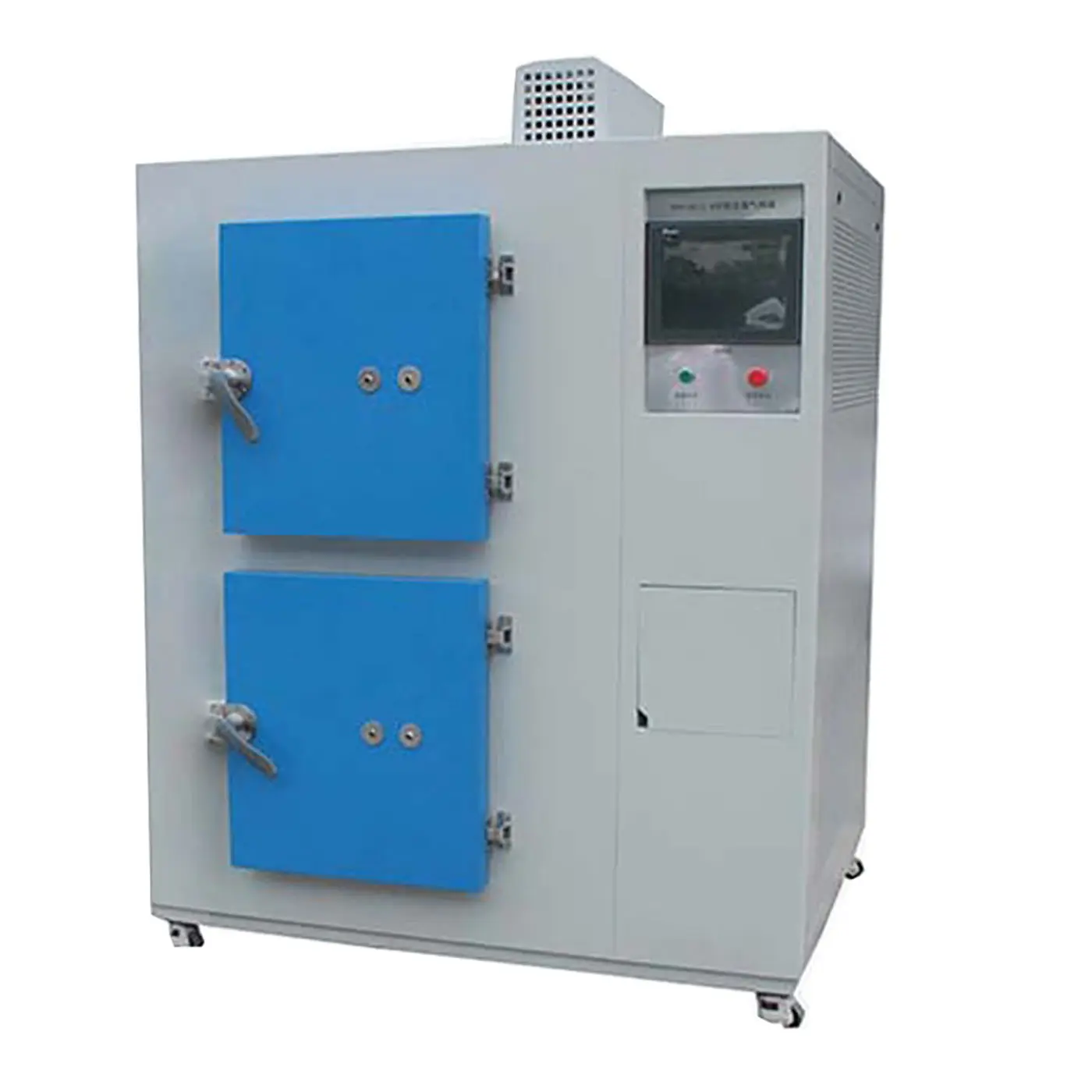

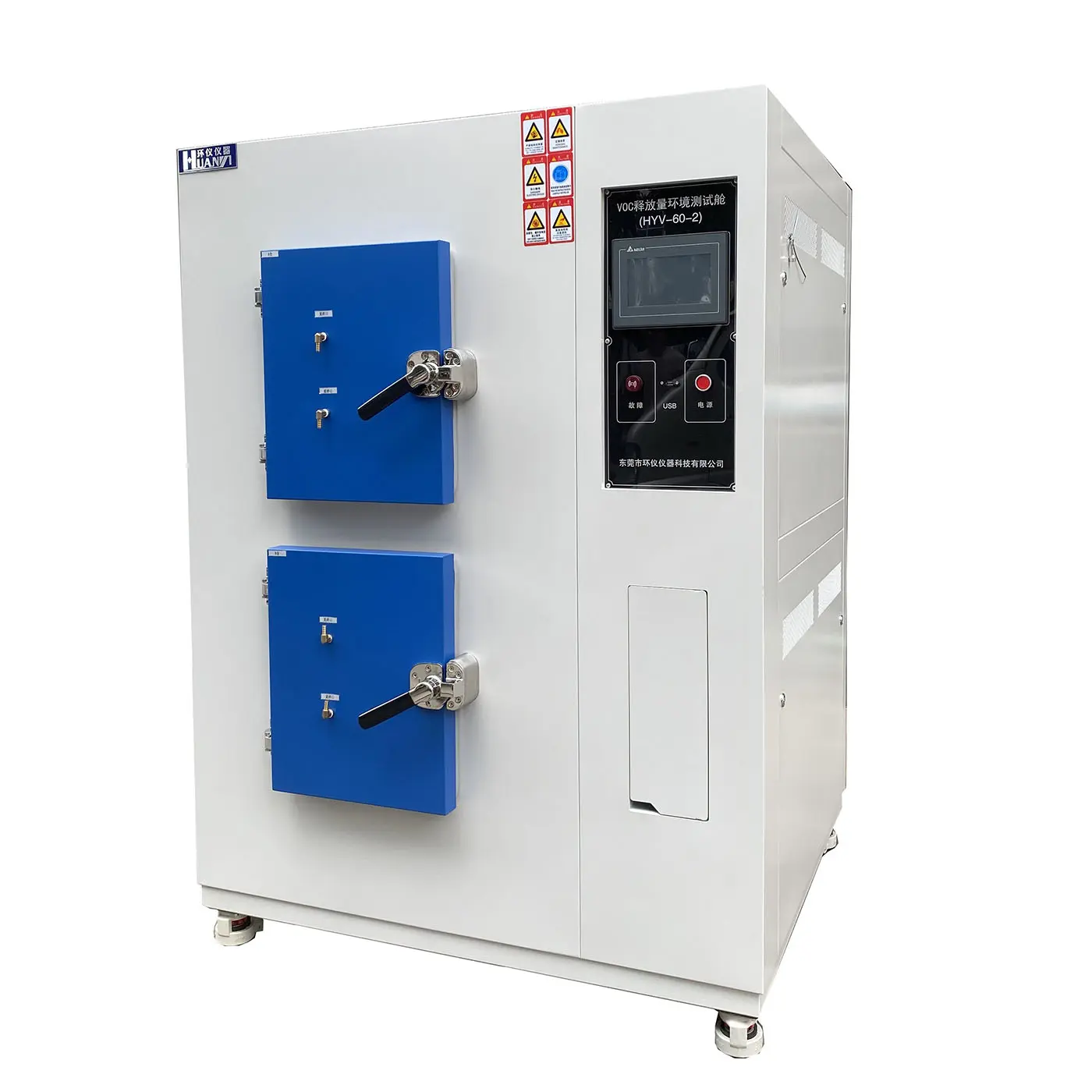

The 2-chamber VOC emission test chamber is mainly used to detect formaldehyde and VOC emissions from plastic layers, carpets, floors, interior materials, fabrics, decorative materials, artificial boards, and their wood products; it can also be used to test VOC emissions from other products.

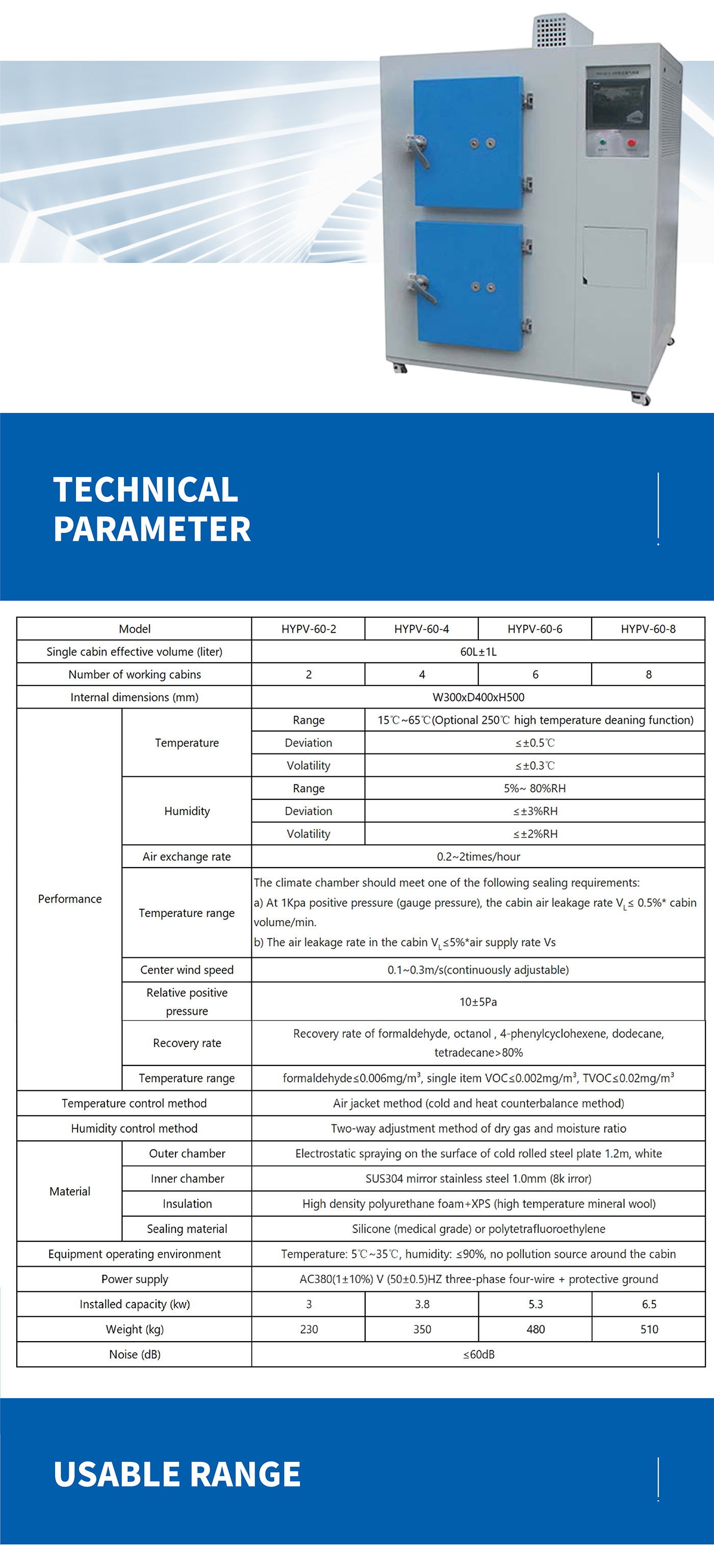

| Model | HYPV-60-2 | HYPV-60-4 | HYPV-60-6 | HYPV-60-8 | |
| Single cabin effective volume | 60L±1L | ||||
| Number of working cabins | 2 | 4 | 6 | 8 | |
| Internal dimensions (mm) | W300xD400xH500 | ||||
| Performance | Temp Range | 15℃~65℃ (Optional 250℃ high temp cleaning) | |||
| Temp Deviation/Volatility | Deviation: ≤±0.5℃ | Volatility: ≤±0.3℃ | ||||
| Humidity Range | 5%~ 80%RH (Deviation: ≤±3%RH) | ||||
| Air exchange rate | 0.2~2 times/hour | ||||
| Center wind speed | 0.1~0.3m/s (continuously adjustable) | ||||
| Recovery rate | >80% (Formaldehyde, octanol, dodecane, etc.) | ||||
| Control Method | Air jacket method (Temp) / Two-way dry gas & moisture ratio (Humidity) | ||||
| Material | Inner: SUS304 mirror stainless steel | Outer: Cold rolled steel plate with electrostatic spraying | ||||
| Installed capacity (kw) | 3 | 3.8 | 5.3 | 6.5 | |
| Weight (kg) | 230 | 350 | 480 | 510 | |
