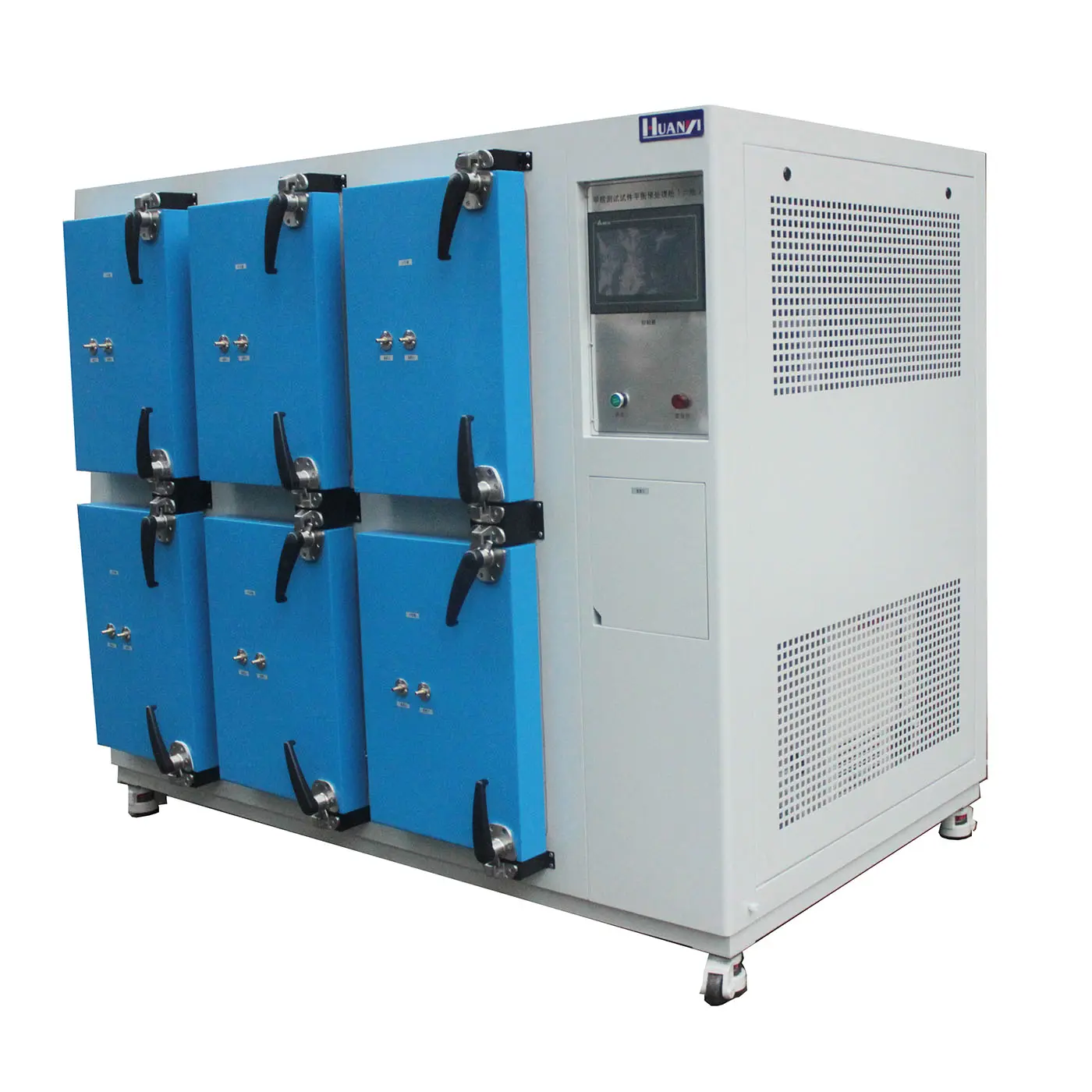

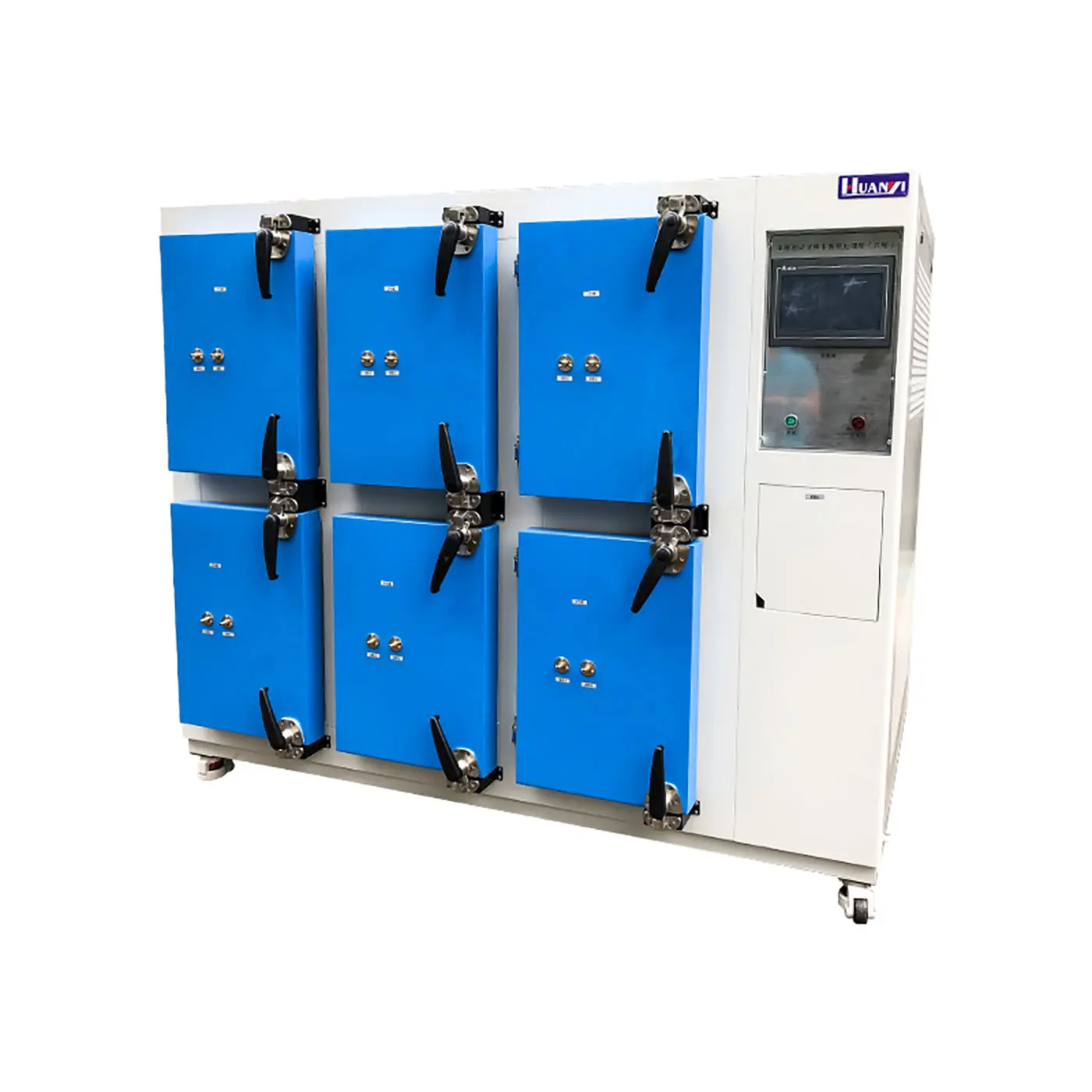

The 6-chamber VOC emission test chamber is mainly used to detect formaldehyde and VOC emissions from plastic layers, carpets, floors, interior materials, fabrics, decorative materials, artificial boards, and their wood products; it can also be used to test VOC emissions from other products.

Send Inquiry

Product Description

Product Description

The capacity of the cabin is 60L and 1L, and the number of cabins can be customized (2 to 12 cabins). The VOC formaldehyde emission test box is suitable for measuring the emission of volatile organic compounds in sample equipment. It is designed to test for the release of harmful substances such as total volatile organic compounds (TVOC), benzene, toluene, xylene and ethylbenzene, carbon disulfide, and formaldehyde.

Meet the Standards

  • ASTM D6007-02 Standard Test Methods for Determination of Formaldehyde Concentration in air
  • ENV717-1 Environmental Chamber Method for Measurement of Formaldehyde Emission of Manmade Board
  • EN13419-1 Determination of VOCs Release quantity of Building products
  • ASTM D5116-17 Standard Guide for Determination of Organic Release from Interior Materials
  • ASTM D6330-14 Standard Operation for Determination of VOCs Release from Wooden Board
  • ASTM D6670-18 Standard Operation for Determination of VOCs Release from Interior Materials
  • ASTM E1333-14 Standard Test Methods for Determination of Formaldehyde Concentration and Release Rate
  • GB 18580-2017 Limits of Formaldehyde Release from Artificial Panel Machine Products
  • GB/T 31107-2014 General Technical Requirements for Climate Chambers

Technical Parameters

Model HYPV-60-2 HYPV-60-4 HYPV-60-6 HYPV-60-8
Single cabin effective volume (liter) 60L±1L
Number of working cabins 2 4 6 8
Internal dimensions (mm) W300xD400xH500
Performance Temperature Range 15℃~65℃ (Optional 250℃ cleaning)
Humidity Range 5%~ 80%RH (Deviation ≤±3%)
Air exchange rate 0.2~2 times/hour
Wind speed 0.1~0.3m/s (continuously adjustable)
Relative pressure 10±5Pa
Recovery rate Formaldehyde, octanol, etc. >80%
Background conc. Formaldehyde ≤0.006mg/m³, TVOC ≤0.02mg/m³
Material (Inner) SUS304 mirror stainless steel 1.0mm (8k mirror)
Sealing material Silicone (medical grade) or polytetrafluoroethylene

Product Display

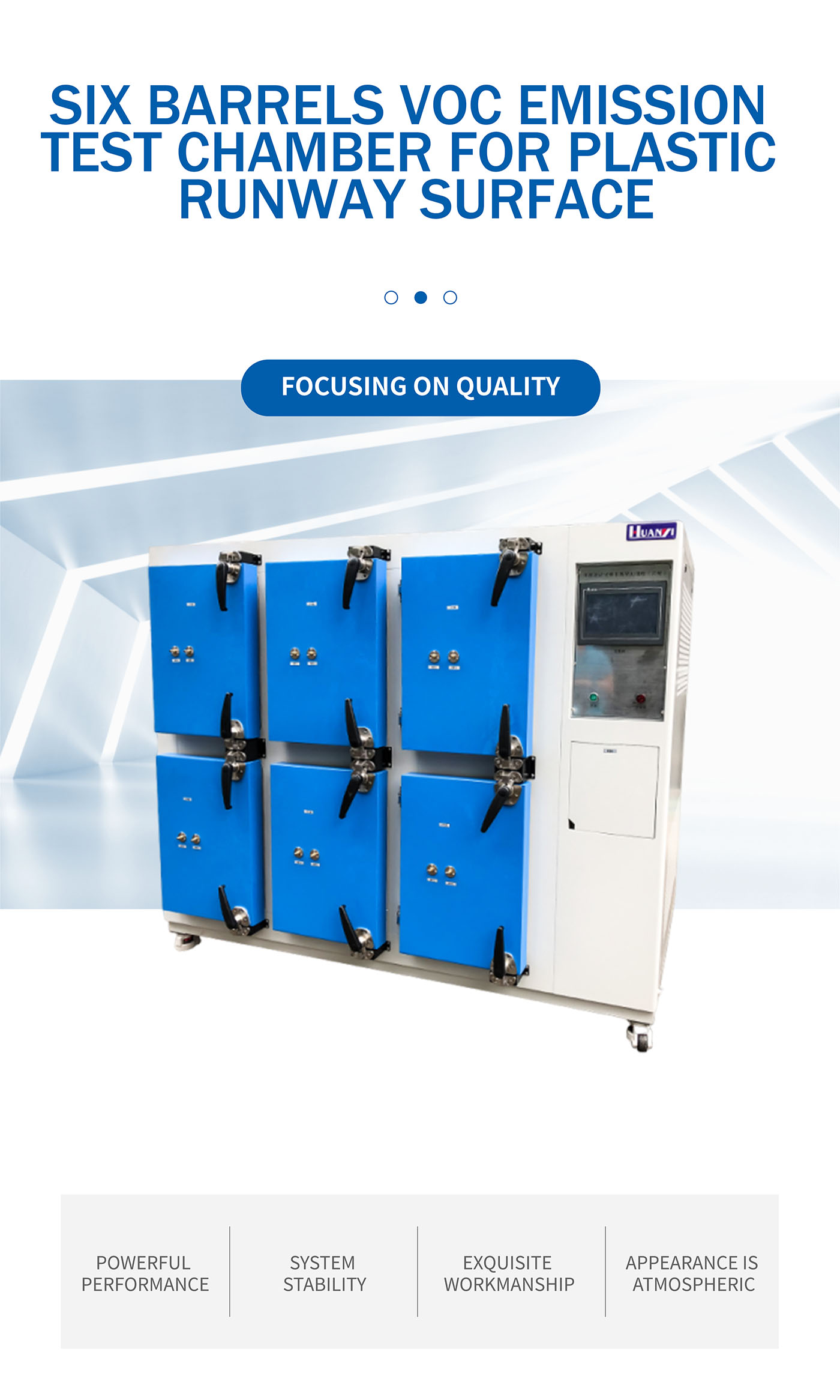

VOC Emission Chamber 1

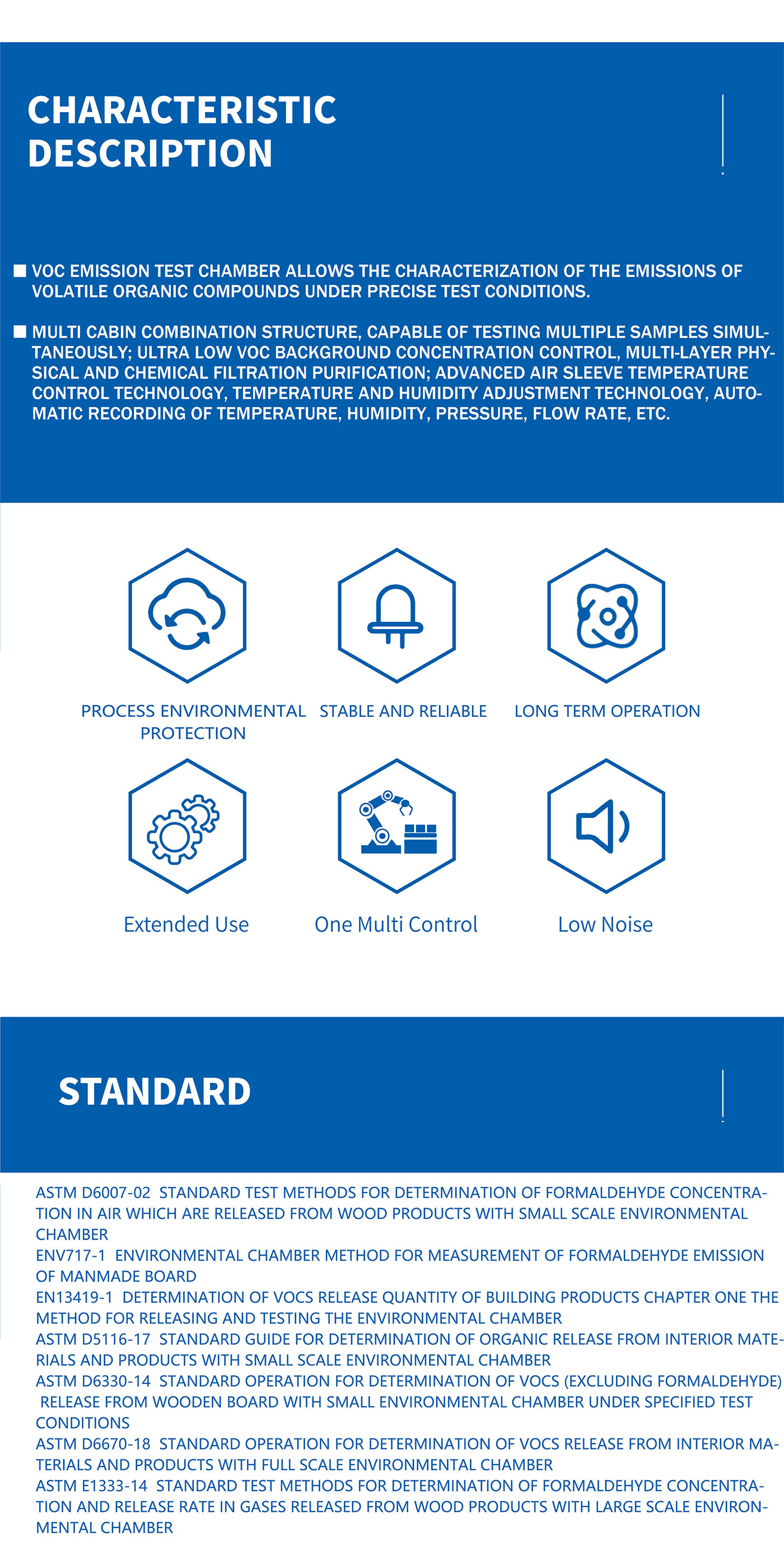

VOC Emission Chamber 2

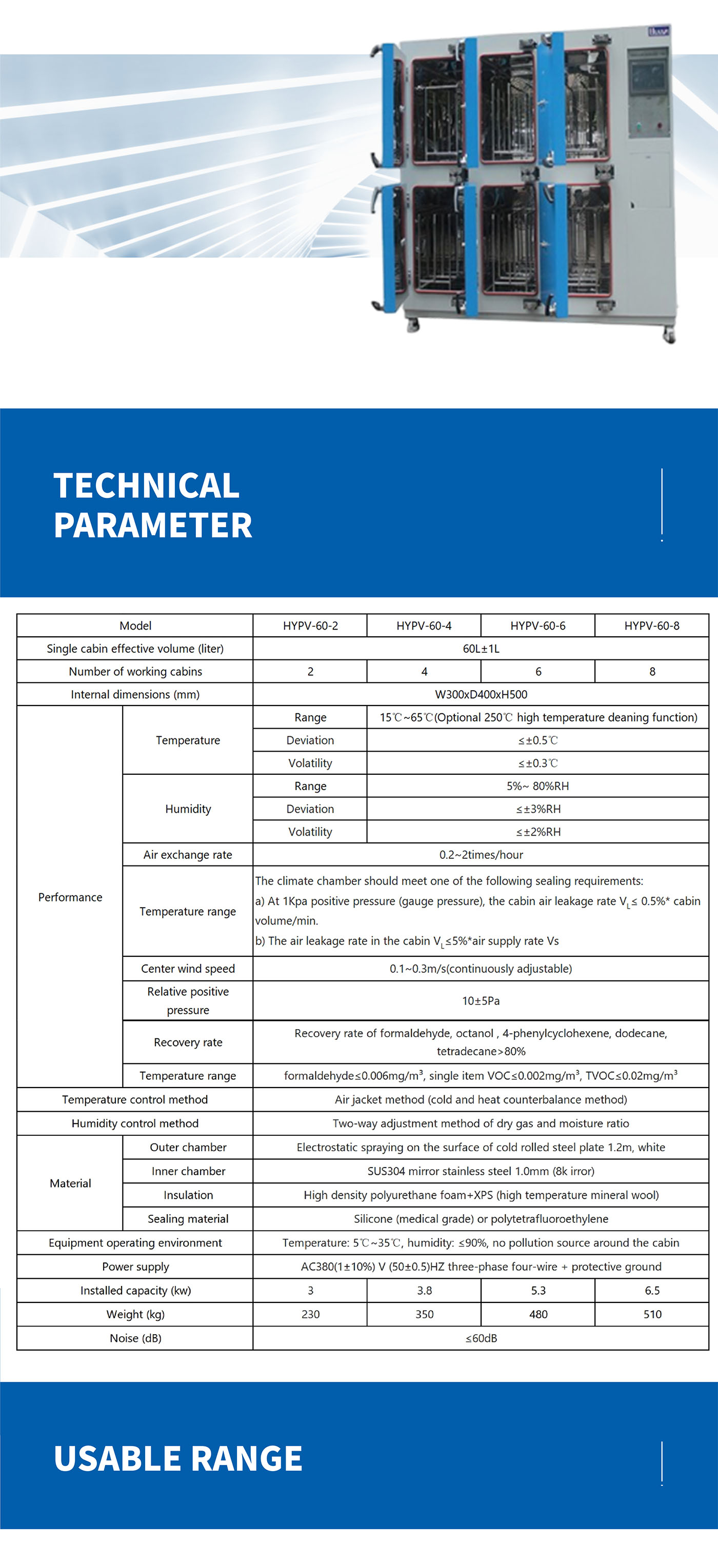

VOC Emission Chamber 3
VOC Emission Chamber 4

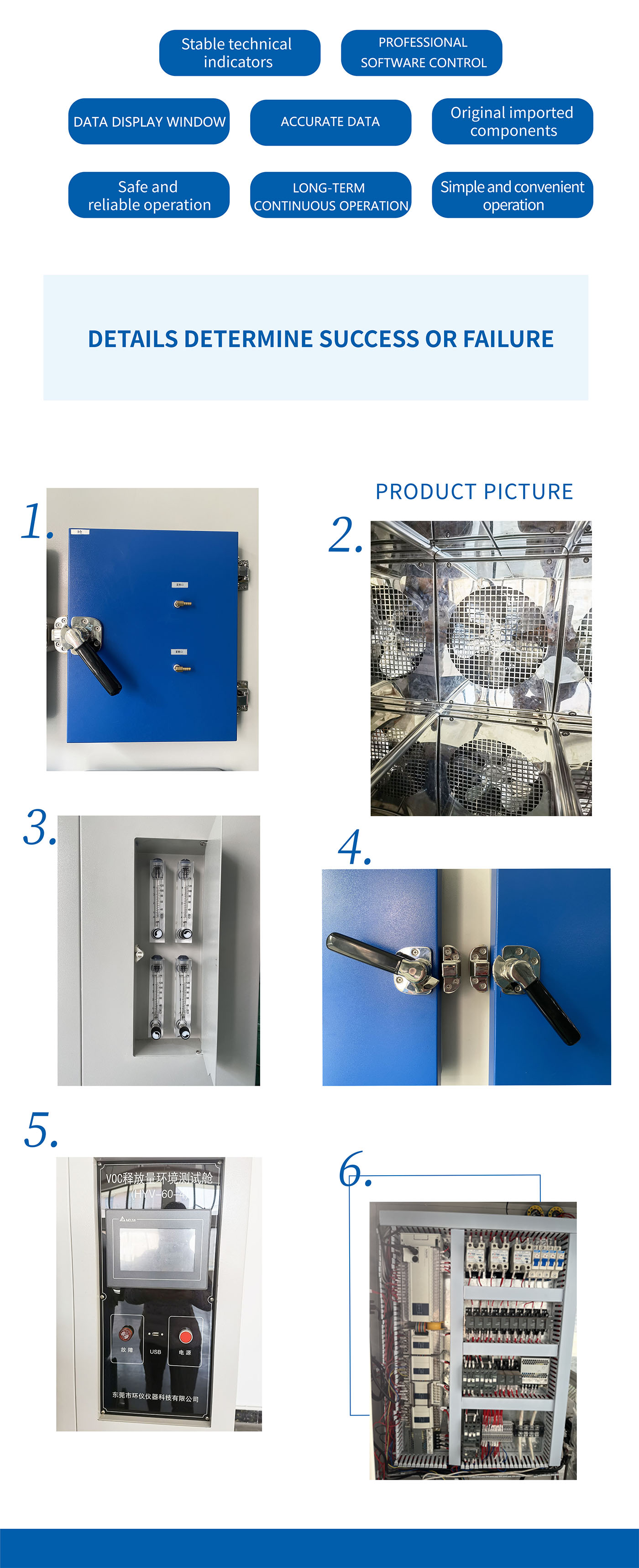

VOC Emission Chamber 5

Operation Video

Frequently Asked Questions

What is the capacity of each testing cabin?
The single cabin effective volume is 60L ± 1L, providing a controlled environment for small-scale material testing.
How many cabins can be integrated into one system?
The standard models range from 2 to 8 cabins (HYPV-60-2 to HYPV-60-8), but we can customize the configuration up to 12 cabins.
What substances can this chamber detect?
It is designed to test for formaldehyde, TVOC, benzene, toluene, xylene, ethylbenzene, and carbon disulfide emissions.
Does the equipment meet international testing standards?
Yes, it complies with various international standards including ASTM D6007, EN13419-1, and GB/T 31107, among others.
What materials are used for the inner chamber construction?
The inner chamber is made of high-quality SUS304 mirror stainless steel (8K mirror) to ensure no background contamination and easy cleaning.
What is the temperature and humidity control range?
The temperature range is 15℃ to 65℃, and the humidity range is 5% to 80%RH, both with high precision stability.
