The generators have features such as built-in compressor, nozzle pressure control, remote control and are suitable for use in filters, clean rooms, smoke detectors and other fields.

Send Inquiry

Product Description

Description
The aerosol generator is a liquid type aerosol generator, which can continuously and stably generate aerosol aerosol from the solution, and the concentration of the aerosol can be adjusted.
The sample bottle of the aerosol generator is made of high borosilicate glass with a specially designed nozzle.
The aerosol generator has a built-in micro air compressor. The air enters the nozzle of the sample bottle, and the aerosol aerosol is generated by the shear force between the high-speed airflow and the liquid. Through inertial collision, the large particle size particles are returned to the container, and the small particle size aerosol is output.
The particle size distribution of the aerosol is mainly within 0.2-3um.
Application
  • Test and filter efficiency HEPA/ULPA
  • On-site inspection of filters and clean rooms
  • Generate salt aerosols
  • Generate PSL balls
  • Flow field tracing
  • Drug atomization and inhalation experiments
  • Atomization of bacteria and virus solutions and animal infection experiments
Technical Parameters
Aerosol generator Effectively aerosolize various solutions
Particle types DEHS, PAO, saline solution, PSL pellets, various drug aerosols, etc.
Particle mass flow Maximum 2.5g/h (DEHS)
Volume flow 60-500L/h
Atomizing head SUS304 stainless steel, which can be sterilized at high temperature and high pressure
Sample cup Silicate glass, transparent, easy to observe, can be sterilized by high temperature and high pressure
With a rehydration port, continuous rehydration can be performed without interrupting the operation
Number of atomizing nozzles 6
Aerosol particle size 1-4um
Sample cup capacity 100ml, 250ml
Input pressure range 0-0.4MPa
Product Display

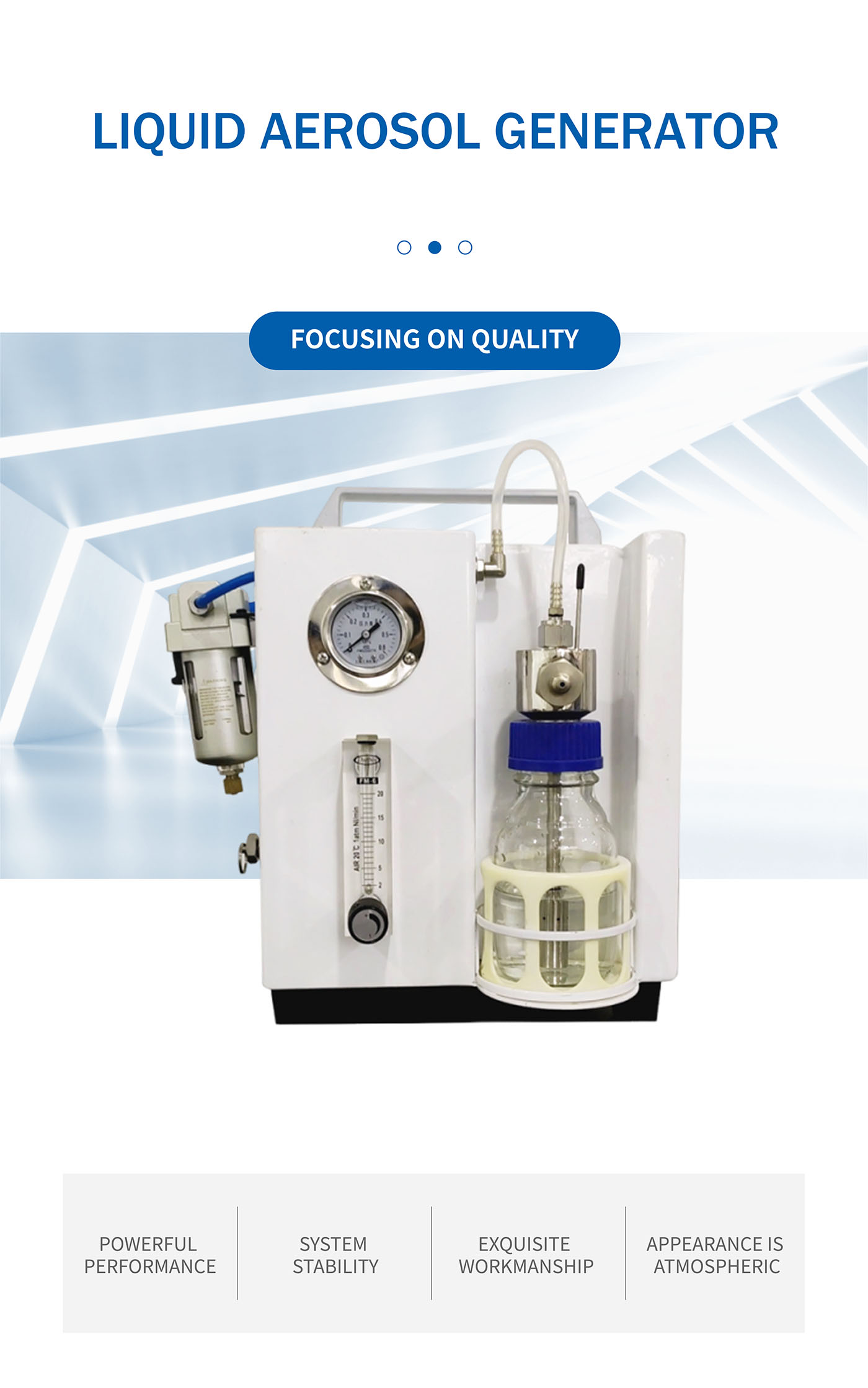

Liquid Aerosol Generator View 1
Liquid Aerosol Generator View 2

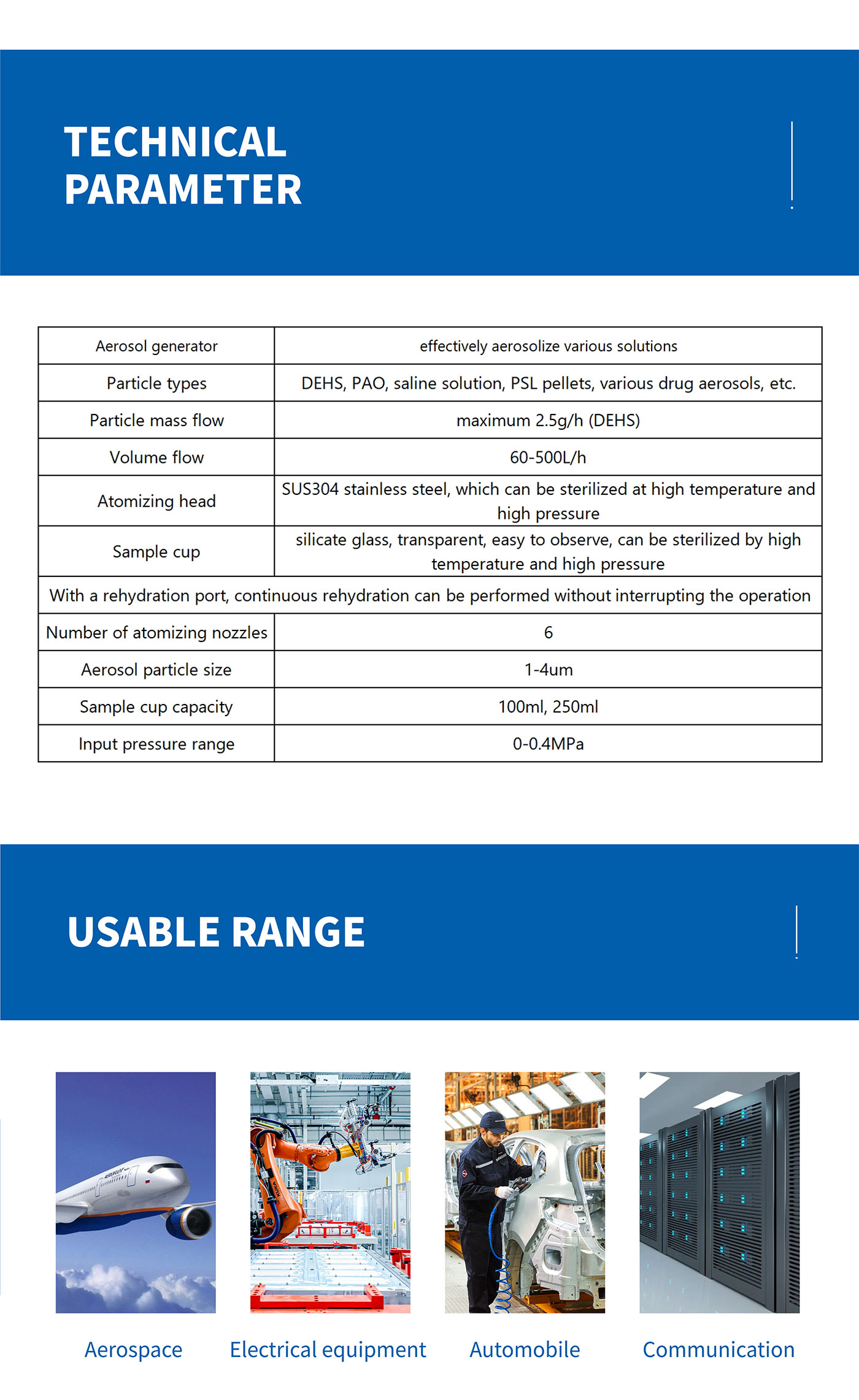

Liquid Aerosol Generator View 3

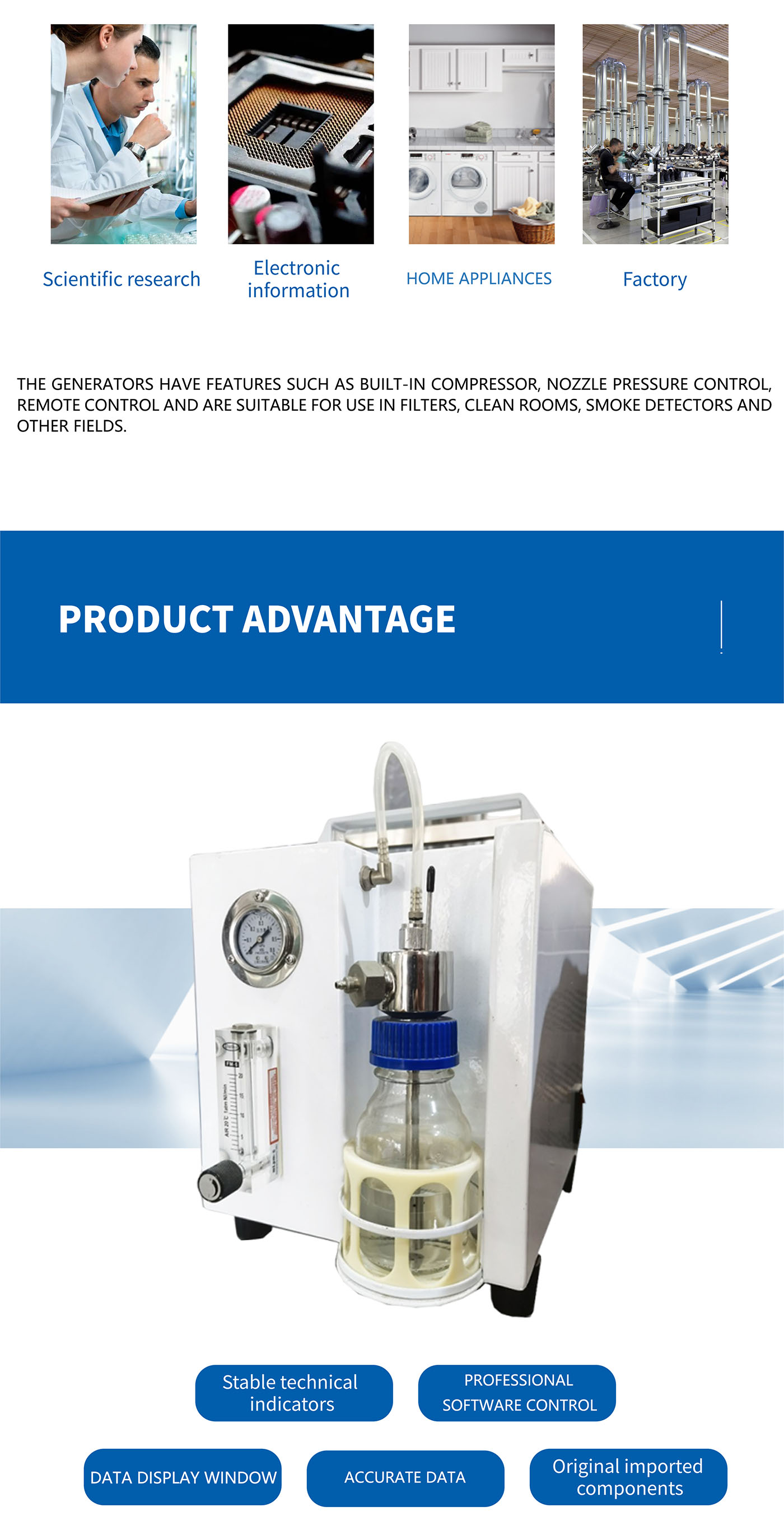

Liquid Aerosol Generator View 4

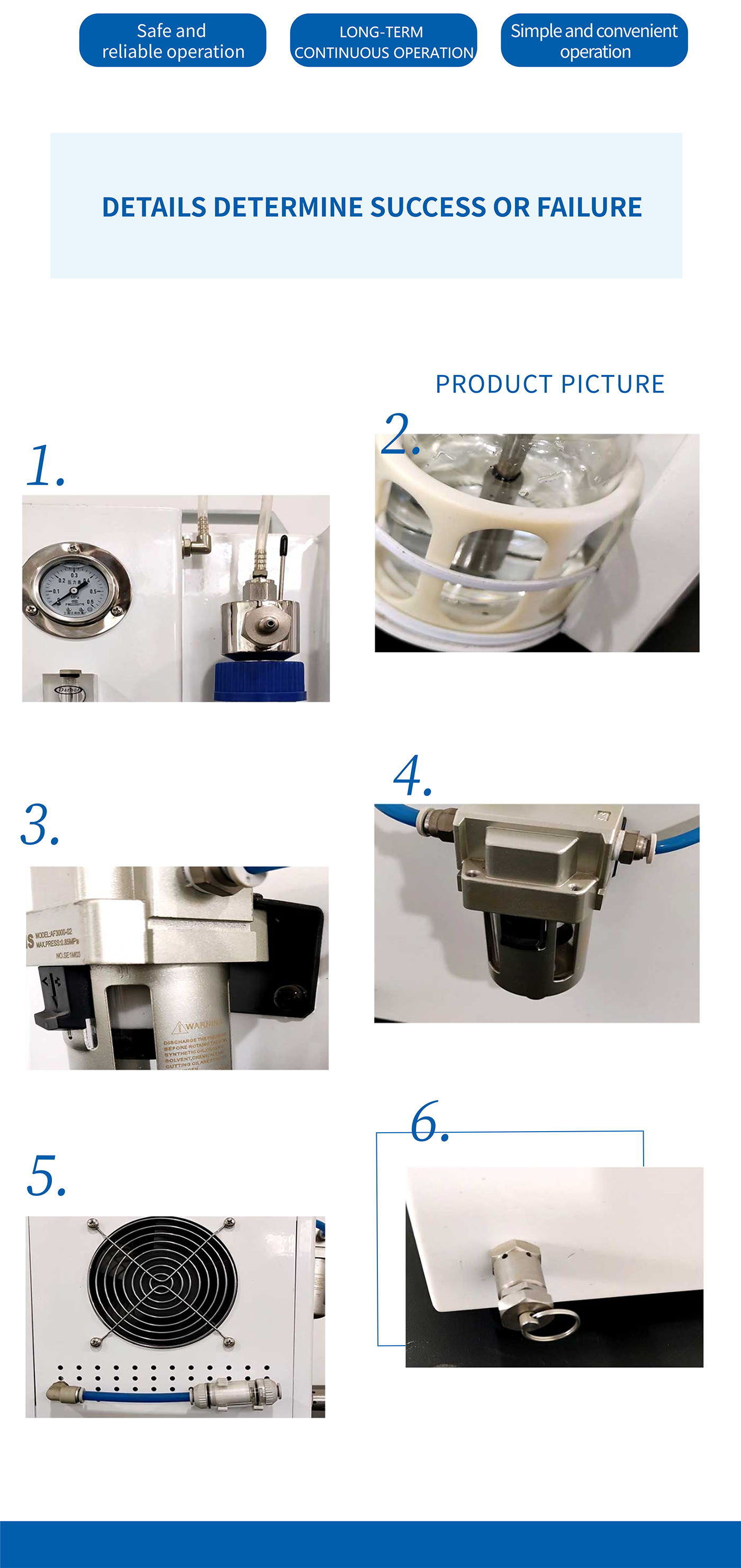

Liquid Aerosol Generator View 5
Video Demonstration
FAQ
What types of solutions can this aerosol generator use?
The generator can effectively aerosolize various solutions including DEHS, PAO, saline solutions, PSL pellets, and various drug aerosols.
Is the sample container easy to clean and maintain?
Yes, the sample cup is made of transparent silicate glass and the atomizing head is SUS304 stainless steel. Both are designed for easy observation and can be sterilized by high temperature and high pressure.
Does the machine require an external air source?
No, the aerosol generator has a built-in micro air compressor that generates the necessary high-speed airflow to create the aerosol.
Can I refill the solution while the device is running?
Yes, the equipment features a rehydration port that allows for continuous rehydration without interrupting the operation.
What is the typical particle size range produced?
The aerosol particle size distribution is primarily within 0.2-3um, with the technical specifications covering a range of 1-4um depending on the setup and solution.
What are the common applications for this device?
Common applications include HEPA/ULPA filter efficiency testing, clean room inspections, drug atomization experiments, and virus or bacteria solution atomization for infection research.
