OEM Air volume test bench / fan power performance test bench Manufacturers, Factories
1 / 1

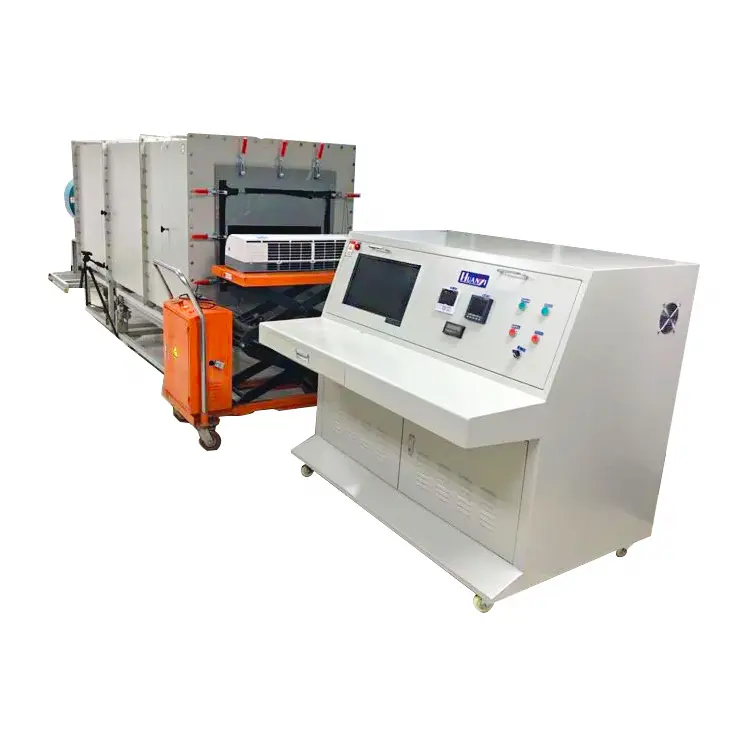

OEM Air volume test bench / fan power performance test bench Manufacturers, Factories

OEM Air volume test bench / fan power performance test bench Manufacturers, Factories

This equipment is used for air volume testing of household purifier air outlets, air conditioner air outlets, automobile air conditioner air outlets, DC fans, AC fans, centrifugal fans, blowers, engineering fans, etc. The hardware part is integrated with international high-end imported components.

Send Inquiry

Product Description

Applications

The purifier outlet air volume test bench is suitable for modular air purifiers installed in air conditioning ventilation ducts. The target pollutants are particulate matter, gaseous pollutants, and microorganisms. This product mainly includes: air duct system, pollution source generation device and measurement device (shared with the environmental chamber, provided by the buyer).

Meet The Standards

  • GB/T1236-2000 Industrial ventilators use standardized ducts for performance tests
  • GB/T2624.3-2006 Measure the flow of fluid in a full pipe with a differential pressure set installed in a circular carrying surface pipe
  • GB/T14806-2003 Household and similar AC ventilating fans and speed regulators
  • IEC61591 Test Method for Range Hood Performance

Technical Parameters

Model Pressure Range Air Volume Range Repeatability Accuracy
HYAF-8000~1000 PA10~800m³/h±2%
HYAF-10000~2000 PA30~1000m³/h±2%
HYAF-15000~2000 PA50~1500m³/h±2%
HYAF-20000~2000 PA80~2000m³/h±2%
HYAF-30000~3000 PA100~3000m³/h±2%
HYAF-40000~2000 PA150~40000m³/h±2%
HYAF-45000~2000 PA150~4500m³/h±2%
HYAF-50000~2000 PA200~5000m³/h±2%
HYAF-60000~2000 PA300~6000m³/h±2%
HYAF-80000~2000 PA300~8000m³/h±2%
HYAF-100000~2000 PA300~10000m³/h±2%
HYAF-120000~2000 PA300~12000m³/h±2%
HYAF-150000~2000 PA300~15000m³/h±2%

Product Display

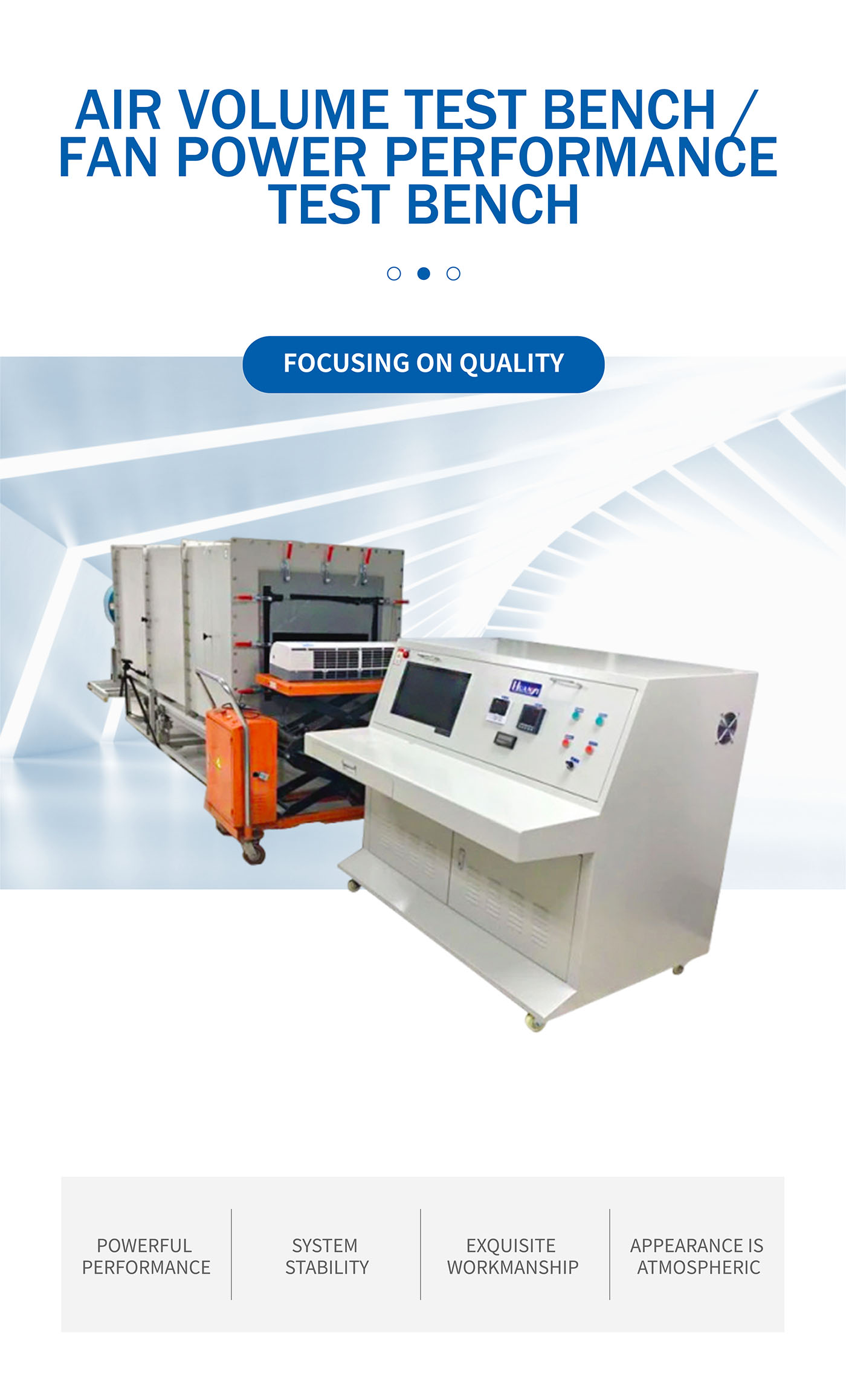

Air volume test bench performance test (1)

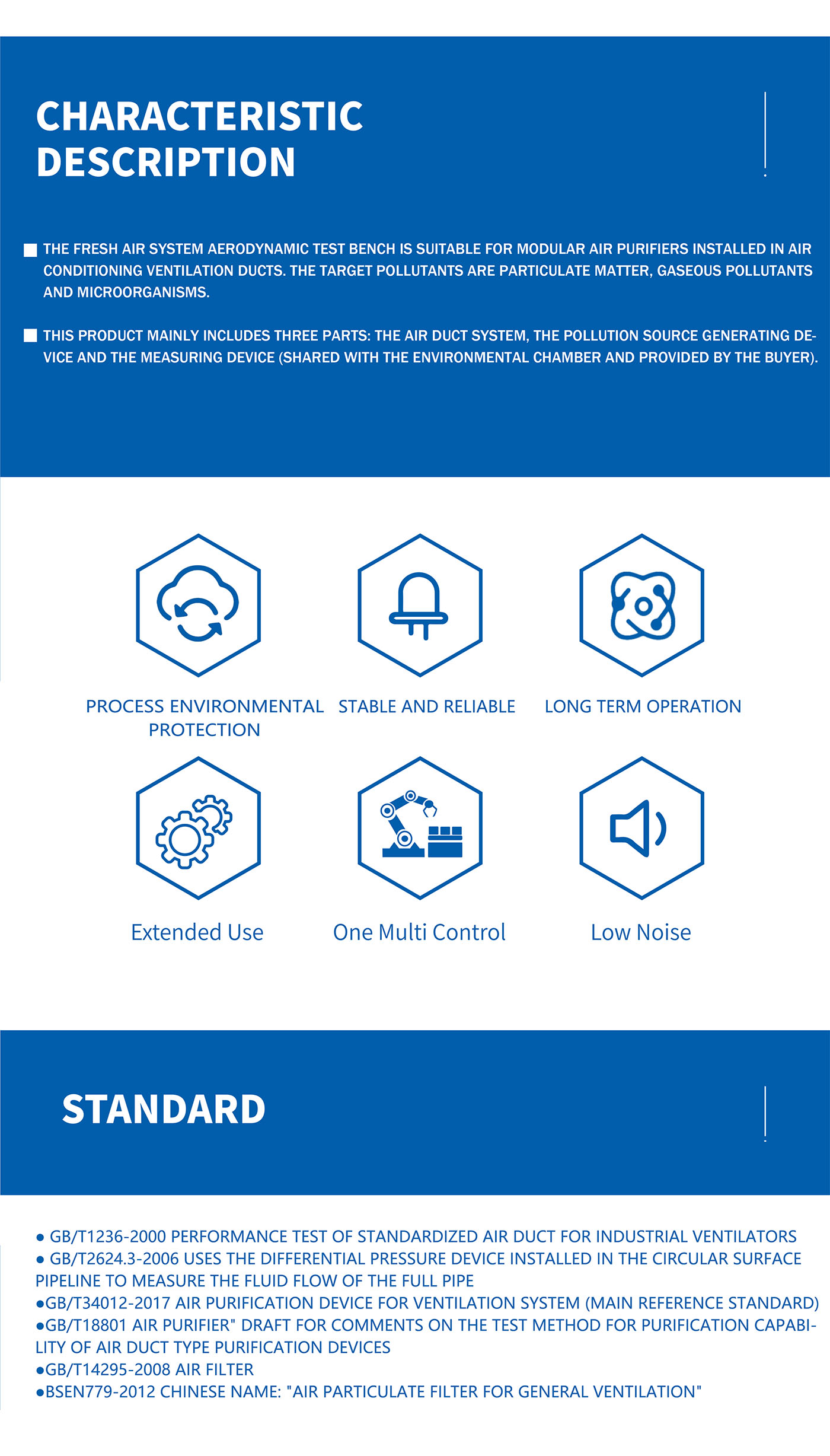

Air volume test bench performance test (2)

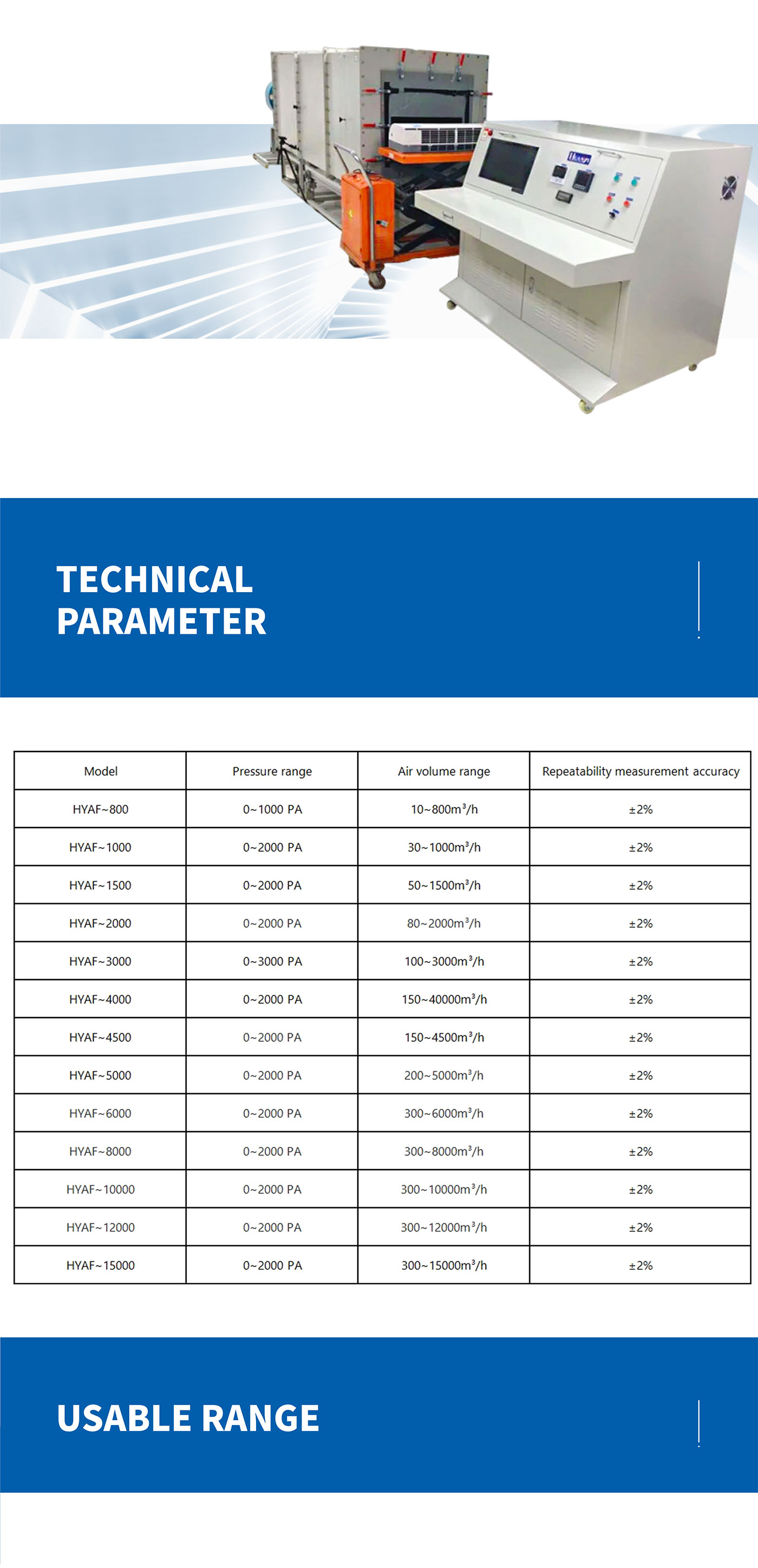

Air volume test bench performance test (3)

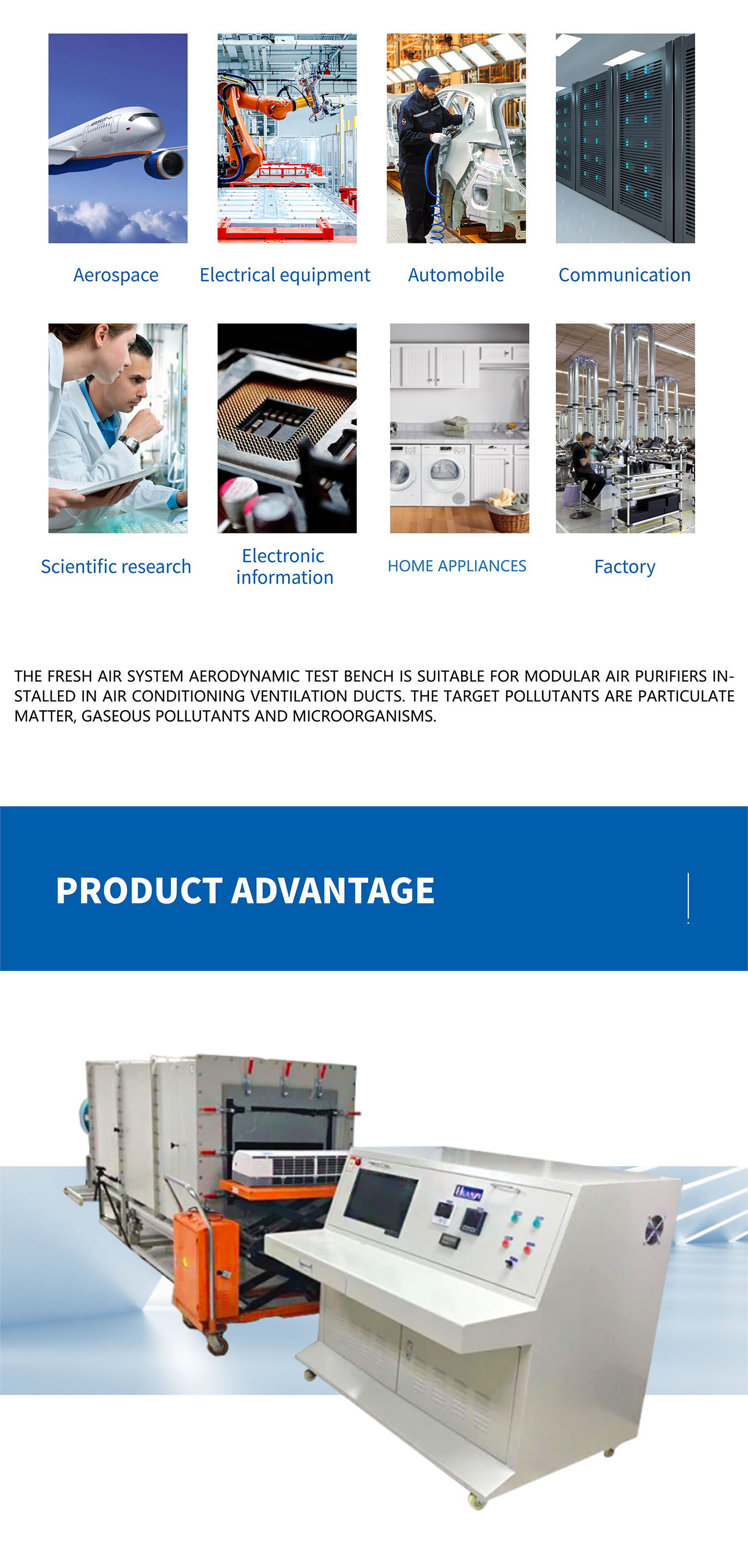

Air volume test bench performance test (4)

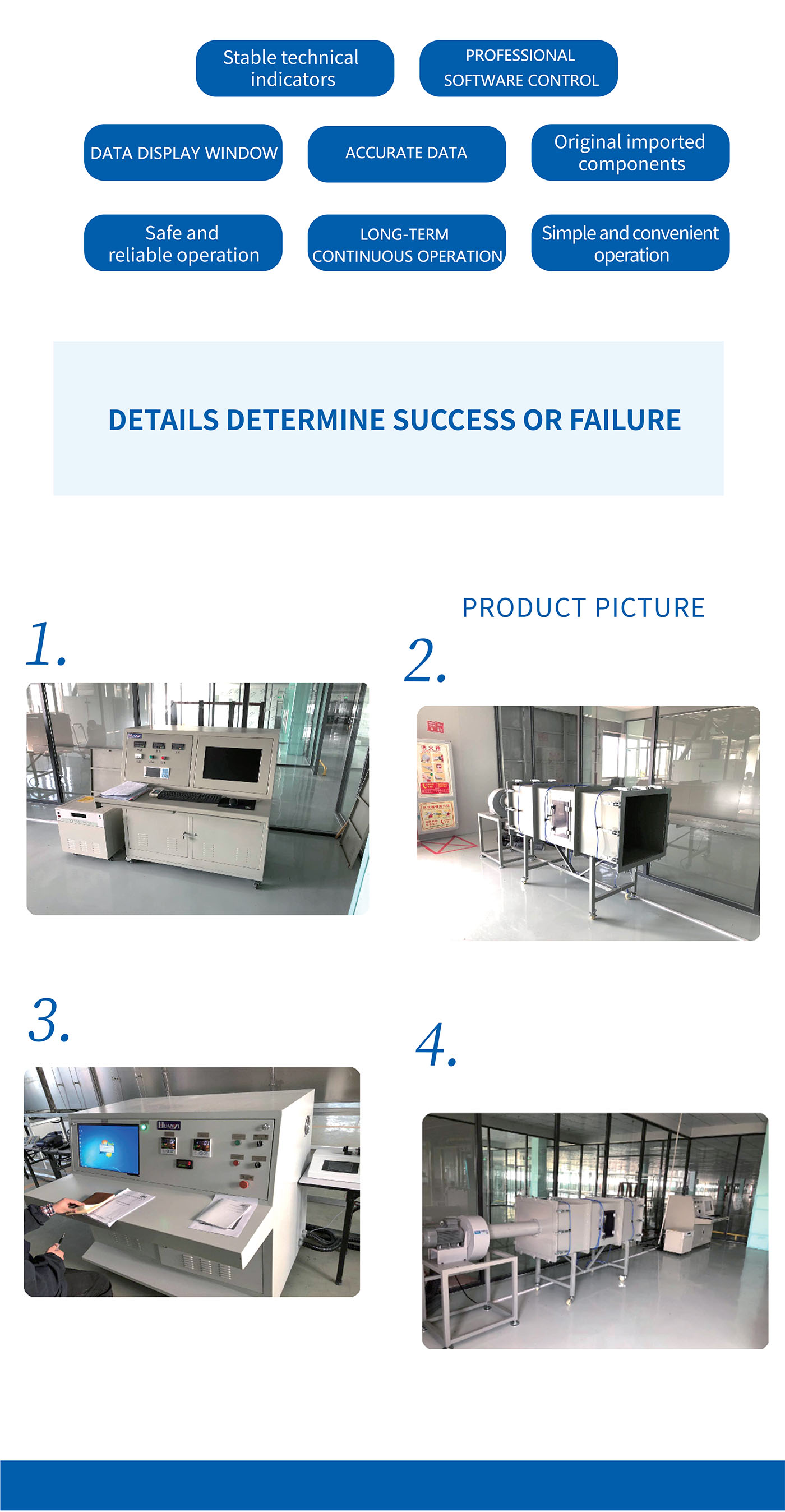

Air volume test bench performance test (5)
Frequently Asked Questions
Q1: What is the primary use of this air volume test bench?
It is designed for testing modular air purifiers installed in ventilation ducts, specifically targeting particulate matter, gaseous pollutants, and microorganisms.
Q2: Which international standards does the equipment comply with?
The system meets several major standards including GB/T1236-2000, GB/T2624.3-2006, GB/T14806-2003, and IEC61591.
Q3: What is the measurement accuracy for air volume?
The repeatability measurement accuracy for all models in the HYAF series is ±2%.
Q4: What is the maximum air volume capacity available?
The series offers a wide range of capacities, with the highest model (HYAF-15000) supporting up to 15,000 m³/h.
Q5: What are the main components included in the air duct system?
The product includes an air duct system, a pollution source generation device, and a high-precision measurement device.
Q6: Can the test bench handle different pressure ranges?
Yes, depending on the model, the pressure range varies from 0-1000 PA up to 0-3000 PA to suit different testing requirements.
