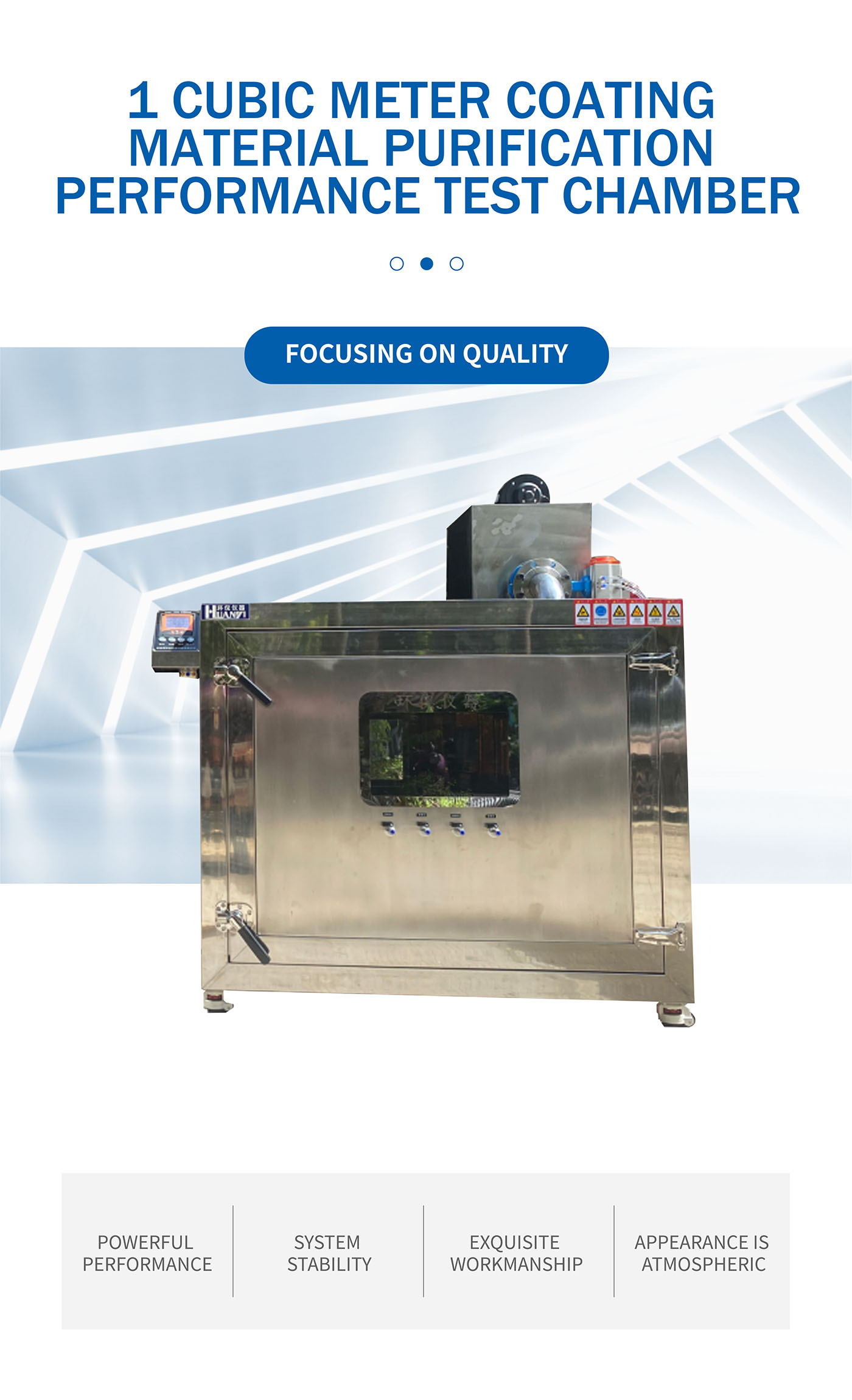

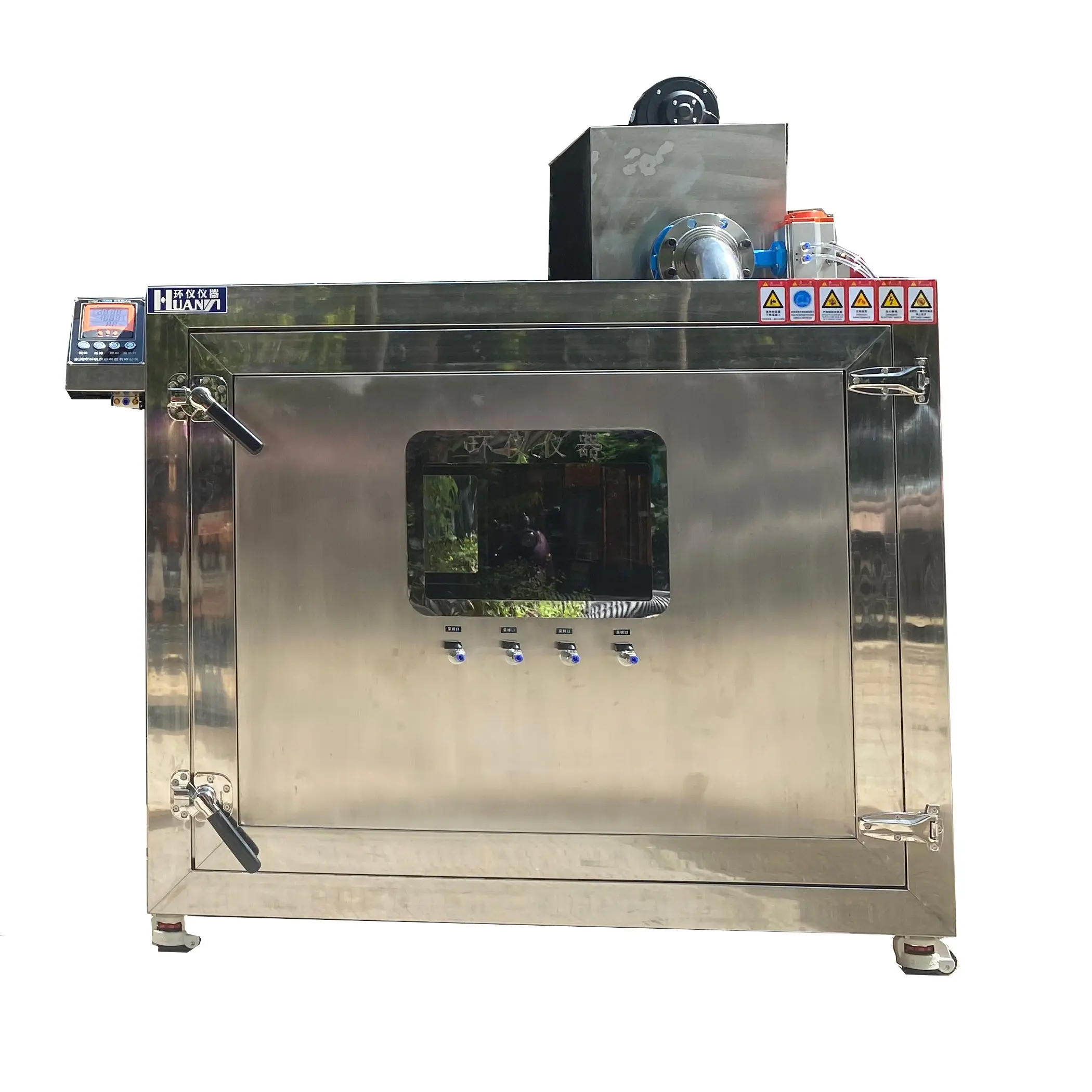

The paint environmental test chamber is designed based on formaldehyde testing standards and related technical requirements. This high-end VOC environmental test box features precise temperature and humidity tolerance and stable performance. It is primarily used to measure the release of substances such as formaldehyde from interior decoration materials, which is a critical indicator of product quality and environmental safety.
Suitable Materials: Coatings, wallpapers, artificial panels, carpets, automotive interior parts, curtains, plastic parts, and more.

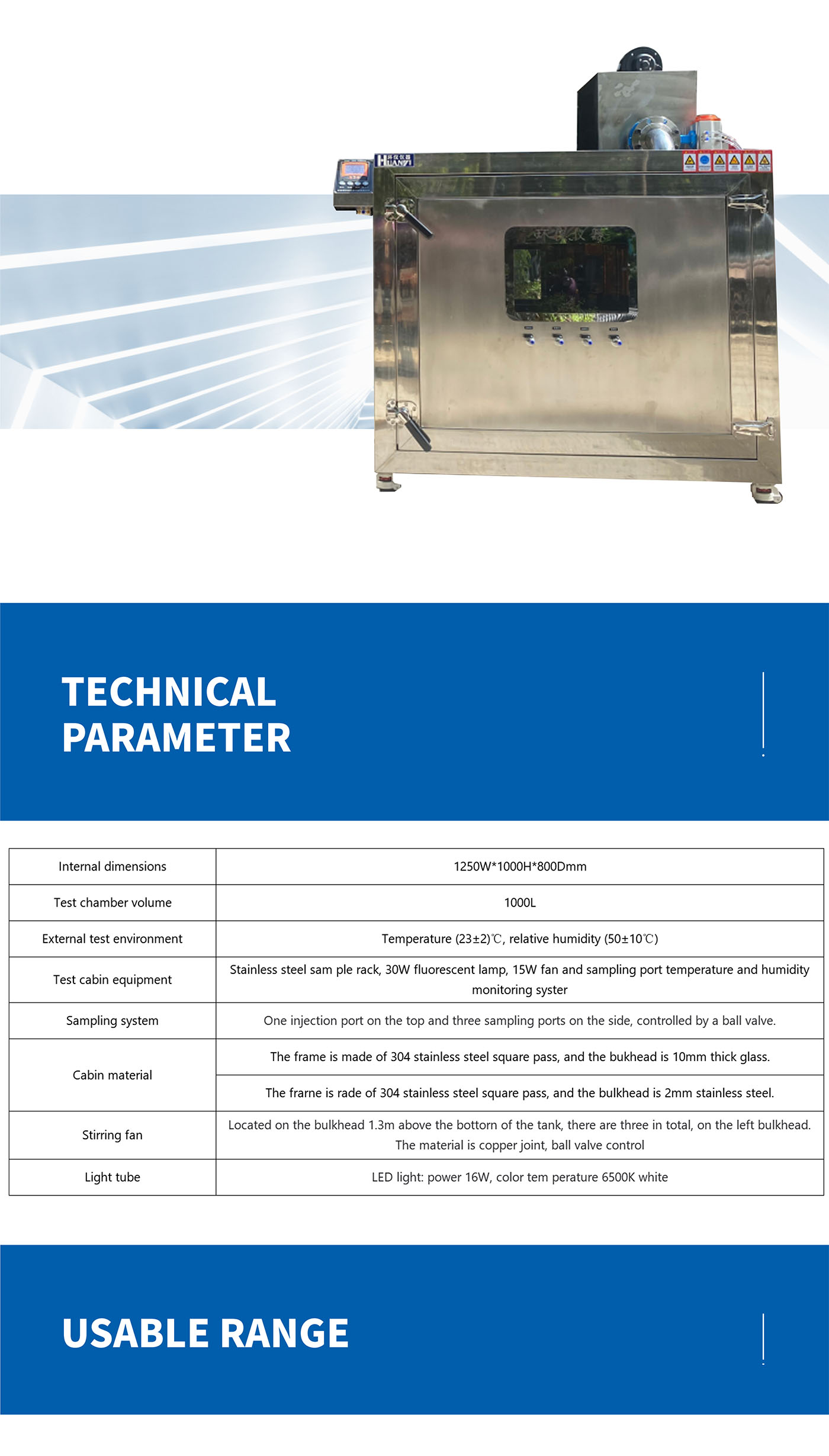

| Internal Dimensions | 1250W * 1000H * 800D mm |
| Test Chamber Volume | 1000L |
| External Test Environment | Temperature (23±2)℃, Relative Humidity (50±10%) |
| Test Cabin Equipment | Stainless steel sample rack, 30W fluorescent lamp, 15W fan, and sampling port monitoring system. |
| Sampling System | One injection port on top and three sampling ports on the side, ball valve controlled. |
| Cabin Material | 304 stainless steel square frame with 10mm glass or 2mm stainless steel bulkhead. |
| Stirring Fan | Three units located on the left bulkhead (1.3m above bottom), copper joint with ball valve control. |
| Light Tube | LED light: 16W power, 6500K white color temperature. |
A: It is designed to test the release rates of VOCs and formaldehyde from indoor decoration materials such as paints, carpets, and panels under controlled temperature and humidity conditions.
A: The chamber meets international and national standards including JC/T1074-2008, JC/T2188-2017, and GB/T18883-2002 for indoor air quality and material purification testing.
A: The frame is built with high-quality 304 stainless steel. The bulkheads are available in either 10mm thick glass or 2mm stainless steel to ensure a clean, non-reactive testing environment.
A: The system includes one injection port at the top and three side sampling ports. These are controlled via ball valves to allow for precise air collection and monitoring during the test process.
A: Yes, the chamber is equipped with a comprehensive temperature and humidity monitoring system at the sampling ports to ensure the testing environment remains within required tolerances.
A: The chamber features a 16W LED light (6500K) and three stirring fans located on the bulkhead to ensure uniform air distribution and proper illumination for observation.
