This system is suitable for testing various series-excited motors, power tools and various motors or electrical appliances that need to be tested for life, and is widely used in scientific research, production and testing industries such as household appliances, aviation, automobiles, motors, machinery and power tools.

Product Description

Product Description

The motor life tester is a special environmental test chamber for new energy vehicle motors. It can create a stable temperature and humidity environment. It is suitable for performance and durability testing of drive motors and provides a reliable solution for new energy vehicle testing.

The motor life test system uses a digital display to display the progress time, speed and test times of each test item, and can manually or automatically add a suitable load to the motor. This system is suitable for testing various series-excited motors, power tools and various motors or electrical appliances that need to be tested for life, and is widely used in scientific research, production and testing industries such as household appliances, aviation, automobiles, motors, machinery and power tools.

Key Features

1
The life test system adopts special simulated load, high speed and high power, with small size, light inertia, and smooth braking for high-speed motor testing.
2
High sensitivity, convenient load adjustment and control, and excellent operational stability.
3
Comprehensive digital display for voltage, current, power, frequency, speed, and cycle counts with high resolution.
4
Simple mechanical structure with minimal auxiliary equipment, making it easy to use and maintain.
5
Single-chip microcomputer control enables smooth automatic loading/unloading and cycle testing with programmable time settings.
6
PC communication compatibility allows for centralized control of each testing process.

Technical Parameters

Parameter Item 1000L 1400L 2180L 2540L
Inner box dimensions (W*D*H mm) 1000*1000*1000 1000*1000*1400 1400*1300*1200 1400*1300*1400
Temperature range -50℃ ~ +150℃
Humidity range 10 ~ 98%RH
Heating rate 40°℃ ~ +150℃ (Average 2~15℃/min)
Cooling rate 150°℃ ~ -40℃ (Average 2~15℃/min)
Temperature fluctuation ≤±0.5℃
Humidity fluctuation ≤±1.5%RH
Temperature uniformity ≤2℃ (-40℃~100℃); others ≤3℃
Humidity deviation ±3.0%RH (>75%RH); ±5.0%RH (≤75%RH)
Reference standards IEC60068-2-78; IEC60068-2-30; IEC60068-2-38; VW80000; GB/T18488.2

Product Details Diagram

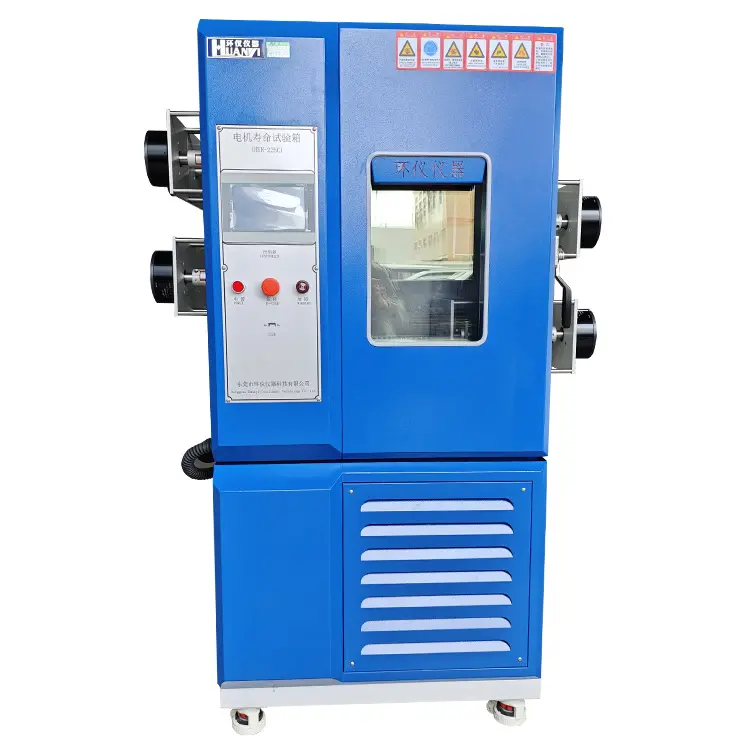

Motor life testing machine (1)

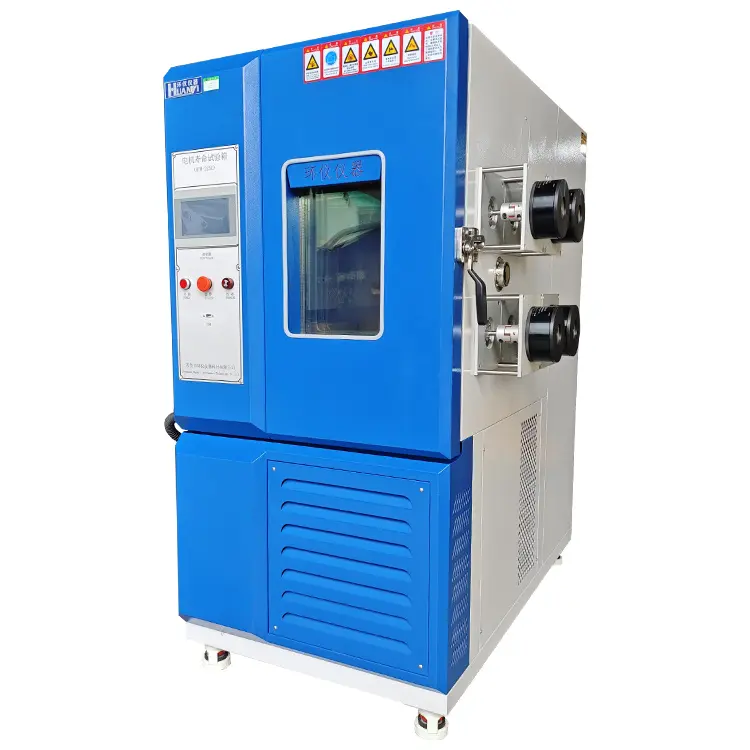

Motor life testing machine (2)
Motor life testing machine (1) repeat

Detailed Views

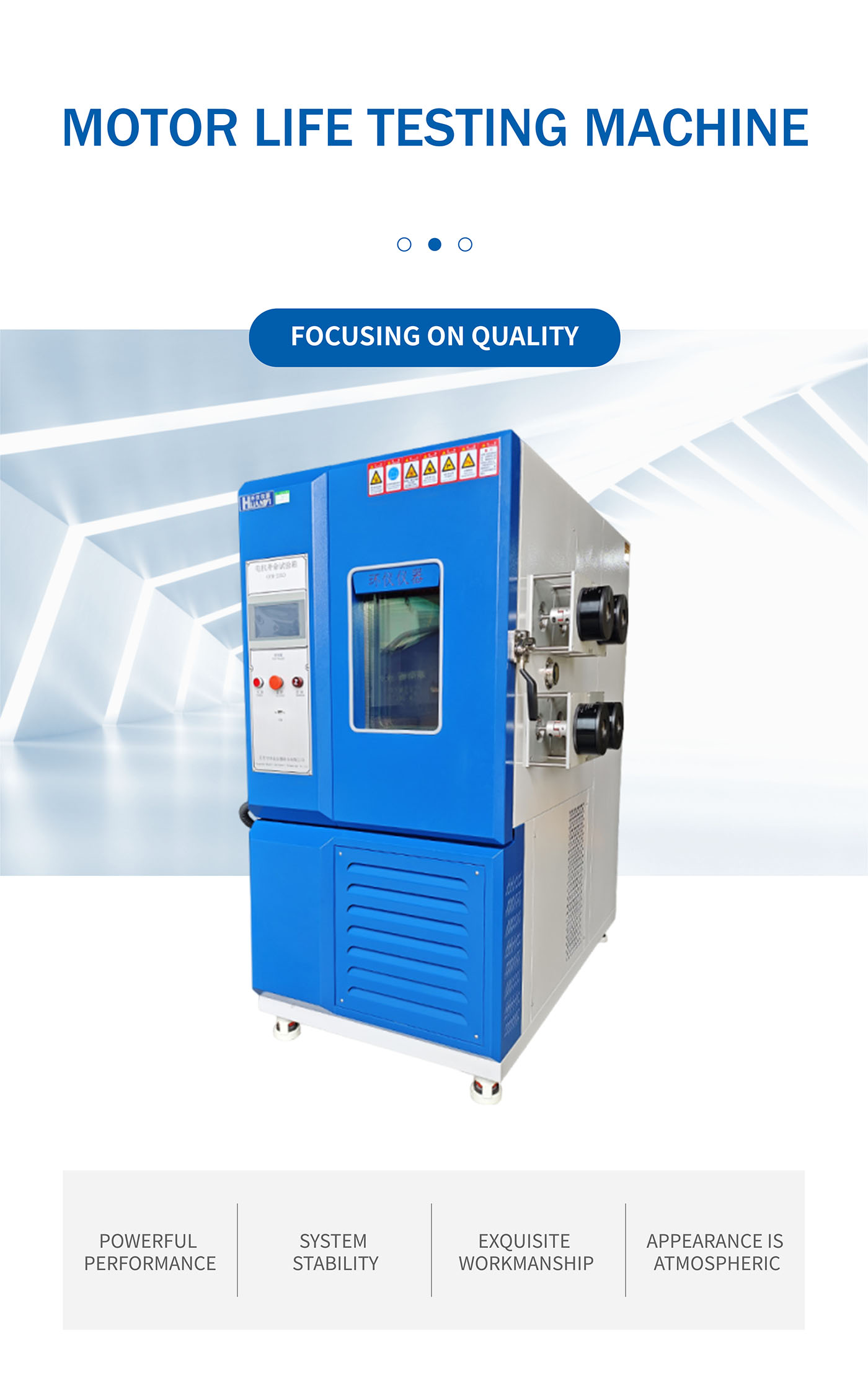

Motor life testing machine detail 1

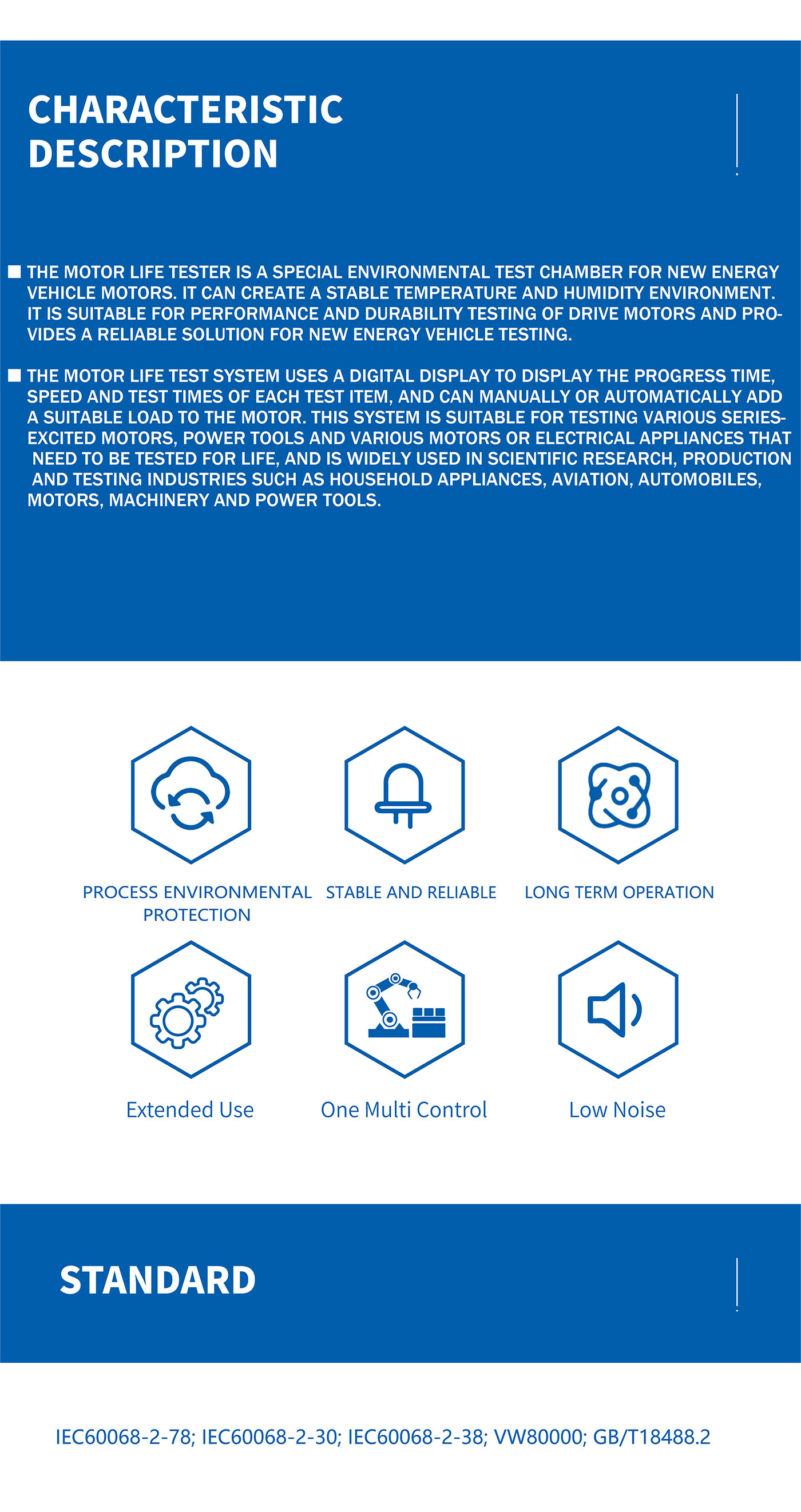

Motor life testing machine detail 2

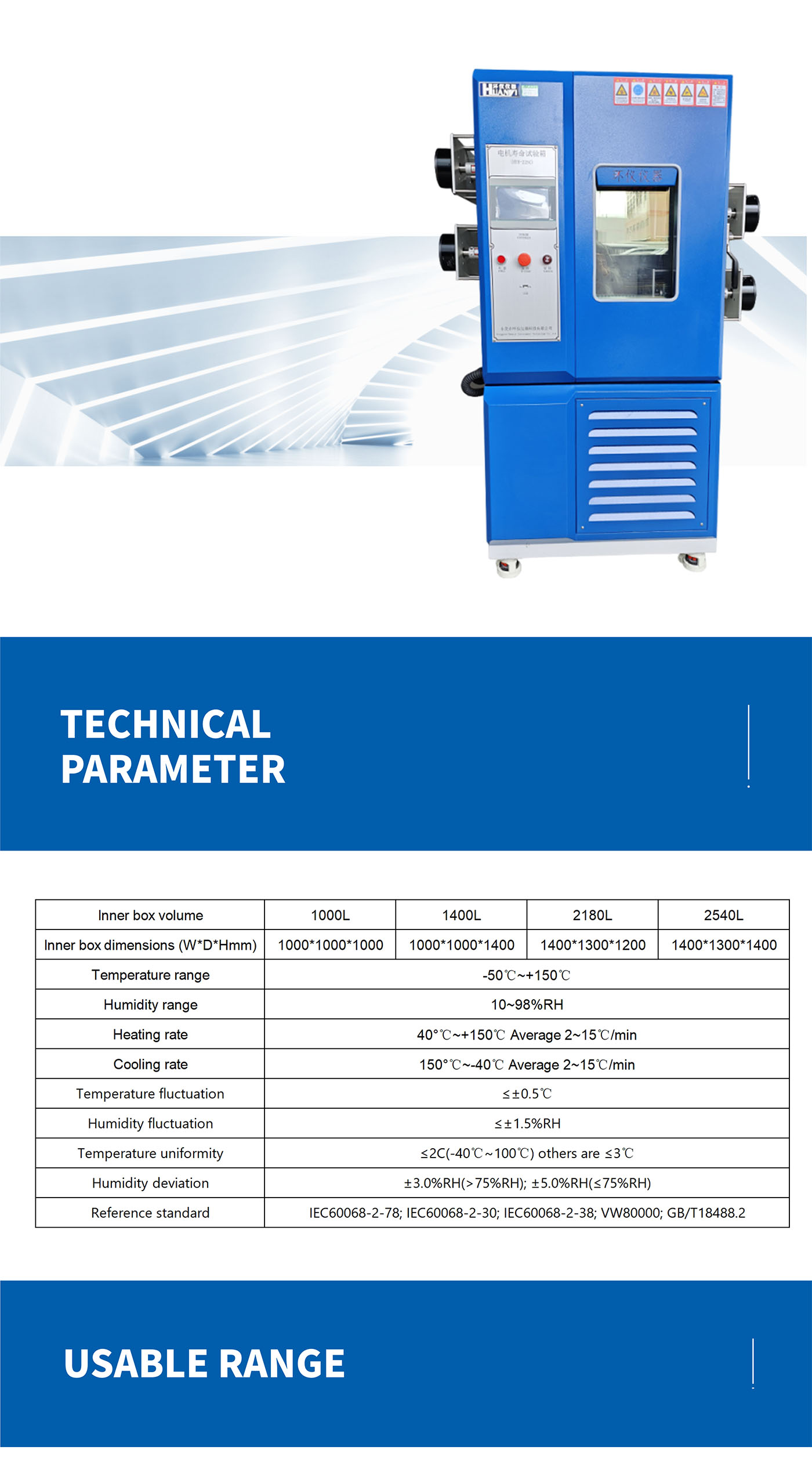

Motor life testing machine detail 3

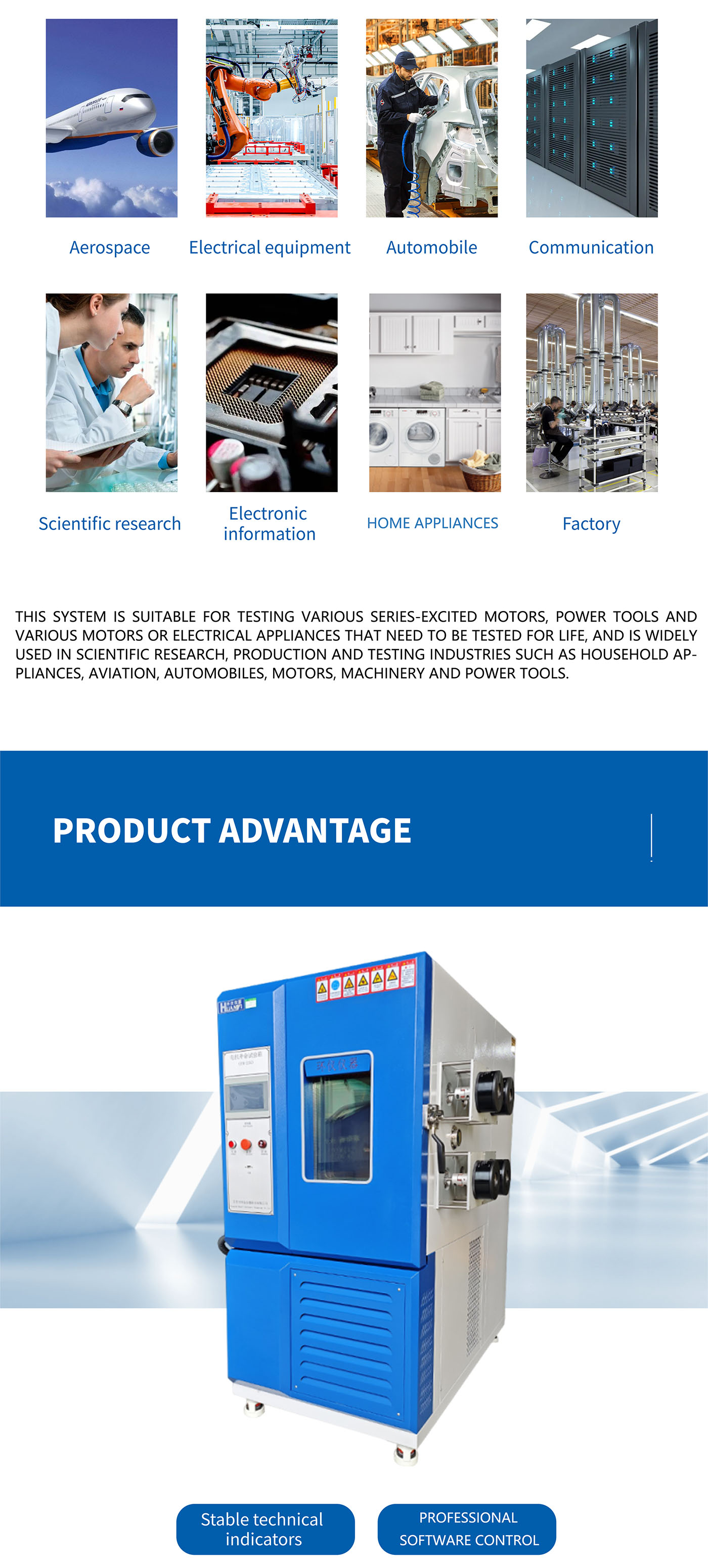

Motor life testing machine detail 4

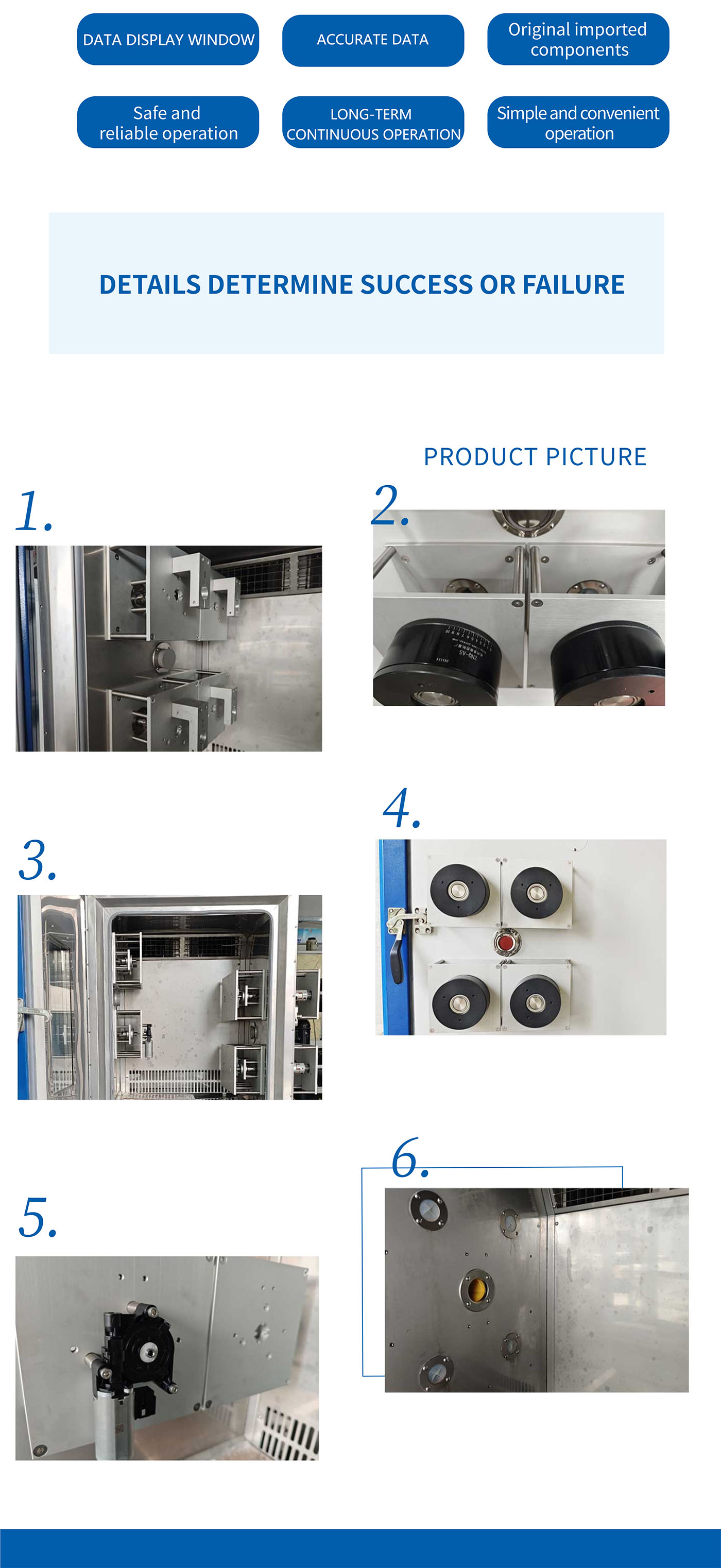

Motor life testing machine detail 5

Demonstration Video

Frequently Asked Questions

What applications is the motor life tester suitable for?
It is designed for new energy vehicle motors, power tools, series-excited motors, and various electrical appliances requiring durability and performance testing.
What environmental conditions can the chamber simulate?
The chamber provides a stable temperature range from -50℃ to +150℃ and a humidity range of 10% to 98% RH.
Is the loading process manual or automatic?
The system supports both manual and automatic loading and unloading, controlled by a single-chip microcomputer for cycle testing.
What parameters are monitored during the life test?
The system digitally displays voltage, current, input/output power, power factor, frequency, speed, and the number of test cycles.
Does the equipment meet international testing standards?
Yes, it complies with multiple standards including IEC60068-2-78, IEC60068-2-30, IEC60068-2-38, VW80000, and GB/T18488.2.
Can the test data be managed via a computer?
Yes, the machine can communicate with a computer, allowing for precise control and monitoring of each individual test process.
