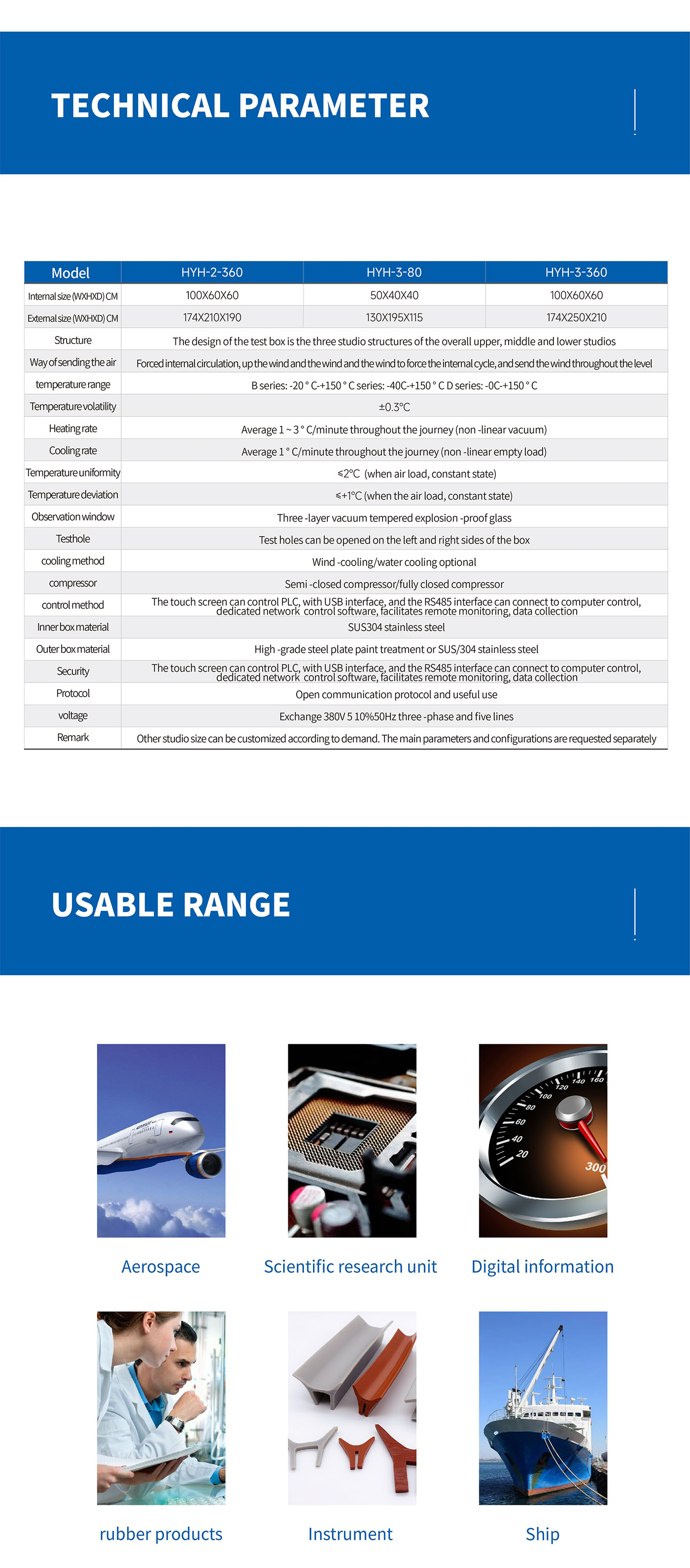

| Model | HYH-2-360 | HYH-3-80 | HYH-3-360 |
| Internal size(WxHxD)cm | 100x60x60 | 50x40x40 | 100x60x60 |
| External size(WxHxD)cm | 174x210x190 | 130x195x115 | 174x250x210 |
| Structural mode | The test chamber is designed as an integrated structure with three. | ||
| Air supply mode | Forced internal circulation, upper air outlet and lower air return. Forced internal circulation, horizontal air supply across the entire surface. | ||
| Temp.range | A: 0℃~ +150℃, B: -20℃~ +150℃, C:-40℃~+150℃, D:-60℃~+150℃ | ||
| Temp fluctuation | ±0.3℃ | ||
| Heating rate | Average 1~3°C/minute (non-linear no-load) | ||
| Cooling rate | Average 1°C/minute (non-linear no-load) | ||
| Temp uniformity | ≤2°C (no-load, constant state) | ||
| Temp deviation | ≤+1°C (no-load, constant state) | ||
| Observation window | Three-layer vacuum tempered explosion-proof glass | ||
| Test hole | Customizable | ||
| Cooling method | Air cooling/Water cooling (optional) | ||
| Compressor | Semi-enclosed compressor/fully enclosed compressor | ||
| Control method | PLC with programmable touch screen, USB interface, RS485 computer control, control software, remote monitoring and data collection | ||
| Internal material | SUS304 stainless steel | ||
| External material | High-grade steel plate with baking varnish or SUS/304 stainless steel | ||
| Power supply | AC 380V±10%, 50HZ/60HZ, three-phase five-wire | ||
