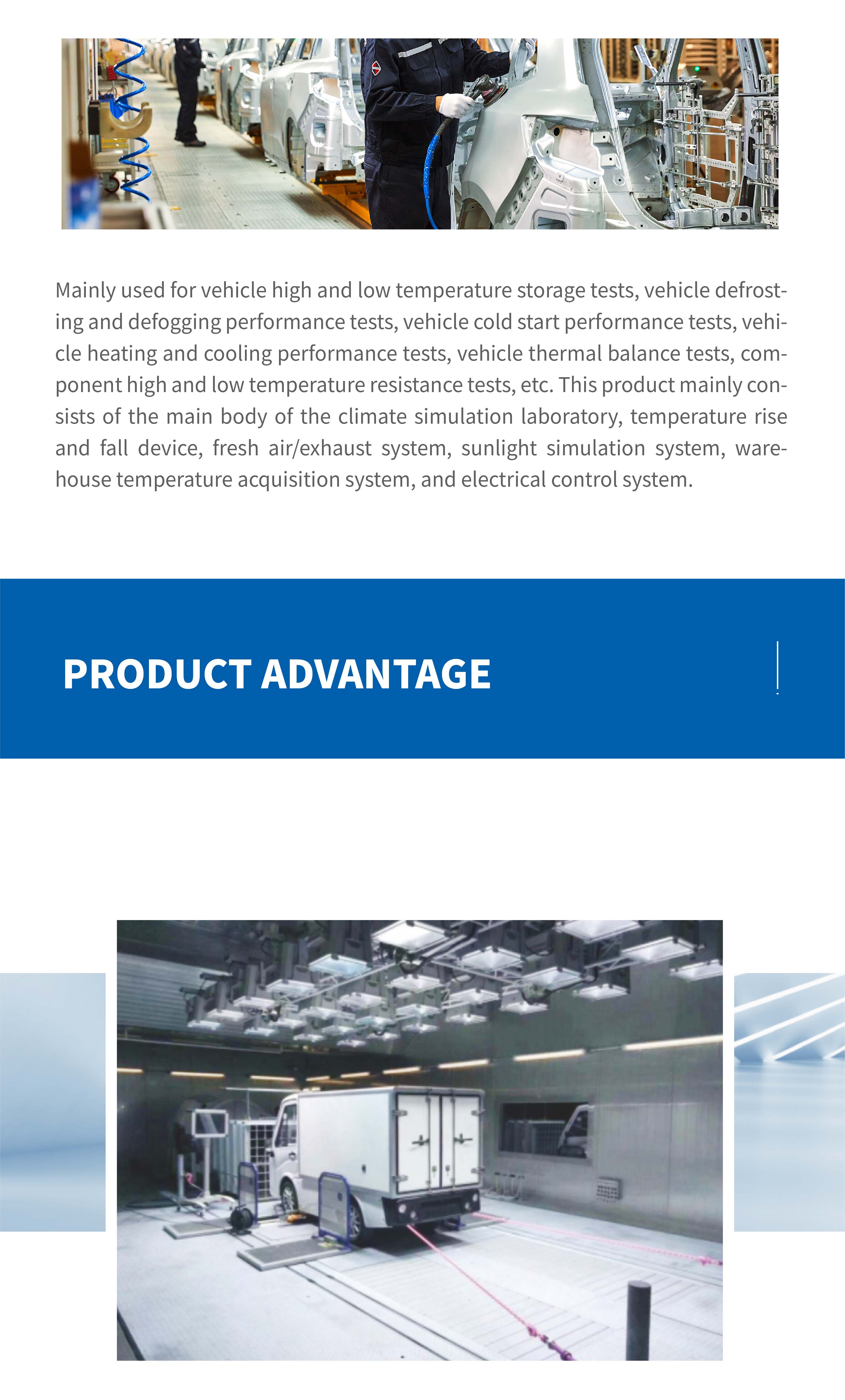

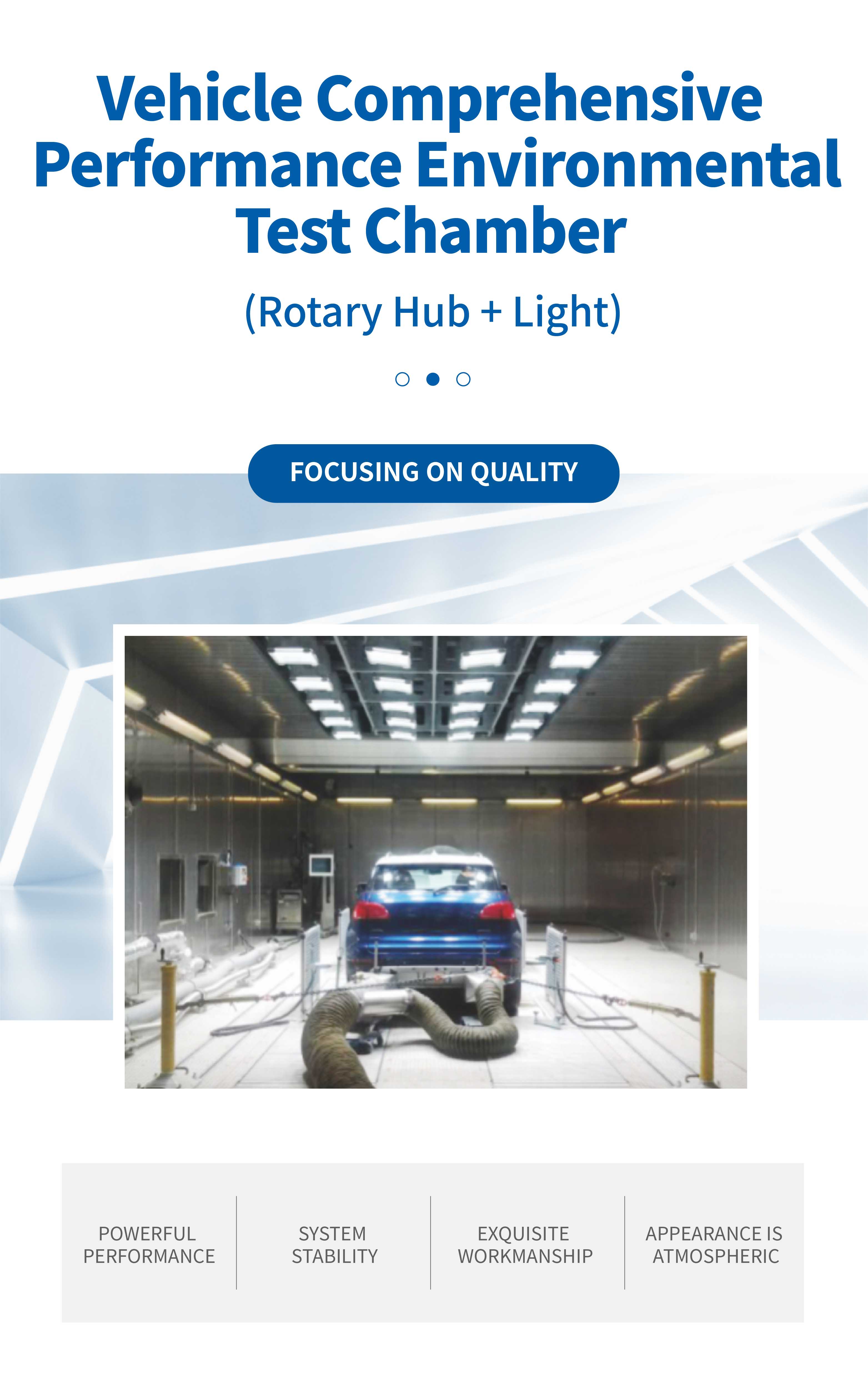

This specialized equipment is mainly used for comprehensive vehicle testing, including high and low temperature storage tests, vehicle defrosting and defogging performance tests, cold start performance evaluations, and heating/cooling efficiency tests. It is essential for vehicle thermal balance testing and high/low temperature resistance testing for automotive parts.

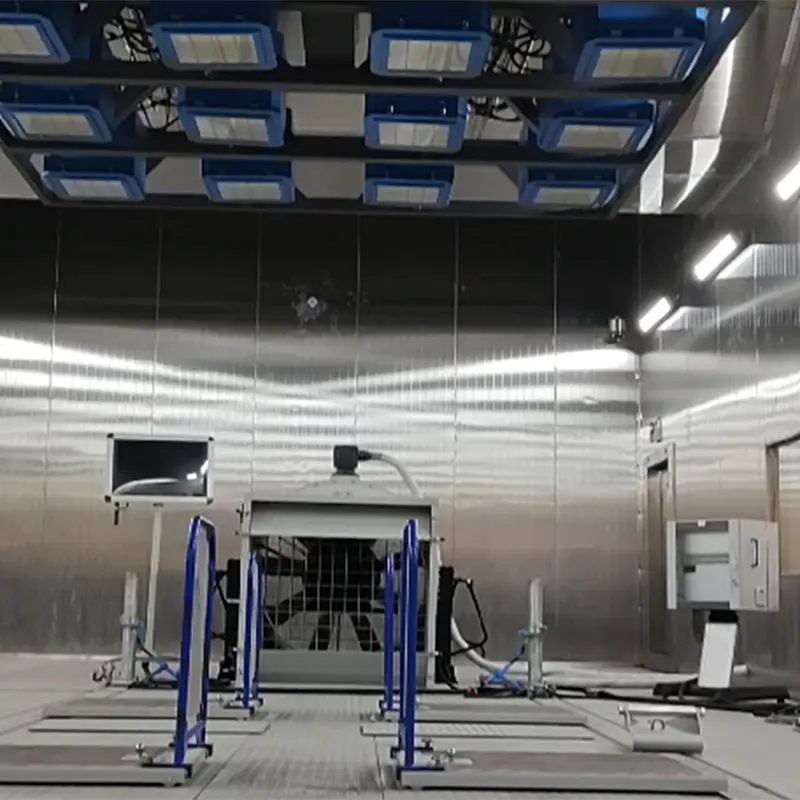

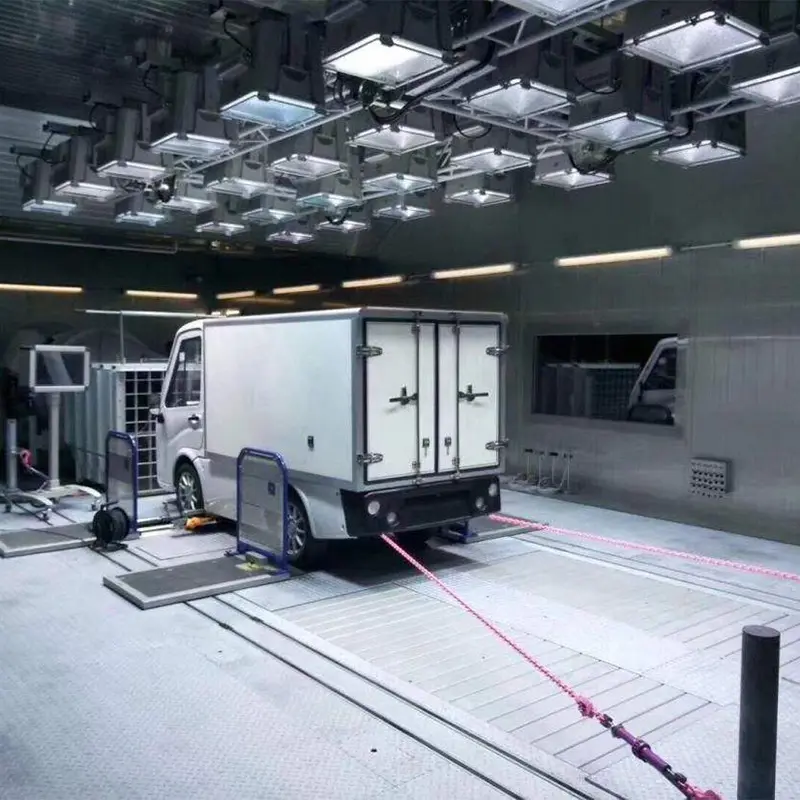

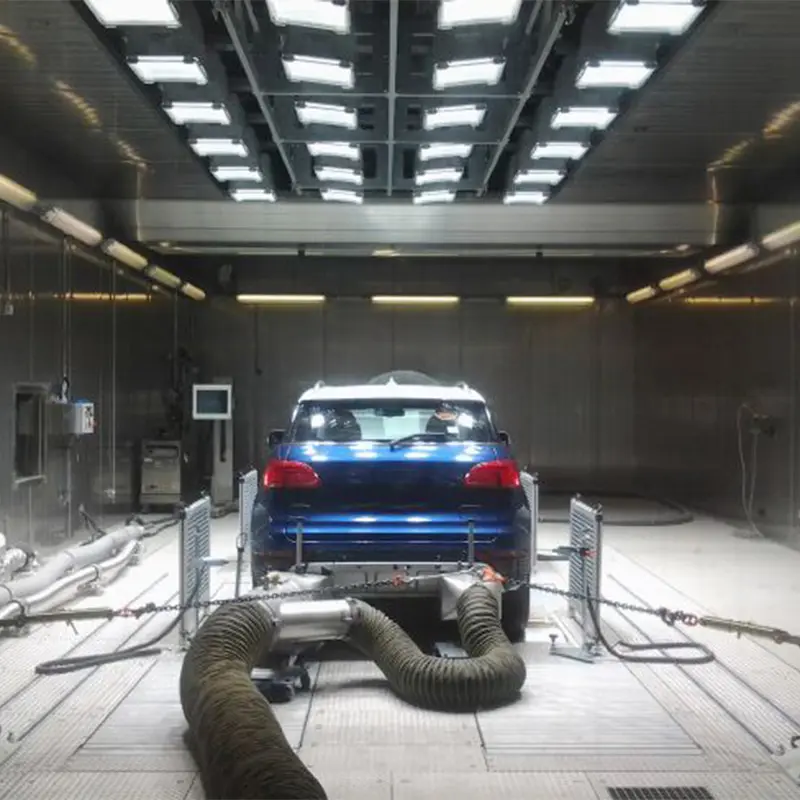

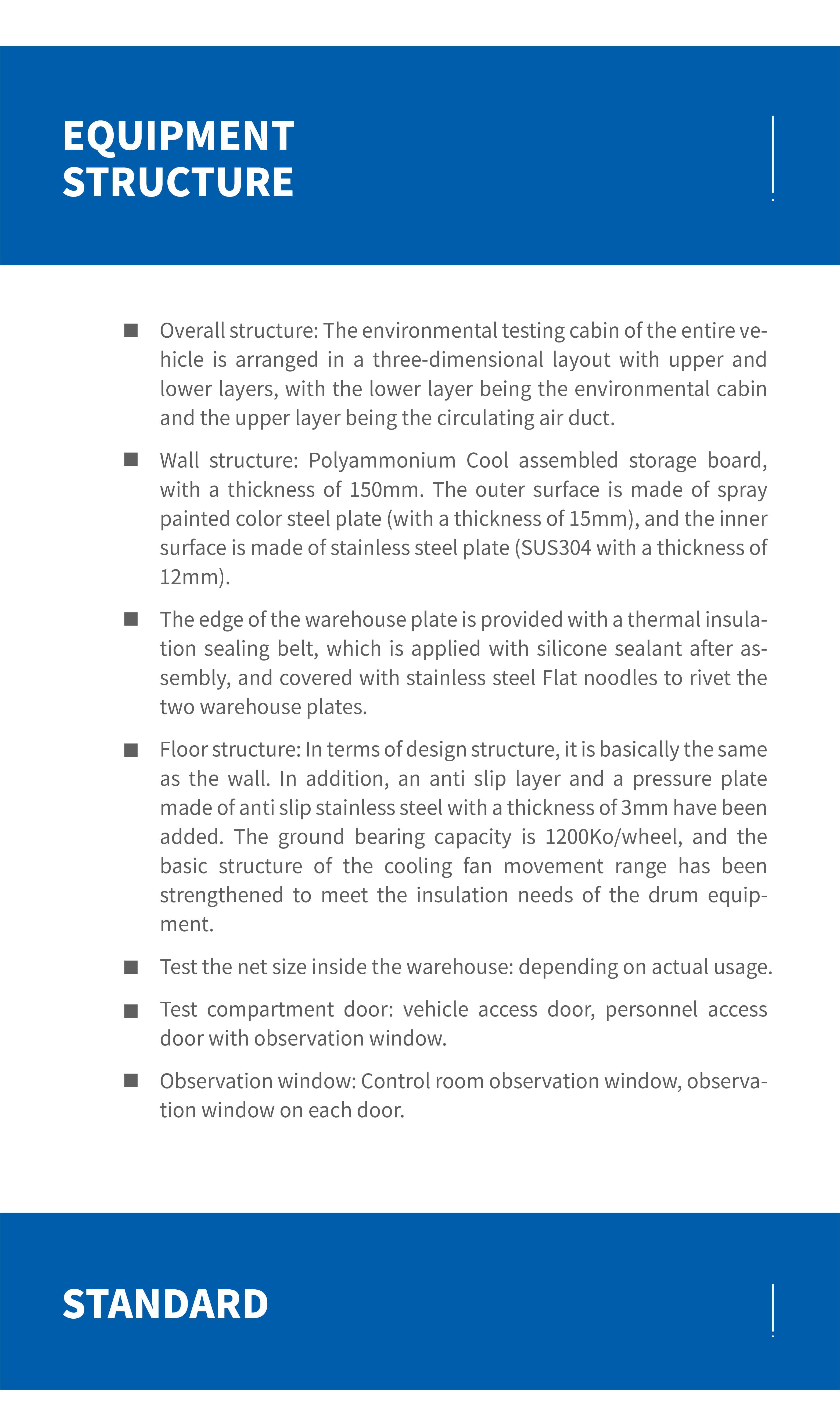

The system integrates a climate simulation test chamber body, advanced heating and cooling devices, fresh air and tail exhaust systems, a sophisticated sunlight simulation system, warehouse temperature collection systems, and an integrated electrical control system.

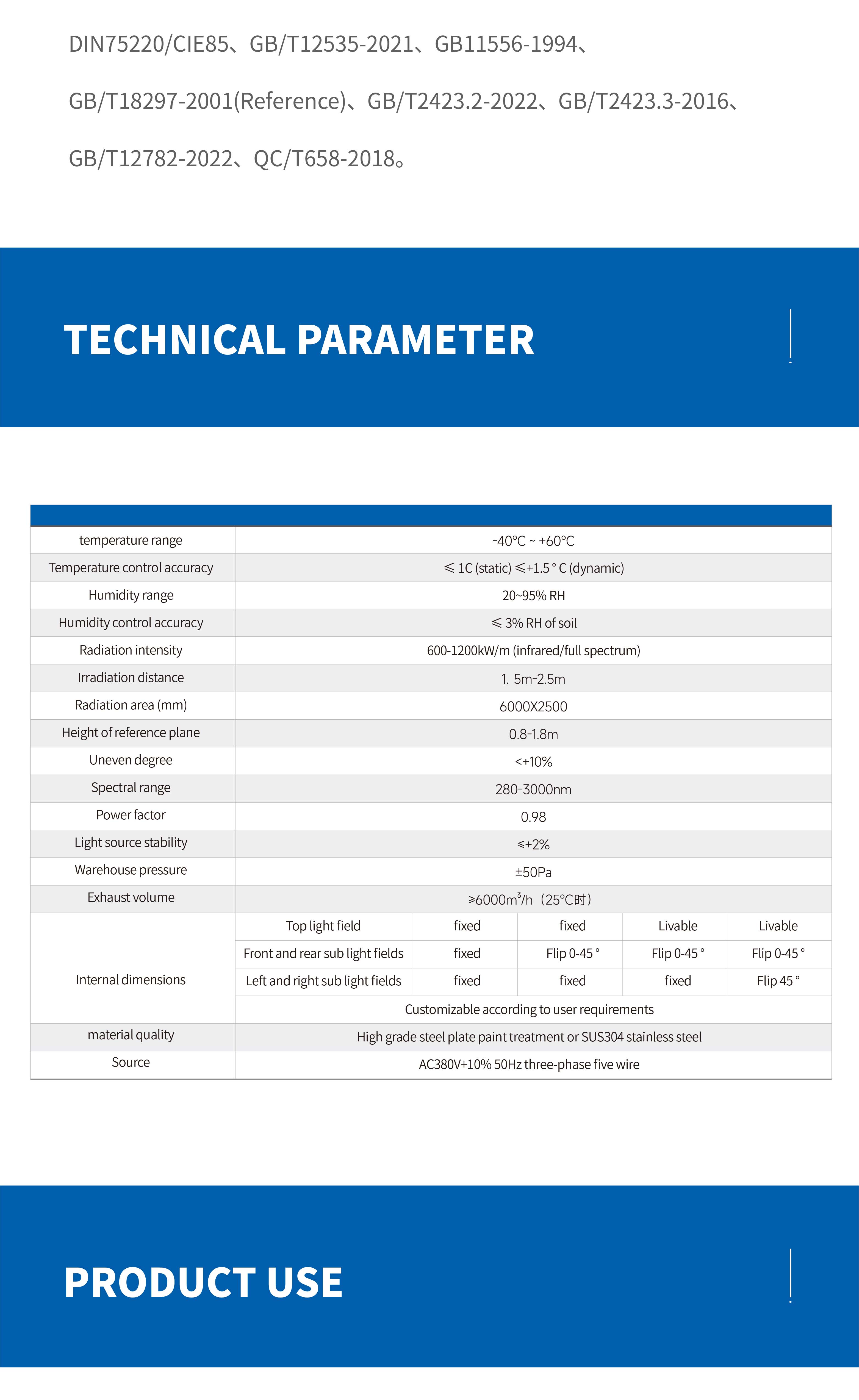

| Temperature range | -40℃ ~ +60℃ | ||||
| Temperature control accuracy | ±1℃ (static) / ±1.5℃ (dynamic) | ||||
| Humidity range | 20-95%RH | ||||
| Humidity control accuracy | ≤±3%RH | ||||
| Irradiation intensity | 600~1200kW/m³ (infrared/full spectrum) | ||||
| Irradiation distance | 1.5m - 2.5m | ||||
| Irradiation area (mm) | 6000 X 2500 | ||||
| Reference height | 0.8 - 1.8m | ||||
| Unevenness | <+10% | ||||
| Spectral range | 280 - 3000nm | ||||
| Power factor | 0.98 | ||||
| Light source stability | ≤+2% | ||||
| Storage pressure | ±50Pa | ||||
| Exhaust volume | ≥6000m/h (at 25℃) | ||||
| Inner Dimensions & Lighting | Top field | Fixed | Fixed | Liftable | Liftable |
| Front/Rear fields | Fixed | Flip 0-45° | Flip 0-45° | Flip 0-45° | |
| Left/Right fields | Fixed | Fixed | Fixed | Flip 45° | |
| Customization | Can be customized according to user requirements | ||||
| Material | High-grade steel plate with baking varnish or SUS304 stainless steel | ||||
| Power supply | AC 380V ±10% 50Hz three-phase five-wire | ||||
