OEM Comprehensive Drug Stability Test Chamber Supplier, Factories
OEM Comprehensive Drug Stability Test Chamber Supplier, Factories
1 / 2
OEM Comprehensive Drug Stability Test Chamber Supplier, Factories
OEM Comprehensive Drug Stability Test Chamber Supplier, Factories

OEM Comprehensive Drug Stability Test Chamber Supplier, Factories

This system is suitable for testing various series-excited motors, power tools and various motors or electrical appliances that need to be tested for life, and is widely used in scientific research, production and testing industries such as household appliances, aviation, automobiles, motors, machinery and power tools.

Send Inquiry

Product Description

Product Description

The drug stability test chamber is used for intensive research in the pharmaceutical industry, medicine, biotechnology industry and all related industries including life sciences. It is the main test equipment in the field of stability test systems in the pharmaceutical industry, mainly simulating temperature, humidity and light tests in environmental climates.

Meet the new version of the drug stability test guidelines:
Long-term test: 25℃±2℃/60%RH±5%RH, or 30℃±2℃/65%RH±5%RH (placed for 12 months)
Accelerated test: 40℃±2℃/75%RH±5%RH, or 30℃±2℃/65%RH±5%RH (placed for 6 months)
Strong light irradiation test: 4500±500LX (placed for 11 days)
Meet the irradiation test requirements of Q1B in ICH; total illumination ≥1.2*10^6LUX.hr
Near-ultraviolet energy ≥200W.hr/㎡
Key Features
Programmable touch screen temperature and humidity controller, PID automatic adjustment function (99 cycles * 30 segments * 1 ~ 9999 hours or minutes).
Fully imported industrial compressor with environmentally friendly fluorine-free refrigerant (R404a) to promote energy saving.
Imported low noise roller fan and unique air duct design to ensure even temperature and humidity distribution in the working chamber.
Bypass cooling capacity control technology and dynamic precision constant temperature and humidity control system ensure uninterrupted and reliable operation for a long time.
Built-in quick mixing device: automatically adjust the height of the water level, with alarm function, to ensure stable humidification capacity and long time reliable operation.
Imported high temperature and high humidity resistant sensor, high sensitivity, resulting in small error, avoiding high frequency replacement of dry and wet balls.
The LHH series has a print function (data printing) and a USB interface (data backup) to print and record changes in temperature and humidity in real time.
Set up an independent temperature-limiting alarm system, which is automatically interrupted when the temperature exceeds the limiting temperature.
25mm diameter test hole on the left side of the chamber, convenient for experimental operation and temperature measurement.
Technical Parameters
Model HYLHH-150SDP HYLHH-250SDP HYLHH-500SDP
Power voltage AC220V 50Hz
Temperature range 0ºC~65ºC
Humidity range 20~95%RH
Temp resolution 0.1ºC
Humidity resolution 1%RH
Temp fluctuation ±0.5ºC
Humidity fluctuation ±3% RH
Rated power (W) 1300 1600 2000
Operating room (mm) 500×505×700 550×520×900 720×660×1080
Outline dim (mm) 660×700×1475 720×720×1675 900×860×1880
Carrier quantity 3 3 4
Product Details Diagram

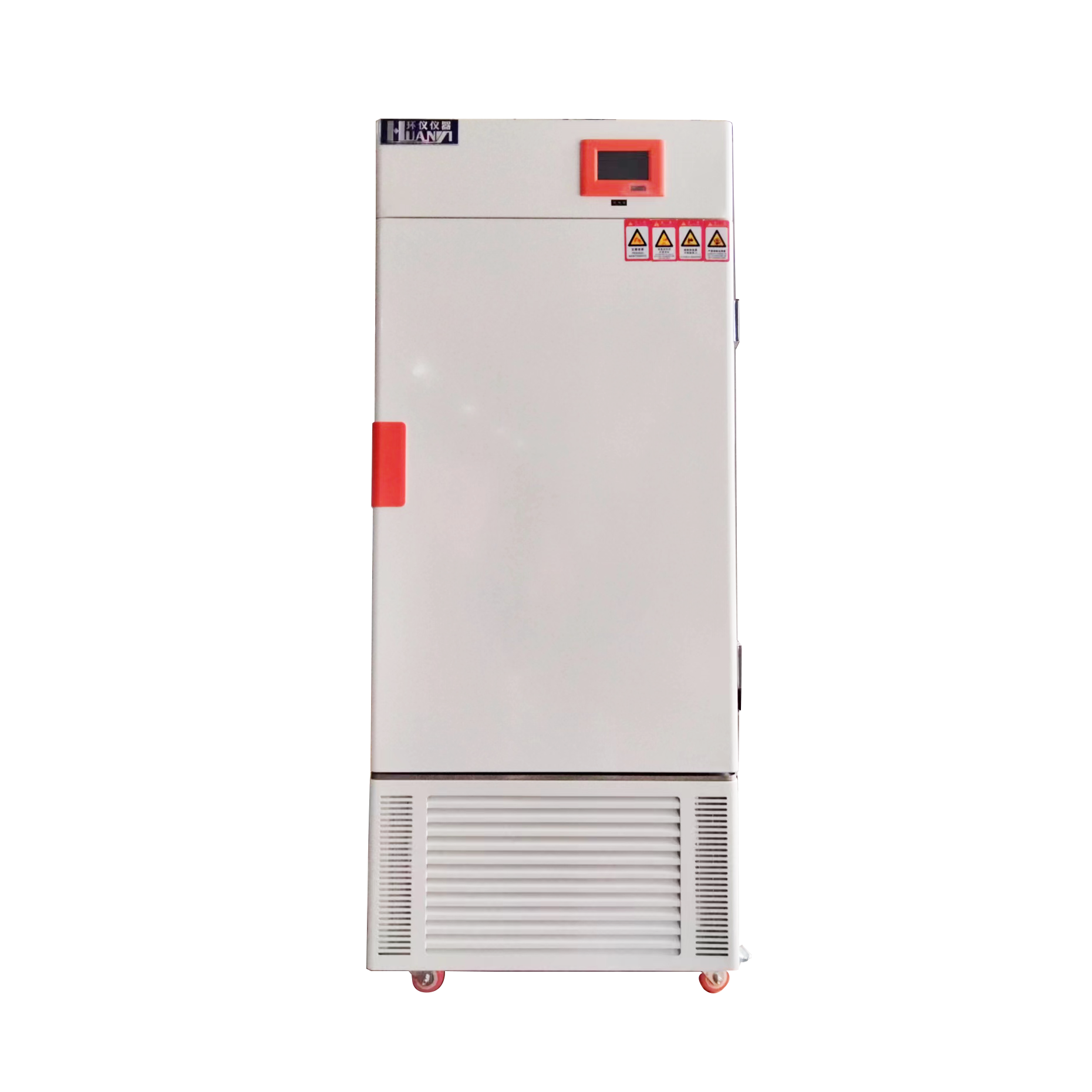

Comprehensive Drug Stability Test Chamber

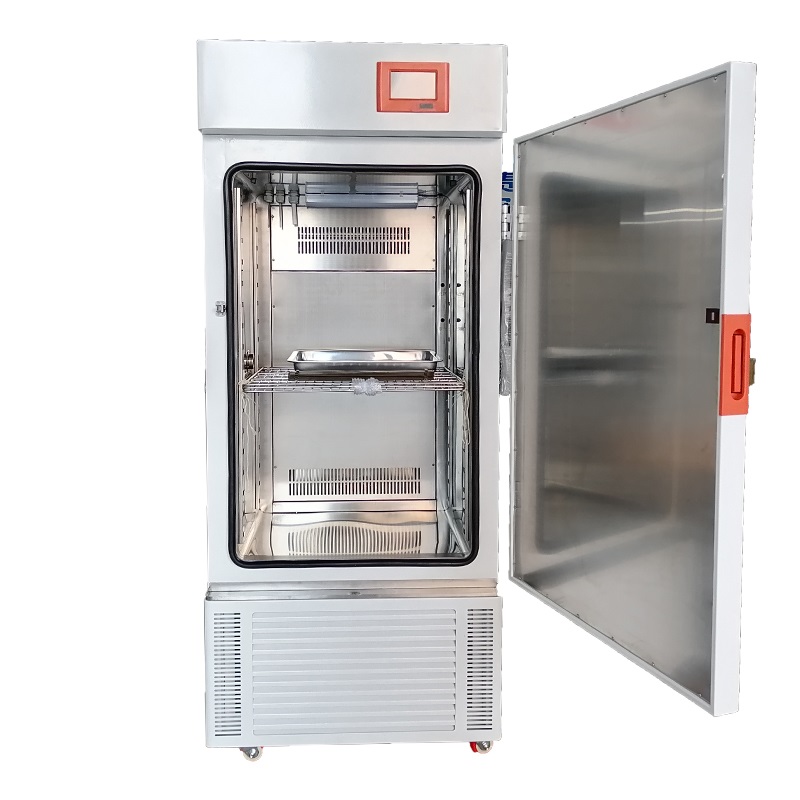

Comprehensive Drug Stability Test Chamber Detail
Drug Stability Chamber Setup
Product Gallery

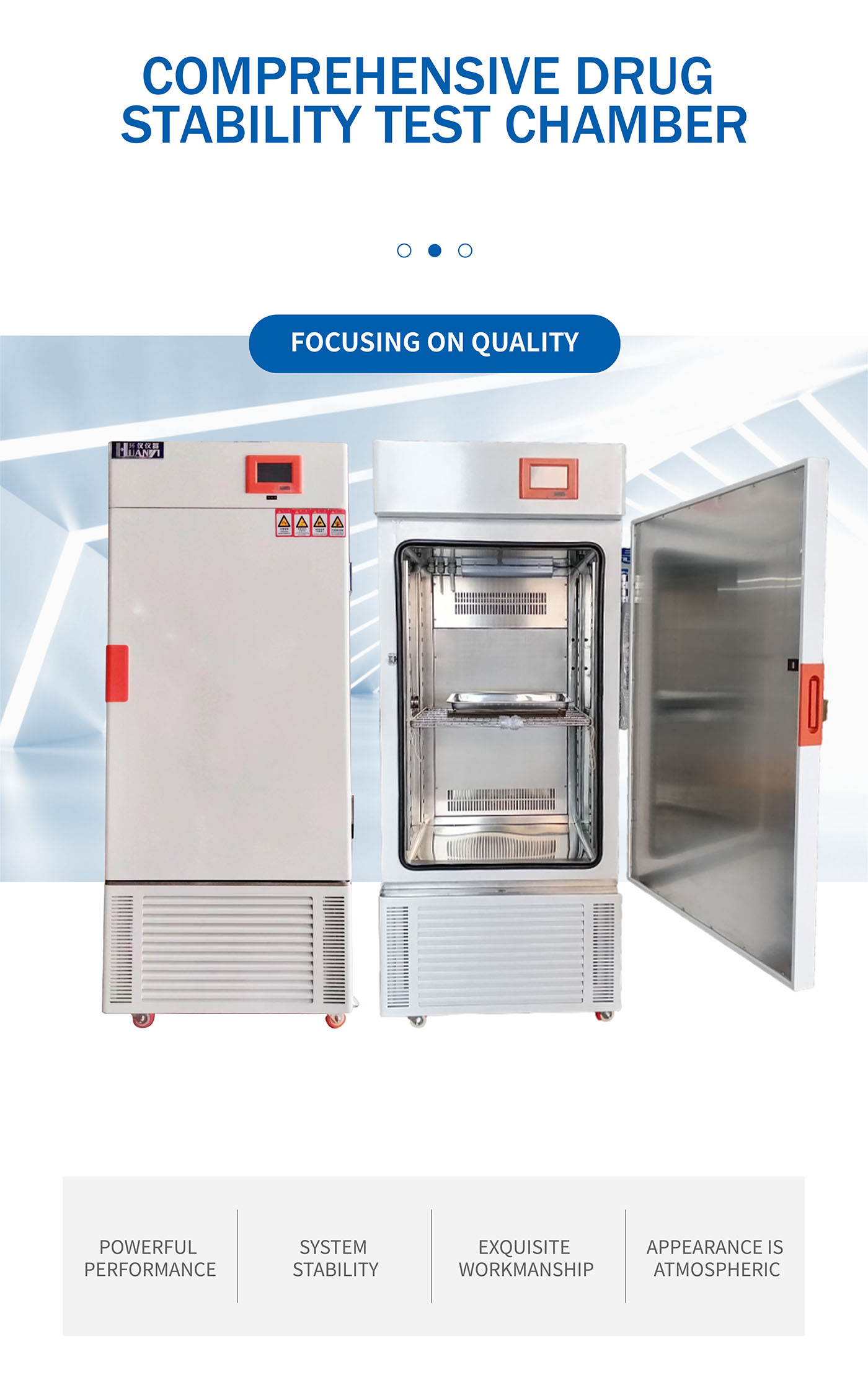

Chamber View 1

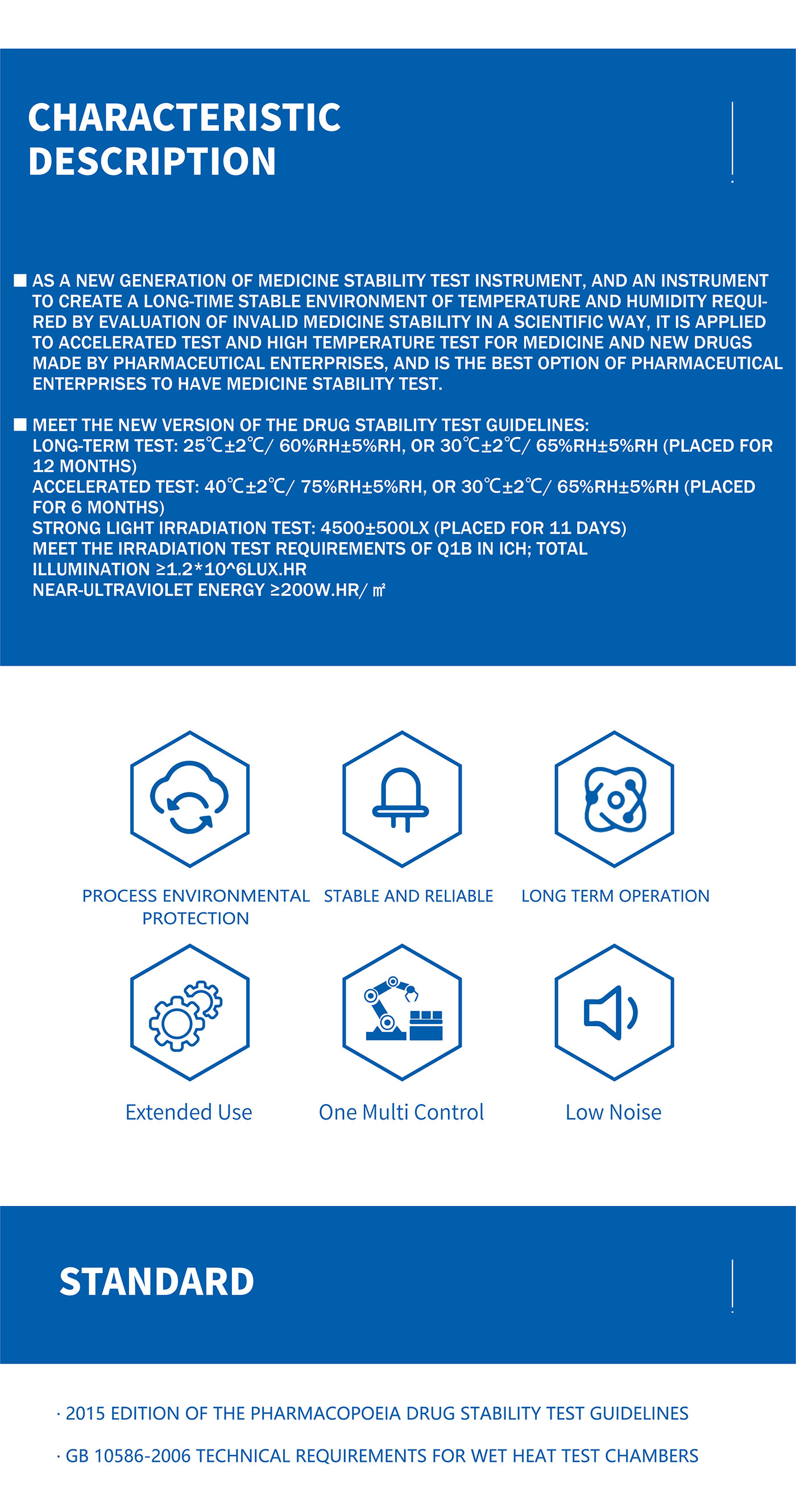

Chamber View 2

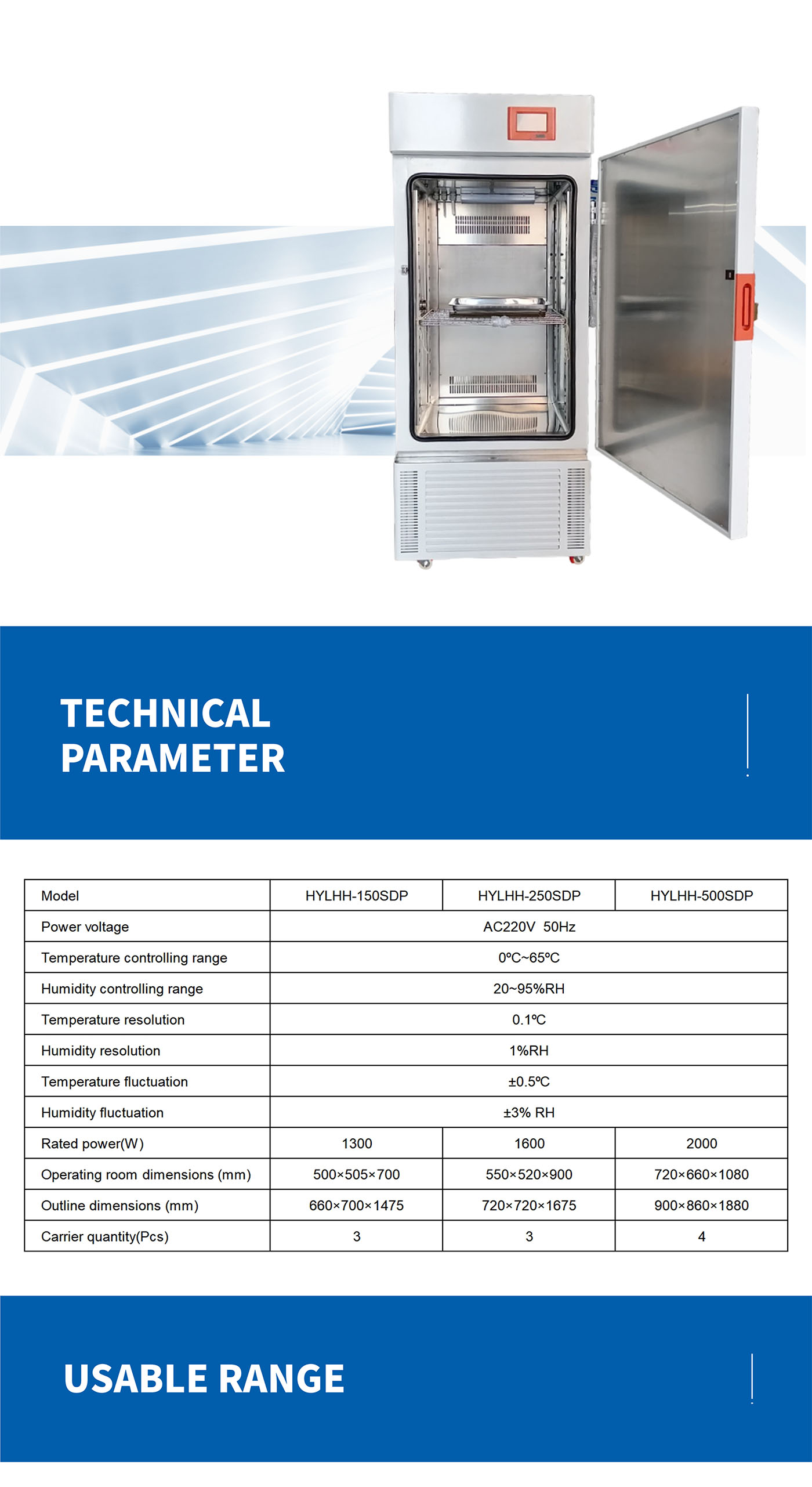

Chamber View 3

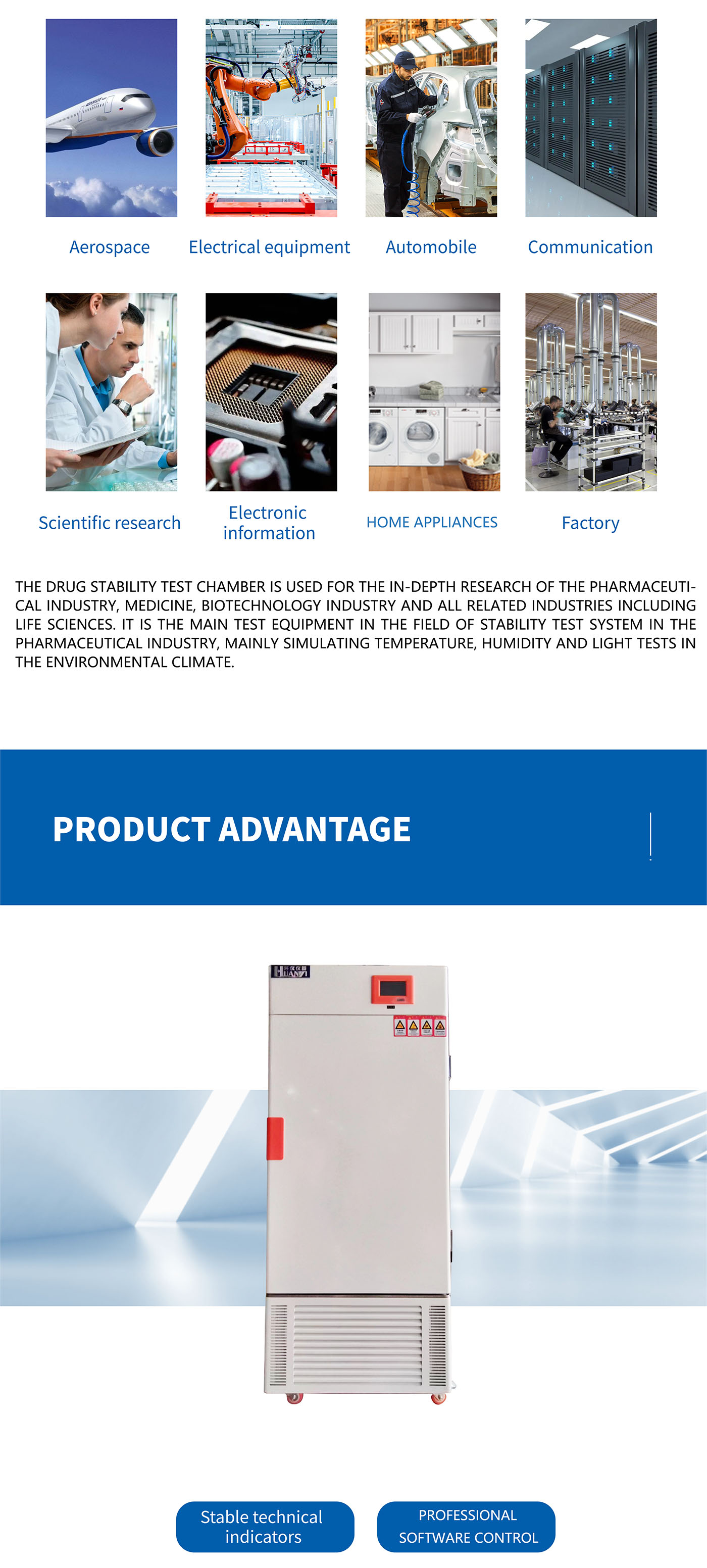

Chamber View 4

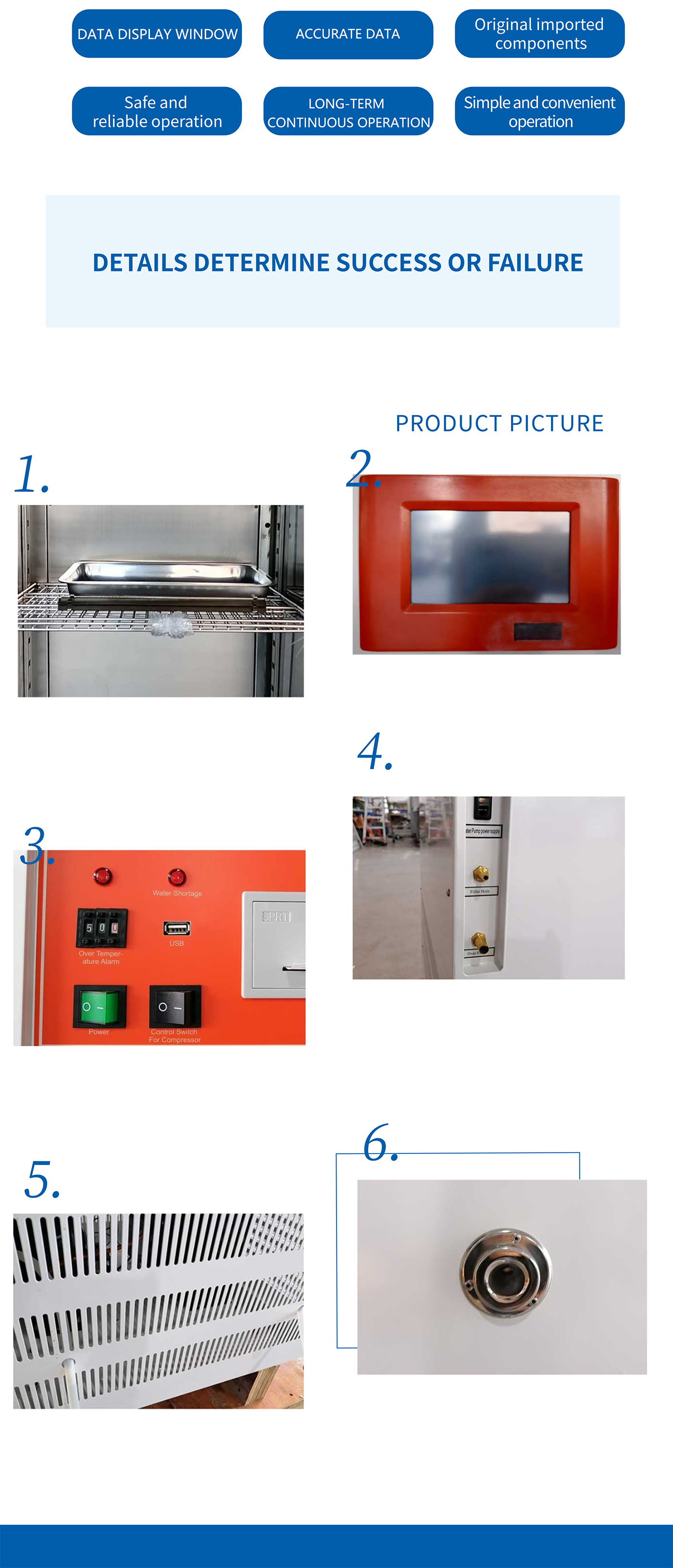

Chamber View 5
Operation Video
Frequently Asked Questions
1. What industries utilize the drug stability test chamber?
The chamber is primarily used in the pharmaceutical, biotechnology, medicine, and life science industries for intensive stability research on drugs and biological products.
2. Which international testing standards does the equipment meet?
It complies with the ICH Q1B irradiation requirements and the latest drug stability guidelines for long-term, accelerated, and strong light tests.
3. How is the temperature and humidity controlled?
It features a programmable touch screen controller with PID automatic adjustment and a bypass cooling capacity control system for high precision and stability.
4. Can test data be exported or recorded?
Yes, the LHH series is equipped with a real-time data printing function and a USB interface for data backup and recording of environmental changes.
5. What safety features ensure reliable long-term operation?
It includes an independent temperature-limiting alarm system, an automatic water level adjustment for humidification, and high-quality imported compressors and sensors.
6. Is the airflow within the chamber uniform?
Yes, the chamber utilizes an imported low-noise roller fan combined with a unique air duct design to ensure even temperature and humidity distribution throughout.
