Thermal vacuum test chamber is a kind of experimental equipment designed to simulate extreme thermal vacuum environment. It is widely used in many fields to test the performance and reliability of products under high temperature, low temperature and high vacuum conditions.

Send Inquiry

Product Description

Meet the Standards
  • GB/T 32221-2015: Vacuum technology and general technical conditions for vacuum thermal environment simulation test equipment for spacecraft.
  • GB/T 34522-2017: Spacecraft thermal vacuum test methods.
  • GJB 3758-1999: Thermal simulation methods for satellite vacuum thermal tests.
  • GJB 1033A-2005: Spacecraft thermal balance test methods.
  • GJB 1027A-2005: Carrier, upper stage, and spacecraft test requirements.
Technical Parameters
Model HY-810 HY-812 HY-1010 HY-1012 HY-1214 HY-1216
Tank body (straight line segment) cm Ф100X100 Ф100X120 Ф120x100 Ф120X120 Ф140x140 Ф140x160
Heat sink (cm) Ф80x100 Ф80X120 Ф100X120 Ф100X120 Ф100X120 Ф100X120
Test piece mounting base (cm) 65x60 80x60 65x60 80x60 100x80 120x80
Base plate installation position (mm) 200±2 below center line 200±2 below center line 250±2 below center line 250±2 below center line 300±2 below center line 300±2 below center line
Absorption Coefficient Solar Spectral Absorption Coefficient of Heat Sink Inner Surface ≥0.93
Emissivity Heat sink inner surface hemispherical emissivity εH≥0.87
Temp. Range -70 ~ +150℃ (Heat sink & Mounting plate)
Change Rate ≥2℃/min (Average)
Temp. Uniformity ±2℃ ±2℃ ±2℃ ±2℃ ±3℃ ±3℃
Ultimate Pressure ≤5x10⁻⁵Pa
Working Pressure ≤1.3x10⁻³Pa
Pumping Time / Load 5h / 10kg 5h / 10kg 5h / 15kg 5h / 15kg 5h / 20kg 5h / 20kg
Main Pump Cryogenic pump
Cooling Method Mechanical cascade refrigeration / Water cooling
Product Showcase

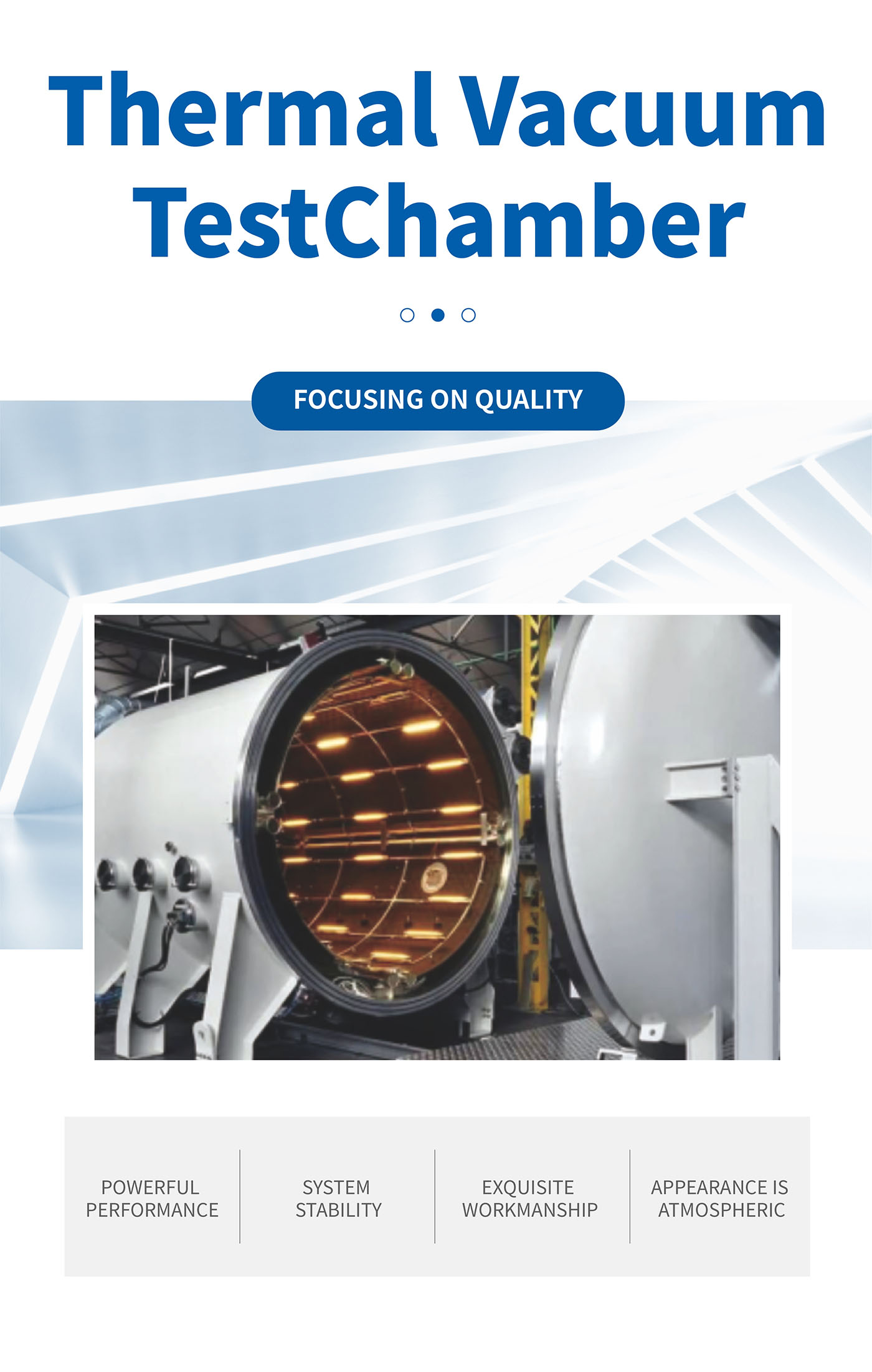

TVAC Test Chamber 1

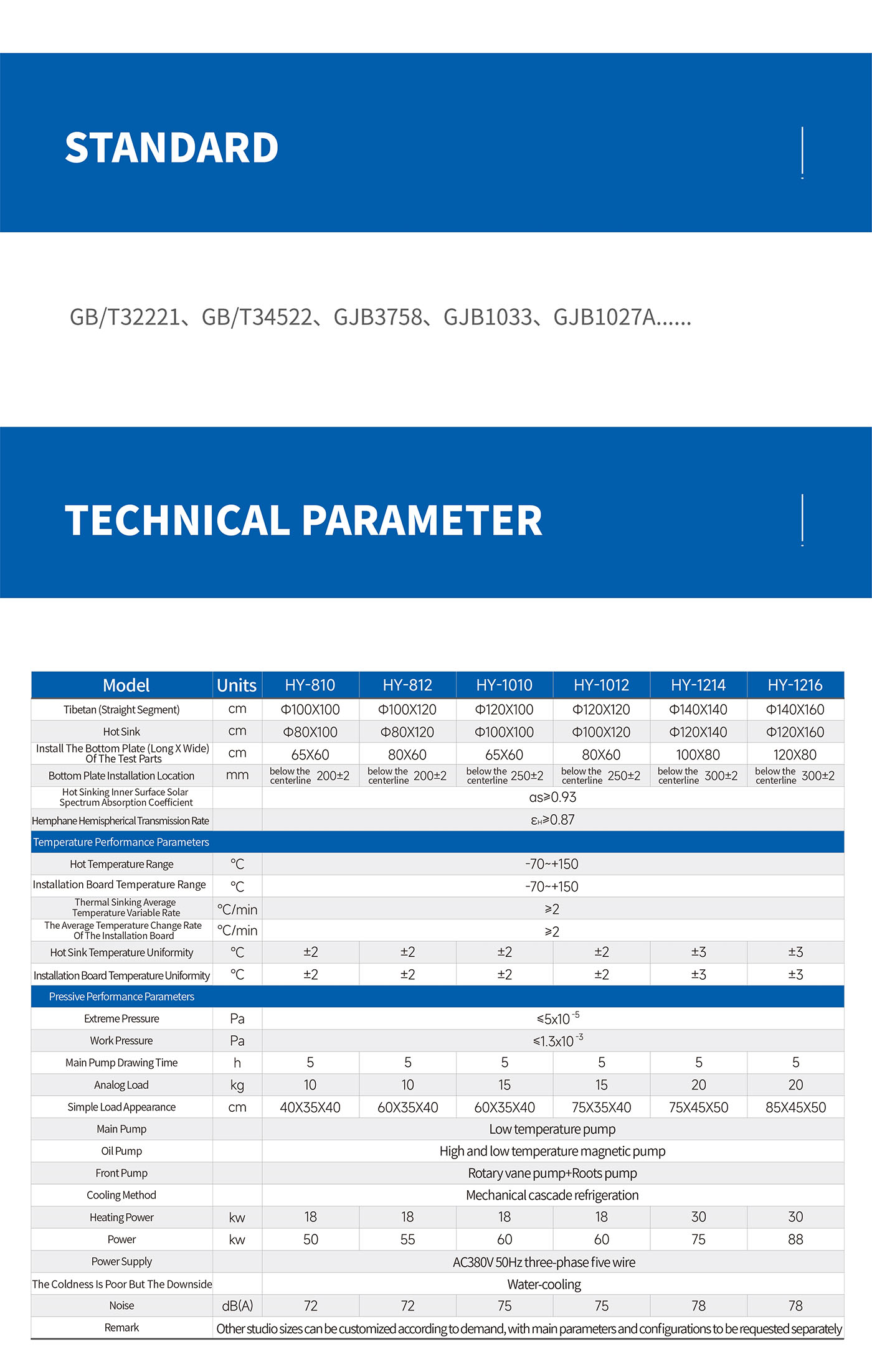

TVAC Test Chamber 2

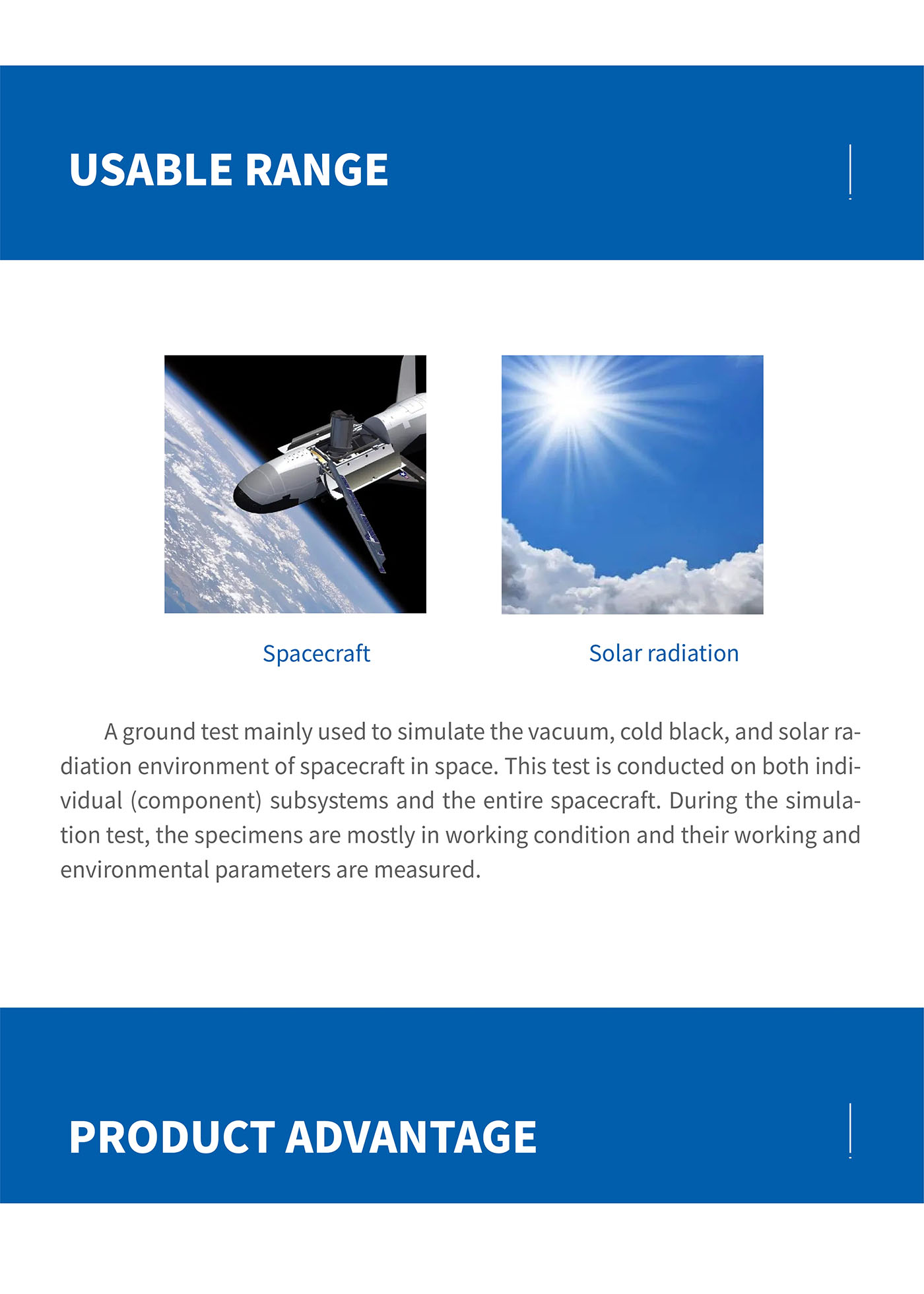

TVAC Test Chamber 3

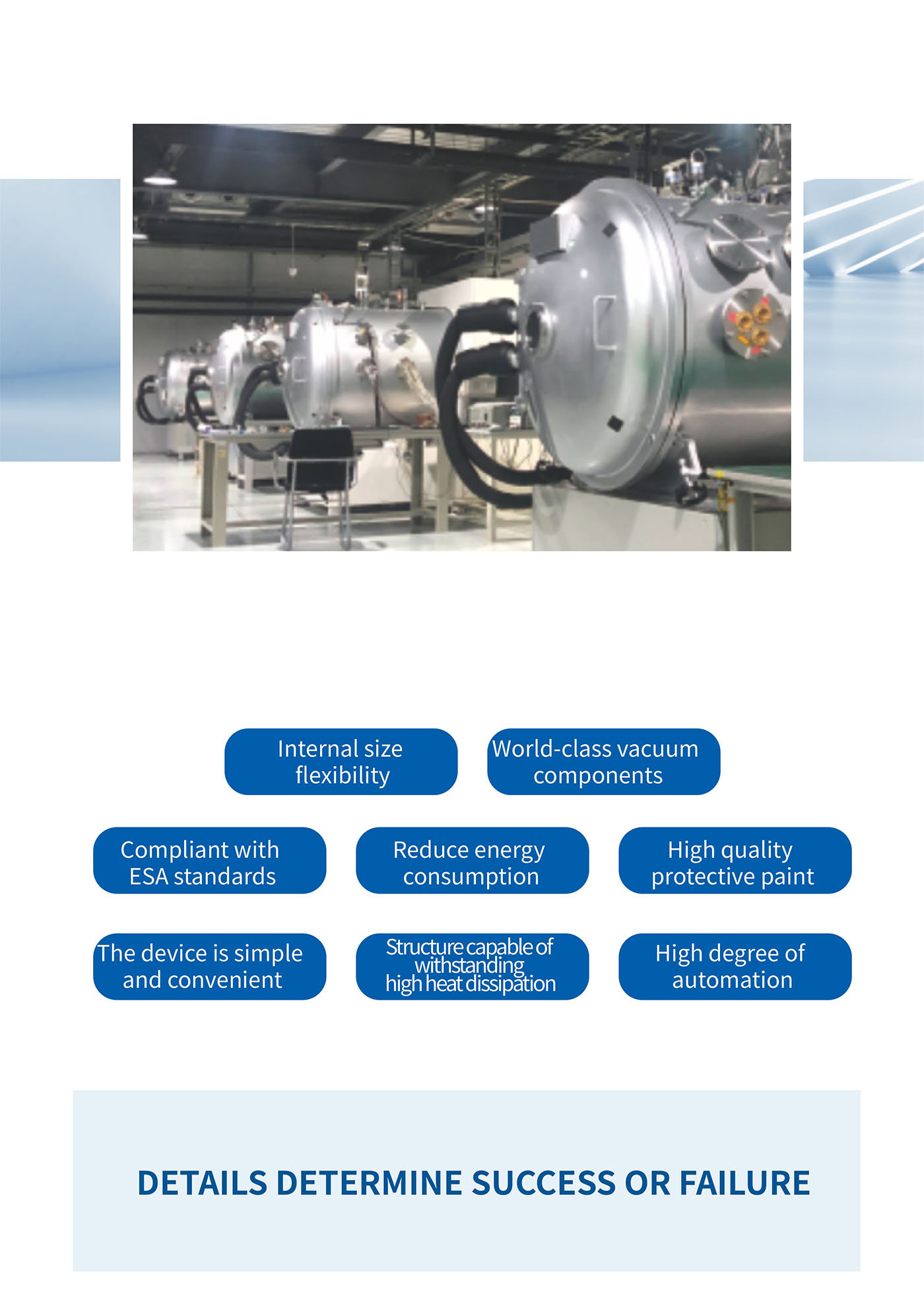

TVAC Test Chamber 4

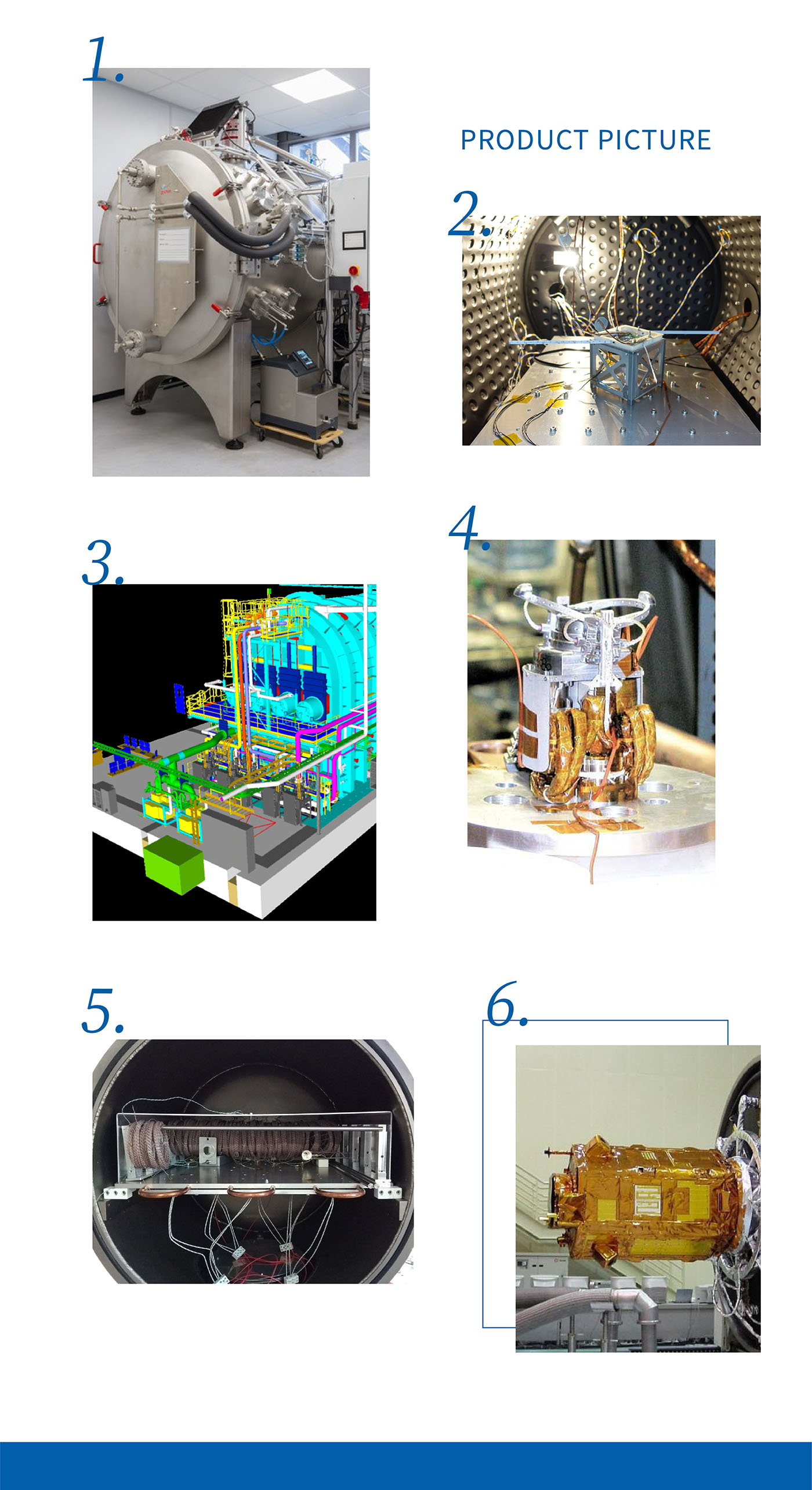

TVAC Test Chamber 5
Frequently Asked Questions
What industry standards do these vacuum chambers comply with?
The equipment meets multiple rigorous standards including GB/T 32221-2015, GB/T 34522-2017, and military standards such as GJB 3758-1999 and GJB 1033A-2005 for spacecraft thermal vacuum testing.
What is the achievable temperature range for testing?
Both the heat sink and the mounting plate can operate within a wide temperature range of -70℃ to +150℃, with an average change rate of ≥2℃/min.
What level of vacuum pressure can the system maintain?
The system achieves an ultimate pressure of ≤5x10⁻⁵Pa and maintains a working pressure of ≤1.3x10⁻³Pa, utilizing a high-efficiency cryogenic pump system.
What are the cooling and heating specifications?
The system utilizes mechanical cascade refrigeration and water cooling methods. Depending on the model, heating power ranges from 18kw to 30kw to ensure rapid thermal transitions.
How is the temperature uniformity ensured?
For smaller models (HY-810 to HY-1012), temperature uniformity is maintained at ±2℃. For larger models (HY-1214 to HY-1216), it is maintained at ±3℃.
What is the typical pumping time for the main vacuum system?
The main pump pumping time for these TVAC chambers is approximately 5 hours to reach the required testing environment.
