Temperature Humidity and Vibration Interation Test System combine temperature, humidity and vibration functions in one, and are suitable for testing various performance indicators of aerospace products, information electronic instruments, materials, electrical, electronic products, and various electronic components in a comprehensive harsh environment.

Send Inquiry

Product Description

Features

The composite environmental test system applies temperature, humidity, vibration, and impact stresses to examine product reliability under comprehensive stress conditions.
Integrated combination of a high-precision temperature and humidity test chamber with an electrodynamic vibration test system.
Utilizes premium vibration controllers, sensors, and amplifiers imported from the United States for superior accuracy.
Supports sinusoidal vibration (standard), random vibration (optional), and shock control (optional).
Customizable design to meet specific requirements for low air pressure environmental testing.

Testing Standards

GB/T2423.1 GB/T2423.2 GB/T2423.3 GB/T2423.4 GJB150.3A GJB150.4A GJB150.9A GB/T10589 GB/T10592 GB/T11158 GB/T10586 IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-78 IEC 60068-2-30 IEC 60068-2-64 MIL-STD-810G RTCA DO-160G ISO 16750-4

Applications

This system is primarily utilized across various high-tech sectors for reliability testing of electrical and electronic products, instruments, and material components during transportation, storage, and active use. Key industries include:

Aerospace and Aviation
Electronics and Electrical Products
Instrumentation and Equipment Manufacturing

Technical Parameters

Parameters HTHV-408 HTHV-1000
Chamber Volume (L) 408 1000
Internal size (WxHxD) cm 85x80x60 100x100x100
Temperature Control Method Balanced temperature and humidity control (BTHC)
Temp Range -70℃ ~ +150℃
Humid Range 20% ~ 98%RH
Humid Deviation Humidity >75%RH: ±3.0%RH; Humidity ≤75%RH: ±5.0%RH
Heating/Cooling Rate Selectable: 1℃/min ~ 15℃/min (Average throughout)
Interior Material SUS304 stainless steel
Insulation Material Germany Bayer fire-resistant grade high-strength PU foam + ultra-fine glass fiber
Cooling Method Water-cooled / Air-cooled

Product Display

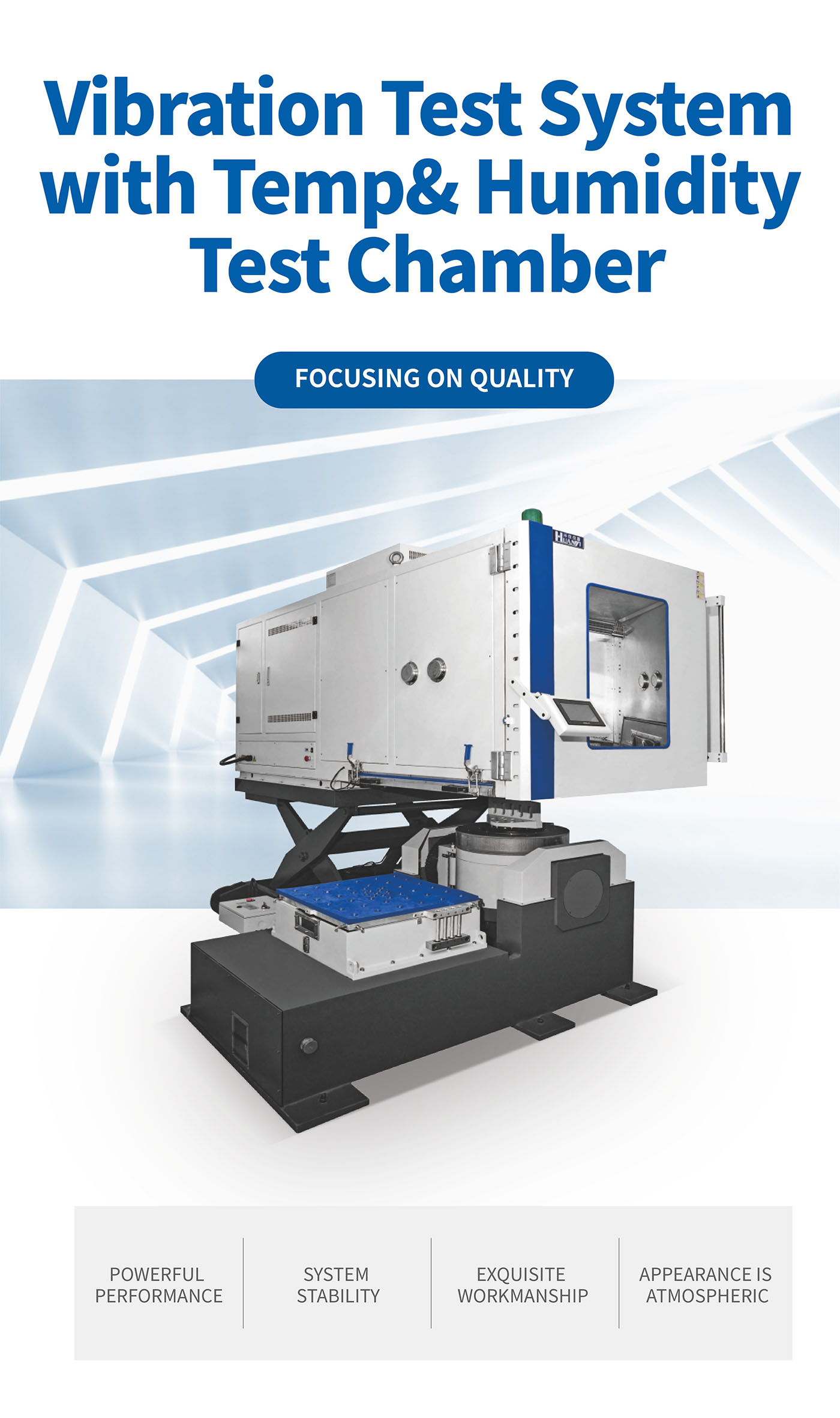

Temperature Humidity and Vibration Interation Test System (1)

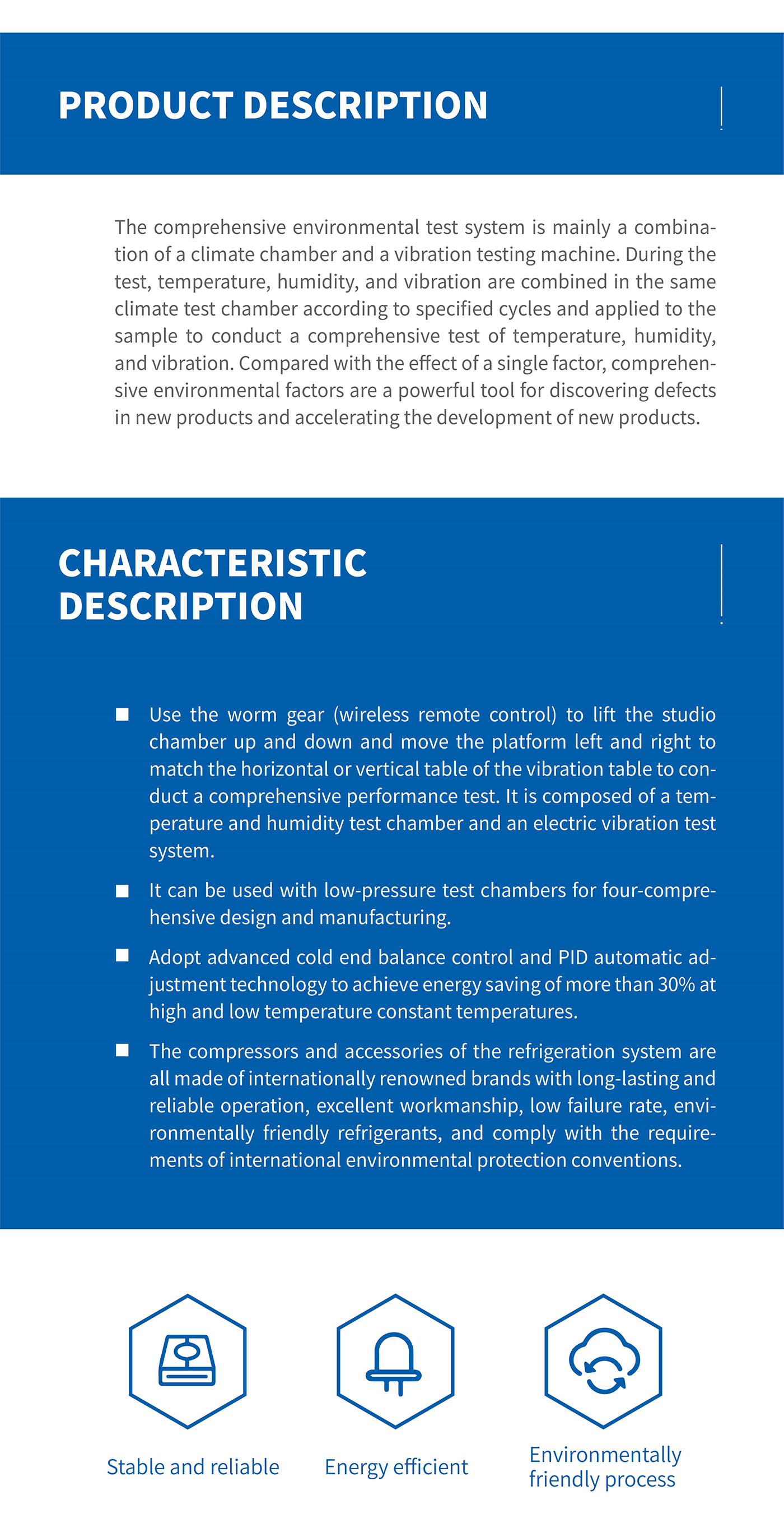

Temperature Humidity and Vibration Interation Test System (2)

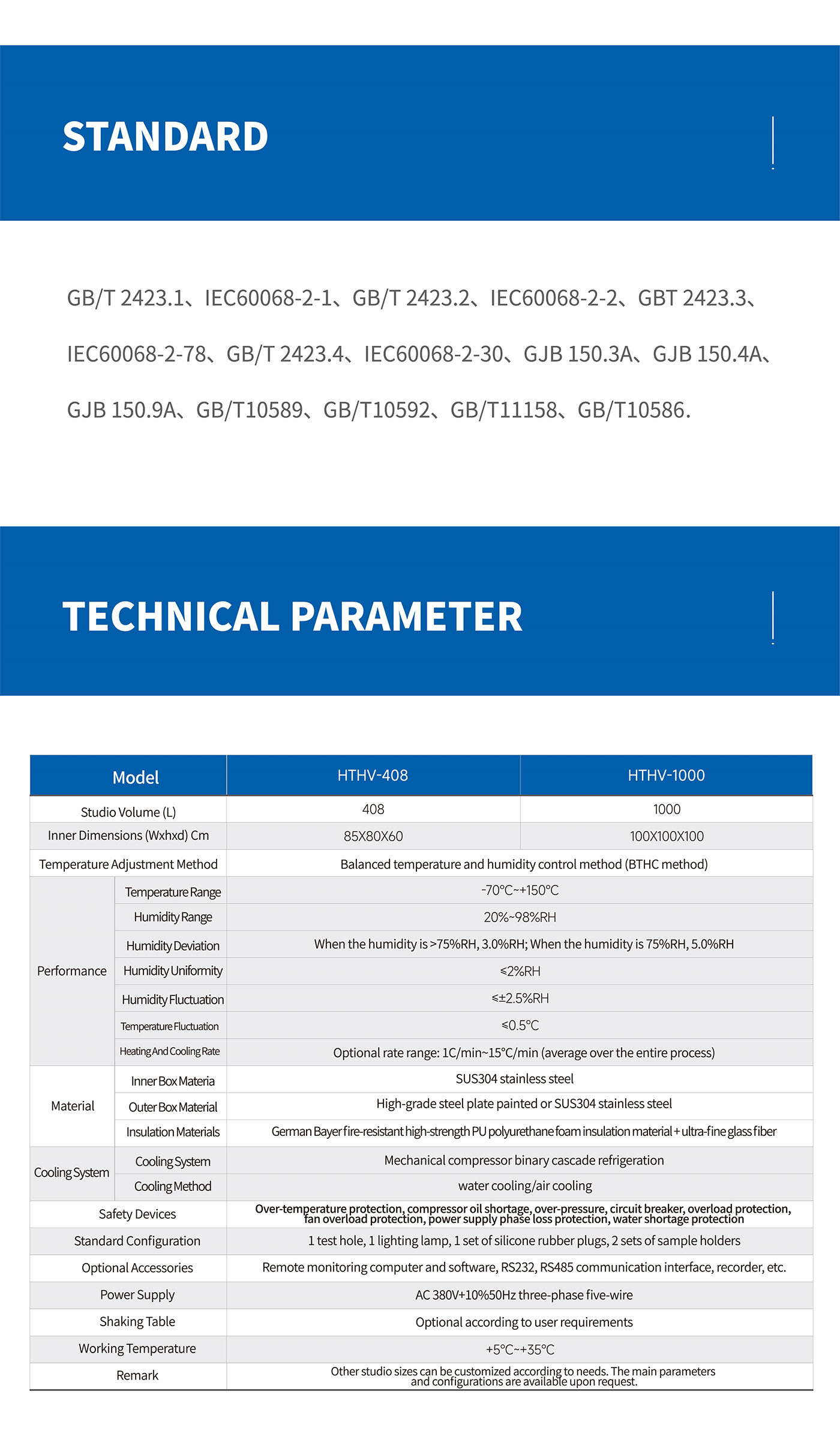

Temperature Humidity and Vibration Interation Test System (3)

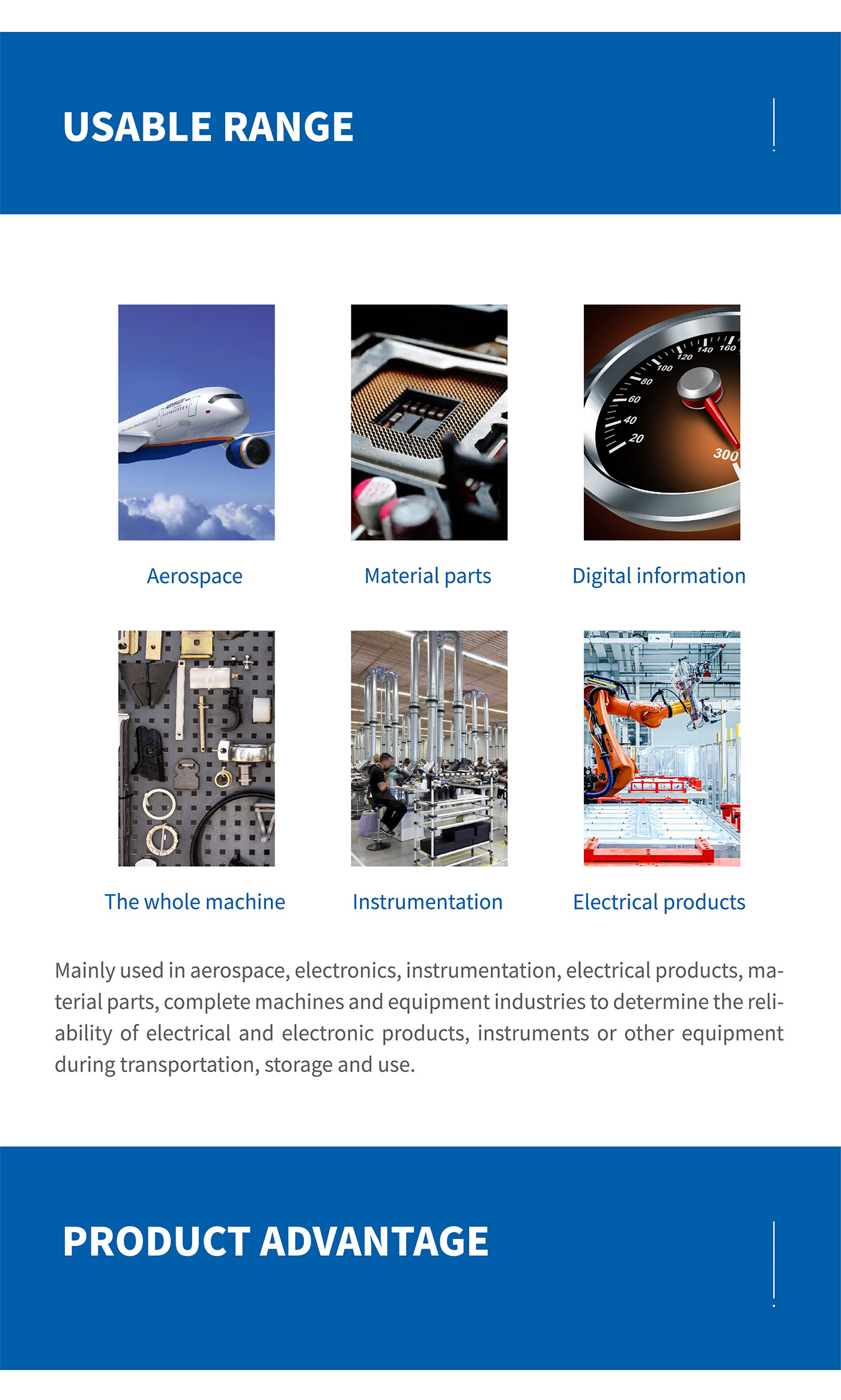

Temperature Humidity and Vibration Interation Test System (4)

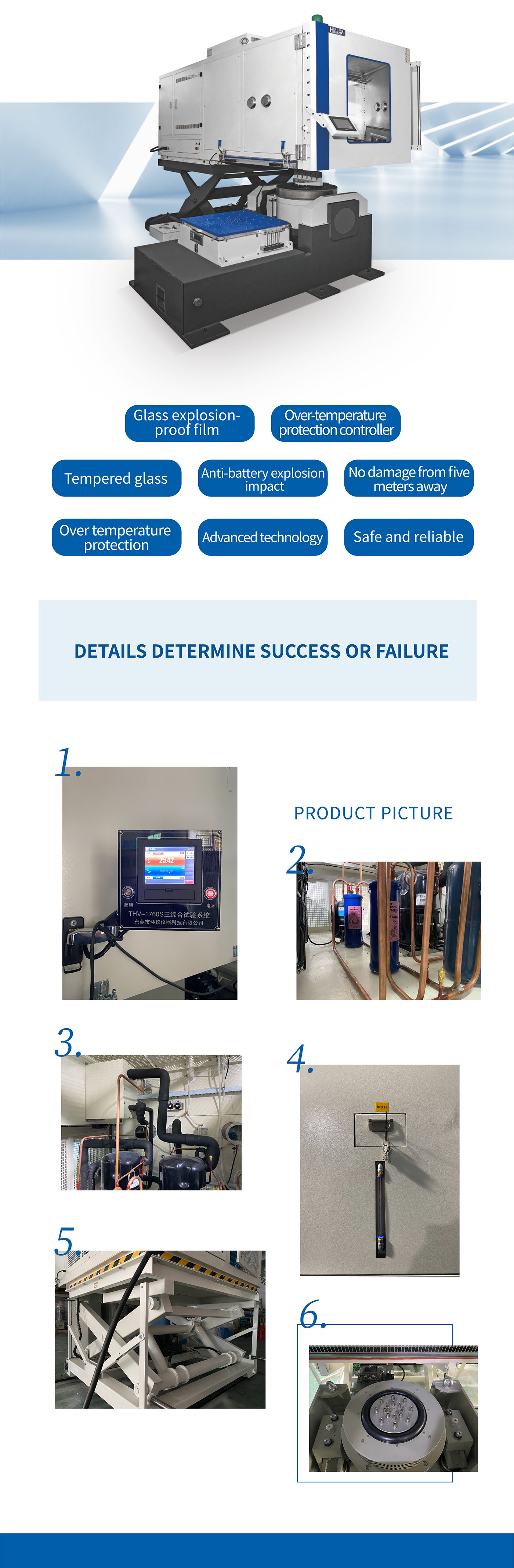

Temperature Humidity and Vibration Interation Test System (5)

Frequently Asked Questions

What types of stress can this system simulate simultaneously?
The system can simultaneously apply temperature, humidity, vibration, and impact stresses to simulate complex real-world environmental conditions.
Is the vibration control system customizable?
Yes, while sinusoidal vibration is standard, random vibration and shock control are available as optional features to meet specific testing protocols.
What is the range for temperature and humidity?
The temperature range is from -70℃ to +150℃, and the humidity range covers 20% to 98% RH, suitable for extreme climate testing.
Can the system be adjusted for low air pressure requirements?
Yes, the system can be designed and manufactured to meet specific low air pressure testing requirements, often needed in aerospace applications.
What materials are used for the chamber's interior?
The interior is constructed using high-quality SUS304 stainless steel for maximum durability and corrosion resistance.
How fast can the system heat or cool?
The selectable rate range is between 1℃/min and 15℃/min (average throughout), allowing for rapid thermal cycling tests.
