High-Quality Conventional Salt Spray Tester/Environmental Salt Spray Test Chamber Manufacturers, Supplier
High-Quality Conventional Salt Spray Tester/Environmental Salt Spray Test Chamber Manufacturers, Supplier
High-Quality Conventional Salt Spray Tester/Environmental Salt Spray Test Chamber Manufacturers, Supplier
1 / 3
High-Quality Conventional Salt Spray Tester/Environmental Salt Spray Test Chamber Manufacturers, Supplier
High-Quality Conventional Salt Spray Tester/Environmental Salt Spray Test Chamber Manufacturers, Supplier
High-Quality Conventional Salt Spray Tester/Environmental Salt Spray Test Chamber Manufacturers, Supplier

High-Quality Conventional Salt Spray Tester/Environmental Salt Spray Test Chamber Manufacturers, Supplier

Salt Spray Tester, also known as a Salt Spray Chamber or Fog Apparatus, is a crucial tool for assessing the anti-corrosion quality of materials surfaces after various protective treatments. Coatings, such as those from painting, coating, electroplating, anodizing, or greasing, undergo the salt spray test to determine their corrosion resistance.

Send Inquiry

Product Description

Applications
Precision salt spray test chambers are widely used in aerospace, electronics, electrical appliances, communications, medical pharmaceuticals, colleges and universities, scientific research units and other industries to conduct environmental machine reliability tests on product appearance, temperature and humidity resistance, etc.
Key Features
Precise control performance
High stability and corrosion resistance
Easy operation
Safety performance
Good sealing performance
Automatic/manual water adding system
Double over-temperature protection
Temperature control
Spray uniformity
Test Standards
GB/T2423.17-2008, GB/T2423.18-2021, IEC 60068-211-2021, ISO 9227, J1SH8502, GB/T10125, 2021/1S092272006, DIN50021, ASTMG85GB-T5170.8-2017, GB-T5170.11-2017, 1S09227, GB/T10587-2006, GJB-150.11A-2009, ISO 9227, ASTM B117, IEC 60068-2-11, ISO 16750-4, JISZ2371.
Technical Parameters
Model HY-SST-60 HY-SST-90 HY-SST-120 HY-SST-160
Internal size(WxHxD)cm 60x45x40 90x60x50 120x80x50 160x100x60
Laboratory temperature Salt water test method (NSS ACSS) 35℃±1C / Corrosion test method (CASS) 50℃±1℃
Pressure tank temperature Salt water test method (NSS ACSS) 47°C±1°℃ / Corrosion test method (CASS) 63°℃±1℃
Power AC220±10V 10A AC220±10V 15A AC220±10V 30A
Test chamber volume(L) 108 270 480 960
Brine tank volume(L) 15 25 40 40
Product Display

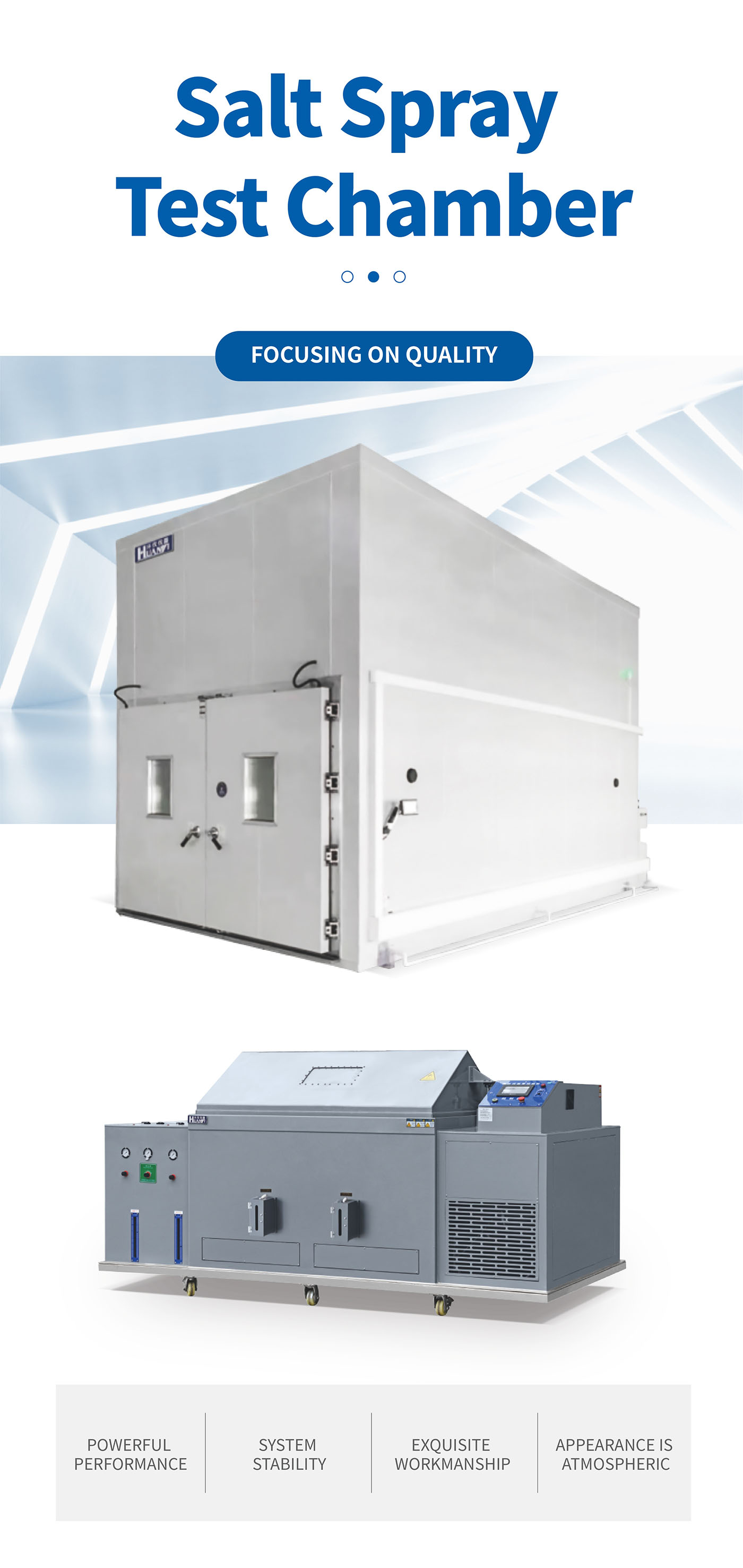

Salt Spray Tester 1

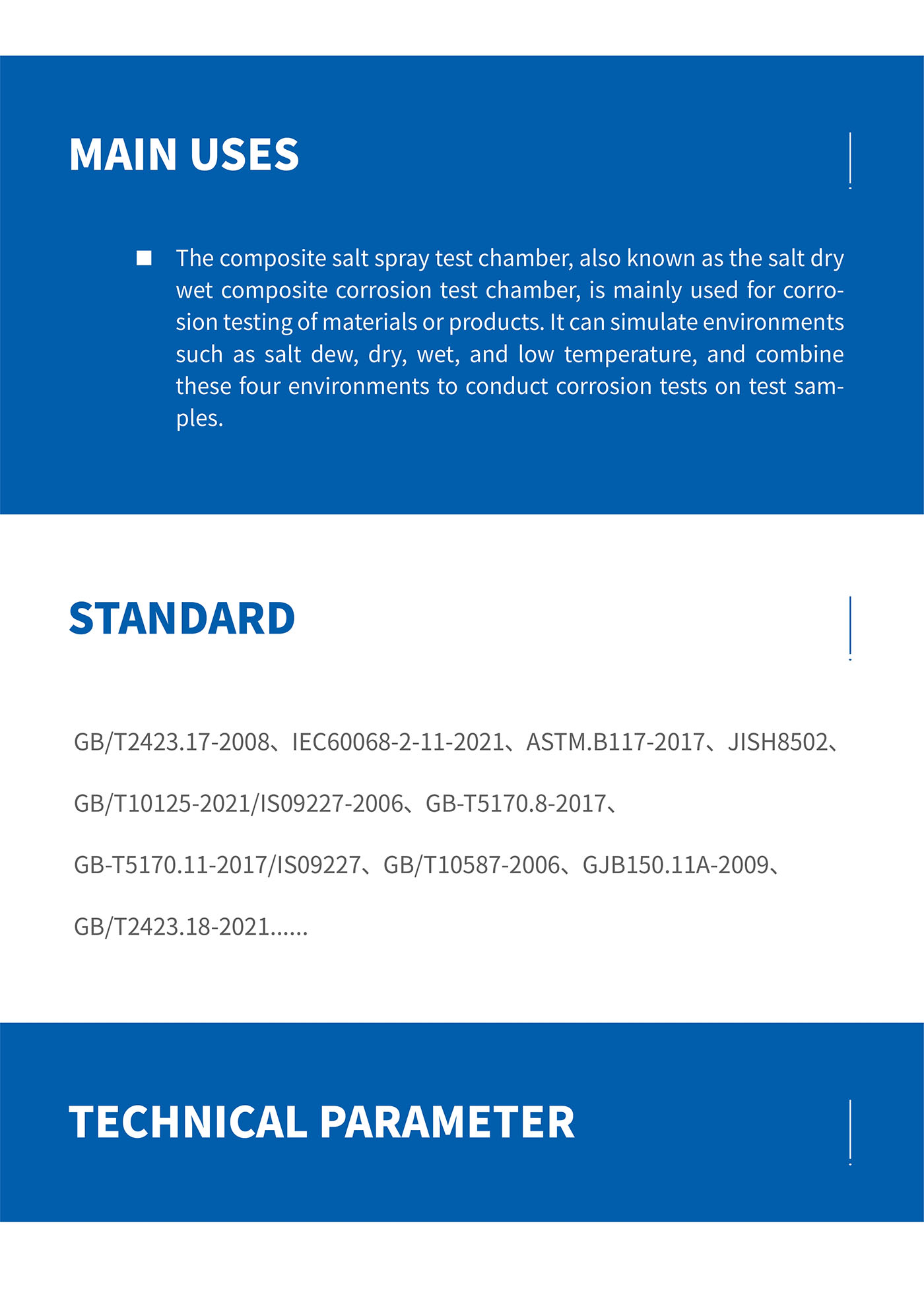

Salt Spray Tester 2

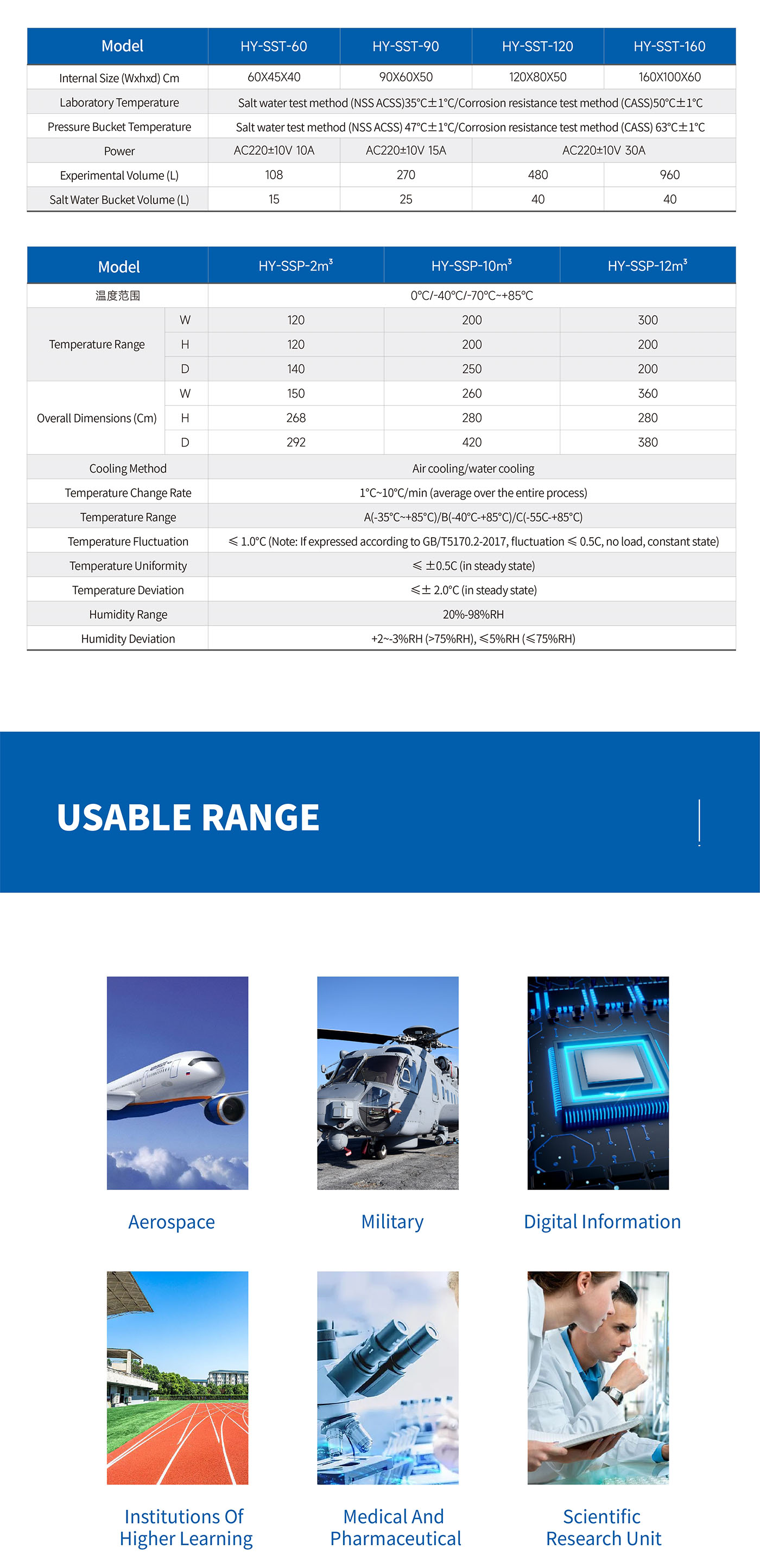

Salt Spray Tester 3

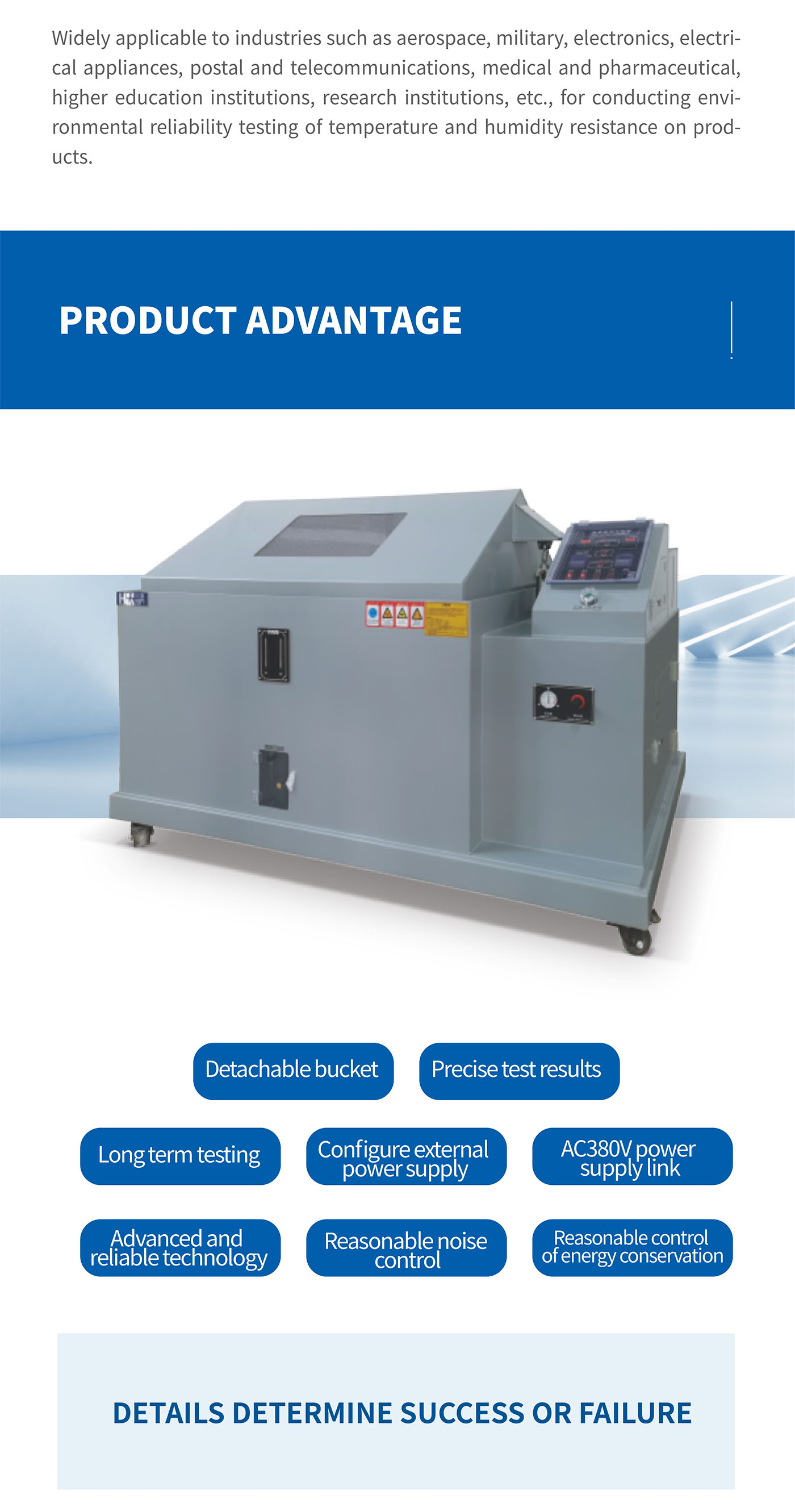

Salt Spray Tester 4

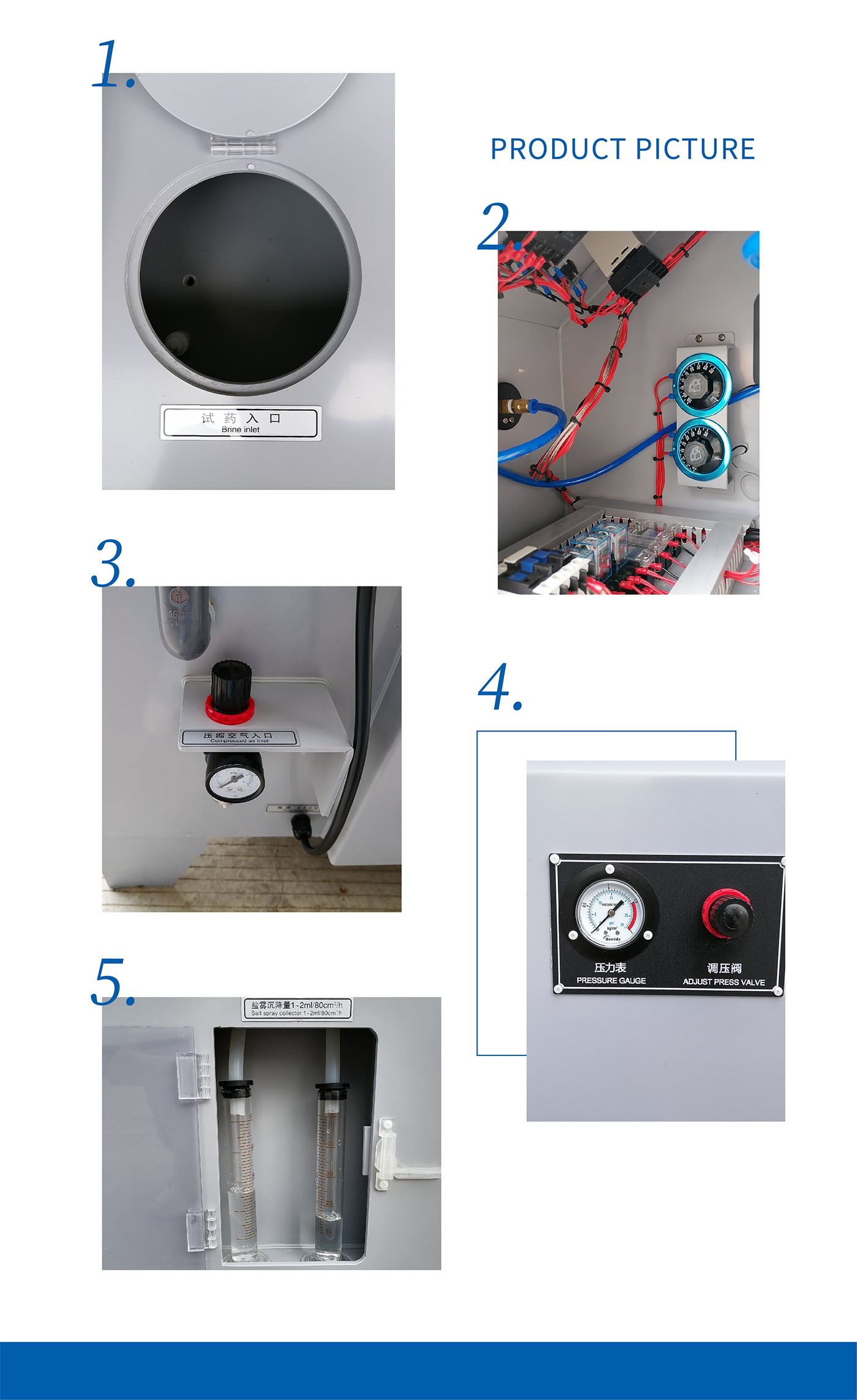

Salt Spray Tester 5
Video Demonstration
Frequently Asked Questions
What is the primary purpose of a salt spray test chamber?
It is used to evaluate the corrosion resistance of materials and protective coatings by simulating a salt-rich atmospheric environment.
Which international standards do your chambers comply with?
Our equipment complies with major global standards including ISO 9227, ASTM B117, IEC 60068-2-11, and JIS Z2371, among others.
What is the difference between NSS and CASS tests?
NSS (Neutral Salt Spray) uses a neutral salt solution at 35°C, while CASS (Copper Accelerated Salt Spray) uses an acidified solution with copper chloride at 50°C for more aggressive corrosion testing.
How does the automatic water system work?
The chamber features an integrated water level monitoring system that can automatically replenish water to the brine tank and pressure tank to ensure continuous testing.
Are the chambers safe for long-term continuous operation?
Yes, they are equipped with double over-temperature protection and high-stability corrosion-resistant materials to ensure safety during extended testing periods.
Can the chamber handle different sample sizes?
We offer various models ranging from 108L to 960L in internal volume to accommodate different product dimensions and testing requirements.
