The rain test chamber is an instrument used for rain tests. The instrument is suitable for the protection of external lighting and signal devices and automobile lamp housings. It can provide realistic simulation of various environments such as water spray and spray tests that electronic products and their components may be exposed to during transportation and use.

Send Inquiry

Product Description

Working Principle

This equipment is composed of a working room and a closed test area. The temperature and humidity are controlled by the heater and refrigeration system through the air circulation through the balanced temperature and humidity control method (BTHC). The instrument then performs PID operation for closed-loop control to maintain the temperature and humidity. Reach the set control range. In addition, according to the test requirements, simulation tests such as ice accumulation, freezing rain, and rain can be conducted separately to meet the purpose of combining different test items.

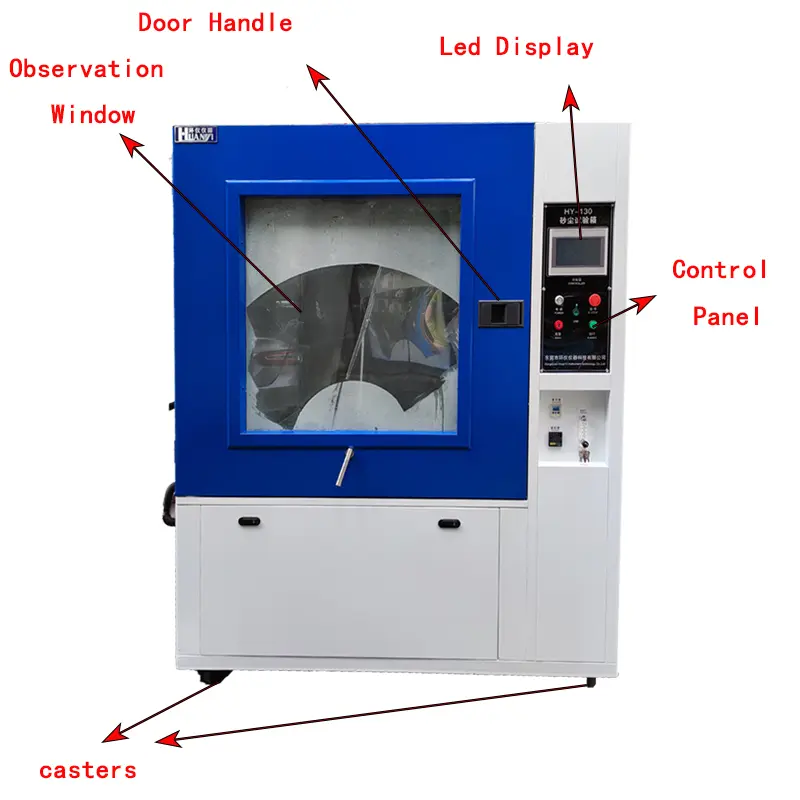

Auxiliary Structure

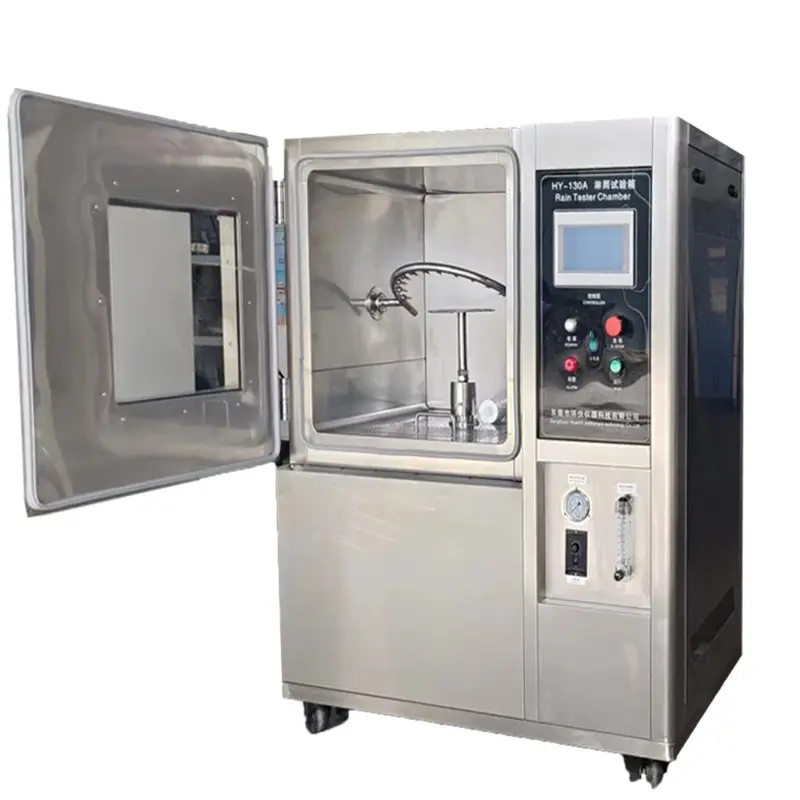

Internal Systems There is a water tank at the bottom of the test box, a test water spray system, a workbench rotation system, and a swing tube swing drive device.
High-Quality Sealing A double-layer high-temperature resistant and high-tension sealing strip is used between the door and the box to ensure the airtightness of the test area.
Ergonomic Handle A non-reaction door handle is used, which makes operation easier and more efficient for operators.
Mobility The bottom of the machine uses high-quality fixed PU movable wheels for easy positioning and stability.
Technical Parameters
Model HY-103 HY-103A HY-103B
Internal size (WxHxD) cm 80x80x80 100x100x100 140x140x140
Water spray ring radius (mm) 200 400 600
Water spray hole size Ф0.33mm / Ф0.4mm / Ф0.8mm
Aperture spacing 25.4mm / 50mm
Swing pipe swing amplitude 0° ~ 320° (can be set arbitrarily)
Test bench speed 2-10 r/min (adjustable)
Note Other studio sizes can be customized according to requirements, main parameters and configurations can be obtained separately
Product Presentation
Rain Test Chamber Water Shower Test Chamber (1)

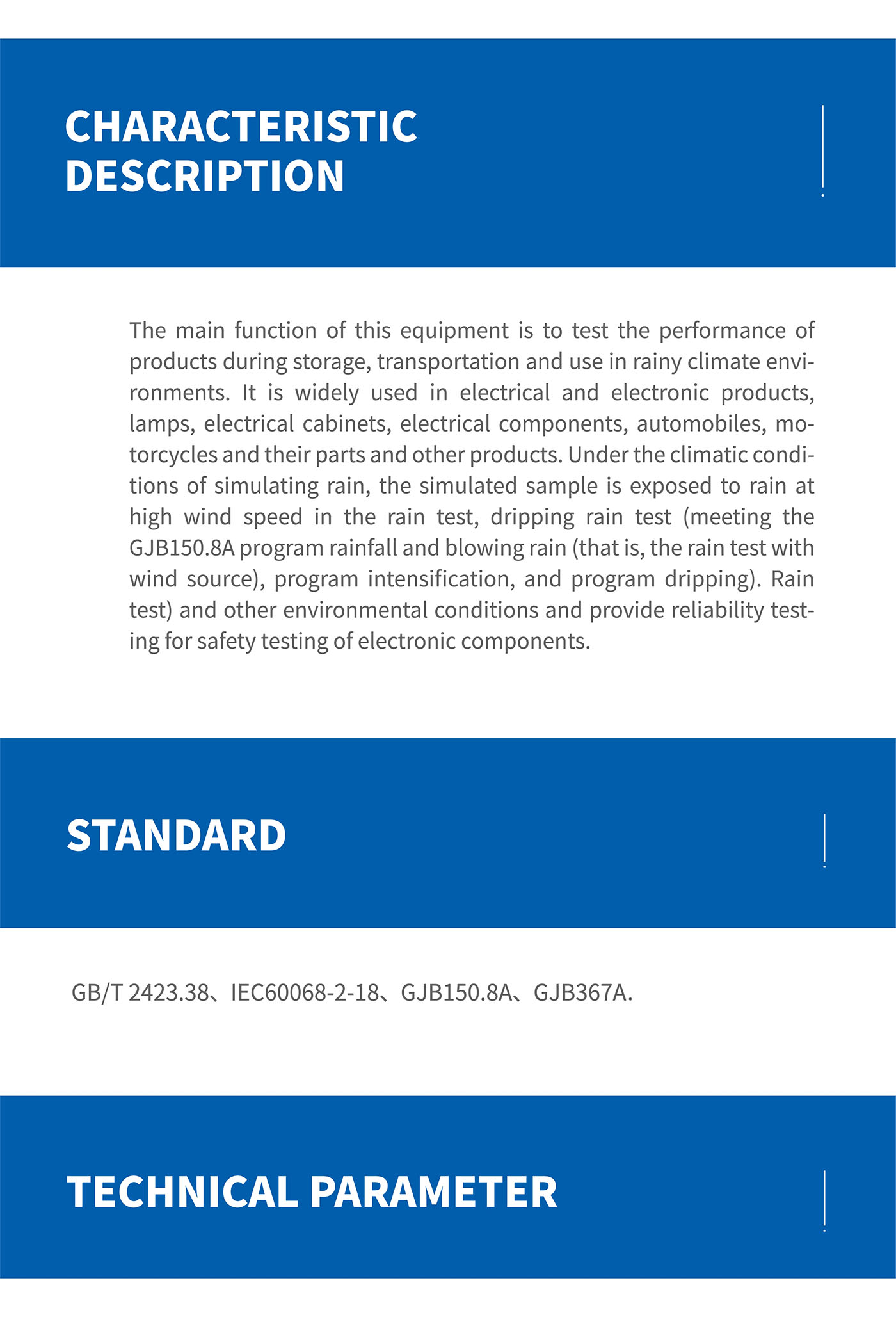

Rain Test Chamber Water Shower Test Chamber (2)

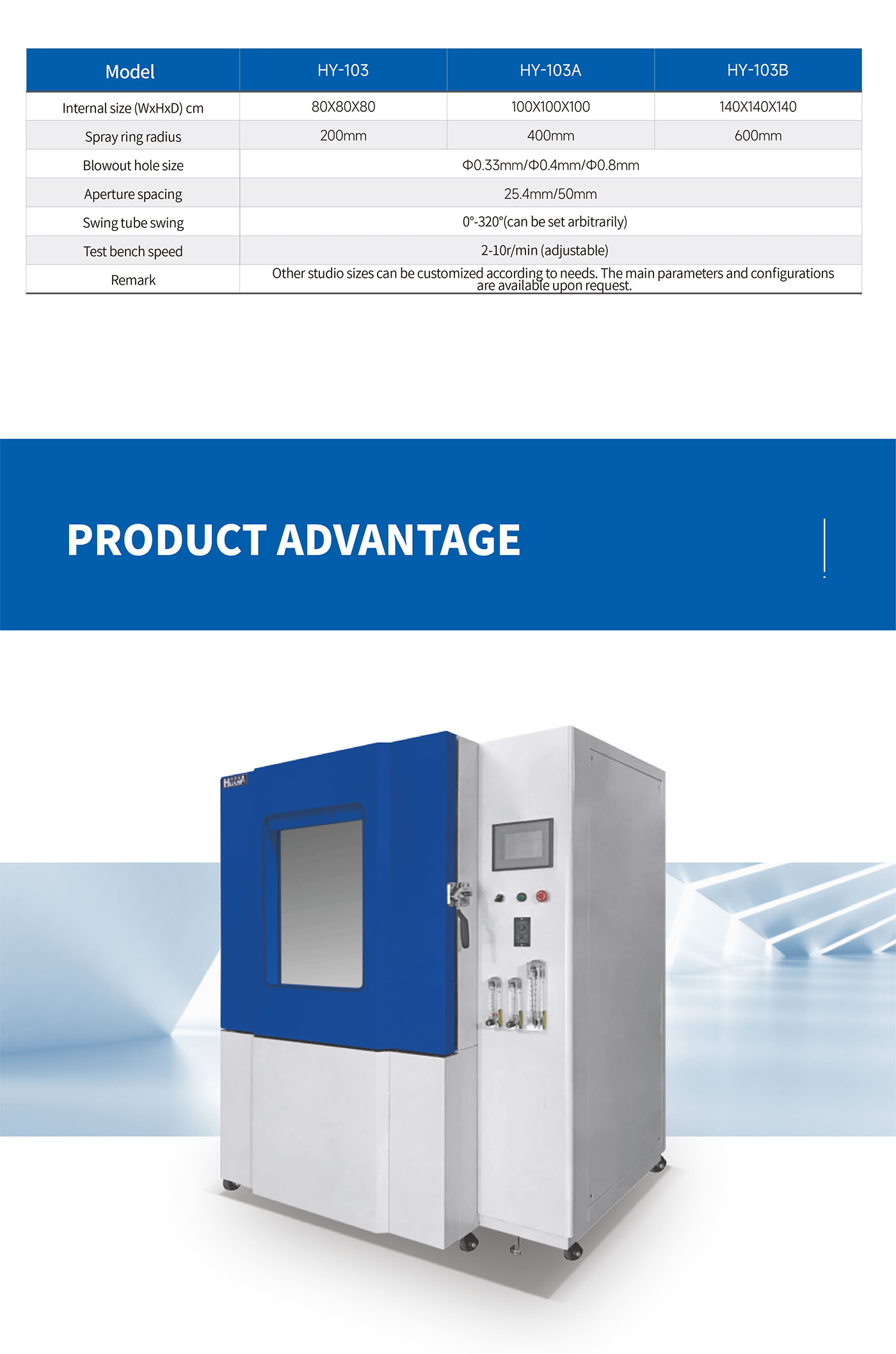

Rain Test Chamber Water Shower Test Chamber (3)

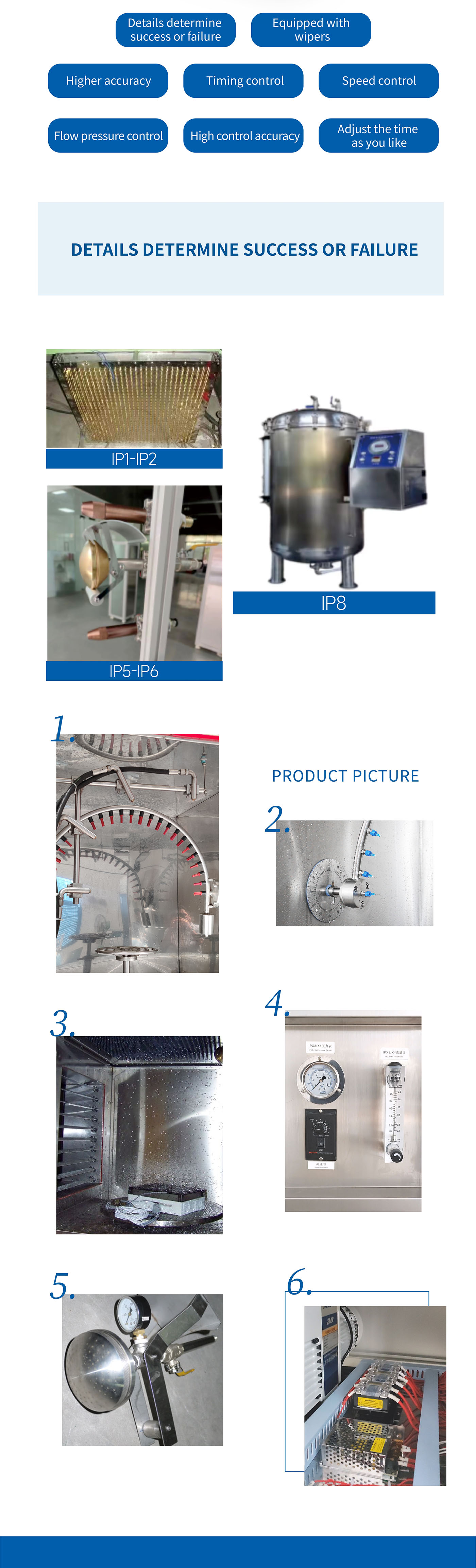

Rain Test Chamber Water Shower Test Chamber (4)
Frequently Asked Questions (FAQ)
How is the temperature and humidity controlled in this chamber?
The chamber utilizes the Balanced Temperature and Humidity Control (BTHC) method and PID operation for high-precision closed-loop control.
What types of environmental conditions can be simulated?
It can simulate rain, freezing rain, and ice accumulation tests, allowing for combined or separate test items.
Is the test bench speed adjustable?
Yes, the rotation speed of the test bench can be adjusted between 2 and 10 r/min.
Can the swing pipe amplitude be customized?
The swing pipe amplitude can be set arbitrarily within a range of 0° to 320°.
What ensures the airtightness of the test area?
We use double-layer high-temperature resistant and high-tension sealing strips between the door and the box.
Are custom sizes available for the internal chamber?
Yes, internal studio sizes can be customized according to specific customer requirements.
