1. The xenon lamp test chamber should use a sunlight-type carbon arc lamp as the radiation light source, control temperature, relative temperature, regular spraying, and be equipped with functions such as a rotatable sample rack. It is an equipment that simulates natural gas elements for artificial climate accelerated aging tests.
2. The Carbon Arc aging test chamber uses a xenon arc lamp that can simulate the full sunlight spectrum to reproduce the destructive light waves that exist in different environments. It can provide corresponding environmental simulation and accelerated testing for scientific research, product development and quality control.
1. The xenon lamp test chamber should use a sunlight-type carbon arc lamp as the radiation light source, control temperature, relative temperature, regular spraying, and be equipped with functions such as a rotatable sample rack. It is an equipment that simulates natural gas elements for artificial climate accelerated aging tests.
2. The Carbon Arc aging test chamber uses a xenon arc lamp that can simulate the full sunlight spectrum to reproduce the destructive light waves that exist in different environments. It can provide corresponding environmental simulation and accelerated testing for scientific research, product development and quality control.

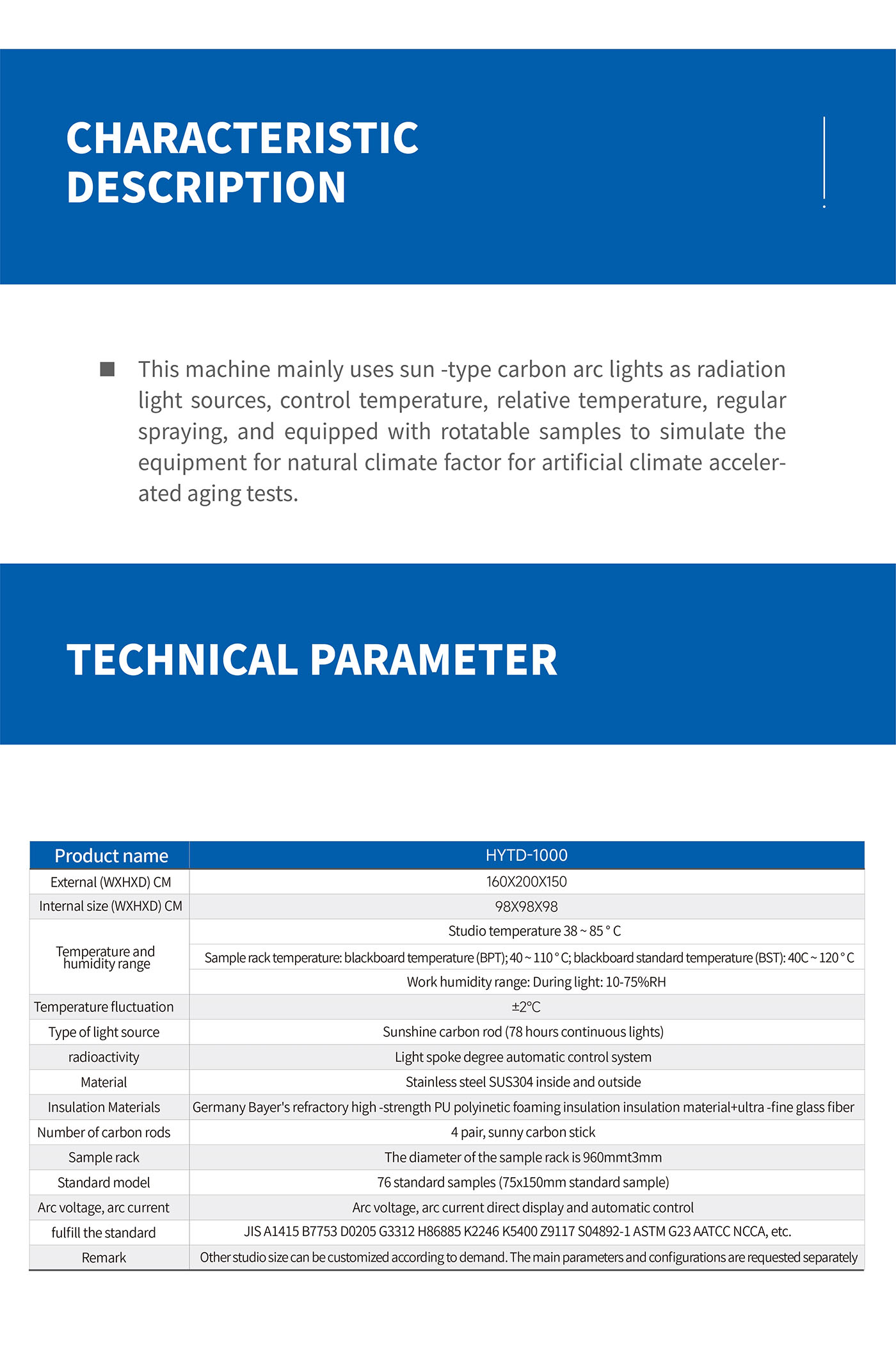

| Product Name |
HYTD-1000 |
| Internal size (WxHxD)cm |
160X200X150 |
| External size (WxHxD)cm |
98X98X98 |
| Temp and humid range |
Workroom temperature: 38~85℃
Sample rack temperature: Blackboard temperature(BPT): 40~110℃;
Blackboard standard temperature(BST): 40℃~120℃
Working humidity range: When exposed to light: 10-75%RH
|
| Temp fluctuations |
±2℃ |
| Light source type |
Sunlight type carbon rod (Continuous lighting for 78 hours) |
| Irradiance |
Light irradiance automatic control system |
| Material |
Inside and outside stainless steel SUS304 |
| Insulation Materials |
German Bayer fire-resistant high-strength PU polyurethane foam insulation material + ultra-fine glass fiber |
| Carbon rod quantity |
4 pairs, sunlight type carbon rod |
| Sample rack |
The diameter of the sample holder is 960mm ± 3mm |
| Sample |
76 standard sample racks (75X150mm standard samples) |
| Arc voltage current |
Arc voltage, arc current direct display and automatic control |
What is the primary light source of the HYTD-1000 aging chamber?
The chamber utilizes sunlight-type carbon arc lamps as the radiation light source, which are designed to simulate the full sunlight spectrum for accurate artificial climate accelerated aging tests.
What are the temperature ranges for the workroom and sample rack?
The workroom temperature ranges from 38℃ to 85℃. For the sample rack, the Blackboard Temperature (BPT) is controllable between 40℃ and 110℃, while the Blackboard Standard Temperature (BST) ranges from 40℃ to 120℃.
How long can the carbon rods provide continuous light?
The sunlight-type carbon rods are capable of providing continuous lighting for up to 78 hours, ensuring stability during long-term testing cycles.
What materials are used in the construction of the test chamber?
The interior and exterior are made of high-grade SUS304 stainless steel. For insulation, it uses German Bayer fire-resistant high-strength PU polyurethane foam combined with ultra-fine glass fiber.
How many samples can be tested simultaneously?
The chamber is equipped with a rotatable sample holder (960mm diameter) that can accommodate 76 standard sample racks, specifically designed for 75x150mm standard samples.
Does the system allow for automatic control of irradiance?
Yes, the HYTD-1000 features a light irradiance automatic control system, along with direct display and automatic control of arc voltage and arc current.
