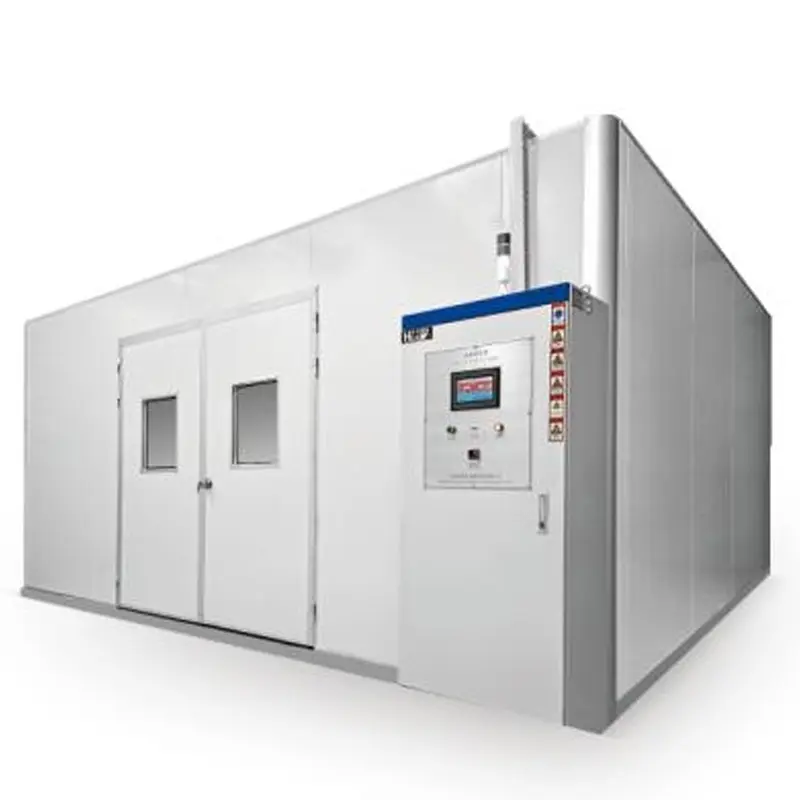

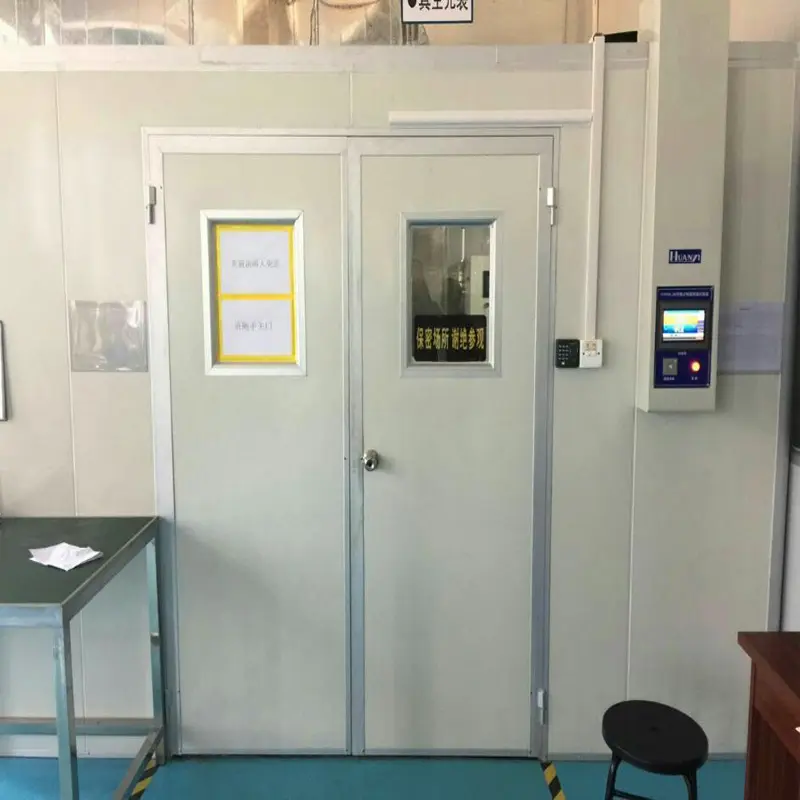

High-Quality Burn-in Environmental Test Chamber High Temperature Aging System Manufacturer, Manufacturers
High-Quality Burn-in Environmental Test Chamber High Temperature Aging System Manufacturer, Manufacturers
1 / 2
High-Quality Burn-in Environmental Test Chamber High Temperature Aging System Manufacturer, Manufacturers
High-Quality Burn-in Environmental Test Chamber High Temperature Aging System Manufacturer, Manufacturers

High-Quality Burn-in Environmental Test Chamber High Temperature Aging System Manufacturer, Manufacturers

It is suitable for high and low temperature test, damp heat test, and quality and reliability test of products, parts and materials under the conditions of temperature and humidity change for electrician, electronics, machinery and other products, parts and materials.

Send Inquiry

Product Description

Product Description

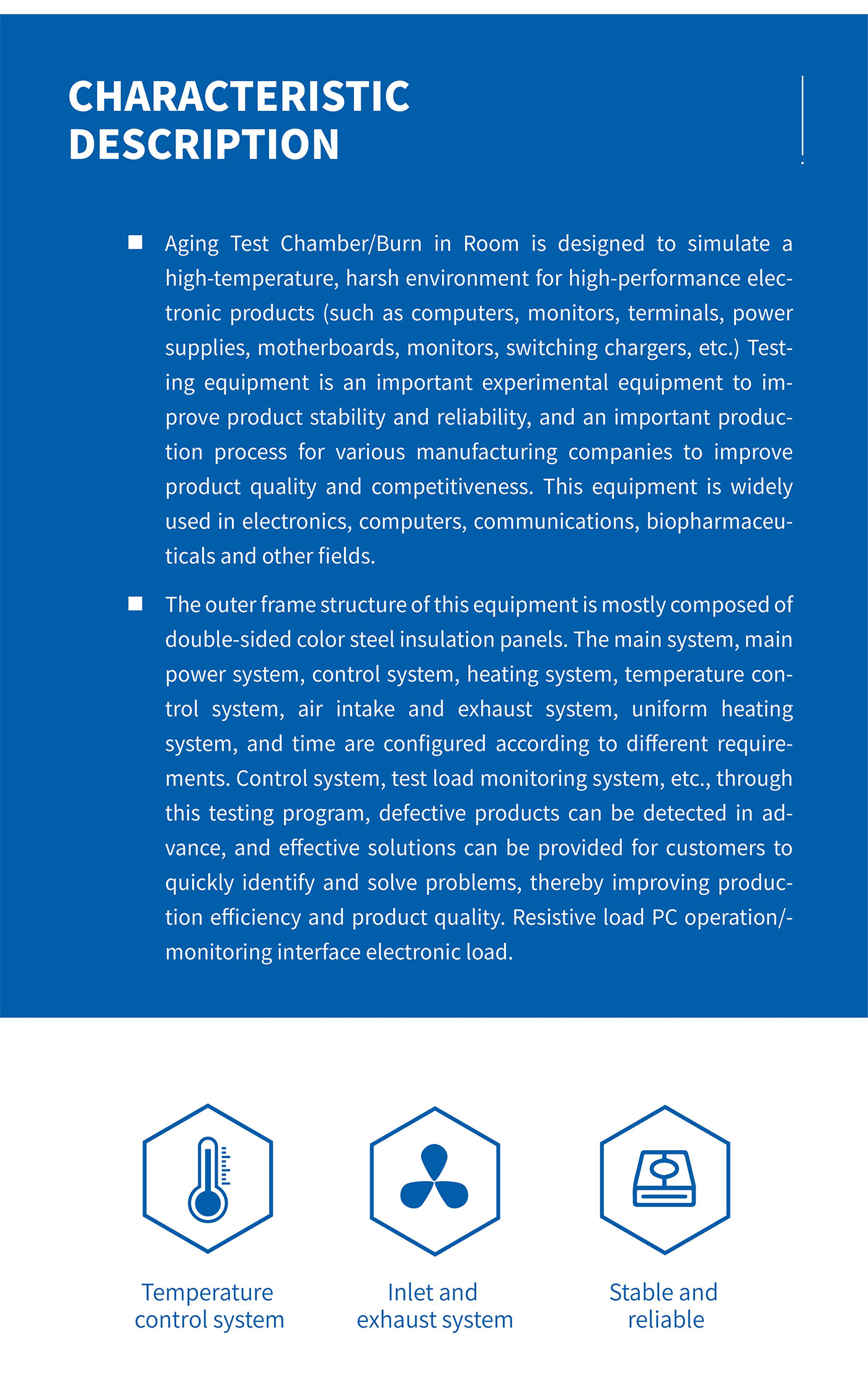

Aging room (burning room) is a device for simulating high temperature and harsh environment testing for high-performance electronic products (such as: computer, display, terminal, power supply, motherboard, monitor, exchange charger, etc.). It is an important production process for manufacturers to improve product quality and competitiveness. This equipment is widely used in electronics, computers, communications, biopharmaceuticals and other fields.

Meet the Standards

GB/T 2423.2-2001 "Environmental testing of electrical and electronic products" Part 2: Test methods Test B: High temperature
GB/T 3797-2005 "Electrical Control Equipment"
JB/T 6174-1992 "Instrument function circuit board aging process specification"
GB/T11158-2008 "Technical conditions for high temperature test chamber"

Key Features

The product area and load area are isolated, and split loads are used to facilitate maintenance and temperature control.
Temperature range: 40~70℃, ±3℃/±5℃ | Accuracy: ±0.5℃ | Temperature uniformity: ±5℃ & ±3℃
Test frame material: painted or formed aluminum combination
Thermal insulation: Use PU foam (double-glazed door) for thermal insulation, ensuring internal temperature stability and power saving.
The products are placed in layers with adjustable heights for easy handling.
Noise control: <75dB | Optional computer monitoring system available.

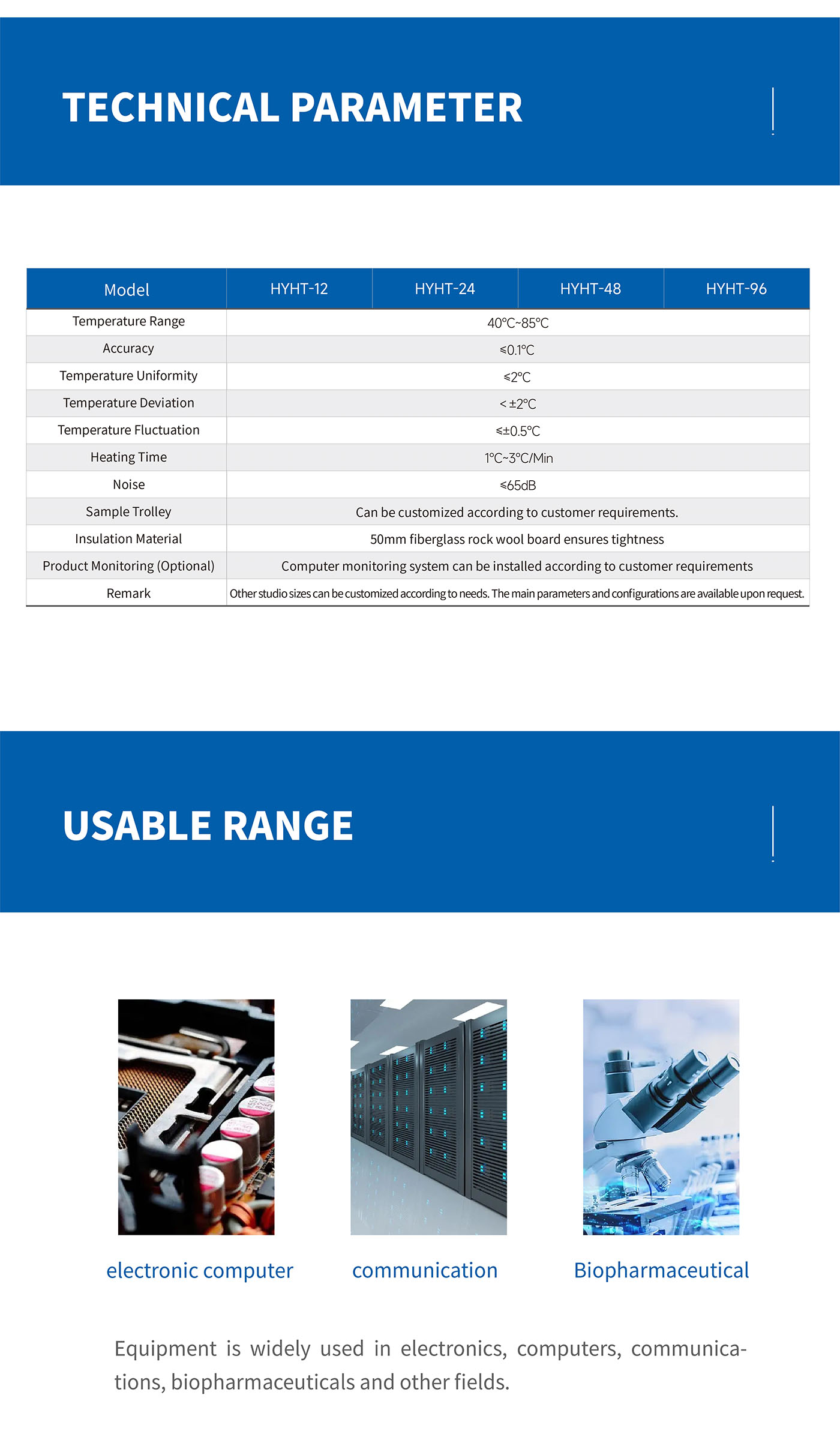

Technical Parameters

Model HYHT-12 HYHT-24 HYHT-48 HYHT-96
Temp range 40℃~85℃
Accuracy ≤0.1℃
Temp uniformity ≤2℃ (No load)
Temp deviation <±2℃
Temp constancy ≤±0.5℃
Heating time 1℃~3℃/Min
Noise ≤65dB
Sample trolley Can be customized according to customer requirements
Insulation material 50mm fiberglass rockwool board ensures tightness
Product monitoring Computer monitoring system can be installed (optional)

Product Showcase

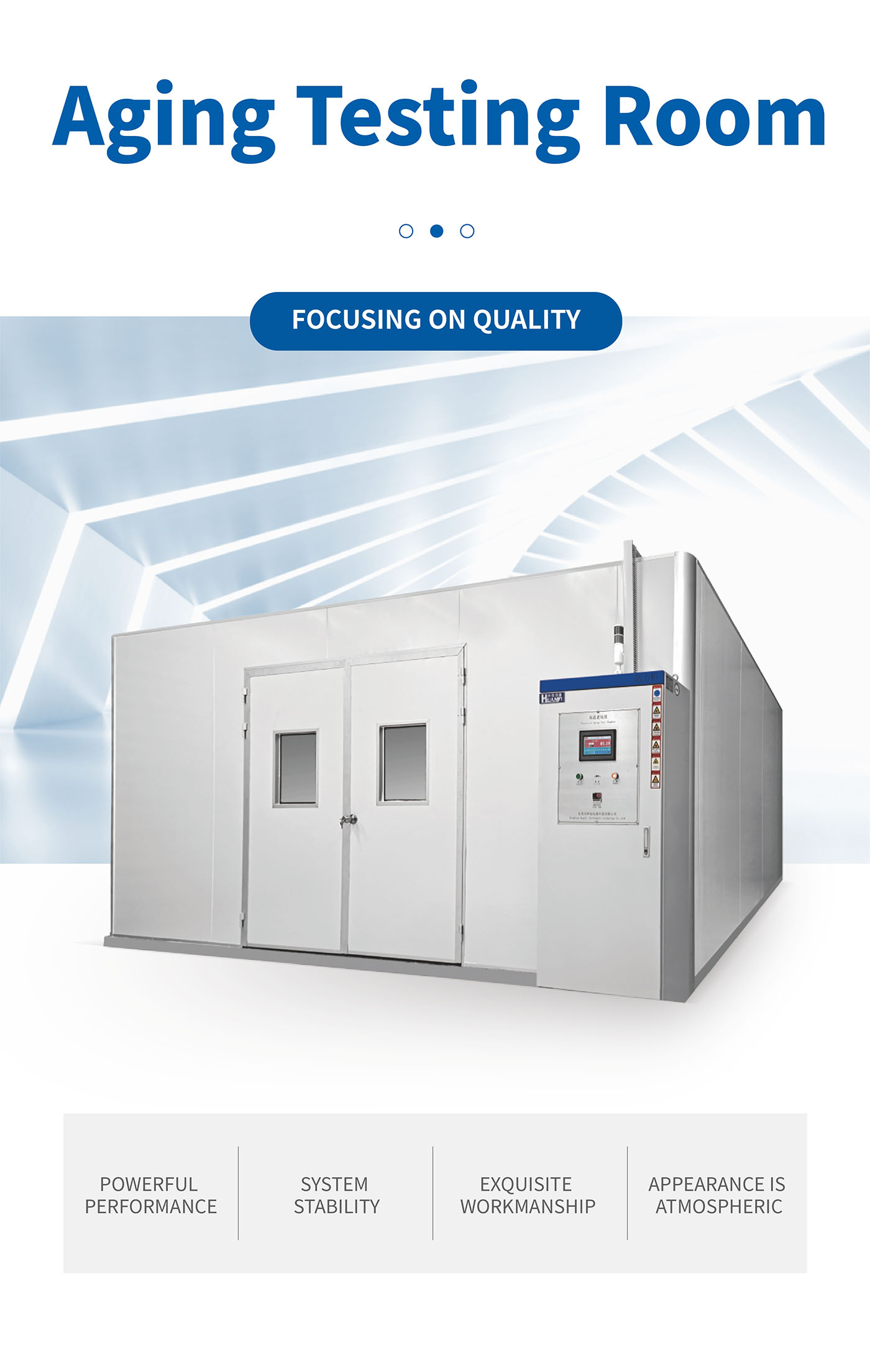

Aging System 1
Aging System 2
Aging System 3

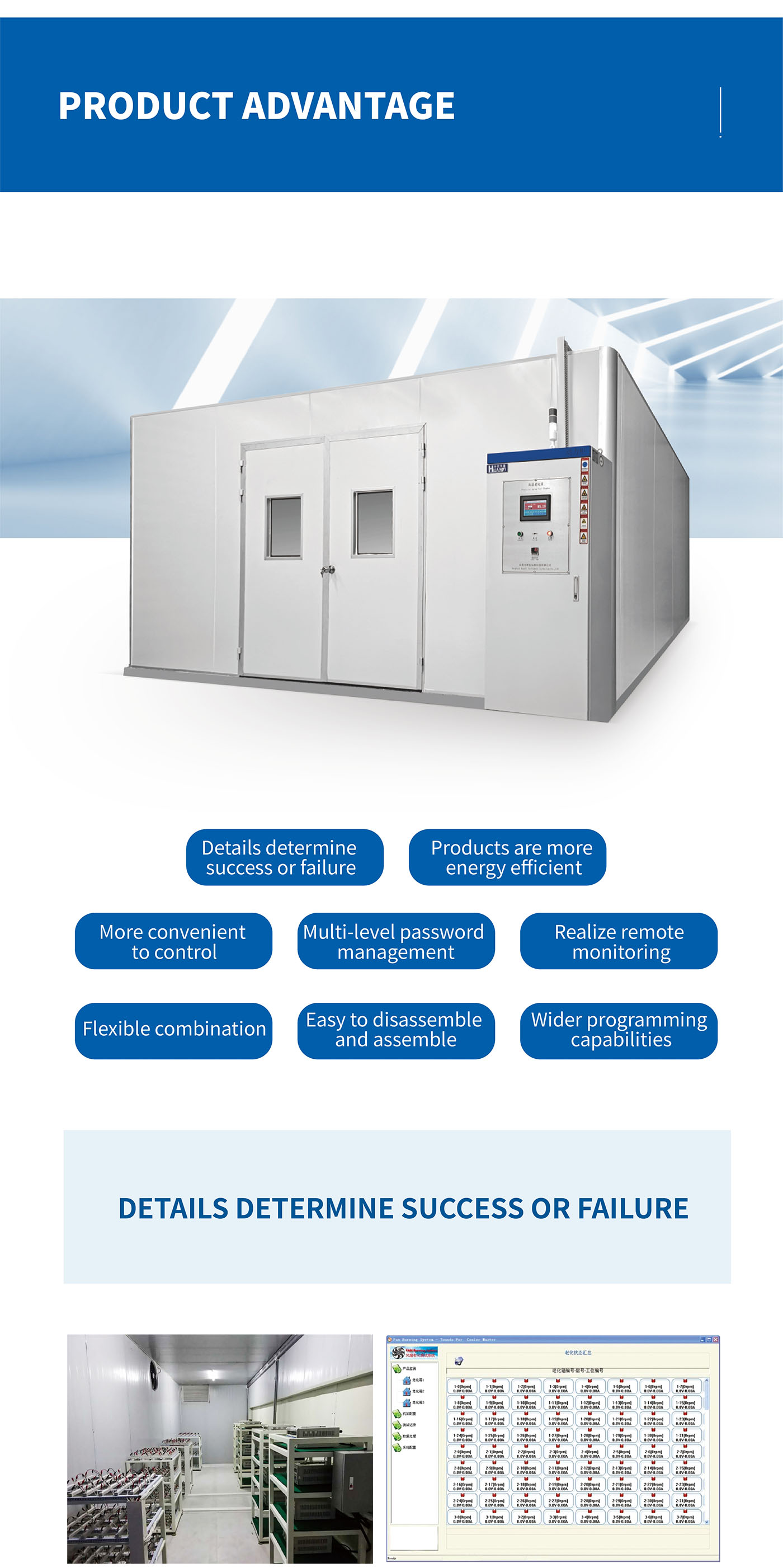

Aging System 4

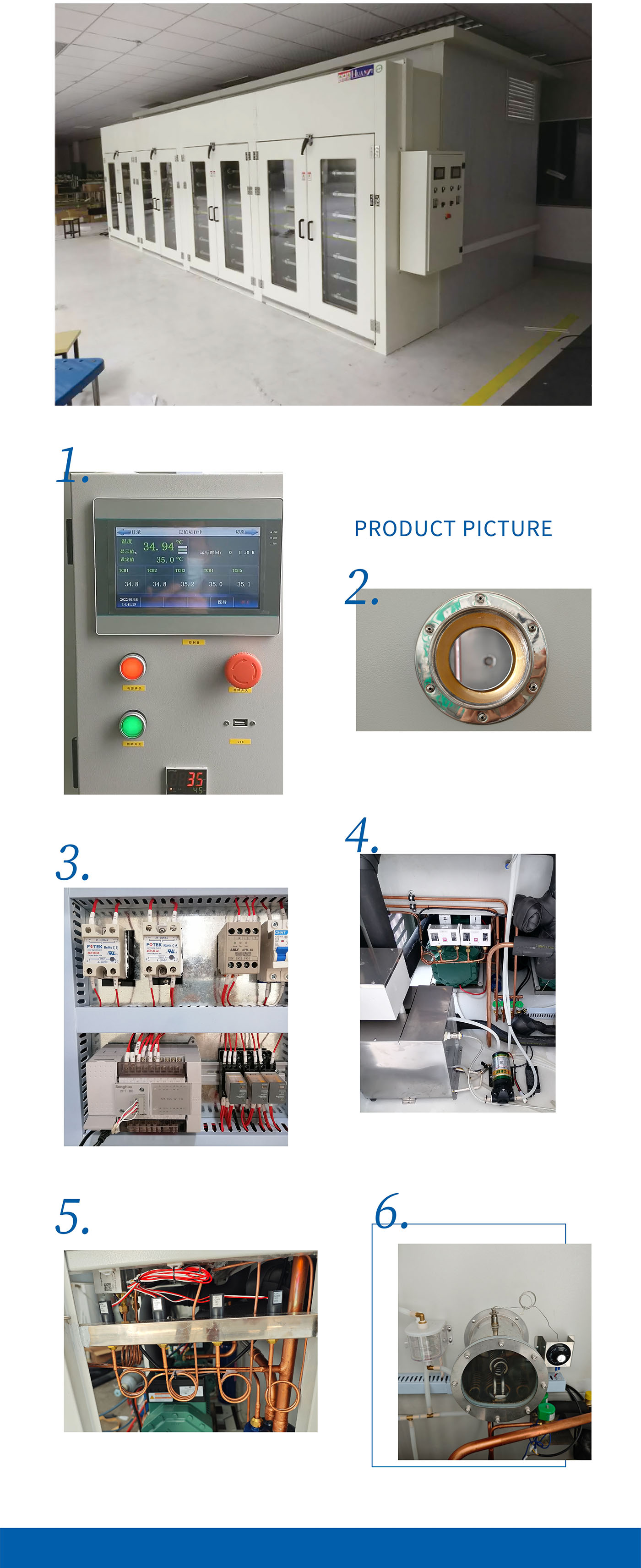

Aging System 5

Frequently Asked Questions

Q1: What is the primary purpose of an aging room?
The aging room is designed to simulate high-temperature and harsh environmental conditions to test the reliability and performance of electronic products like computers, power supplies, and monitors.
Q2: What is the temperature range of the equipment?
Depending on the specific configuration and model, the temperature range typically covers 40℃ to 70℃ or up to 85℃ for high-performance testing.
Q3: Which industries utilize this high-temperature aging system?
It is widely used in electronic manufacturing, computer production, telecommunications, and biopharmaceutical fields to ensure product stability.
Q4: Does the equipment meet international testing standards?
Yes, it complies with multiple standards including GB/T 2423.2-2001, GB/T 3797-2005, and GB/T11158-2008 for environmental and electrical testing.
Q5: Can the testing process be monitored remotely?
Yes, a computer monitoring system can be installed as an optional feature according to customer requirements for real-time data tracking.
Q6: How is the noise level of the aging room?
The system is designed with noise control in mind, maintaining a noise level of ≤65dB to ≤75dB depending on the specific model and environment.
