Custom Salt Fog Corrosion Tester Composite Salt Spray Test Chamber Manufacturers, Factory

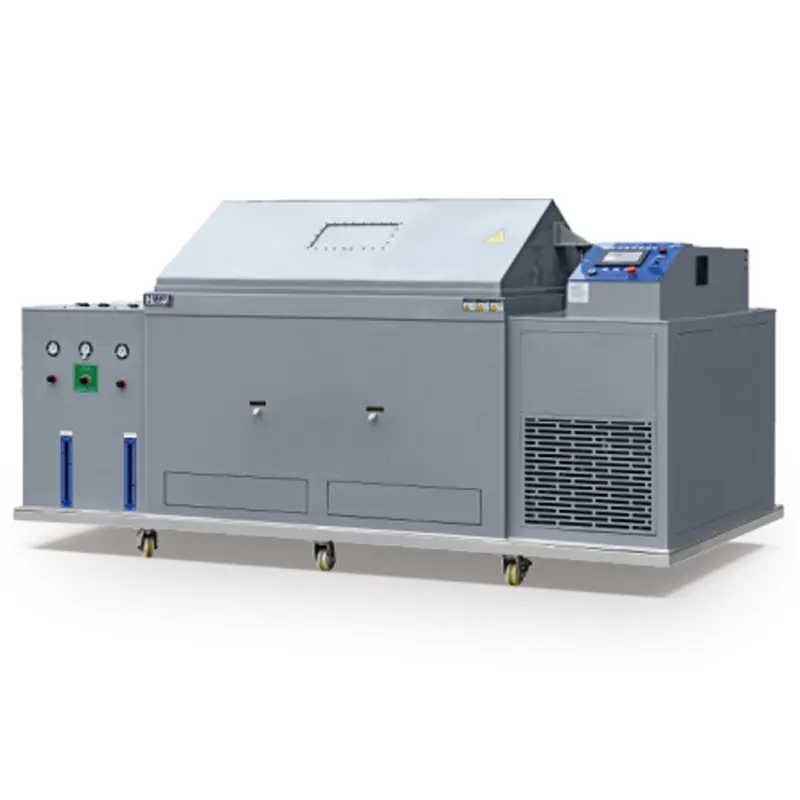

The compound salt spray test chamber is a kind of equipment used to simulate corrosion tests in artificial environments. It is mainly used to test the quality of metal materials with or without anti-corrosion protection.

Send Inquiry

Product Description

Applications

The performance index of the composite salt spray chamber meets the requirements of GB/T5170.8 "Basic parameter verification method for environmental test equipment of electrical and electronic products". The salt spray corrosion test chamber can be used for neutral salt spray test and acetic acid salt spray test according to GB/T2423.17 "Basic environmental test procedures for electronic and electrical products Test Ka: Salt spray test method".

Features

• The inner and outer tanks are made of epoxy fiberglass integrally molded, which has the characteristics of light weight, corrosion resistance, high strength, no leakage, flat surface, smooth and easy to clean.

• The water-tight form prevents the salt mist from overflowing, and the jacket air duct is heated to make the studio heat up quickly and the temperature distribution is uniform.

• The top cover of the salt spray box is designed to be 110~112℃, so that the cold condensed water in the box does not drip directly on the test product.

• The spray method is tower spray, and the spray tower is placed in the middle of the bottom surface of the studio. The material of the nozzle is made of quartz glass, the sprayed mist is fine, and the salt mist is naturally settled and evenly distributed.

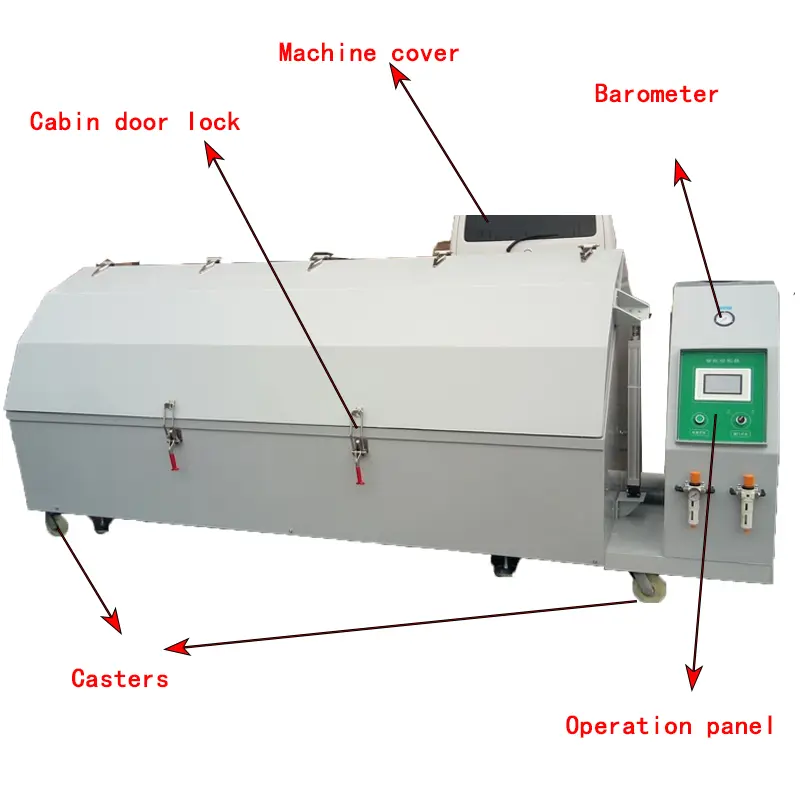

• The control system of the equipment is placed on the upper right side of the box, which is convenient for users to operate.

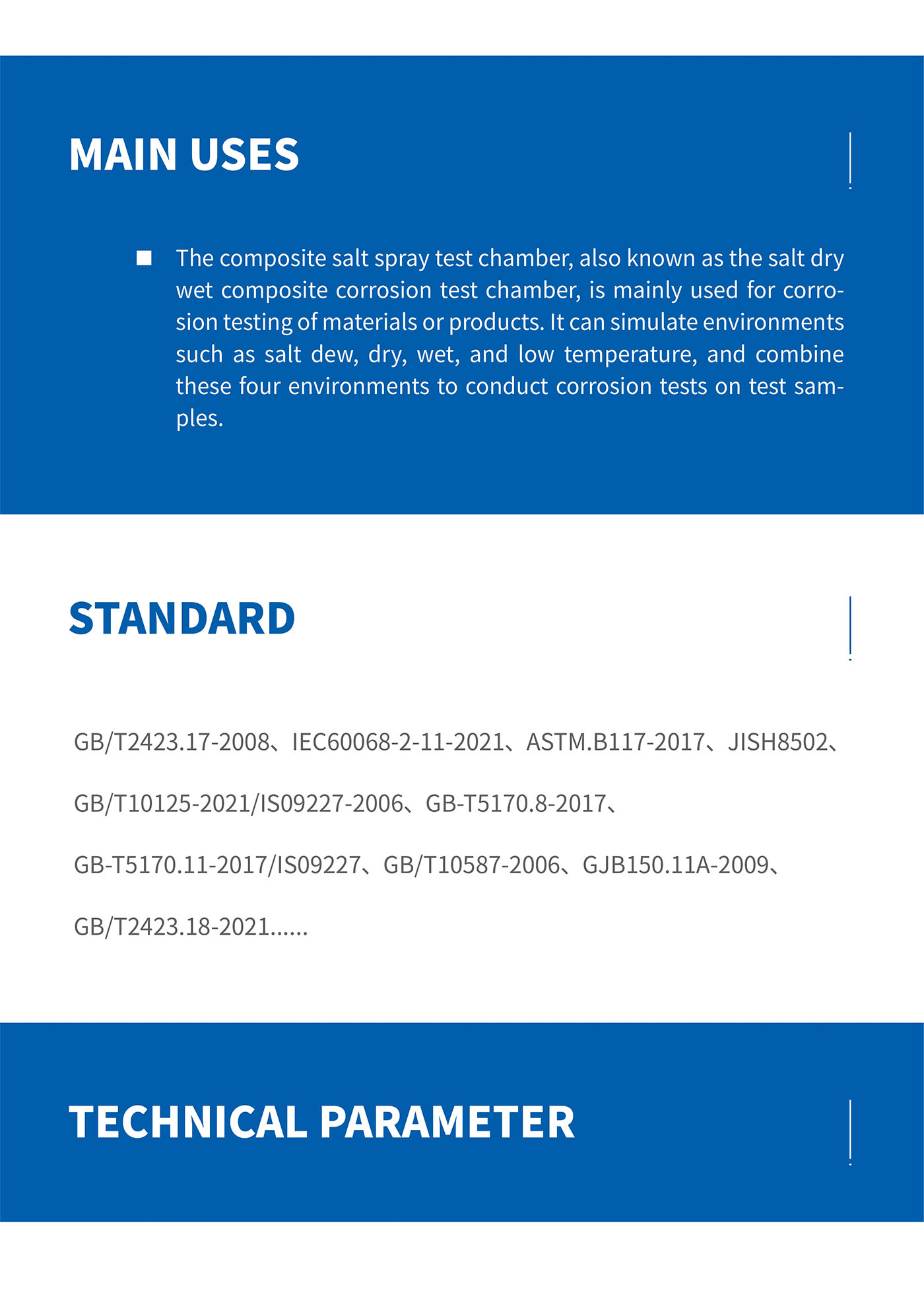

Standards

GB/T2423.17-2008, GB/T2423.18-2021, IEC 60068-211-2021, ISO 9227, J1SH8502, GB/T10125, 2021/1S092272006, DIN50021, ASTMG85GB-T5170.8-2017, GB-T5170.11-2017, 1S09227, GB/T10587-2006, GJB-150.11A-2009, ISO 9227, ASTM B117, IEC 60068-2-11, ISO 16750-4, JISZ2371.

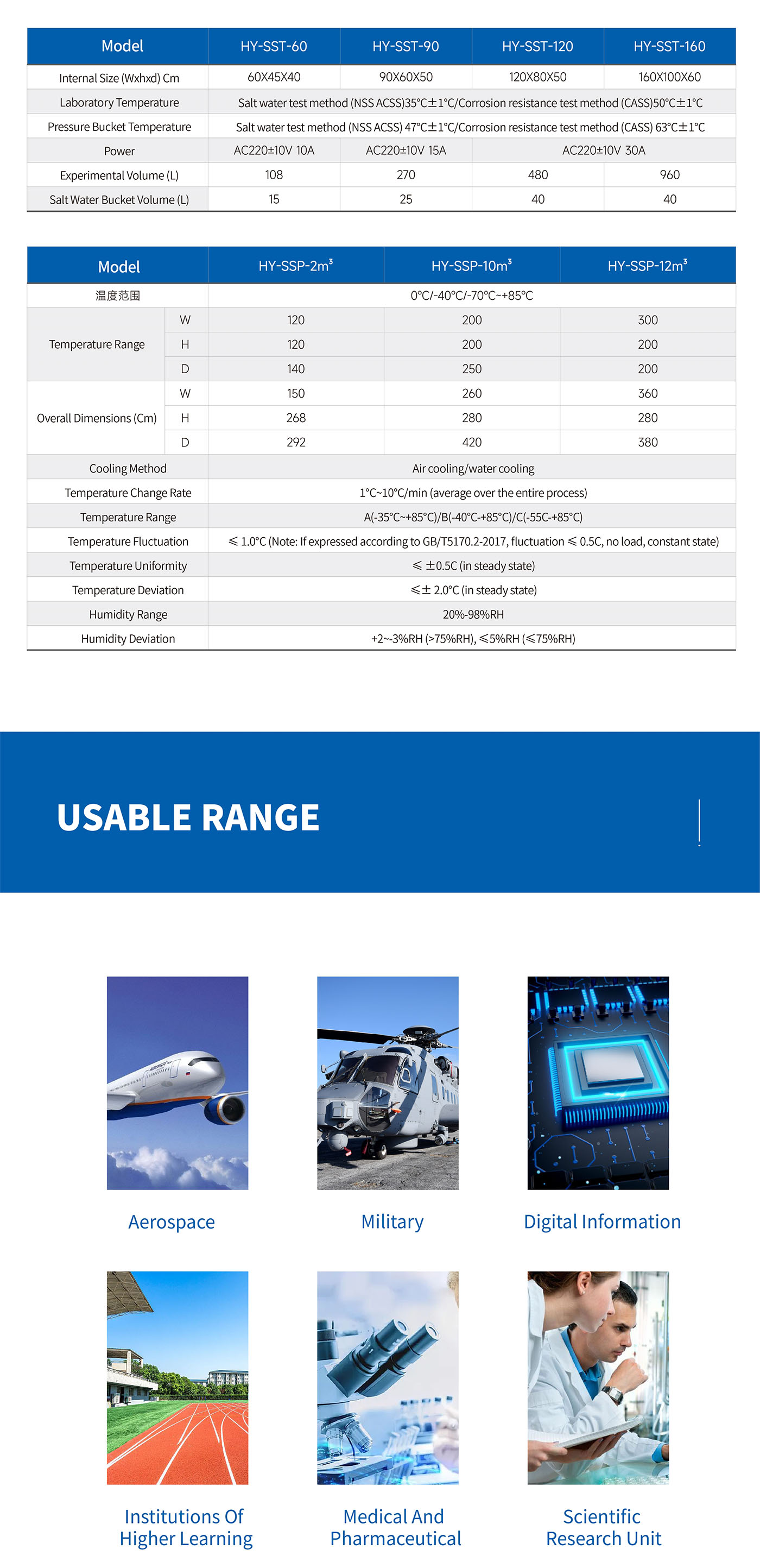

Technical Parameters

Model	HY-SSP-2m³	HY-SSP-10m³	HY-SSP-12m³
Temp Range	0℃/-40℃/-70℃~+85℃
Internal size (WxHxD)cm	120x120x140	200x200x250	300x200x200
External size (WxHxD)cm	150x268x292	260x280x420	360x280x380
Cooling method	Air cooling/Water cooling
Temp change rate	1℃~10℃/min (Average throughout the process)
Temp change range	A(-35℃~+85℃)/B(-40℃~+85℃)/C(-55℃~+85℃)
Temp fluctuation	≤1.0℃ (Note: If expressed according to GB/T5170.2-2017, the fluctuation is ≤±0.5℃, no-load, constant state)
Temp uniformity	≤±0.5℃ (constant state)
Temp deviation	≤±2.0℃ (constant state)
Humid range	20%~98%RH
Humid deviation	+2~-3%RH (>75%RH), ±5%RH (≤75%RH)

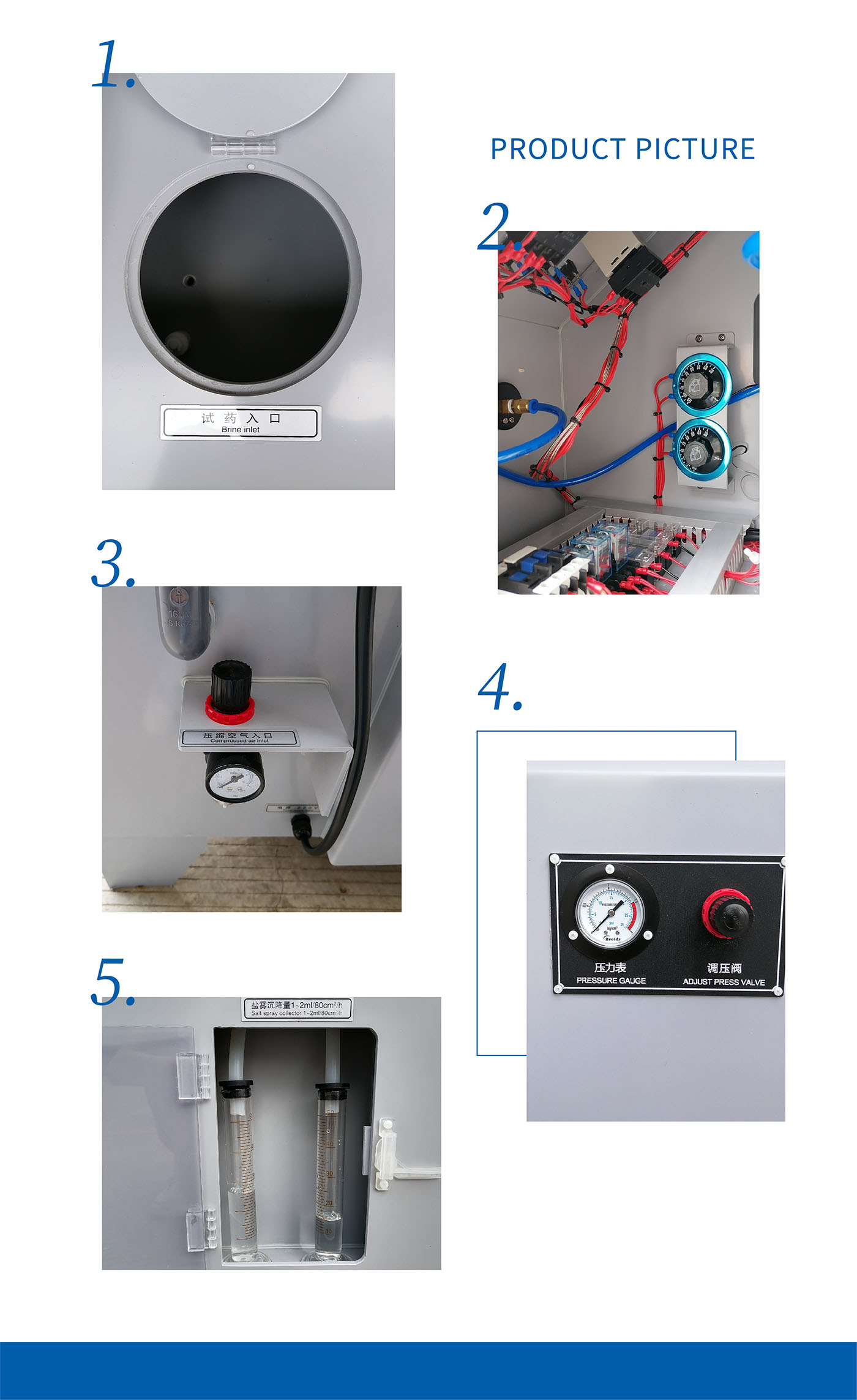

Product Display

Frequently Asked Questions

1. What materials are used to construct the salt spray chamber?

The inner and outer tanks are made of integrally molded epoxy fiberglass, providing excellent corrosion resistance, high strength, and a smooth, easy-to-clean surface.

2. Does the chamber prevent water condensation from dripping on test samples?

Yes, the top cover is designed with an angle and maintained at 110-112°C to ensure condensed water flows along the walls rather than dripping directly onto the test products.

3. What types of salt spray tests can this equipment perform?

It is designed for neutral salt spray tests (NSS) and acetic acid salt spray tests (AASS) according to international standards like ISO 9227 and GB/T2423.17.

4. How is the salt mist distributed inside the chamber?

The system utilizes a tower spray method with a quartz glass nozzle placed centrally. This ensures a fine mist that settles naturally and distributes evenly across the workspace.

5. What is the temperature and humidity range of the HY-SSP series?

The temperature range can reach from -70℃ to +85℃, and the humidity range covers 20% to 98% RH, depending on the specific model configuration.

6. Is the temperature distribution uniform during testing?

Yes, the jacket air duct heating system ensures quick heat-up times and highly uniform temperature distribution with a fluctuation of ≤±0.5℃ in constant states.
