Custom Ozone Aging Test Chamber Supplier, Suppliers

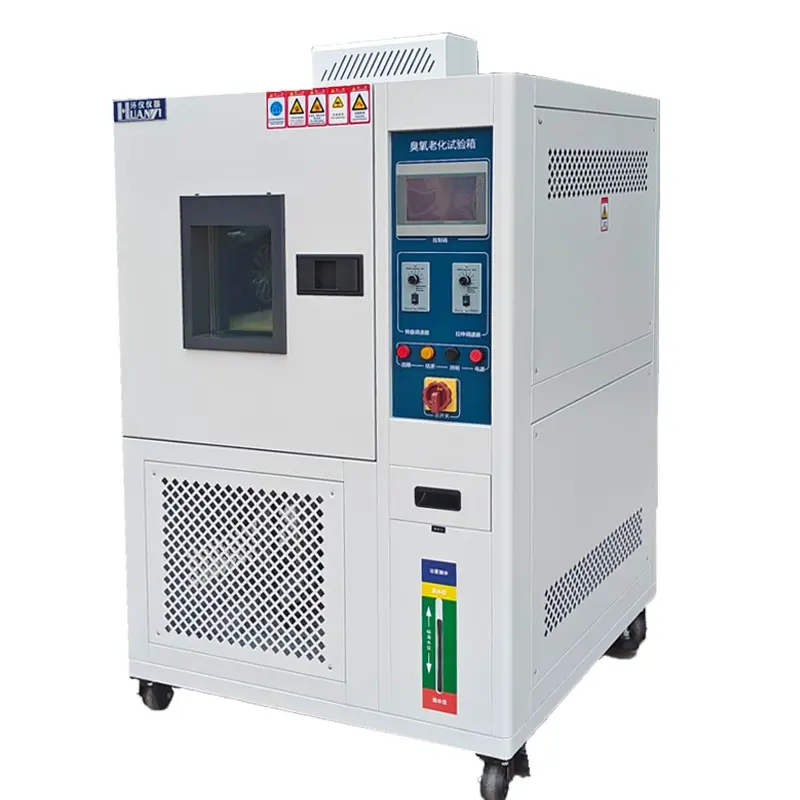

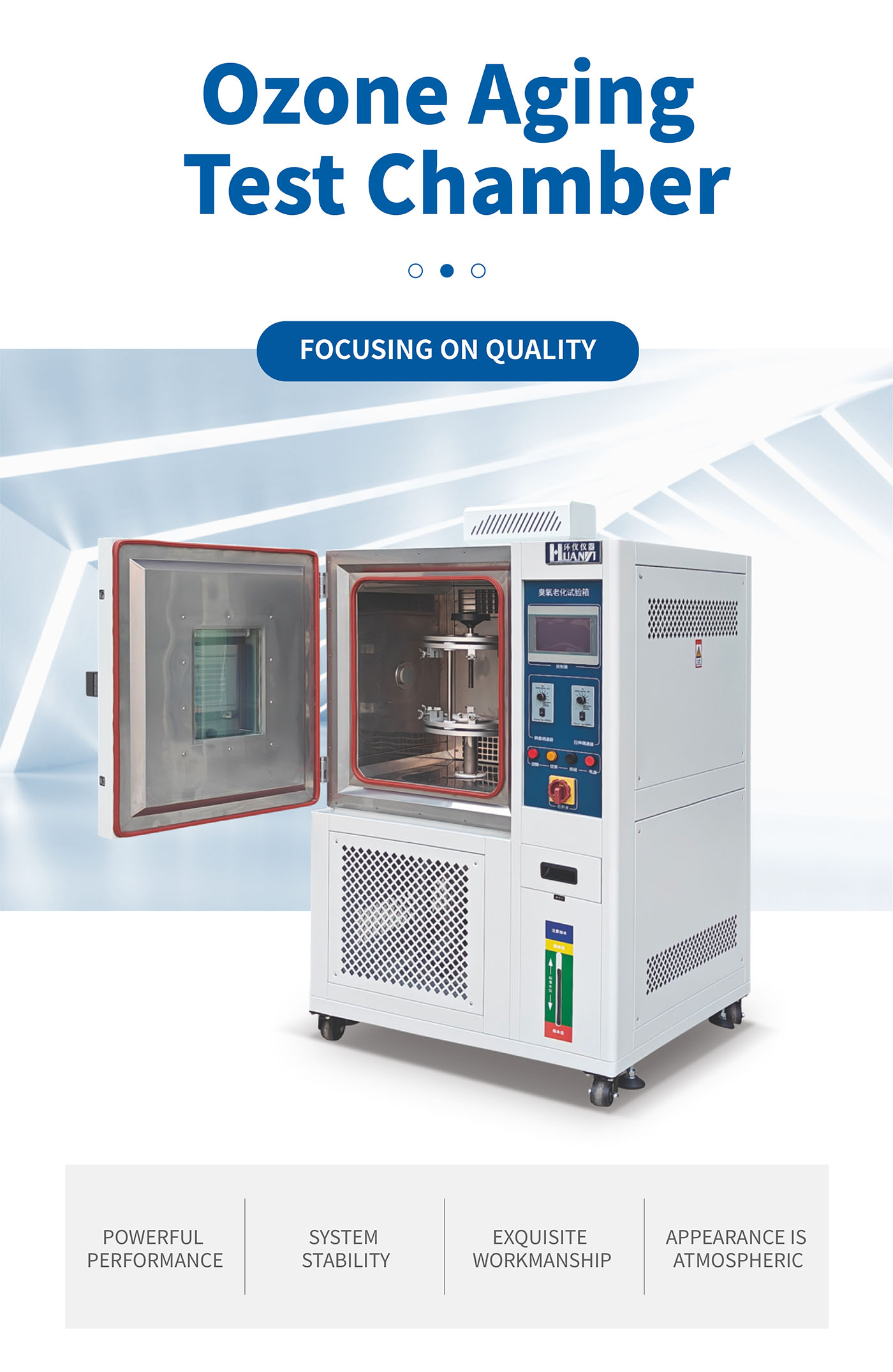

Ozone Aging Chamber can accurately simulate and control temperature, humidity, ozone concentration of different tools to help you carry out multiple static and dynamic testing. Ozone Aging Chamber can simulate natural environment of ozone atmosphere for rubber aging, adopt effective anti-aging measures to enhance the life of rubber products.

Send Inquiry

Product Description

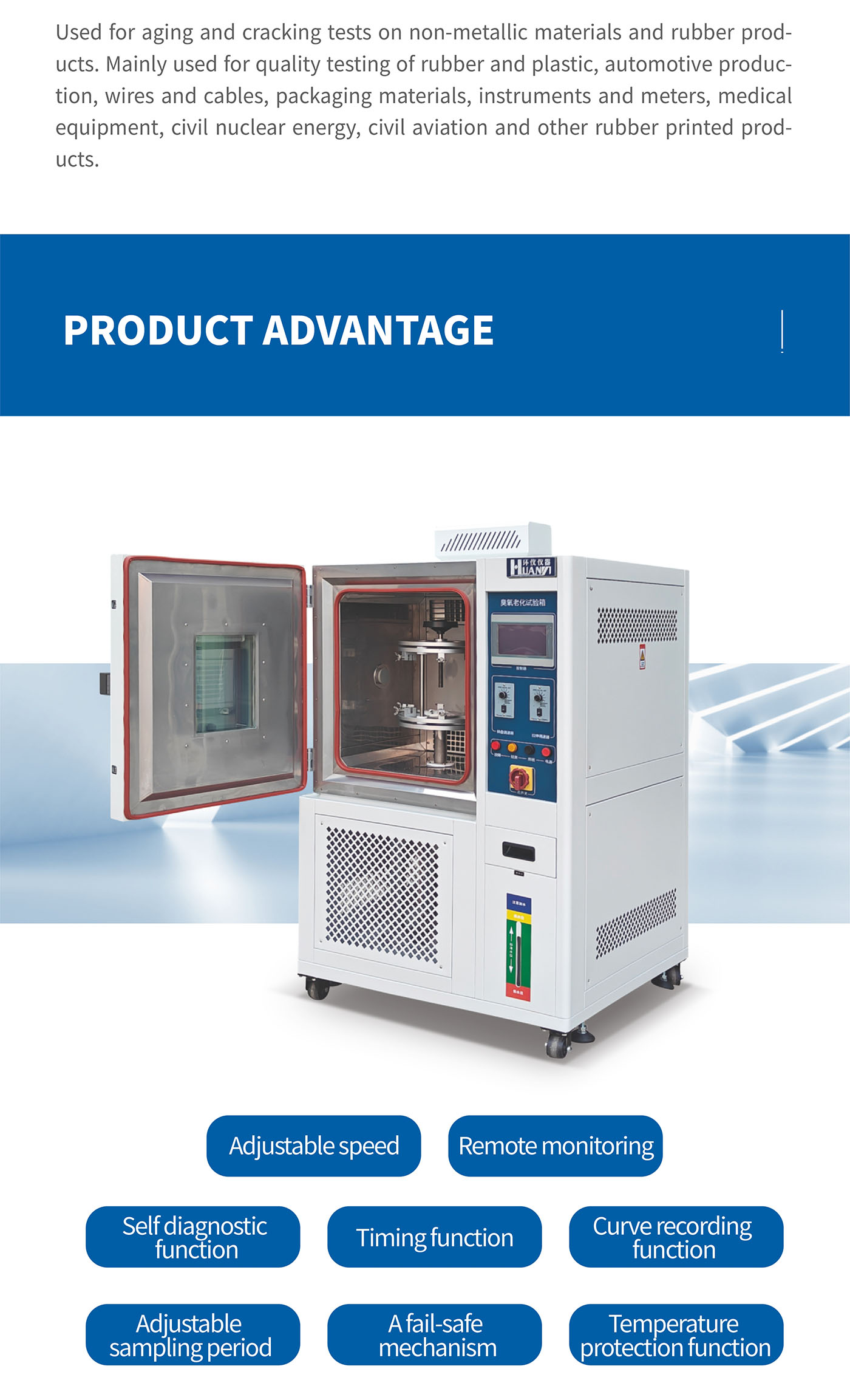

Applications

Ozone aging chamber is widely used to control products quality in measuring quality control; Rubber & Plastics; automobile production; wire and cable; packing materials; instruments and meters; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research laboratories; inspection arbitration, and technical supervision departments and other rubber products.

Meet the Standards

GB/T7762-2014 "Ozone Aging Resistance Test of Vulcanized Rubber - Static Tensile Test Method"
GB/T13642-2015 "Ozone Aging Resistance Test of Vulcanized Rubber - Dynamic Tensile Test Method"
ASTM1149 Standard "Test Methods for Rubber Deterioration - Cracking in an Ozone Controlled Environment"
ASTM D3041-79 "Method of Testing Coated Fabrics-Ozone Cracking in a Chamber"
ASTM D1171-18 "Standard Test Method for Rubber Deterioration-Surface Ozone Cracking Outdoors"
ISO1431-1 and "ISO1431-3 Rubber, vulcanized or thermoplastic - Resistance to ozone cracking"

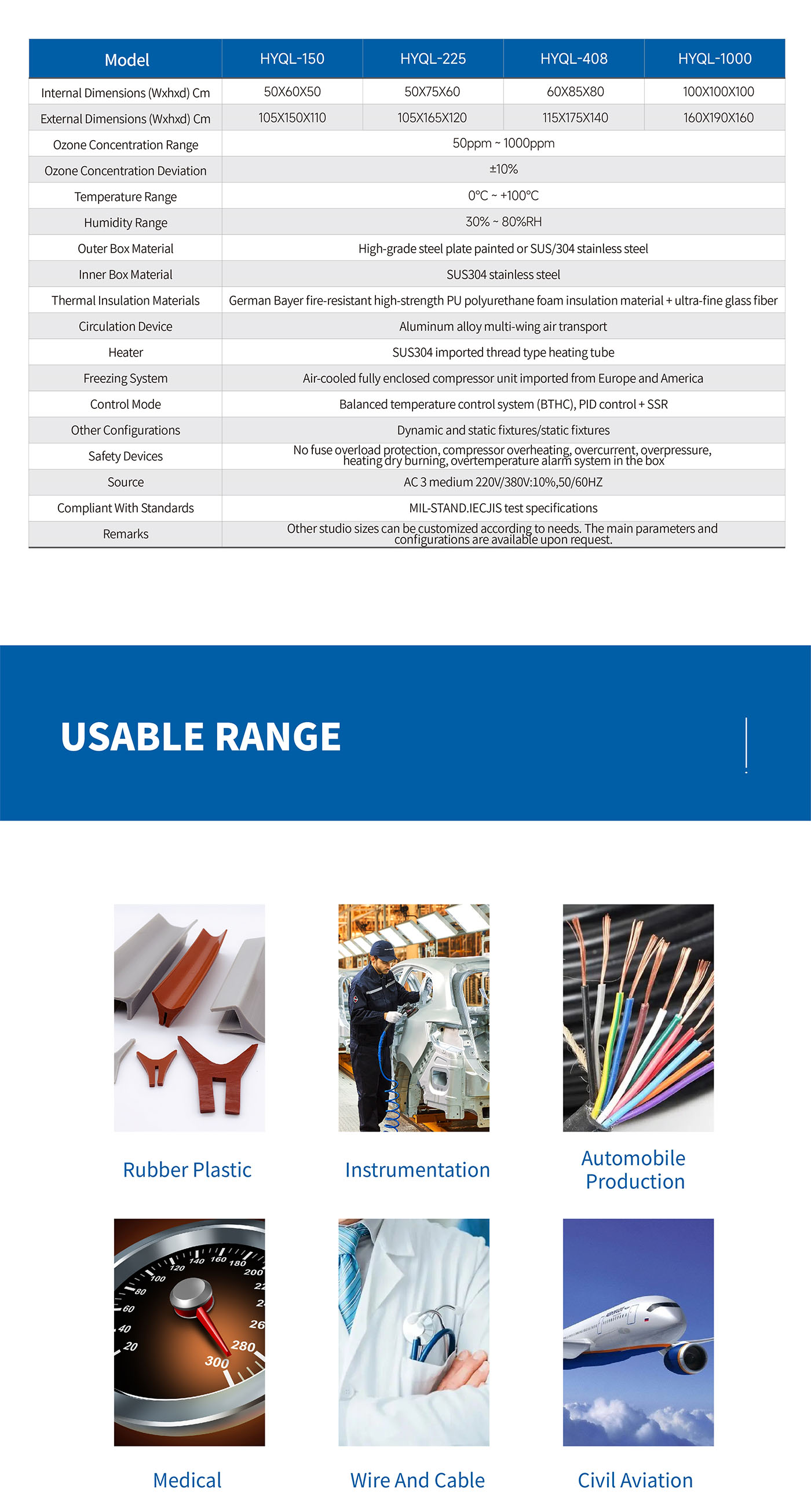

Technical Parameters

Model	HYQL-150	HYQL-225	HYQL-408	HYQL-1000
Internal size (WxHxD) cm	50x60x50	50x75x60	60x85x60	100x100x100
External size (WxHxD) cm	105x150x110	105x165x120	115x175x140	160x190x160
Ozone concentration range	50pphm~1000pphm
Ozone concentration deviation	±10%
Temp. range	0℃~+100℃
Humid. range	30%~80%RH
Interior material	High-grade steel plate with paint treatment or SUS/304 stainless steel
Exterior material	SUS304 stainless steel
Insulation material	German Bayer fire-resistant high-strength PU polyurethane foam insulation geomaterial + ultra-fine glass fiber
Circulation device	Aluminum alloy multi-wing air supply
Heater	SUS304 imported finned heating tube
Refrigeration system	Air-cooled European and American imported fully enclosed compressor unit
Control method	Balanced temperature control system (BTHC), PID control + S.S.R

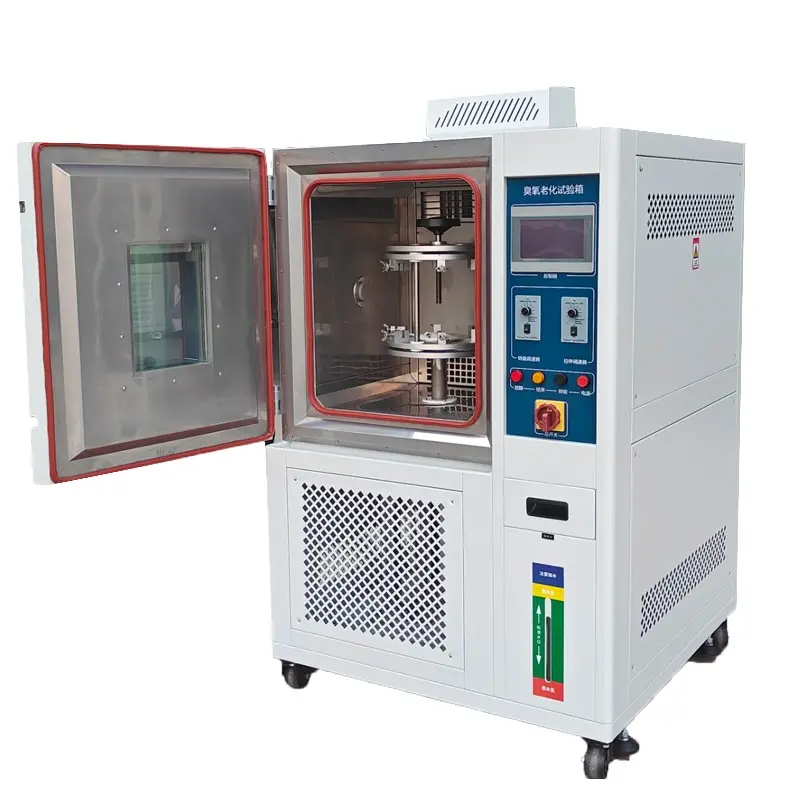

Other configurations	Dynamic and static fixtures / static fixtures
Power	AC 3Φ 220V/380V+10%, 50/60HZ

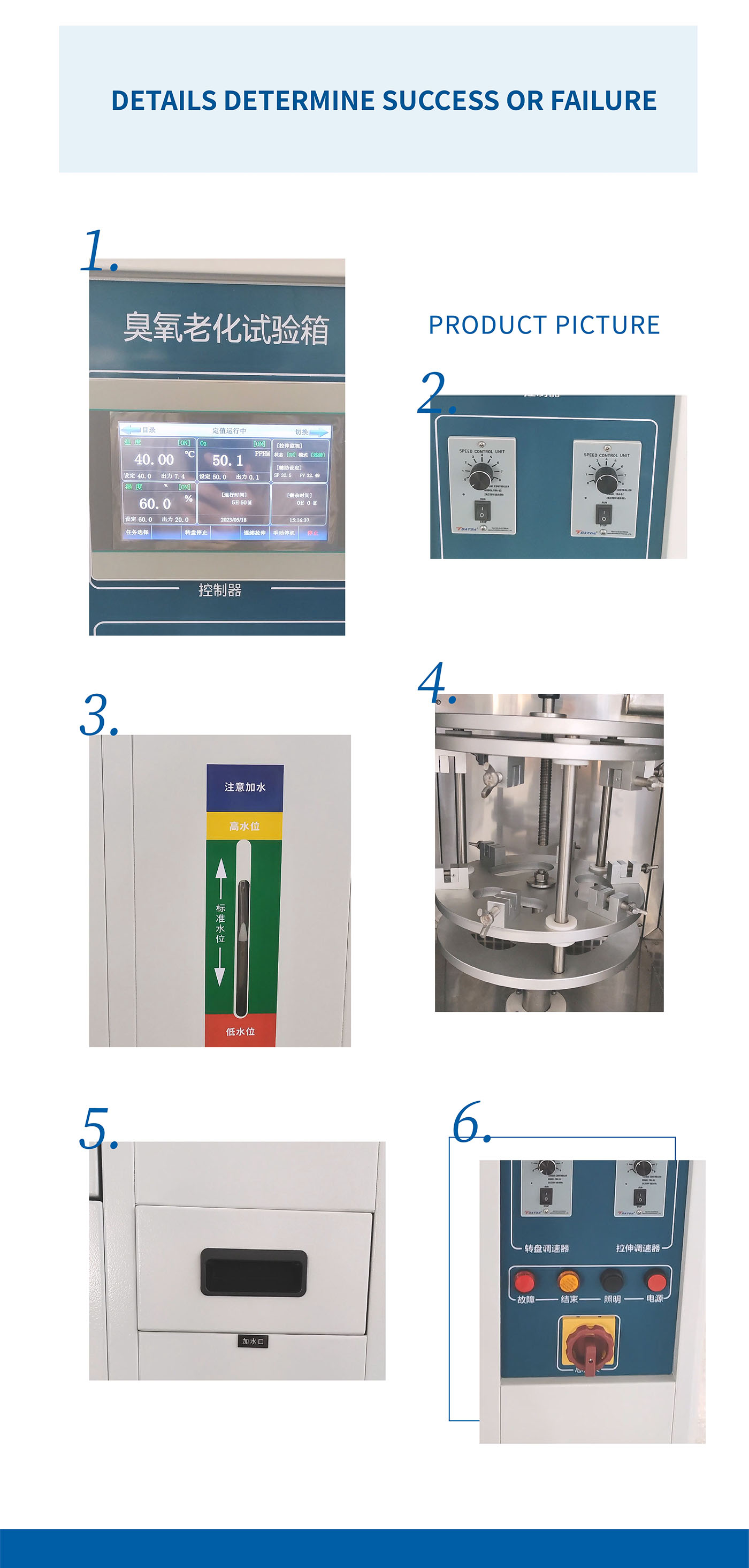

Product Showcase

Dynamic and Static Airbag Explosion Test Chamber

Operation Video

Frequently Asked Questions

Q1: What is the main purpose of an Ozone Aging Chamber?

It is designed to simulate and intensify ozone conditions to test the crack resistance and service life of rubber and polymer materials under controlled environments.

Q2: What ozone concentration levels can the chamber achieve?

The standard ozone concentration range for our HYQL series is between 50pphm and 1000pphm, with a deviation of only ±10%.

Q3: Does the equipment support both static and dynamic testing?

Yes, the chamber can be configured with both dynamic and static fixtures to meet different international testing standards like GB/T7762 and GB/T13642.

Q4: What are the temperature and humidity capabilities?

The chamber supports a temperature range from 0℃ to +100℃ and a humidity range of 30% to 80%RH, controlled via a high-precision PID system.

Q5: Which international standards are compatible with this tester?

Our equipment fully complies with major standards including ASTM D1149, ISO 1431, ASTM D1171, and various GB/T national standards.

Q6: What materials are used for the chamber construction?

The interior is made of high-grade SUS304 stainless steel, while the insulation utilizes German Bayer fire-resistant high-strength PU foam for maximum thermal efficiency.
