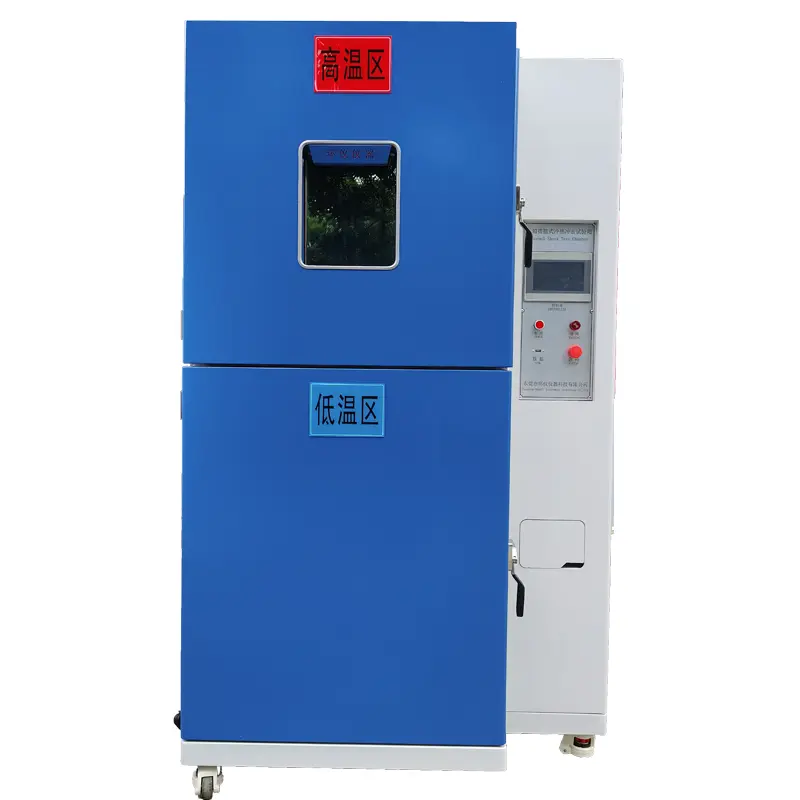

Custom Liquid to Liquid Thermal Shock Test Chamber Suppliers, Factories
Thermal shock test chamber (two-chamber temperature shock test chamber) can simulate the environment of instantaneous changes in high and low temperatures. Two-box Type Thermal Shock Test Chamber used to determine whether a device will suffer physical damage or performance degradation when exposed to rapid changes in ambient atmospheric temperature.
Mainly used in aerospace, aviation, military units, electronics, IT industries, etc., to test the adaptability of test products under conditions of rapid changes in ambient atmospheric temperature, and to provide reliability tests and product screening for basic safety tests of electronic components, parts and products (complete machines).
Experimental Features
The product has beautiful appearance, reasonable structure, advanced technology, and exquisite material selection. It has simple and convenient operation performance and reliable equipment performance.
It can independently set the functions of three different conditions: high temperature, low temperature, and cold and hot shock. When executing the cold and hot shock conditions, you can choose two-slot or three-slot and cold shock and hot shock for shock. It has the function of a high and low temperature testing machine.
It has a fully automatic, high-precision system circuit and any machine action. It has a complete P.L.C locking process. It all adopts P.I.D automatic calculation control, and the temperature control accuracy is high.
Super strong safety protection function: power overload protection, leakage protection, control circuit overload, short circuit protection, compressor protection, grounding protection, overtemperature protection, alarm sound prompt, etc.

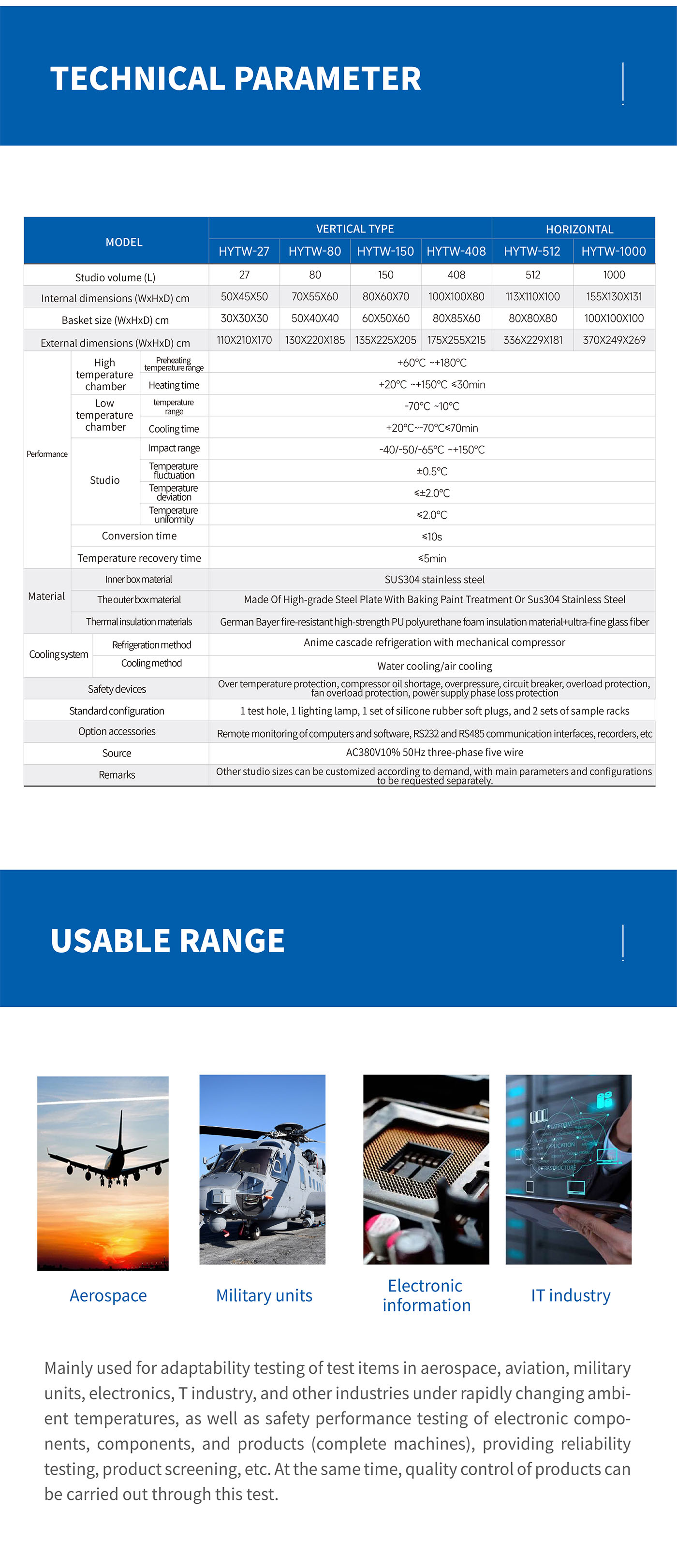

Technical Parameters
Model
Vertical: HYTW-V
Horizontal: HYTW-H
27
80
150
408
512
1000
Volume(L)
27
80
150
408
512
1000
Internal size (WxHxD)cm
50x45x50
70x55x60
80x60x70
100x100x80
113x110x100
155x130x131
Basket size (WxHxD)cm
30x30x30
50x40x40
60x50x50
80x85x50
80x80x80
100x100x100
External size (WxHxD)cm
110x210x170
130x220x185
135x225x205
175x255x215
336x229x181
370x249x269
High temp zone
Preheating temp range: +60℃ ~ +180℃
Heating time: +20℃ ~ +150℃≤30min
Low temp zone
Temp range: -70℃~10℃
Cooling time: +20℃~-70℃≤70min
Shock range
-40/-50/-65℃ ~ +150℃
Temp constancy
±0.5℃
Temp deviation
≤±2.0℃
Temp uniformity
≤2.0℃
Transfer time
≤10s
Thermal recovery time
≤5min
Interior material
SUS304 stainless steel
External material
High-grade steel paint treatment or SUS304 stainless steel
Insulation material
Germany Bayer refractory grade high strength PU polyurethane foam insulation material + ultra-fine glass fiber
What industries are these test chambers primarily used in?
They are widely utilized in aerospace, aviation, military, electronics, and IT industries to test product reliability under rapid temperature fluctuations.
What is the transfer time for the thermal shock?
The equipment features a high-speed transfer mechanism with a transfer time of ≤10 seconds.
How accurate is the temperature control system?
The system utilizes high-precision P.I.D automatic calculation control, ensuring a temperature constancy of ±0.5℃.
Can the machine perform standard high and low temperature tests?
Yes, the chamber can independently set functions for high temperature or low temperature, effectively working as a high and low temperature testing machine.
What safety protections are built into the system?
It includes multiple protections such as power overload, leakage, control circuit overload, compressor protection, grounding, and overtemperature alarms.
What materials are used for insulation?
The chamber uses Germany Bayer refractory grade high-strength PU polyurethane foam combined with ultra-fine glass fiber for superior insulation.
