Custom IPx7 IPx8 Water Immersion Test Chamber Manufacturers, Suppliers
Custom IPx7 IPx8 Water Immersion Test Chamber Manufacturers, Suppliers
Custom IPx7 IPx8 Water Immersion Test Chamber Manufacturers, Suppliers
1 / 3
Custom IPx7 IPx8 Water Immersion Test Chamber Manufacturers, Suppliers
Custom IPx7 IPx8 Water Immersion Test Chamber Manufacturers, Suppliers
Custom IPx7 IPx8 Water Immersion Test Chamber Manufacturers, Suppliers

Custom IPx7 IPx8 Water Immersion Test Chamber Manufacturers, Suppliers

This product uses scientific design, makes the equipment can realistic simulation drop of water, splash water, water spray, jetting and immersion, etc., various kinds of enviroment. they can be automatic control.

Send Inquiry

Product Description

Applications

LED IPX7 8 Water Immersion Test Chamber is suitable for electric products assessment. It ensures that shells and seals in rain environments provide excellent performance protection for equipment and components. This product uses a scientific design to realistically simulate water drops, splashing, water spray, jetting, and immersion in various environments with automatic control systems.

Key Characteristics

  • Dual functionality: IPX7 and IPX8 in one chamber
  • Simulates up to 50m water depth pressure
  • Efficient water circulation unit to eliminate consumption
  • Fully automatic water supply system
  • Programmable color touch screen controller
  • Complete safety protection system
  • Durable SUS304 stainless steel construction with mirror polishing
  • High-precision sub-arc welding and anti-aging silicone seals
  • Equipped with premium imported control components (LG, Panasonic, Omron)
  • Automatic air drainage and time control (0-999 minutes)
  • Equipped with water inlet/drain valves and 5-meter hose
  • Mobile base with 4 brake-equipped casters

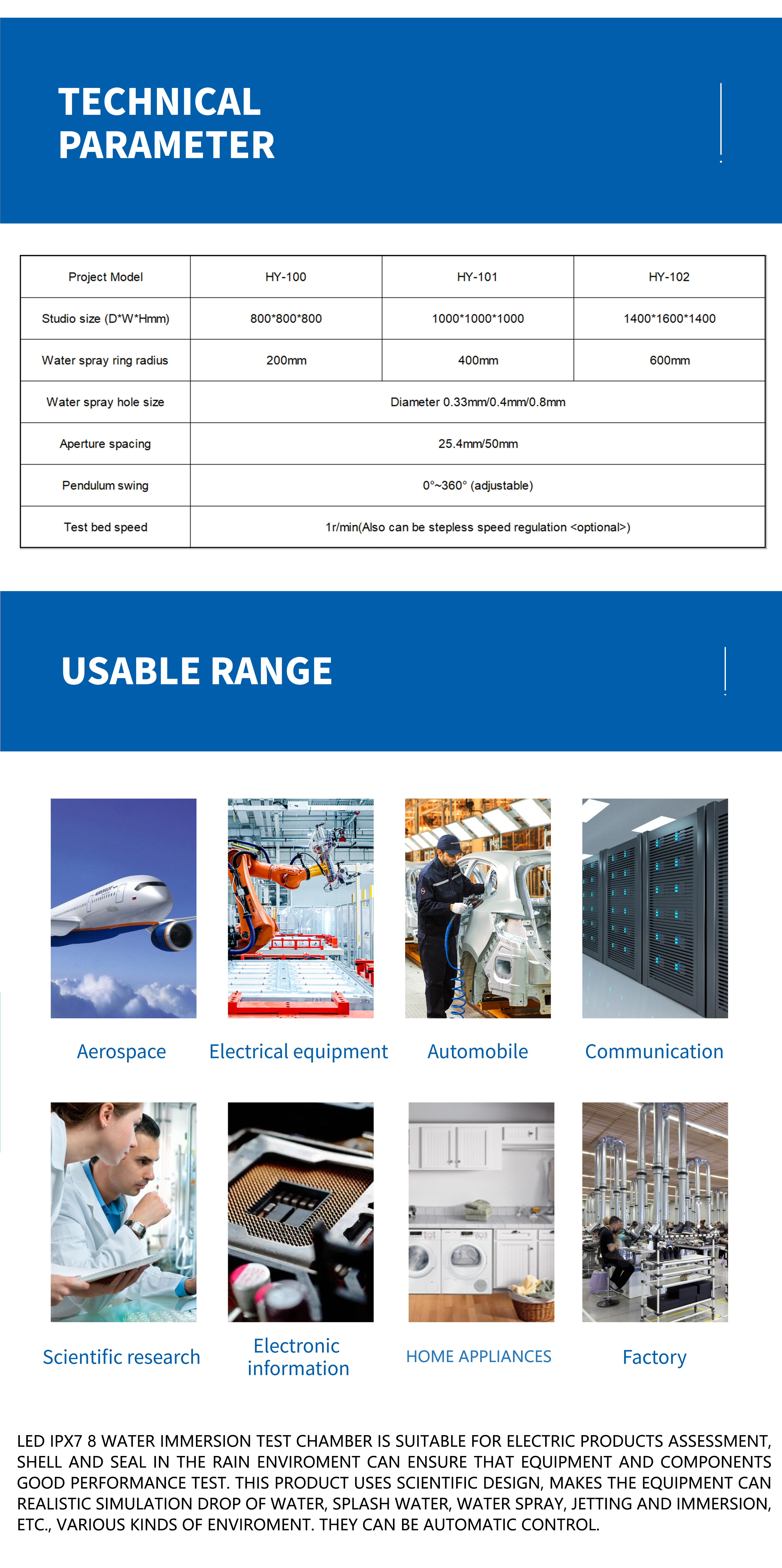

Technical Parameters

Project Model HY-100 HY-101 HY-102
Studio size (D*W*Hmm) 800*800*800 1000*1000*1000 1400*1600*1400
Water spray ring radius 200mm 400mm 600mm
Water spray hole size Diameter 0.33mm/0.4mm/0.8mm
Aperture spacing 25.4mm/50mm
Pendulum swing 0°~360° (adjustable)
Test bed speed 1r/min (Stepless speed regulation optional)

Demonstration Video

Product Details & Diagrams

Detail 1
Detail 2
Detail 3
Description 1
Description 2
Description 3
Description 4
Description 5
Frequently Asked Questions
Q1: Can this chamber perform both IPX7 and IPX8 tests? A: Yes, this chamber is designed to integrate both IPX7 and IPX8 testing functions into a single unit for comprehensive immersion assessment.
Q2: What is the maximum water depth simulation capacity? A: The equipment can simulate water pressure equivalent to up to 50 meters of water depth.
Q3: Is the water supply system manual or automatic? A: It features a fully automatic water supply system and an intelligent circulation unit to minimize water consumption.
Q4: What materials are used for the chamber construction? A: The chamber is built with high-quality SUS304 stainless steel plates, utilizing precision sub-arc welding and specialized anti-aging silicone sealing rings.
Q5: Is the test time customizable? A: Yes, the system includes a time control function that can be set from 0 to 999 minutes, with automatic drainage once the time is reached.
Q6: How easy is it to move the equipment? A: The base is equipped with four heavy-duty casters with integrated brakes, making it very easy to move and secure in place.
